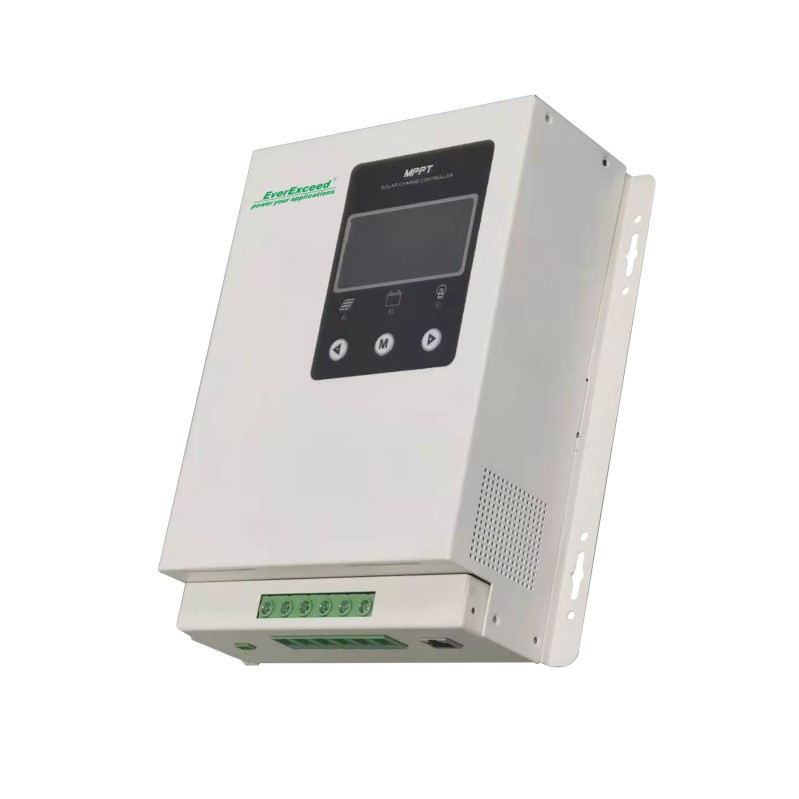

Thunder Series MPPT Solar Charge Controller

EverExceed's Thunder MPPT solar charge controller is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems . The controller provides the industry's highest peak efficiency and significantly less power loss compared to other MPPT controllers along with unique safety features make it universal top-grade charge controller.

The Thunder MPPT features a smart tracking algorithm that maximizes the energy produce from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve.



Technical features:



  • Thunder series MPPT controller that is truly suitable for lithium batteries adopts a unique circuit design and has a lithium battery activation function to ensure perfect matching with lithium batteries.

  • Advanced High-efficient MPPT algorithm MPPT efficiency 2 99.5%, Max. charge efficiency up to 97%, 30% more than PWM controller ;

  • Fanless design for long-term reliability and long service life.

  • Excellent performance at sunrise and low solar isolation levels.

  • Automatic battery voltage recognition (compatible with 12V/24V/36V/48V).

  • Due to build in oversize heat sink to dissipation, Thunder controller can continuous operation at full power to 45 C without reducing power.

  • RS485 communication port for software.



Electronic protection function:




  • Battery low voltage protection.
  • Battery over voltage protection.
  • Load over current protection.
  • Over temperature protection.
  • Short circuit protection.
  • Anti-surge protection.
  • Reverse protection
