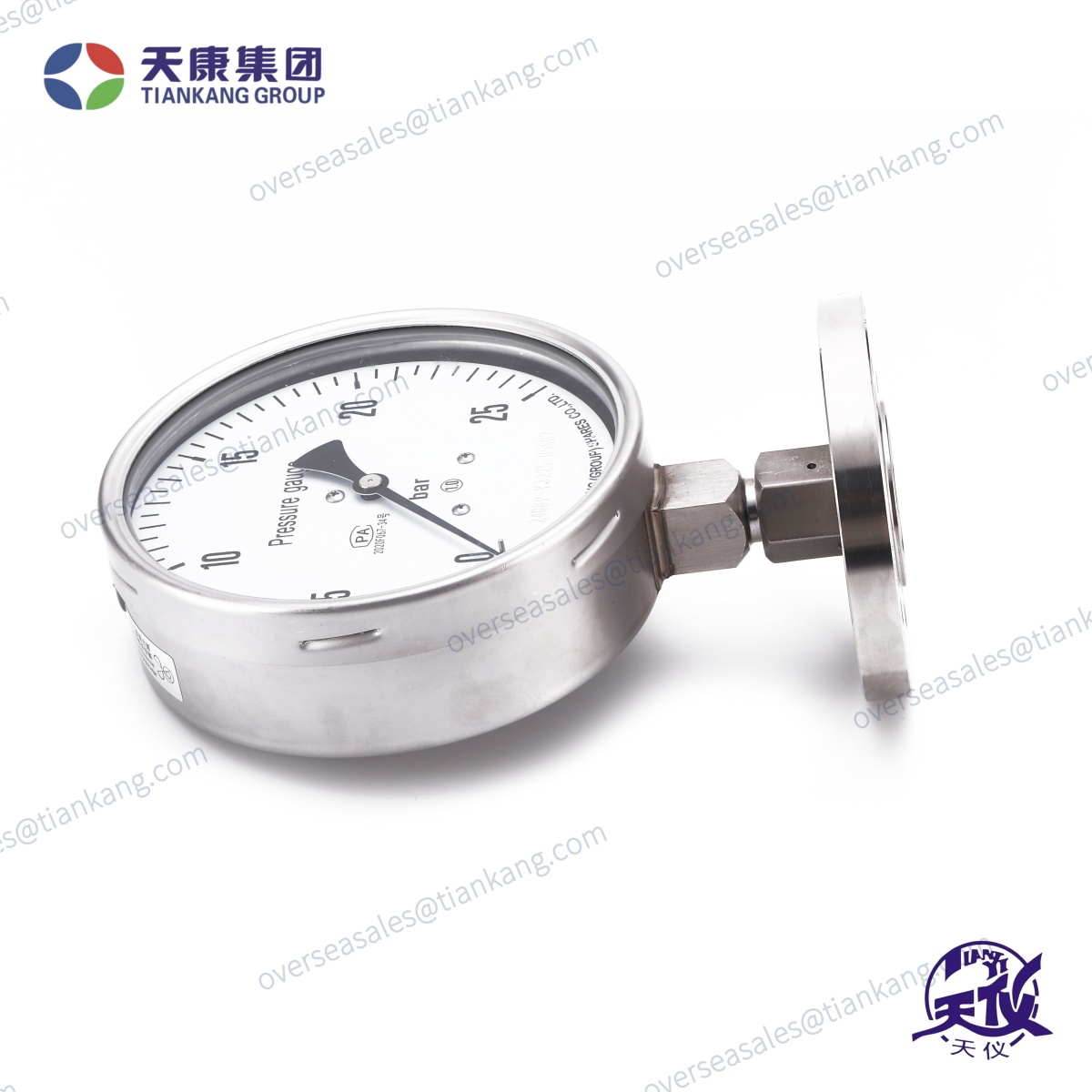

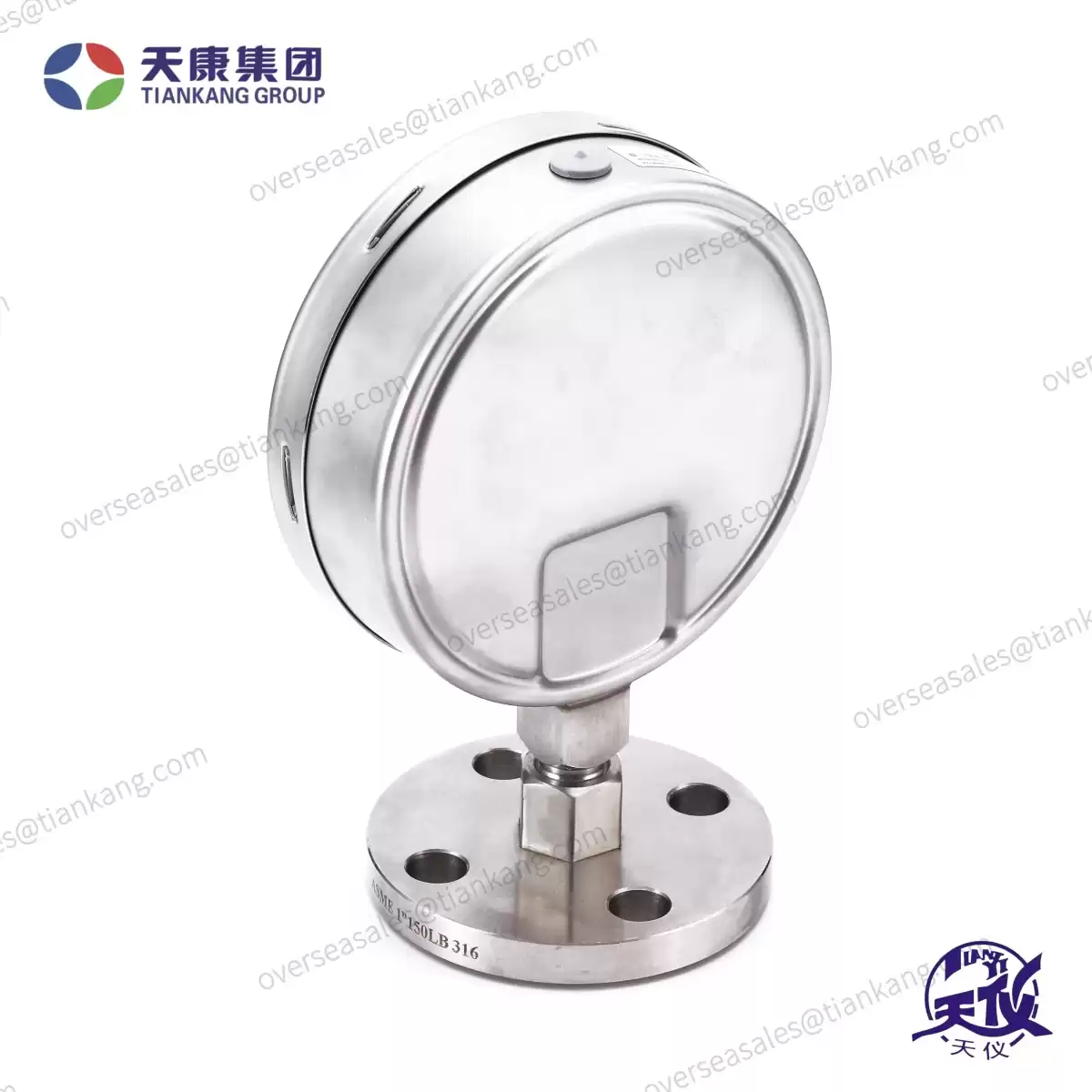

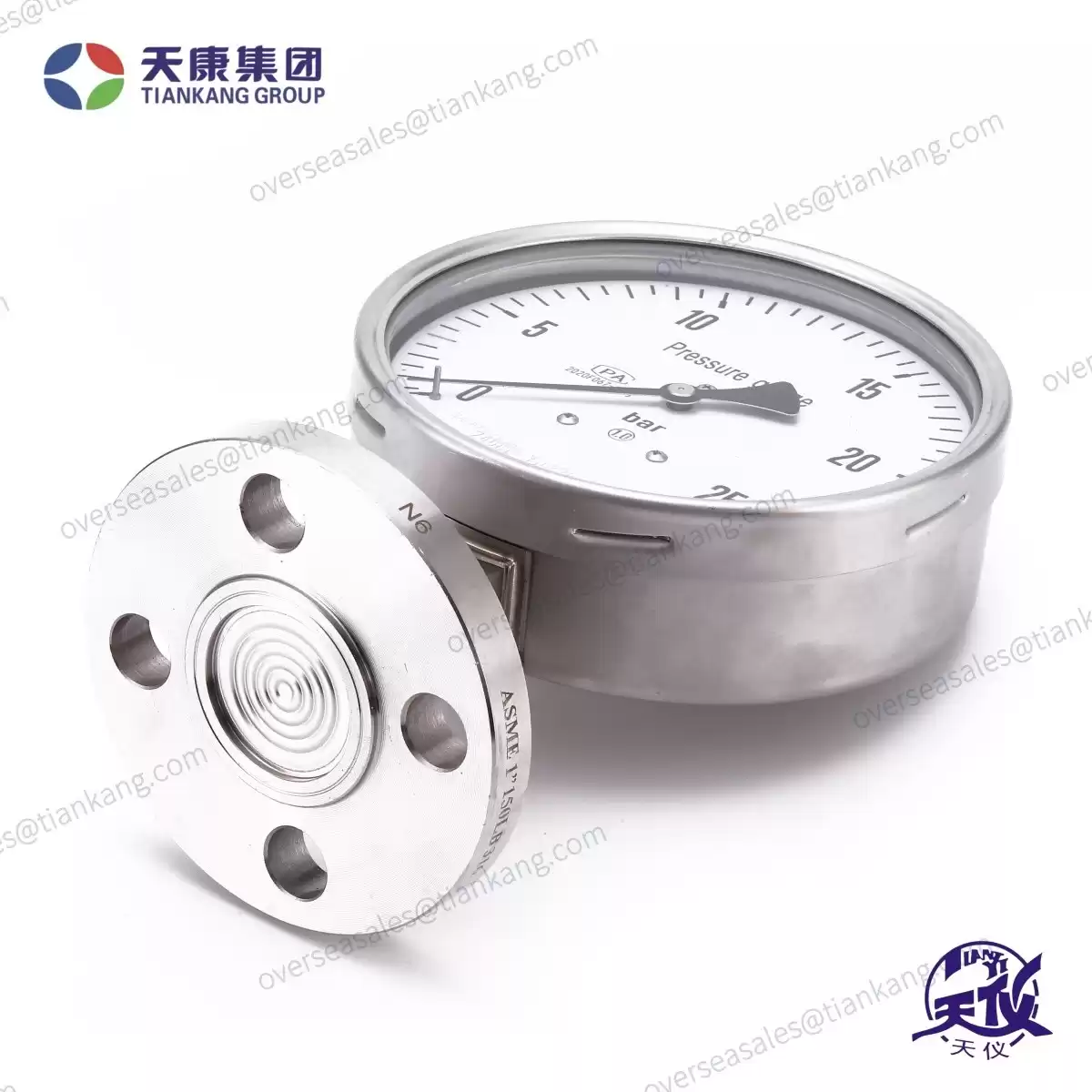

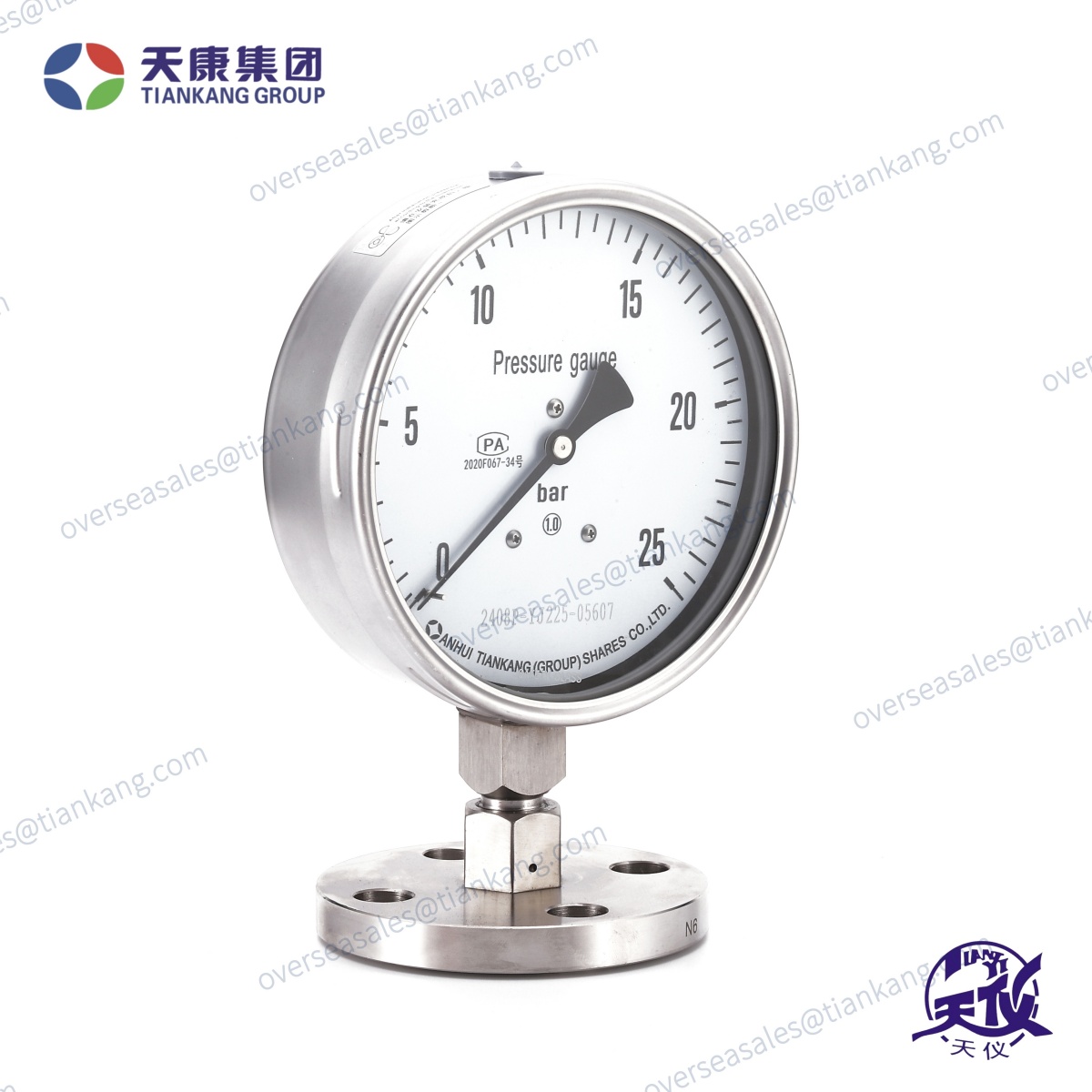

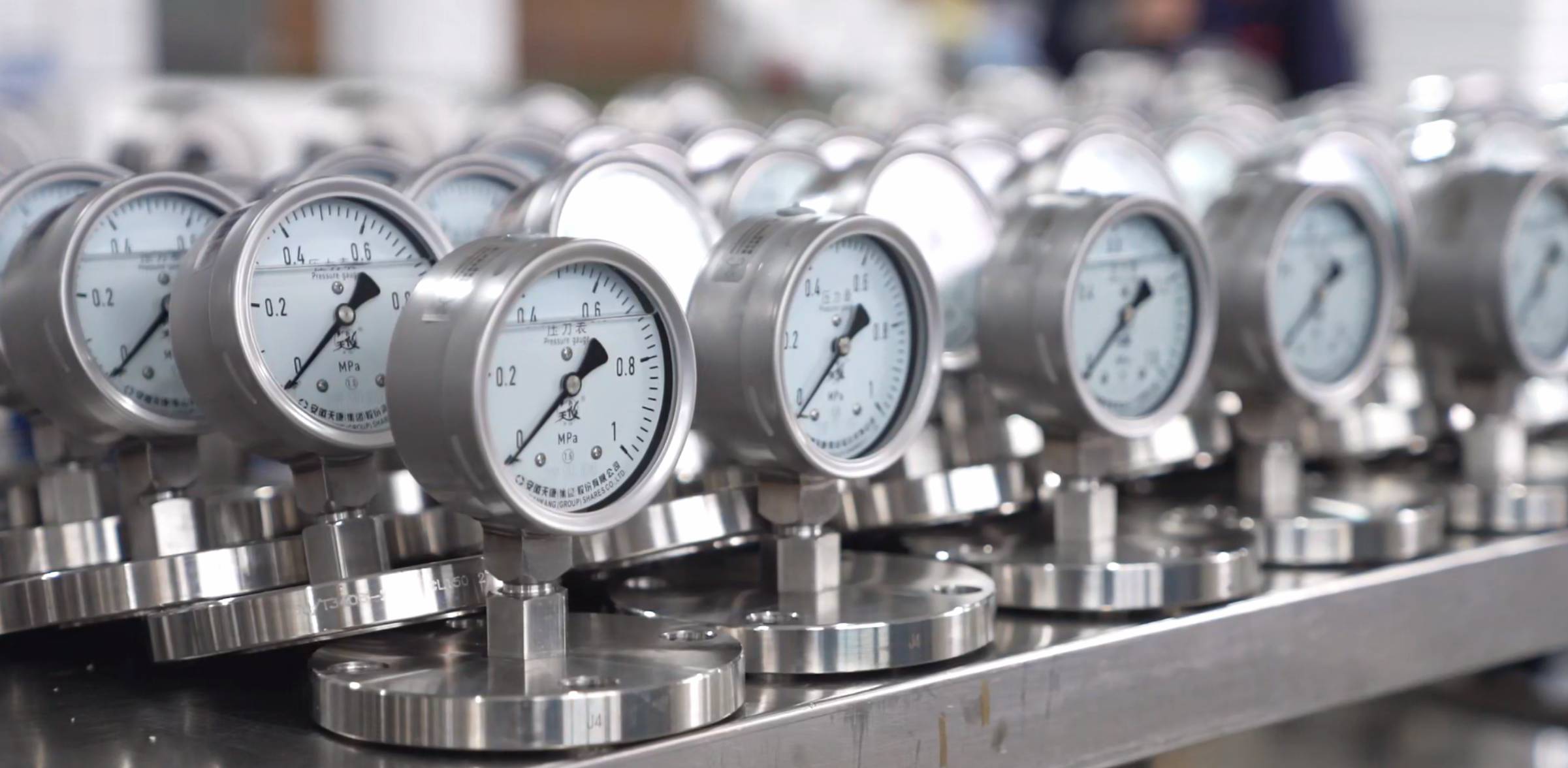

Tiankang Diaphragm Pressure Gauge

Tiankang diaphragm pressure gauge is mainly used in process industries such as petrochemicals, alkali production, chemical fibers, pharmaceuticals, and food processing. It consists of a general-purpose pressure gauge along with a connector and a diaphragm isolator. It is used in situations where the measuring medium is highly corrosive, high temperature, high viscosity, prone to crystallization, prone to solidification, or contains solid particulates.

Facebook Twitter Pinterest LinkedIn 分享

Description

Overview

The Tiankang diaphragm pressure gauge is suitable for measuring the pressure of highly corrosive, high temperature, high viscosity, crystallizing, and solidifying media, and those containing solid particulates. In cases where certain measuring media cannot directly enter general-purpose pressure gauges and where convenience for cleaning is required to prevent the accumulation of sediments, a diaphragm gauge composed of a diaphragm isolator and a general-purpose pressure gauge must be used for pressure detection.

Technical Specifications

Parameter	Specification
Diaphragm type/connection	Diaphragm flange; Diaphragm threaded
Dial diameter	60; 100; 150
Installation method	Radial; Axial
Diaphragm material	SS316; H.C alloy; Ta; Ti Monel; others
Accuracy class	1.0; 1.6; 2.5
