Overview

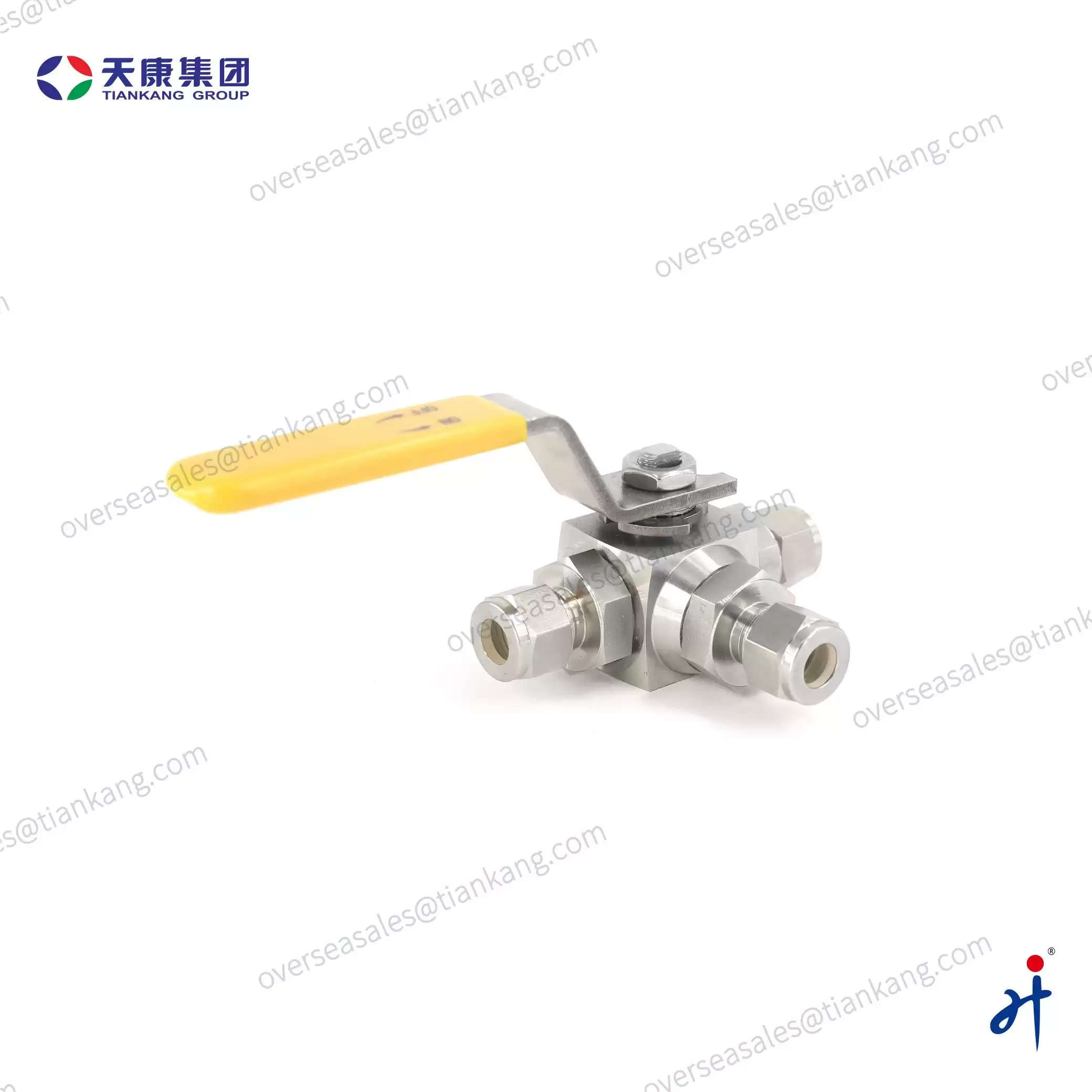

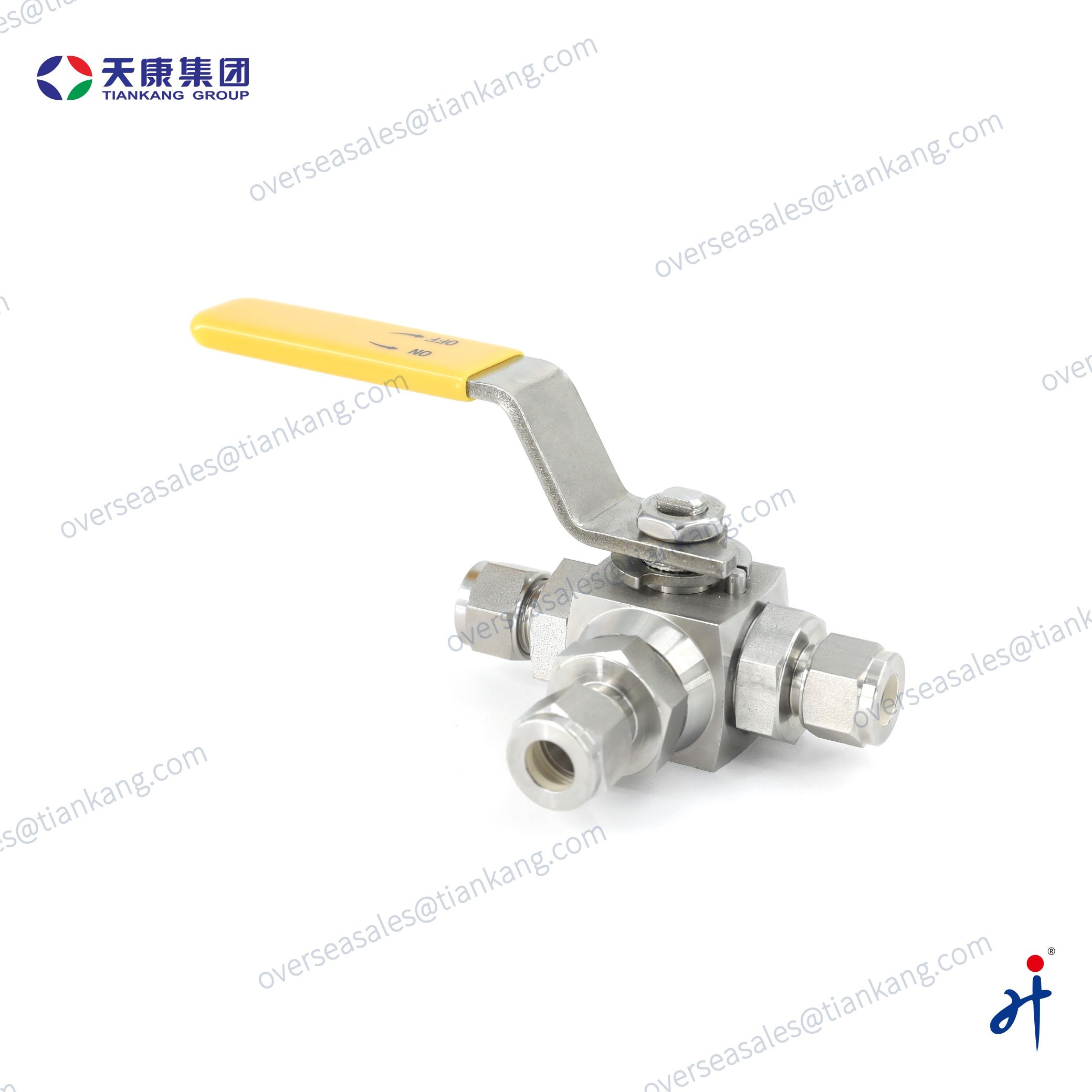

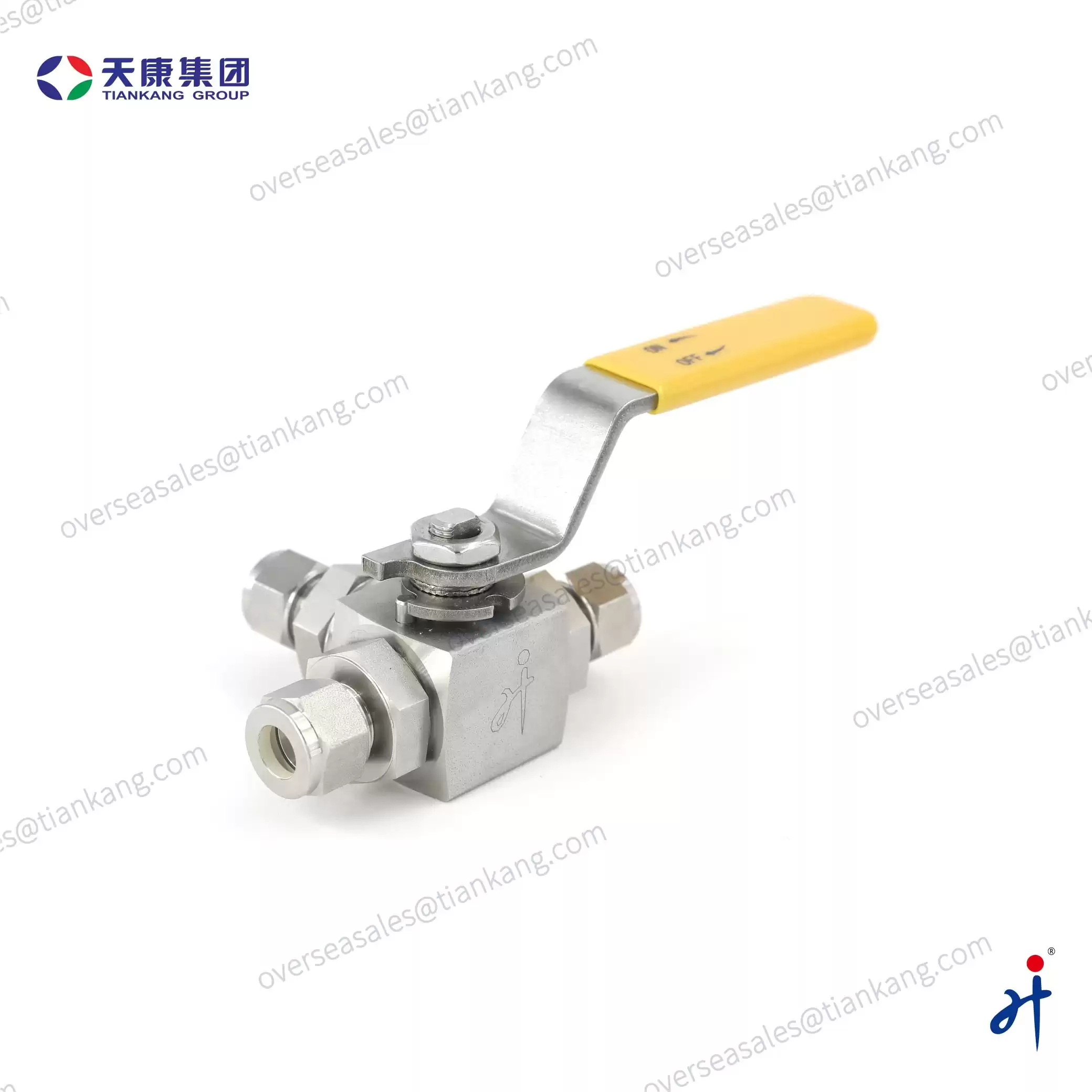

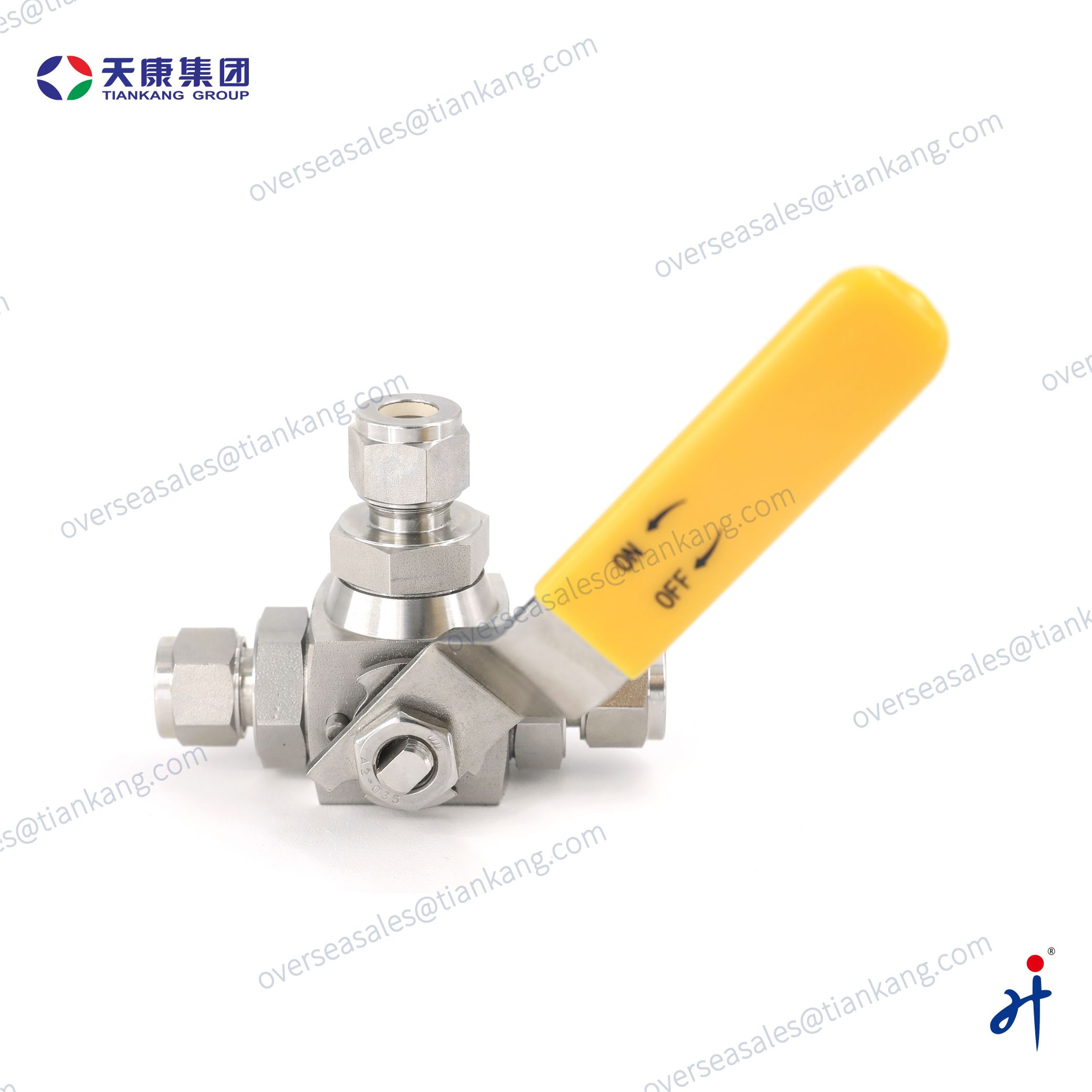

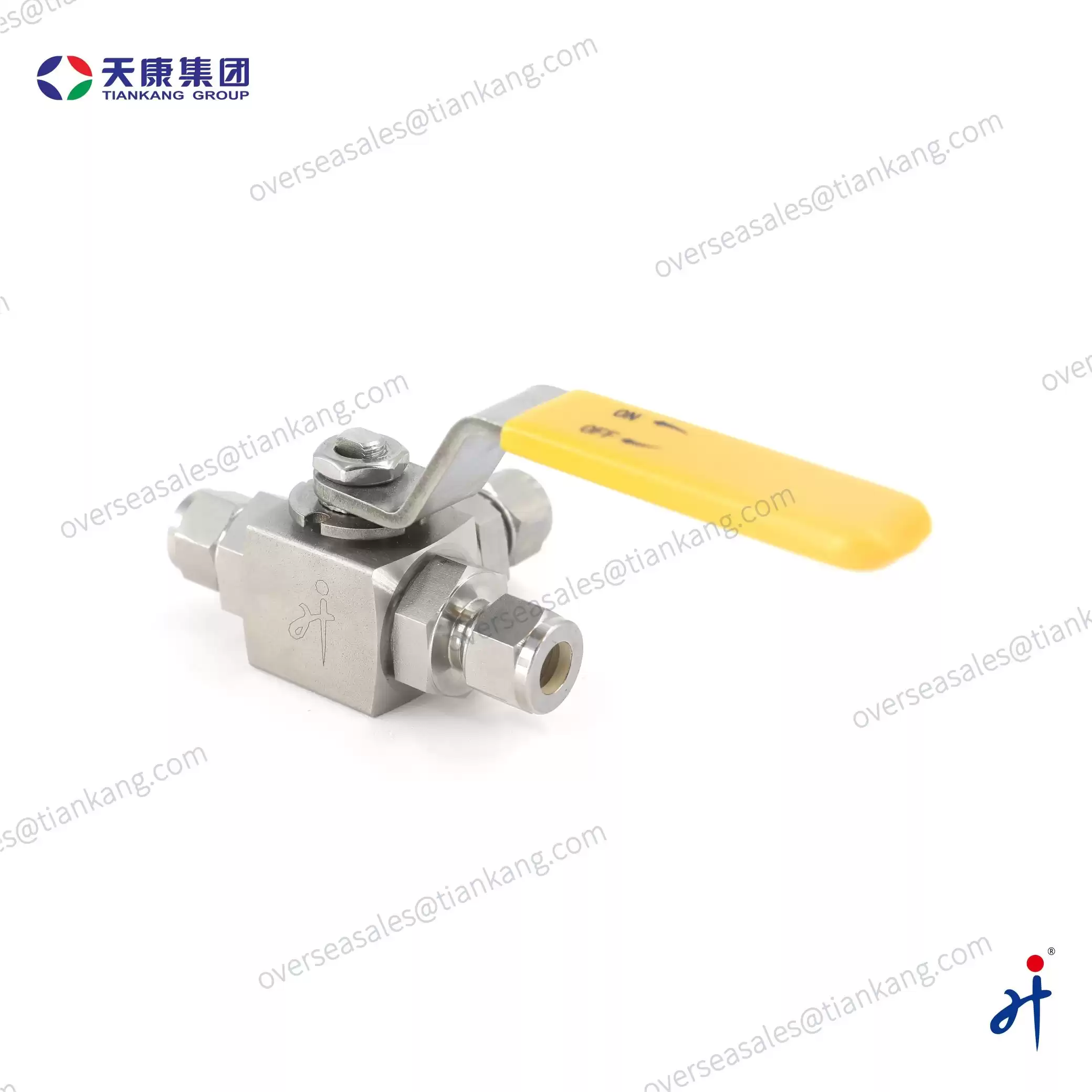

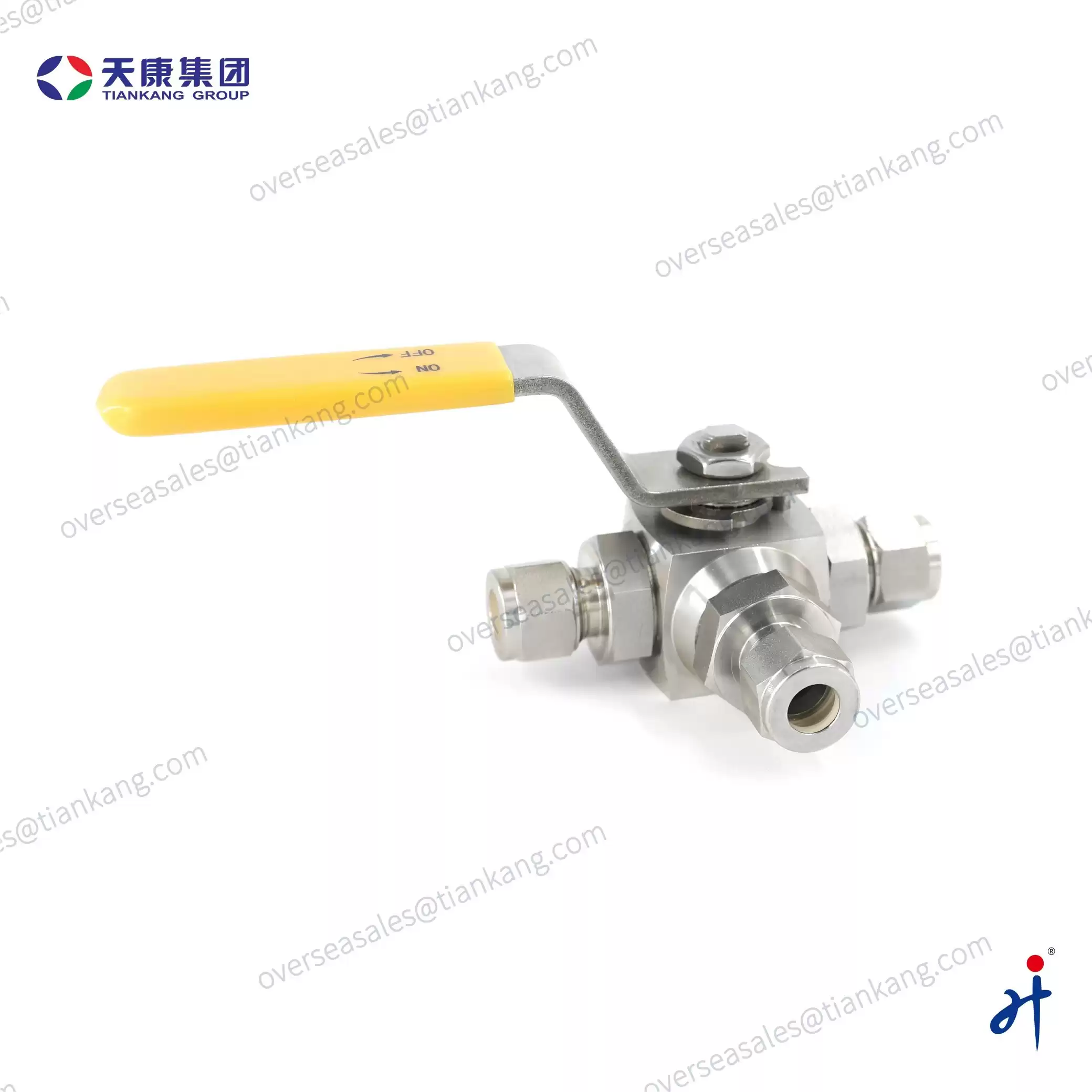

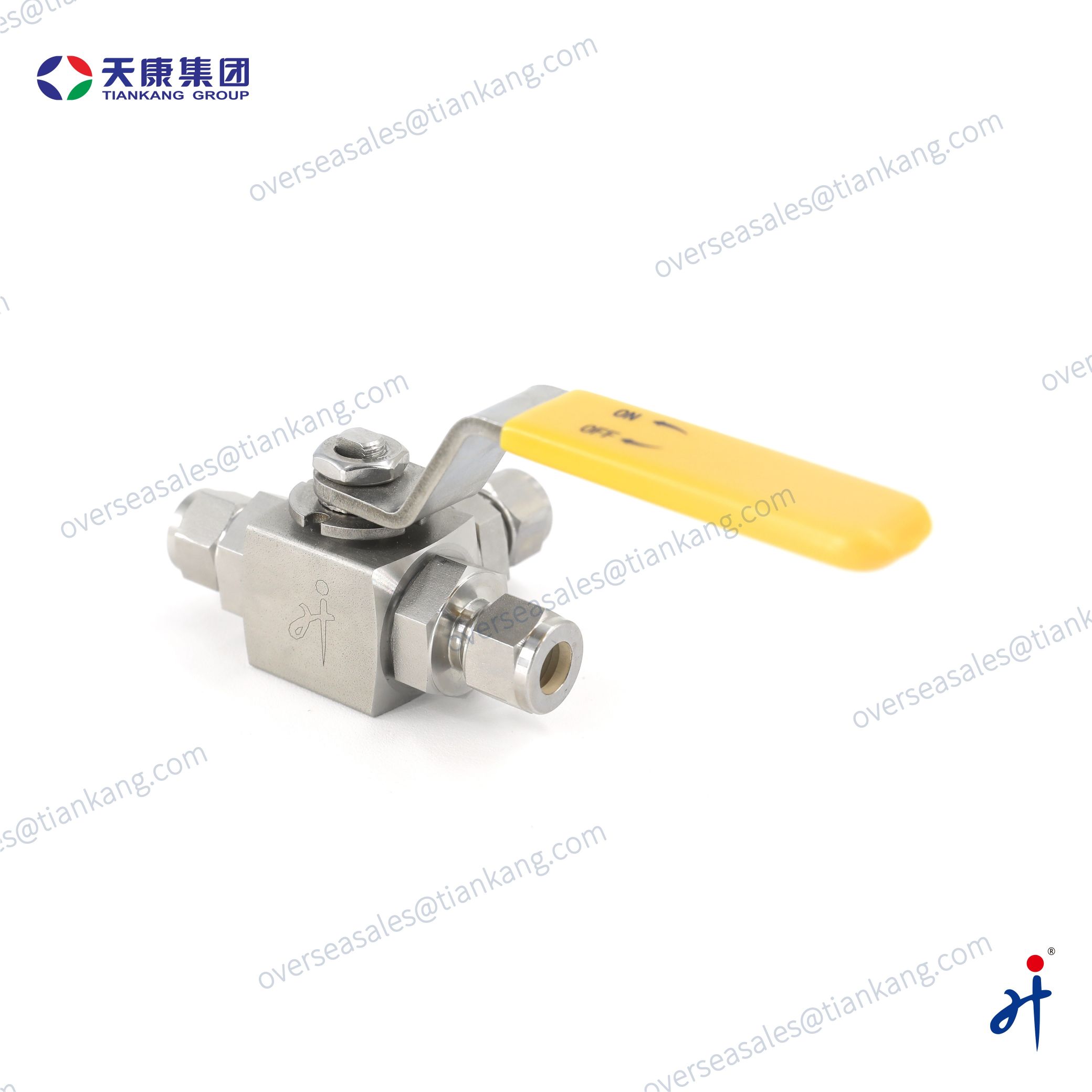

The Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve supports multiple connection types, including ferrule, threaded, and tube connections, with orifice sizes from 4.8 mm to 18 mm for flexible system integration. Featuring corrosion resistance and high-pressure durability, this valve is suitable for hydraulic and fluid control systems in industries such as oil and gas, chemicals, and metallurgy.
Technical Specifications
| Parameters |
Specifications |
| Working pressure |
10000psi(690bar) |
| Working temperature |
-40°F to 450°F (-40°C to 232°C)
|
| Flow pattern |
3-Way(Vertical pattern/Horizontal pattern) |
| Seat material |
PVDF; PCTFE; PEEK |
| Process connection |
Ferrule; Thread; Tube |
| Orifice, mm |
4.8; 6.4; 7.1; 10; 12.7; 18 |
| Body material |
SS316L; SS316; SS304 |
Applications
- Chemical Processing: They are used to control the flow of chemicals in pipelines.
- Oil and Gas Industry: Hydraulic Ball Valve regulates the flow of oil and natural gas, especially in extraction and transportation.
- Water Treatment: They are utilized in systems to regulate water flow, such as in filtration or treatment plants.
- Pharmaceuticals: Hydraulic Ball Valves help in controlling the flow of liquids and gases in pharmaceutical production lines.
- Food and Beverage: Hongji Hydraulic Ball Valves are used to control the flow of liquids such as juices, milk, or beer in production lines.

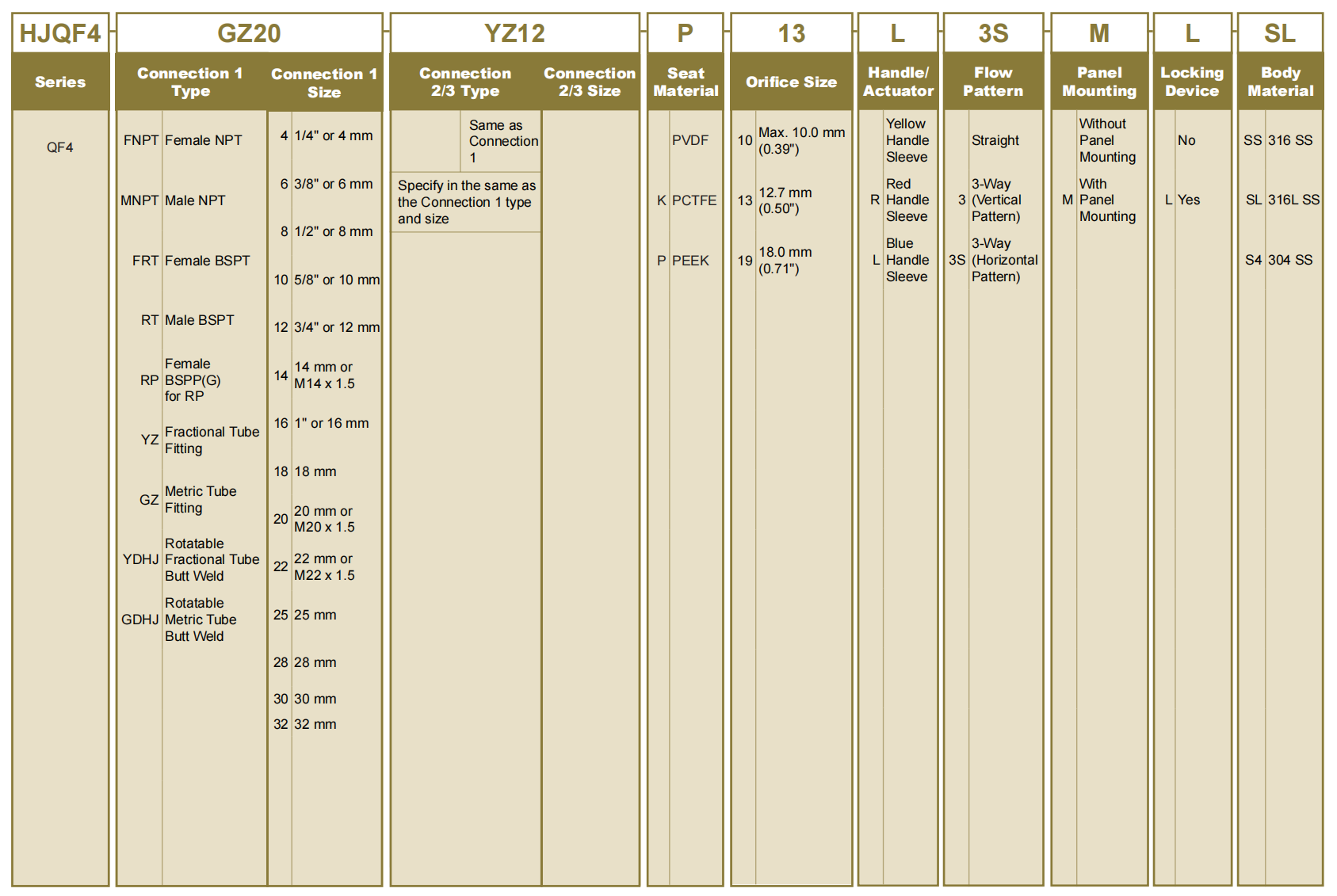

Ordering Number Description：

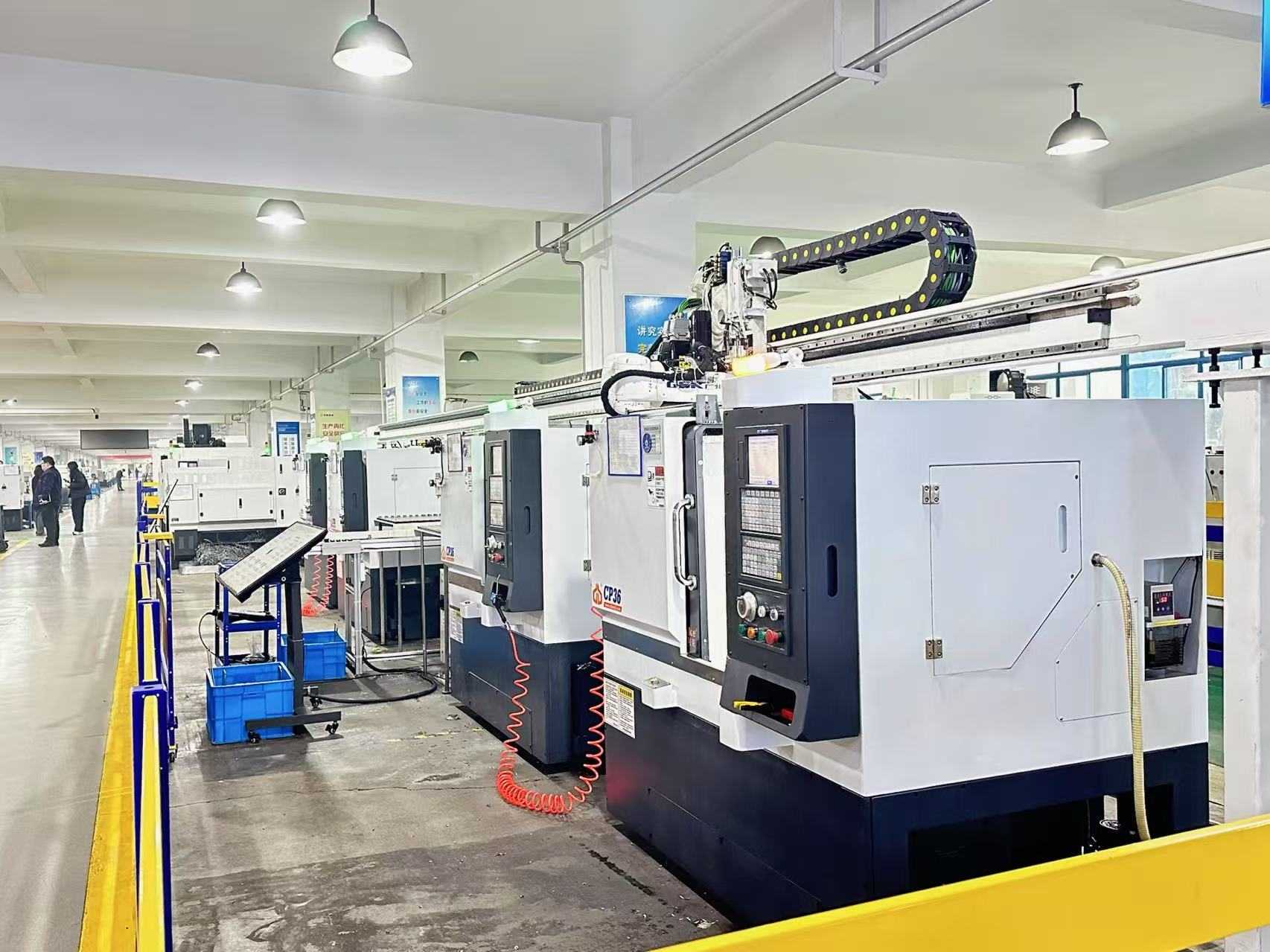

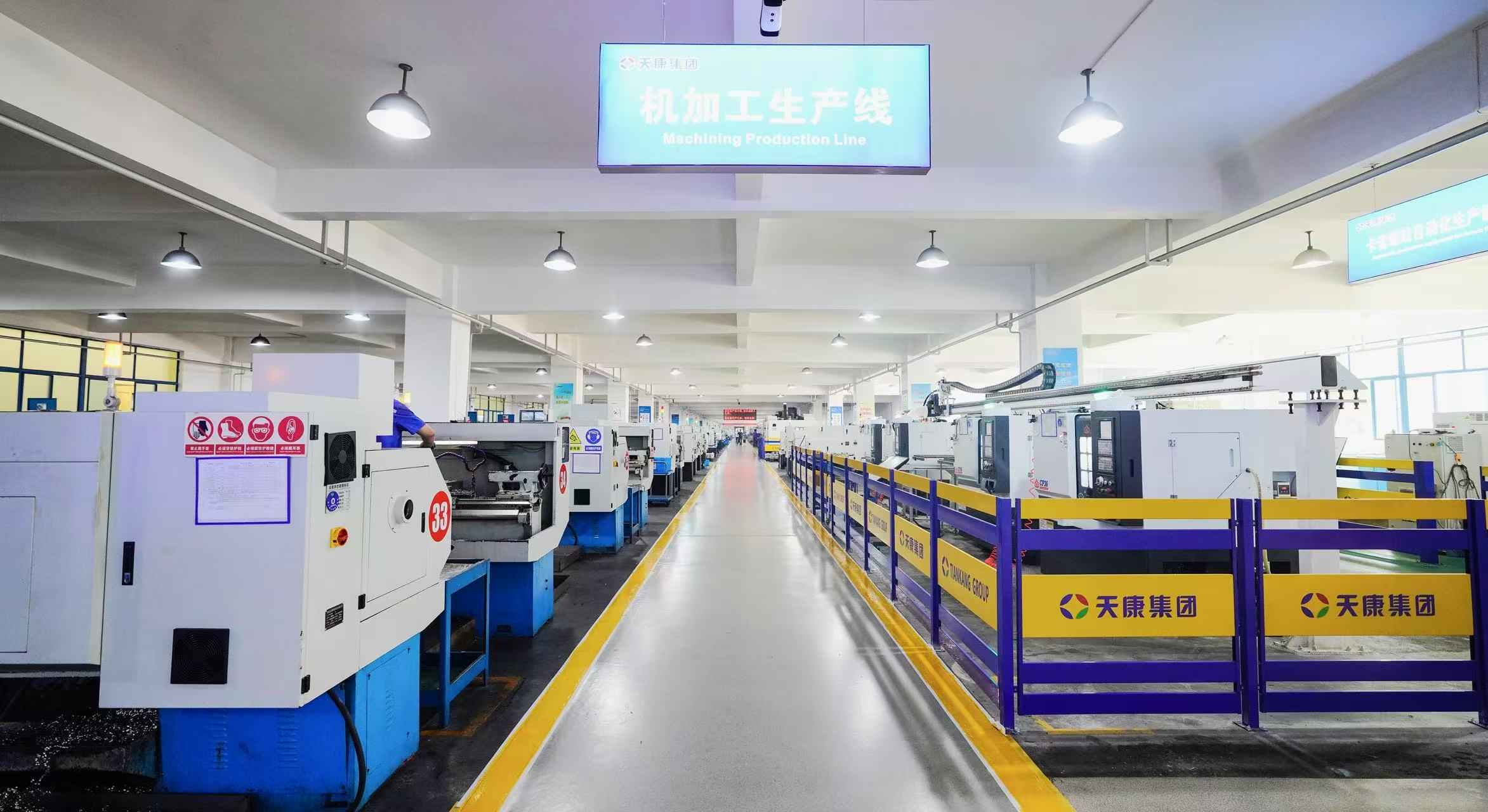

Factory photos
