Overview

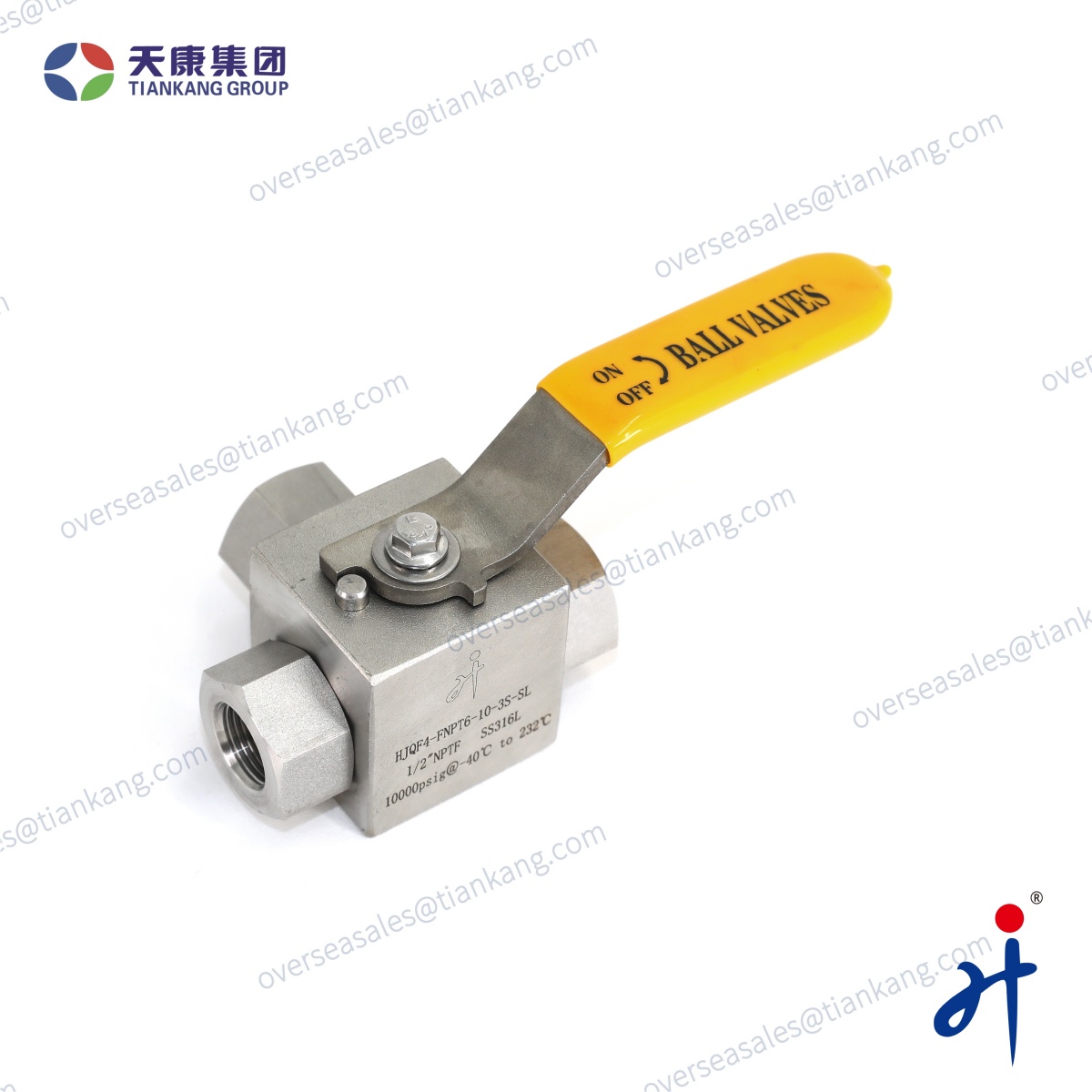

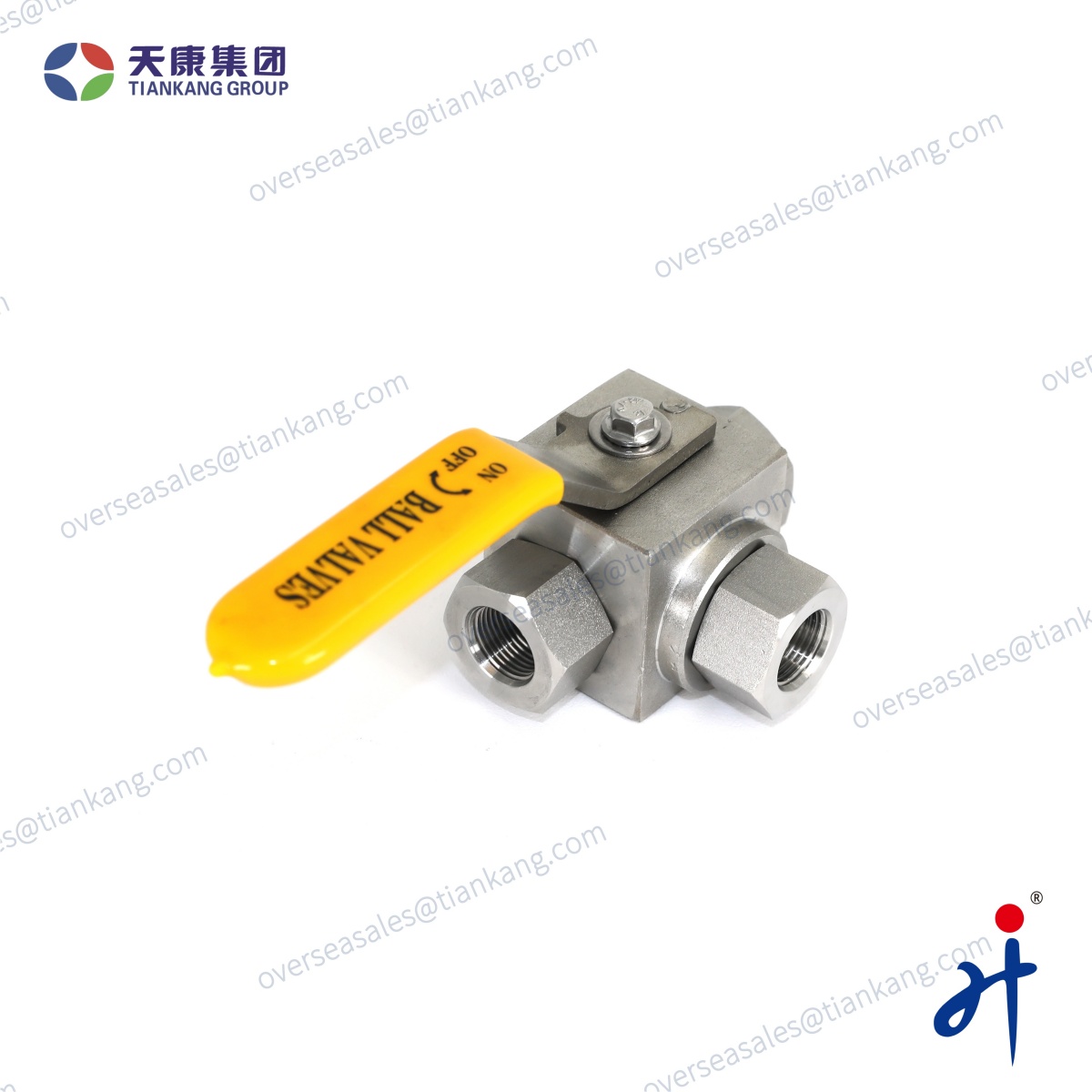

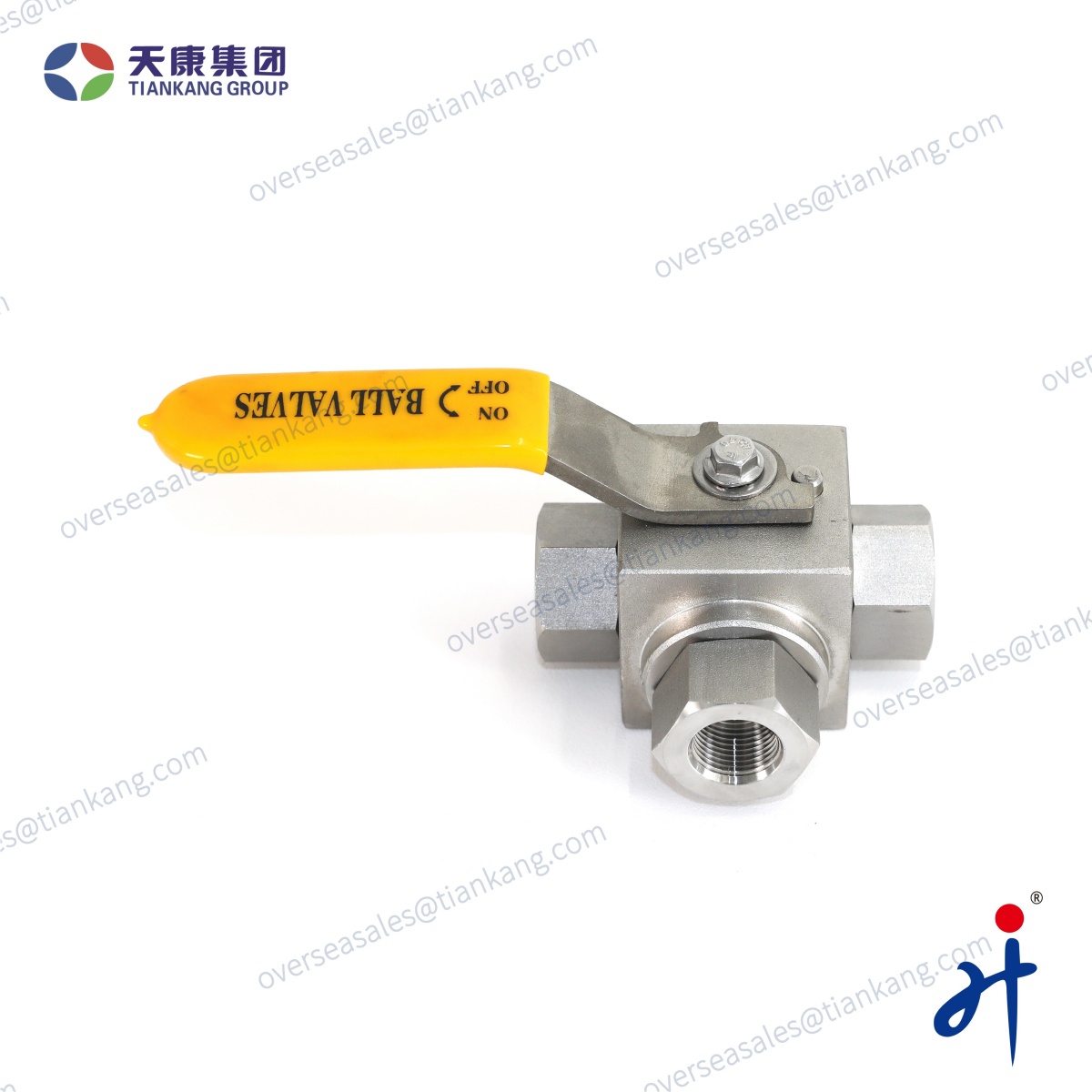

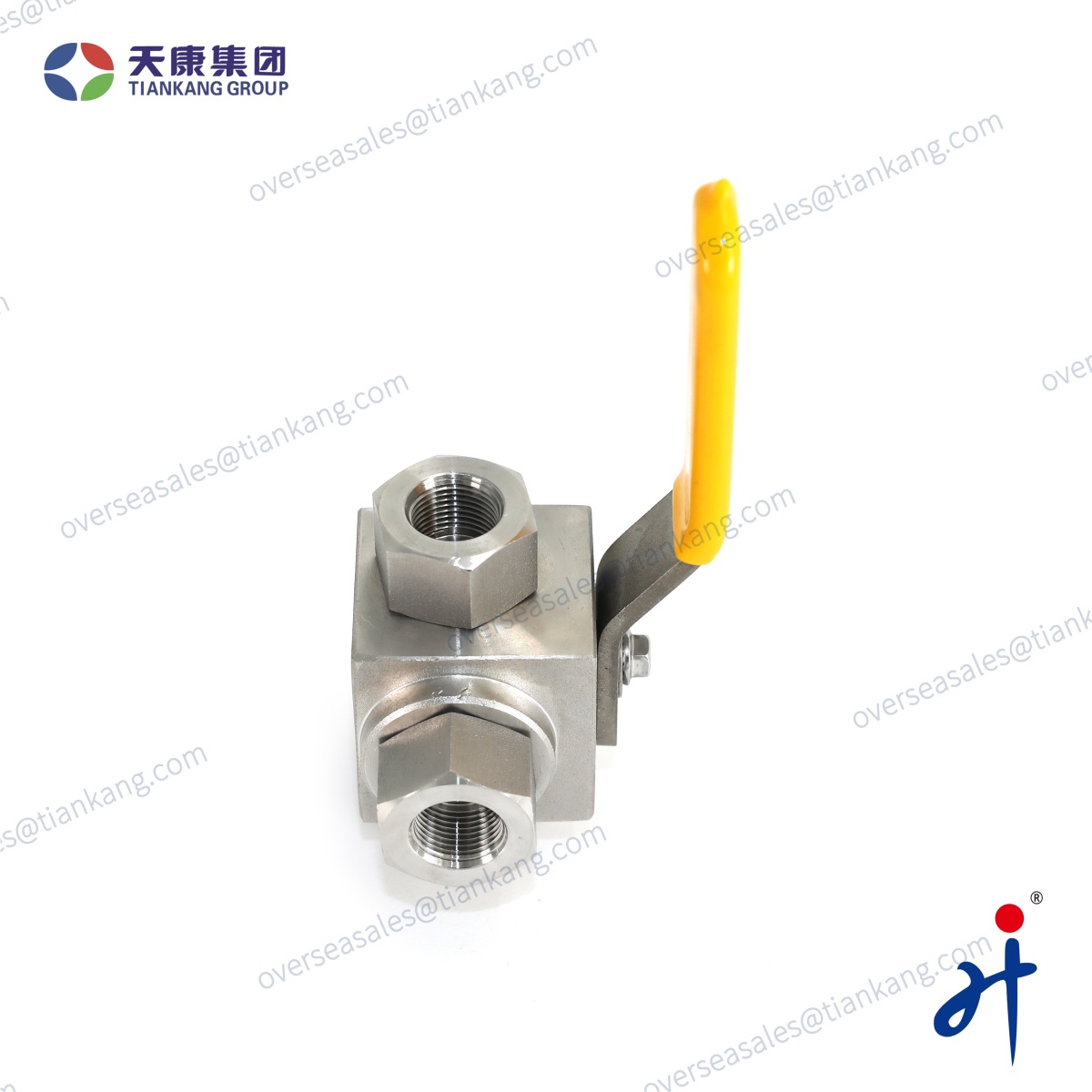

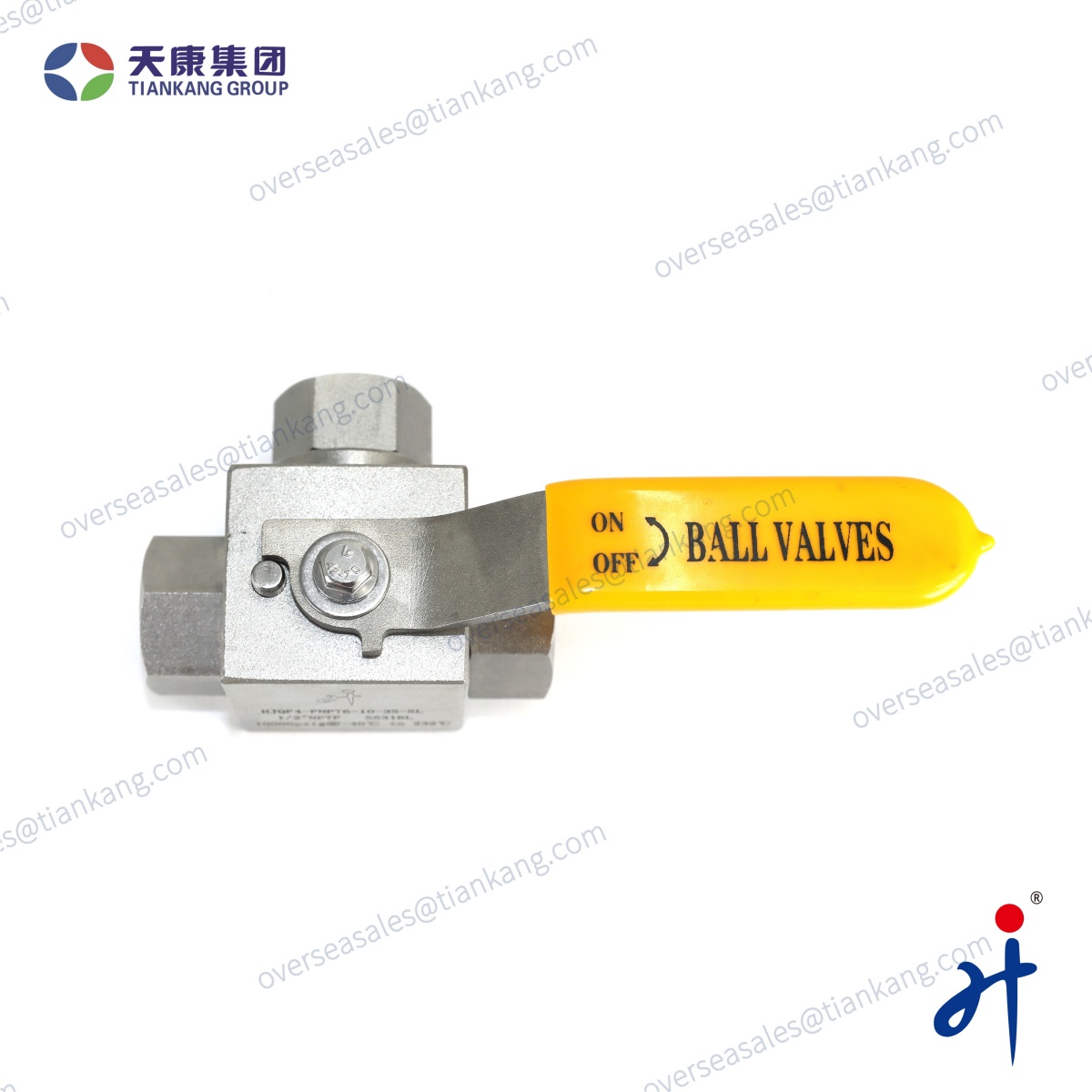

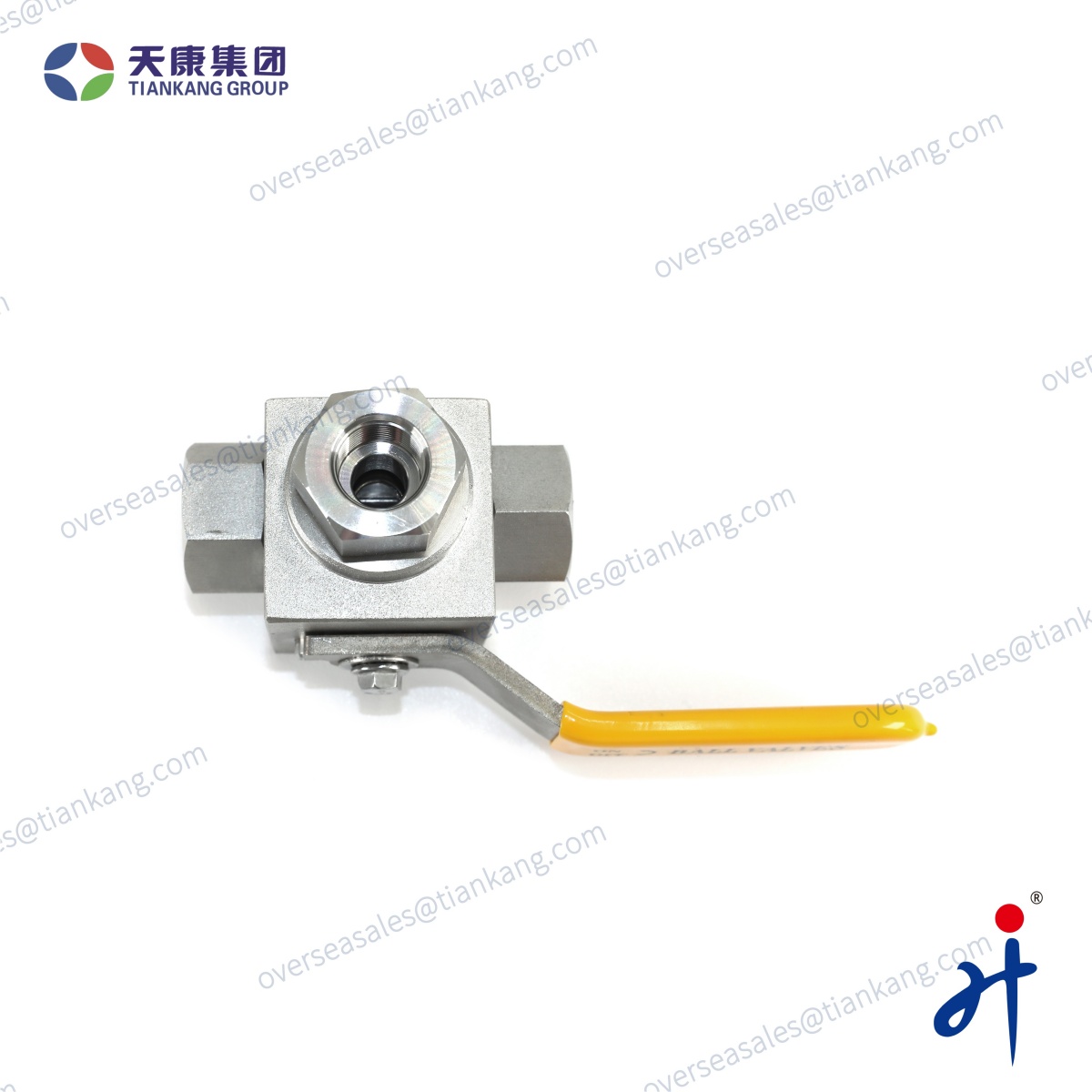

The Tiankang Hongji 3-Way High-Pressure Hydraulic Ball Valve is designed for high-pressure applications, featuring a three-way design for efficient fluid control. Made from corrosion-resistant materials, it offers excellent sealing performance and user-friendly operation. This valve is ideal for use in industries like oil and gas, chemicals, and metallurgy.
Technical Specifications
| Parameters |
Specifications |
| Working pressure |
10000psi(690bar) |
| Working temperature |
-40°F to 450°F (-40°C to 232°C)
|
| Flow pattern |
3-Way(Vertical pattern/Horizontal pattern) |
| Seat material |
PVDF; PCTFE; PEEK |
| Process connection |
Ferrule; Thread; Tube |
| Orifice, mm |
4.8; 6.4; 7.1; 10; 12.7; 18 |
| Body material |
SS316L; SS316; SS304 |
Applications
- Chemical Processing: They are used to control the flow of chemicals in pipelines.
- Oil and Gas Industry: Hydraulic Ball Valve regulates the flow of oil and natural gas, especially in extraction and transportation.
- Water Treatment: They are utilized in systems to regulate water flow, such as in filtration or treatment plants.
- Pharmaceuticals: Hydraulic Ball Valves help in controlling the flow of liquids and gases in pharmaceutical production lines.
- Food and Beverage: Hongji Hydraulic Ball Valves are used to control the flow of liquids such as juices, milk, or beer in production lines.

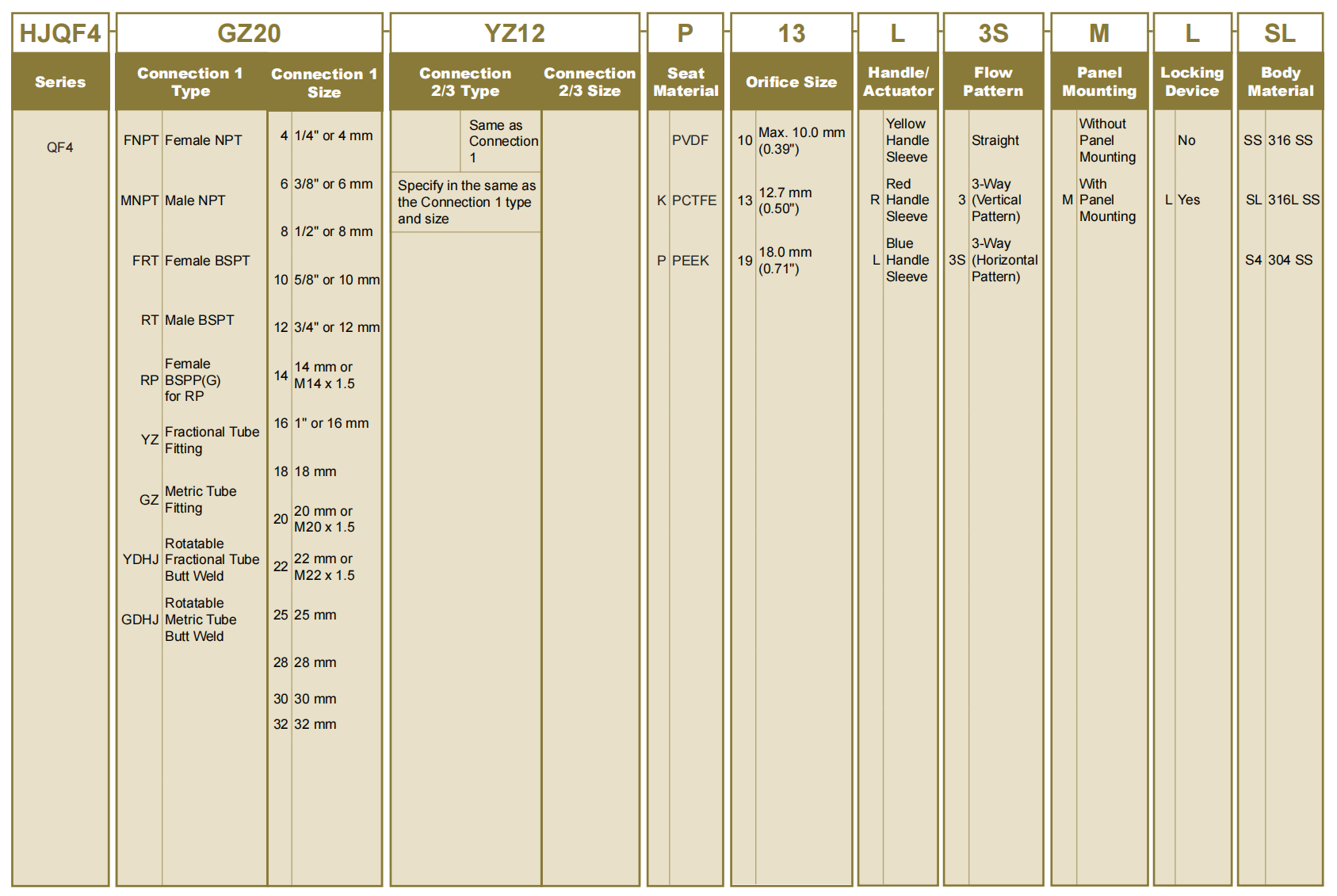

Ordering Number Description：

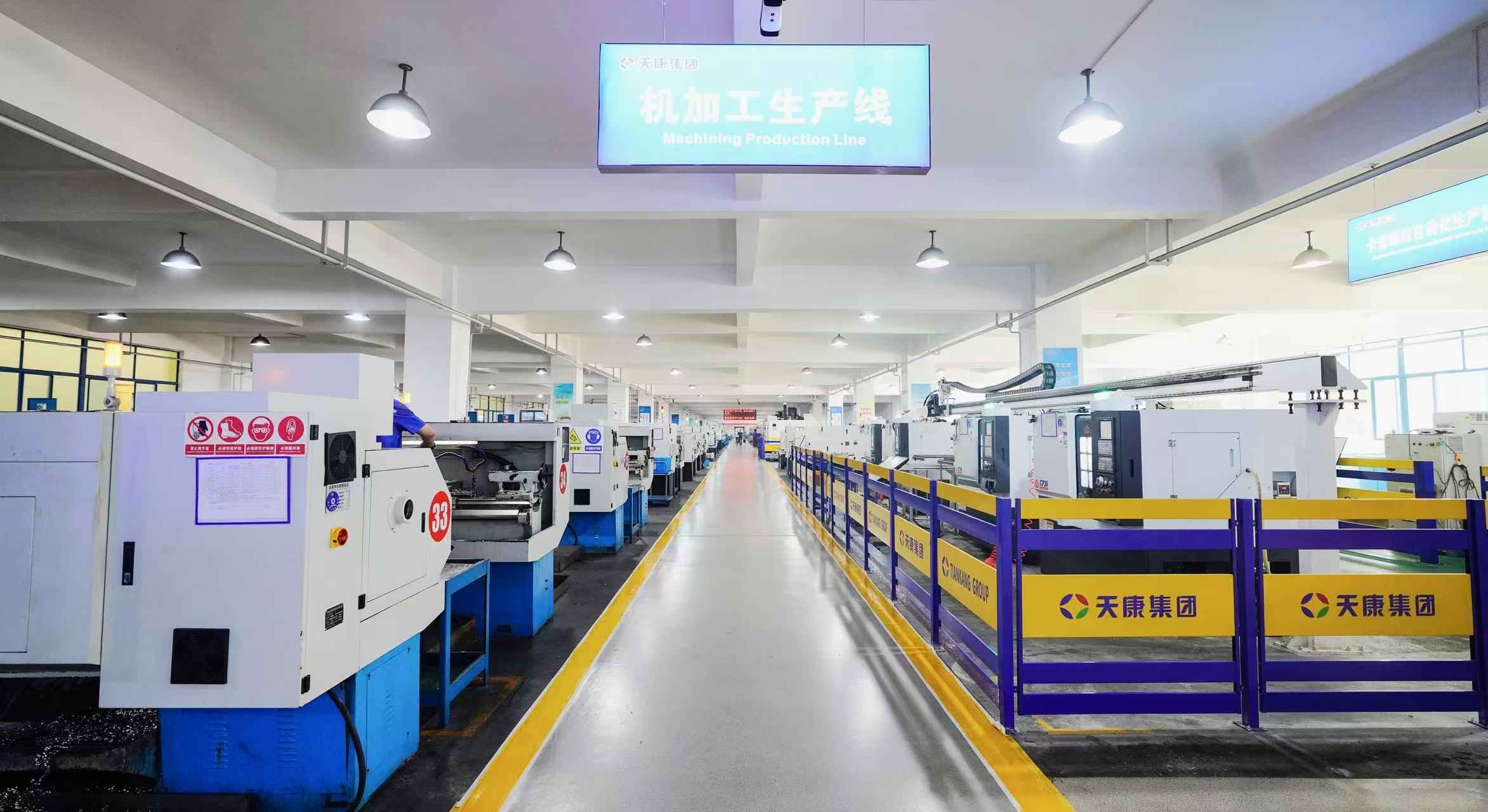

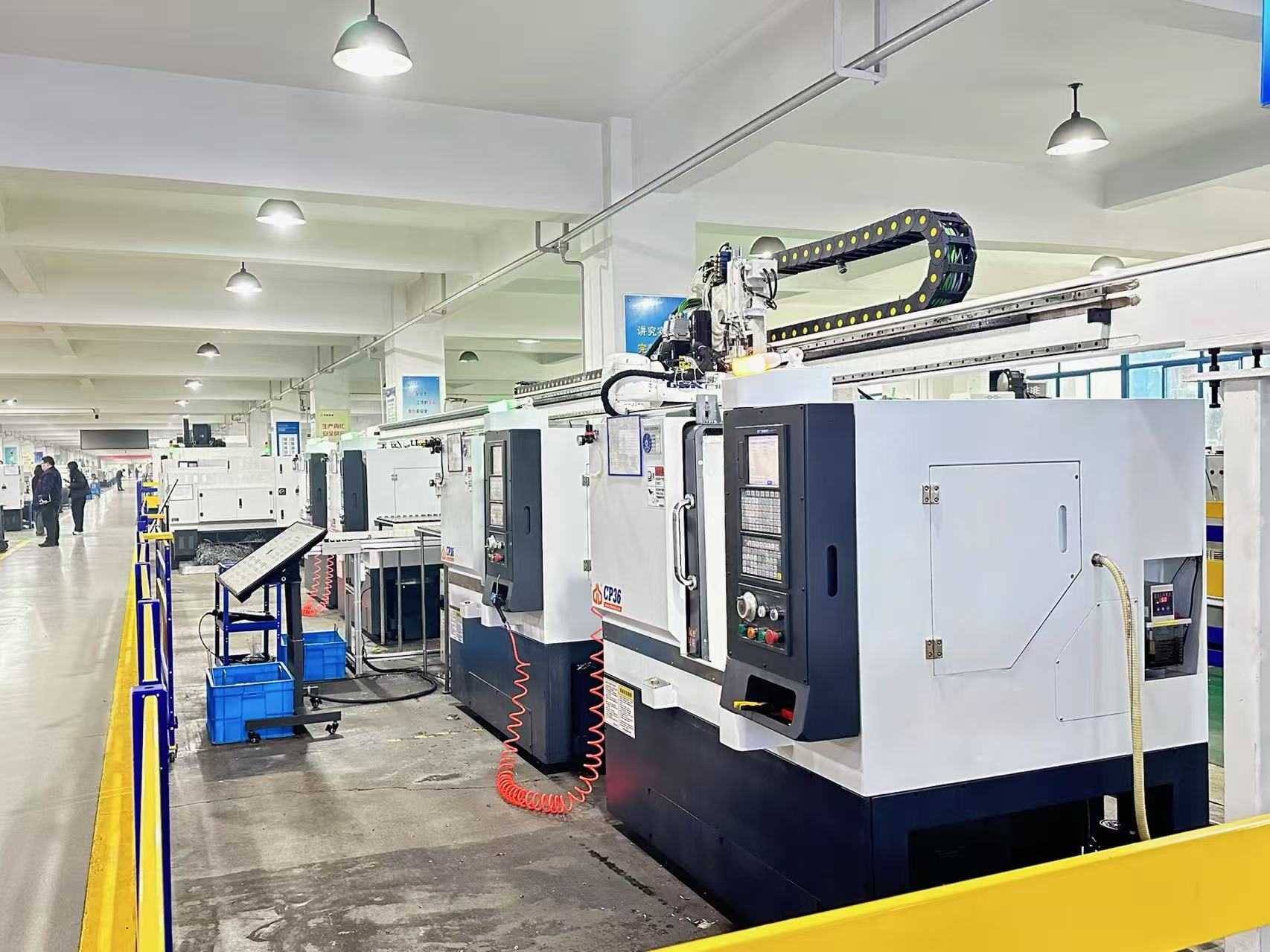

Factory photos
