Overview

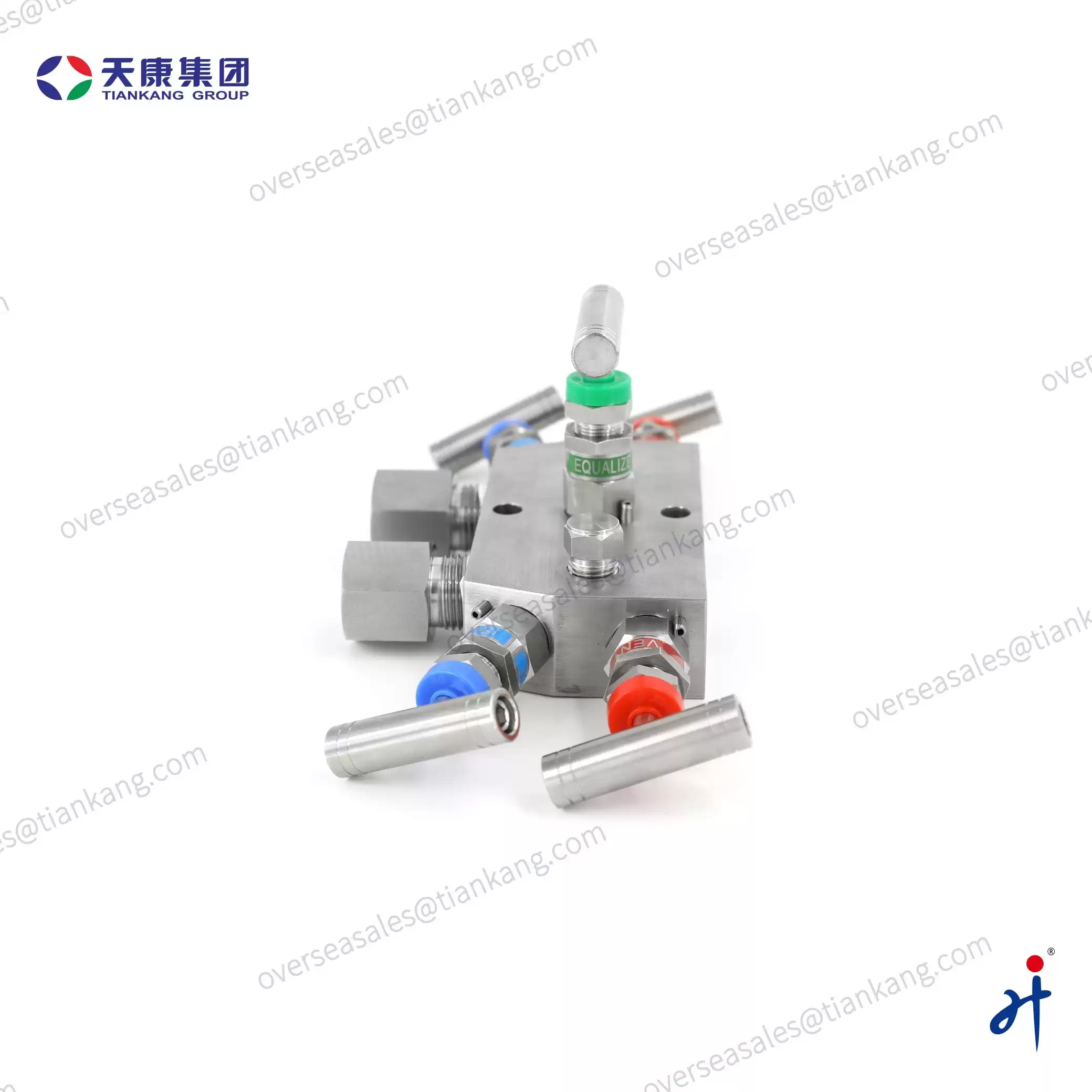

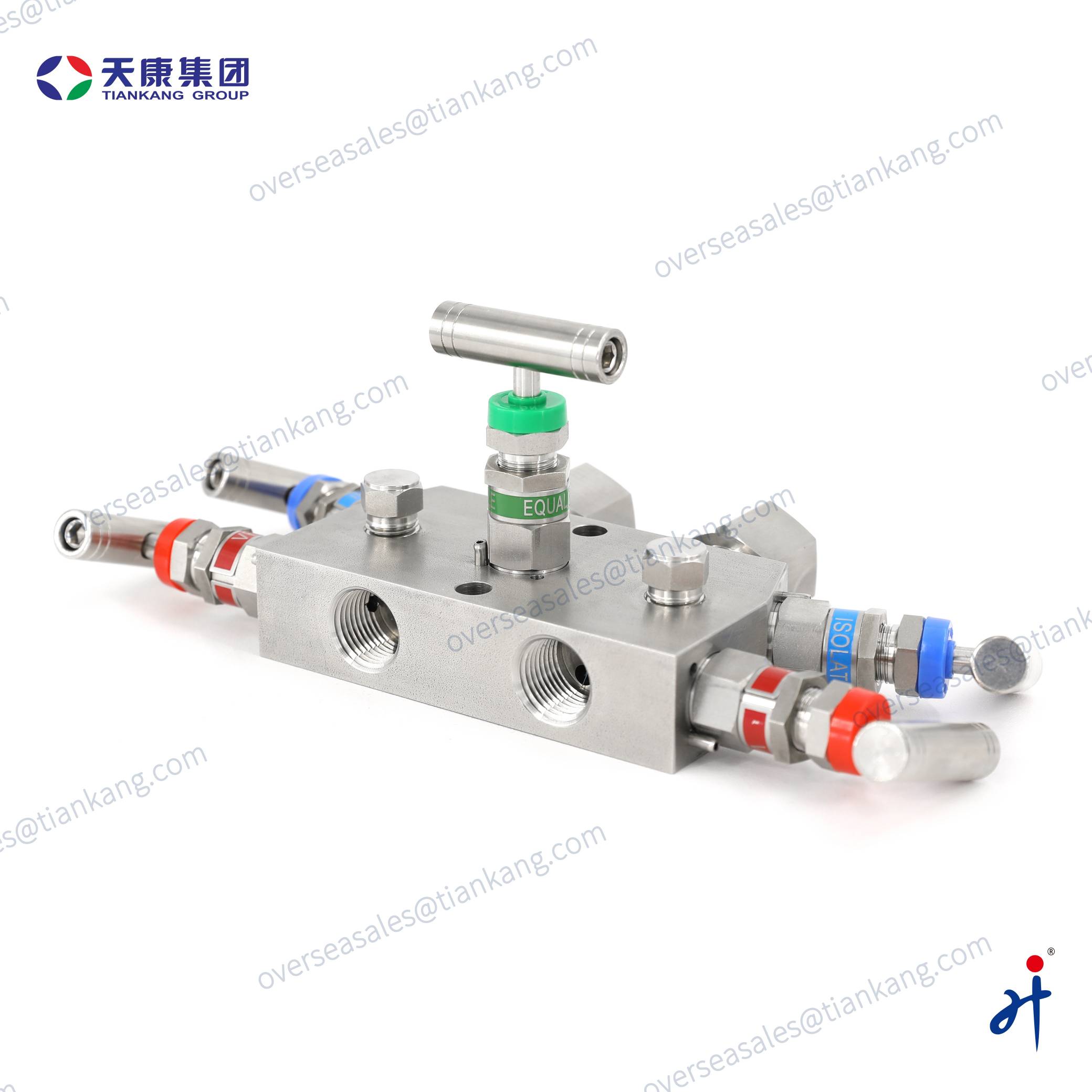

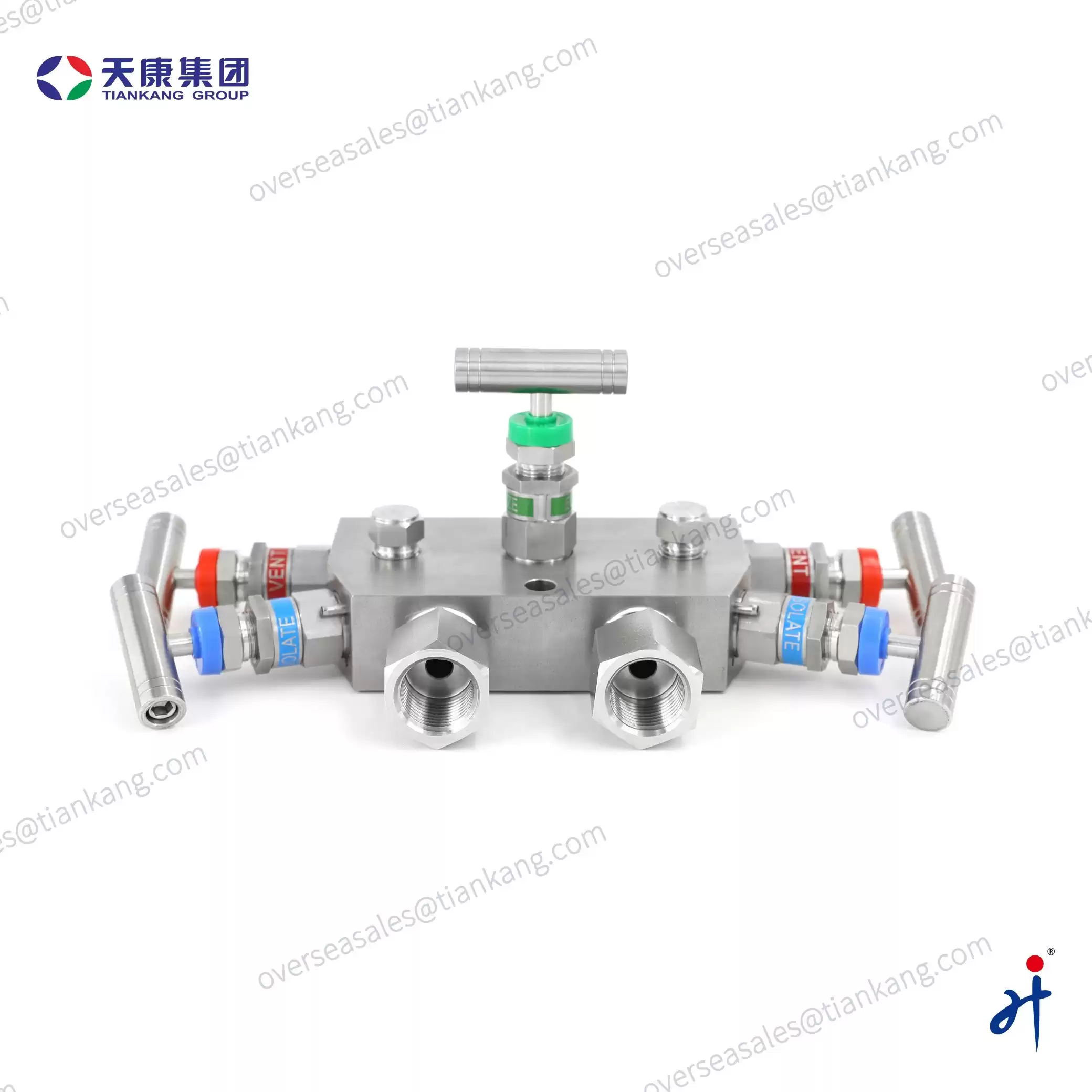

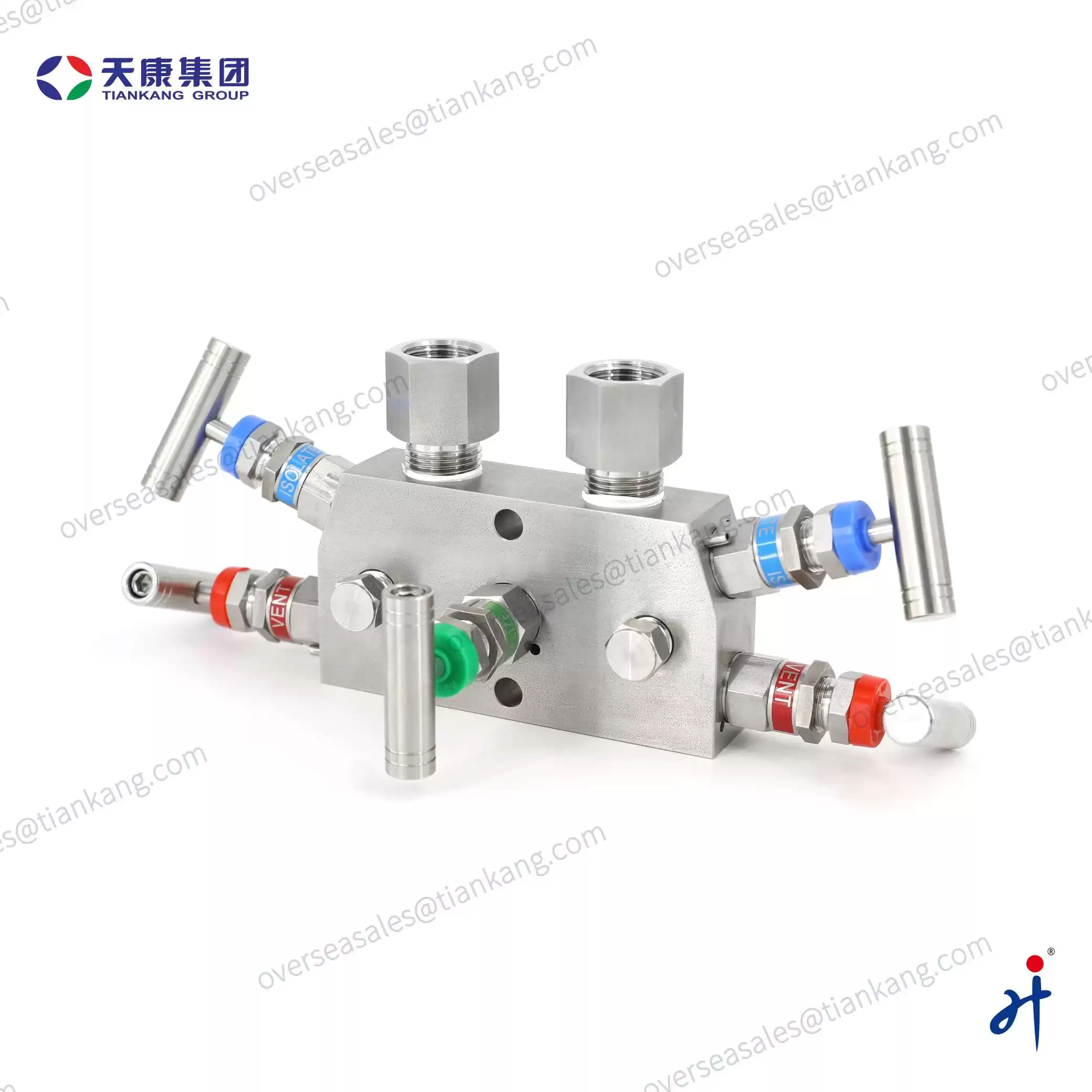

TianKang HongJi Coplanar Five Valve Manifold is made of corrosion-resistant materials, featuring excellent high-temperature and high-pressure resistance. It is widely used in industries such as natural gas, nuclear power plants, and petrochemicals.
Technical Specifications
| Type |
Coplanar Type |
Net Weight |
3.3kg |
| Body Material |
316L,Alloy |
Manufacturing Capacity |
1800 pics/Month |
| Type of Connection |
Thread/Flange |
Warranty |
1 year |
| Seal Type |
Hard Sealing |
Manufacturing |
Forging and CNC |
| Packing |
PTFE/Graphite |
Pressure Range |
6000Psi-10000Psi (414Bar-690Bar) |
| Media |
Liquid, Gas, Steam, Oil |
Inlet/outlet |
NPT; BSPP, etc |
| Test/Vent |
1/4 NPT with Plug |
Orifice: |
0.157(4.0 mm) |
| Graphite |
-65°F to 1200°F (-54℃ to 649℃) |
PTFE |
-65°F to 450°F (-54℃ to 232℃) |
Applications
-
Oil & Gas Industry: Pressure differential monitoring in natural gas distribution.
-
Power & Energy Sector: Pressure monitoring in nuclear cooling systems.
-
Water Treatment & Environmental Engineering: Filter differential pressure monitoring in wastewater plants.
-
HVAC Systems: Air duct pressure differential monitoring.

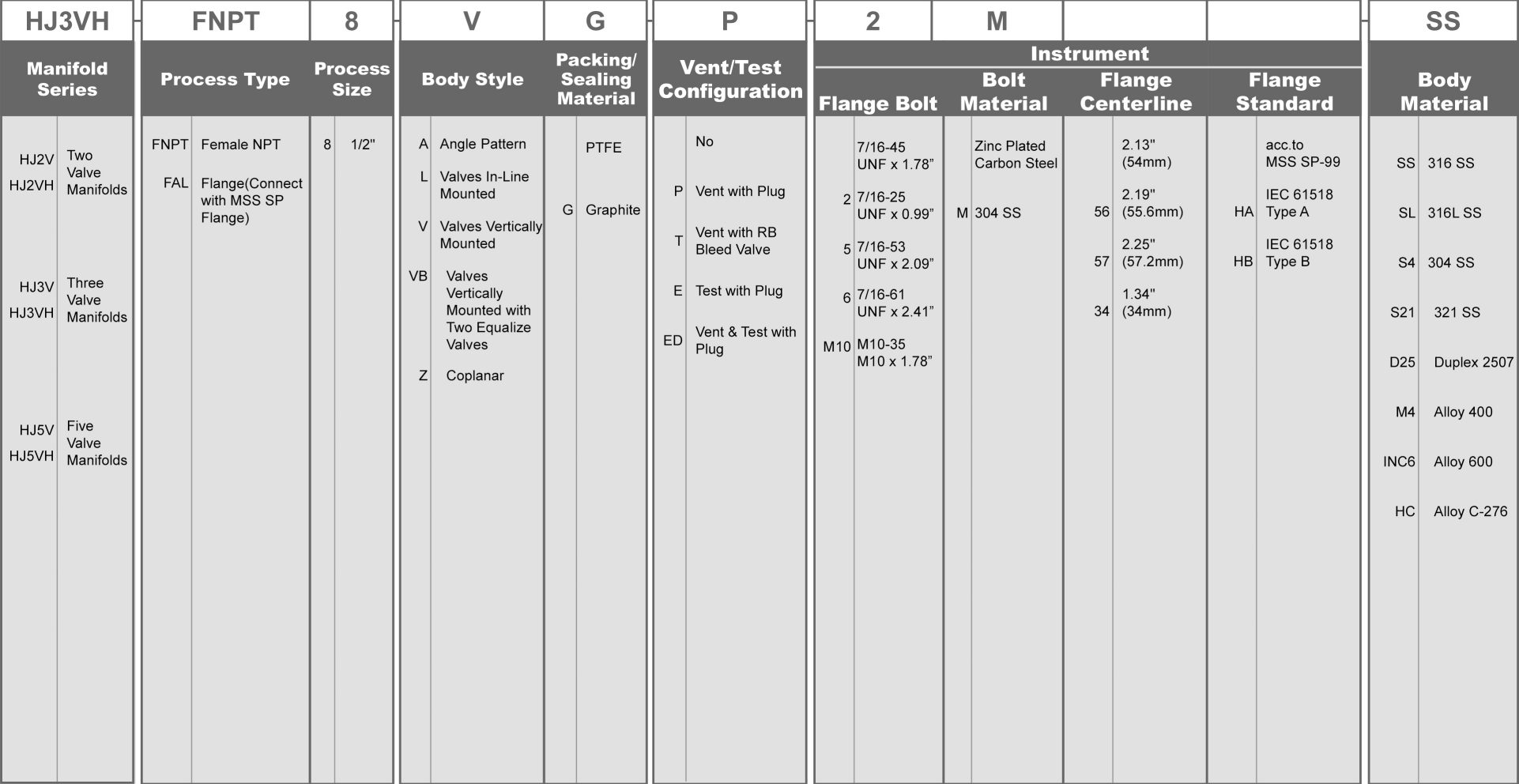

Ordering Number Description
Notes:
- Standard manifold instrument is flange (according to MSS SP-99), flange distance (center-to-center) is 2.13 (54 mm).
Distance of 2.19 (55.6 mm) suitable for transmitters of range 6, 7 and 1151.
Distance of 2.25 (57.2 mm) transmitters of range 8 and 1151.
- Ordering Number Indication illustrates the classification and combination of Hongji products, which can not be randomly combined.
- For those valves made of other type of material other than listed ,please contact the Hongji sales personnel.
- If an oxygen-dedicated valve manifold is required, include “O2” in the basic order number, for example:HJ2V-MNPT8-FNPT8-H-P-SS-O2

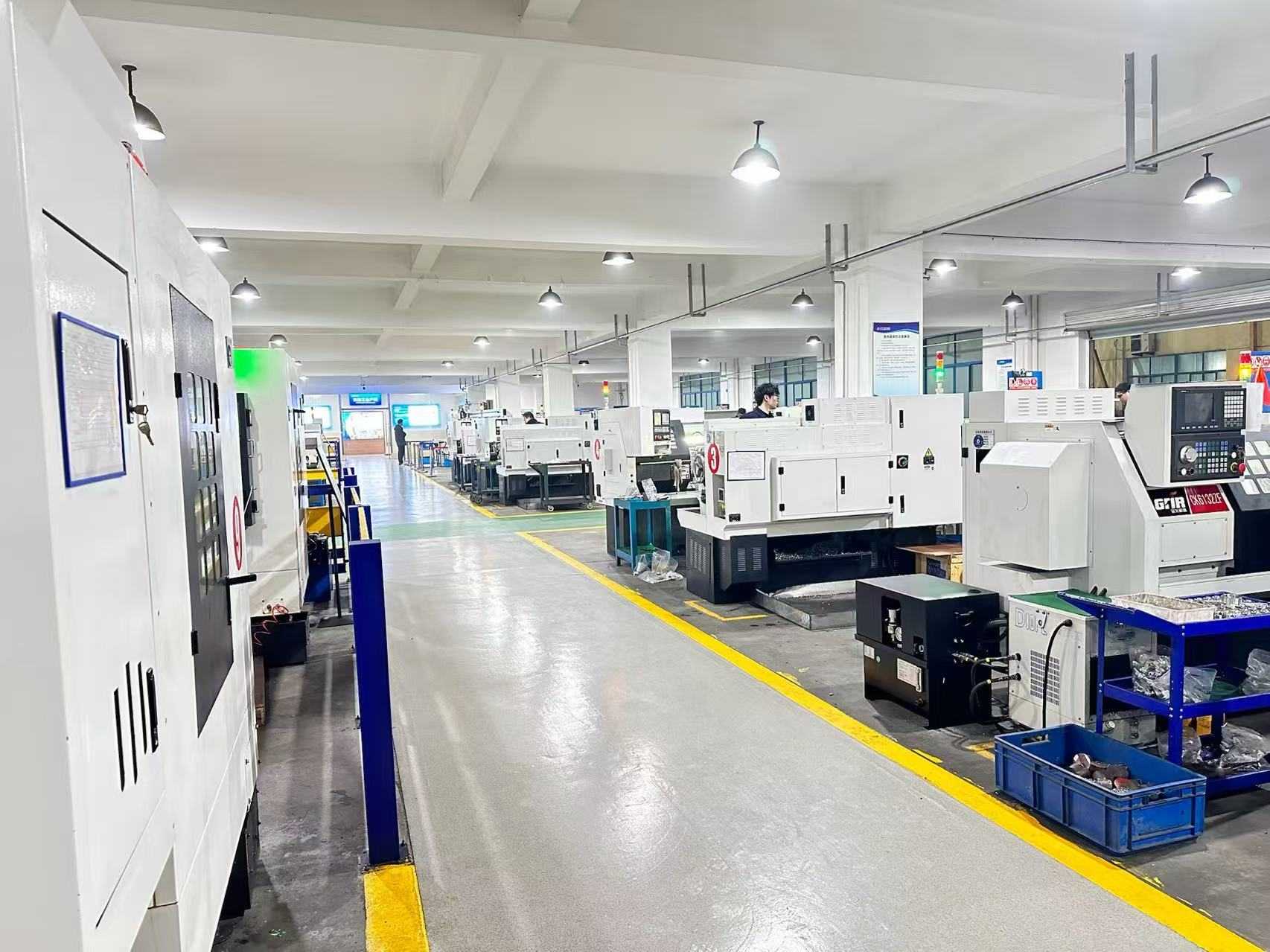

Factory photos
