Overview

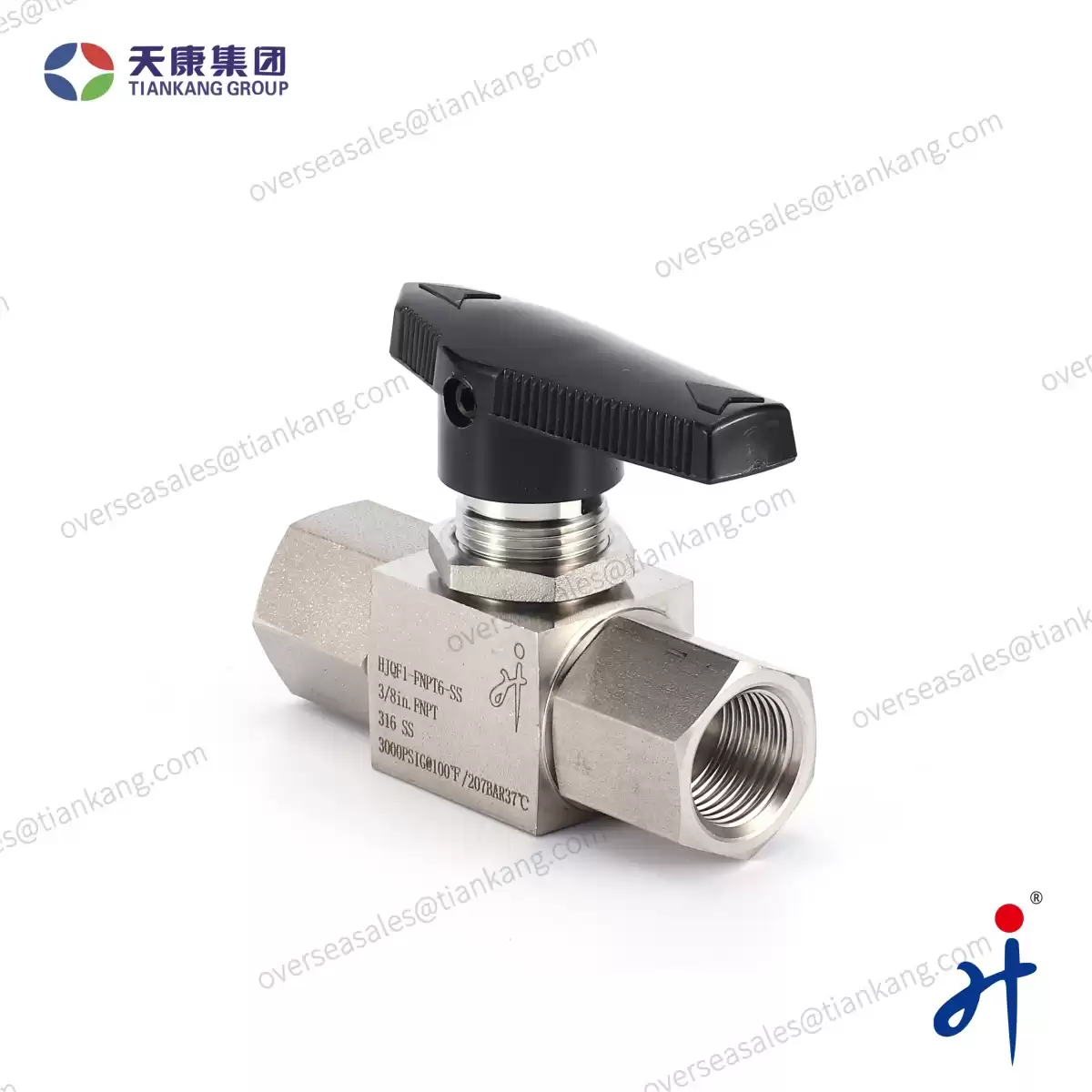

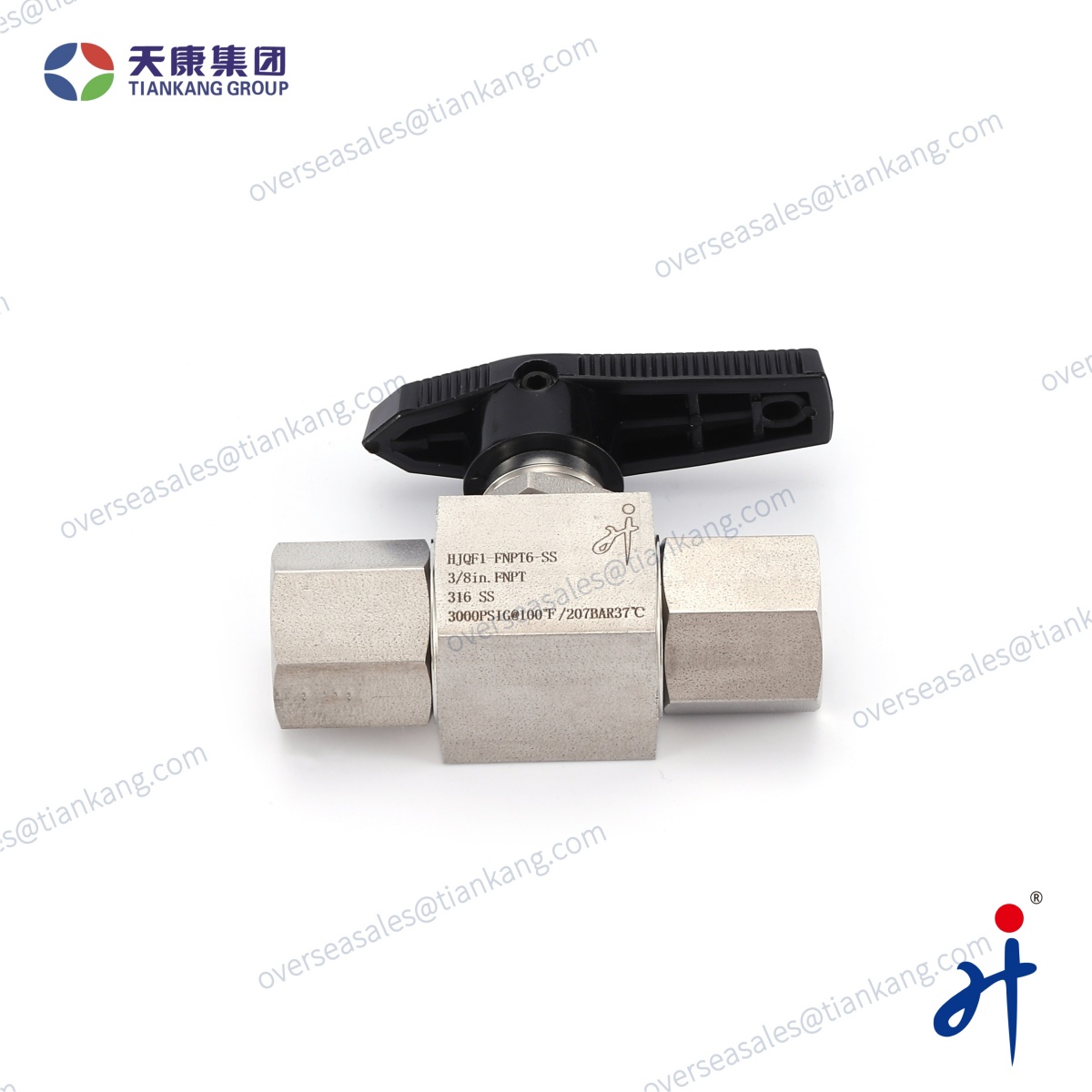

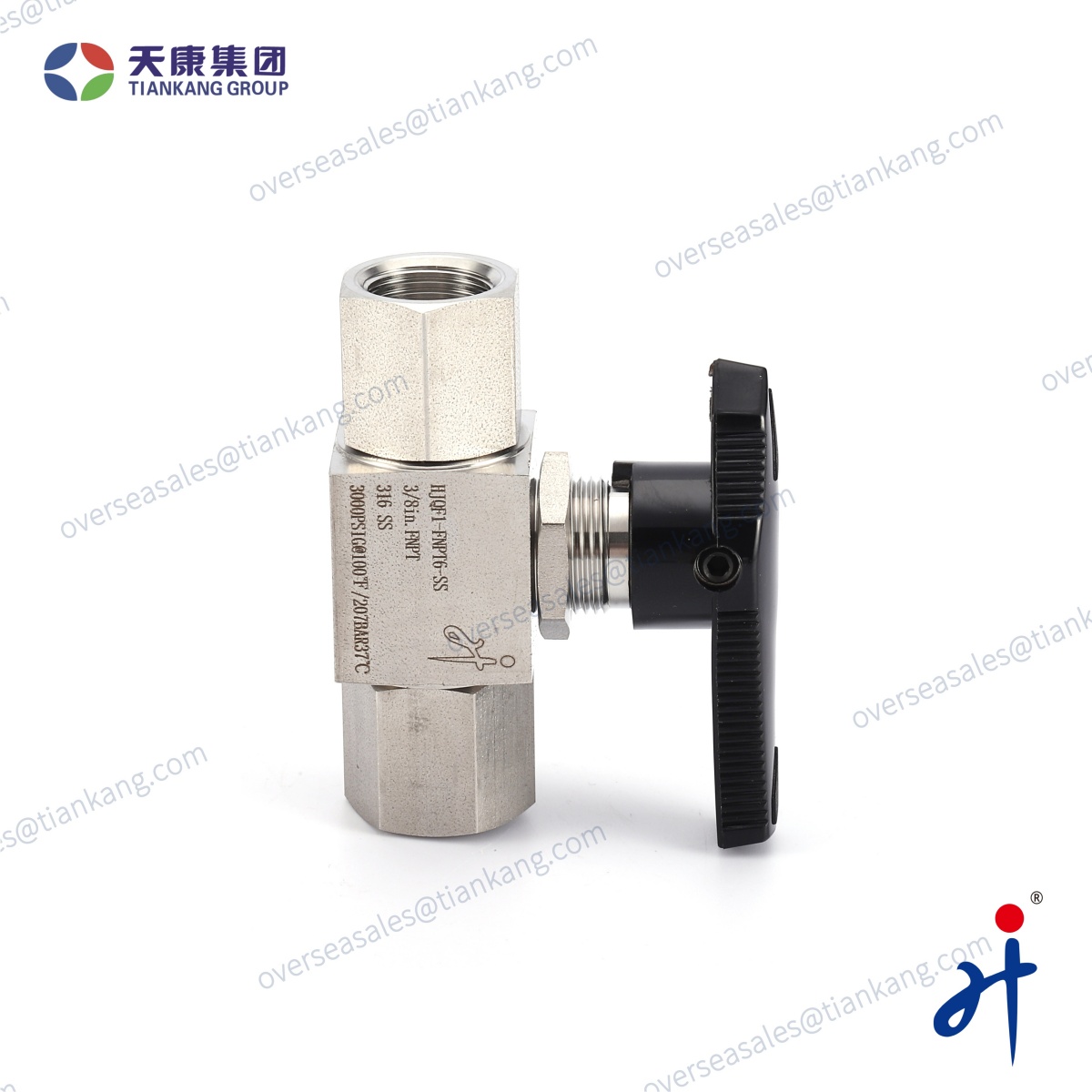

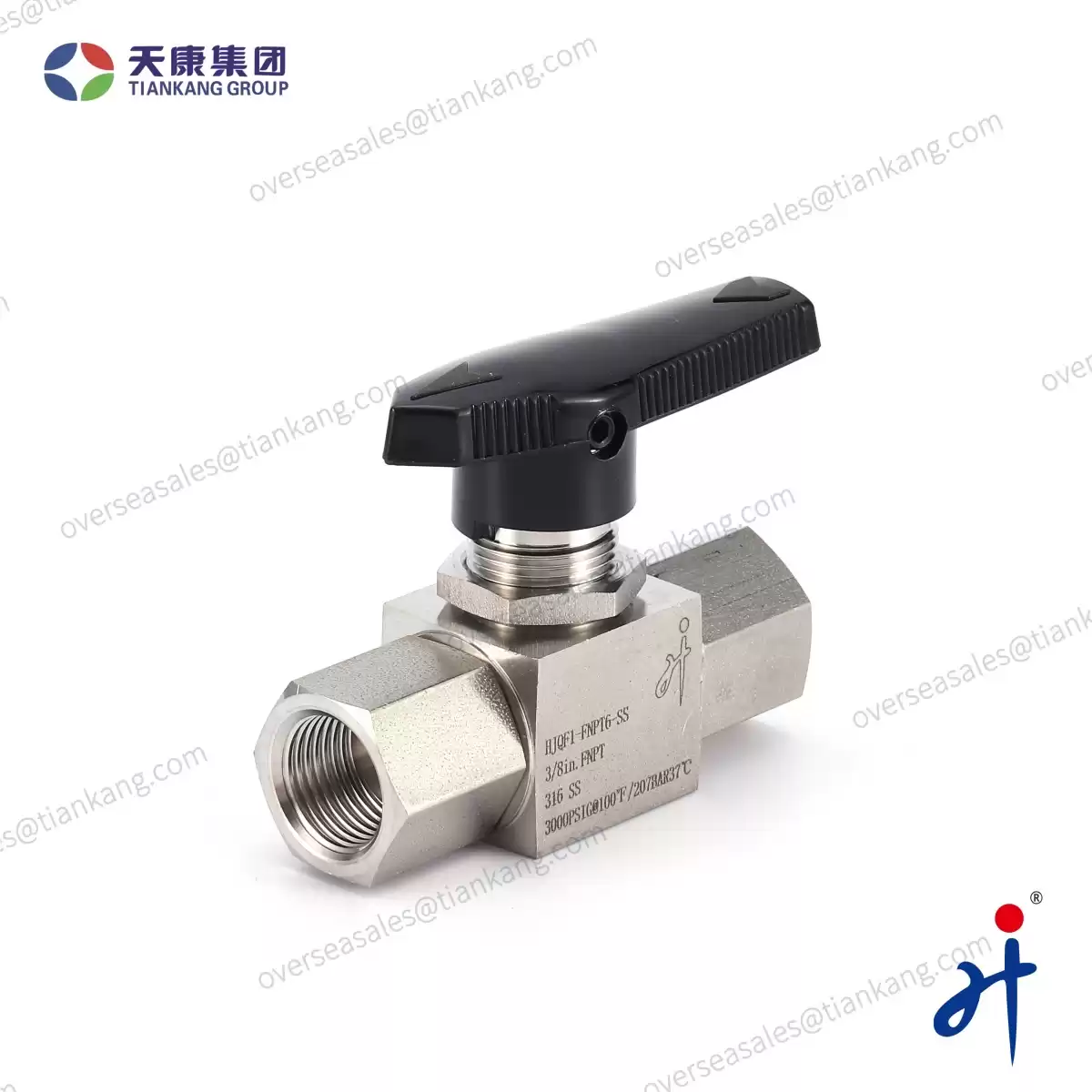

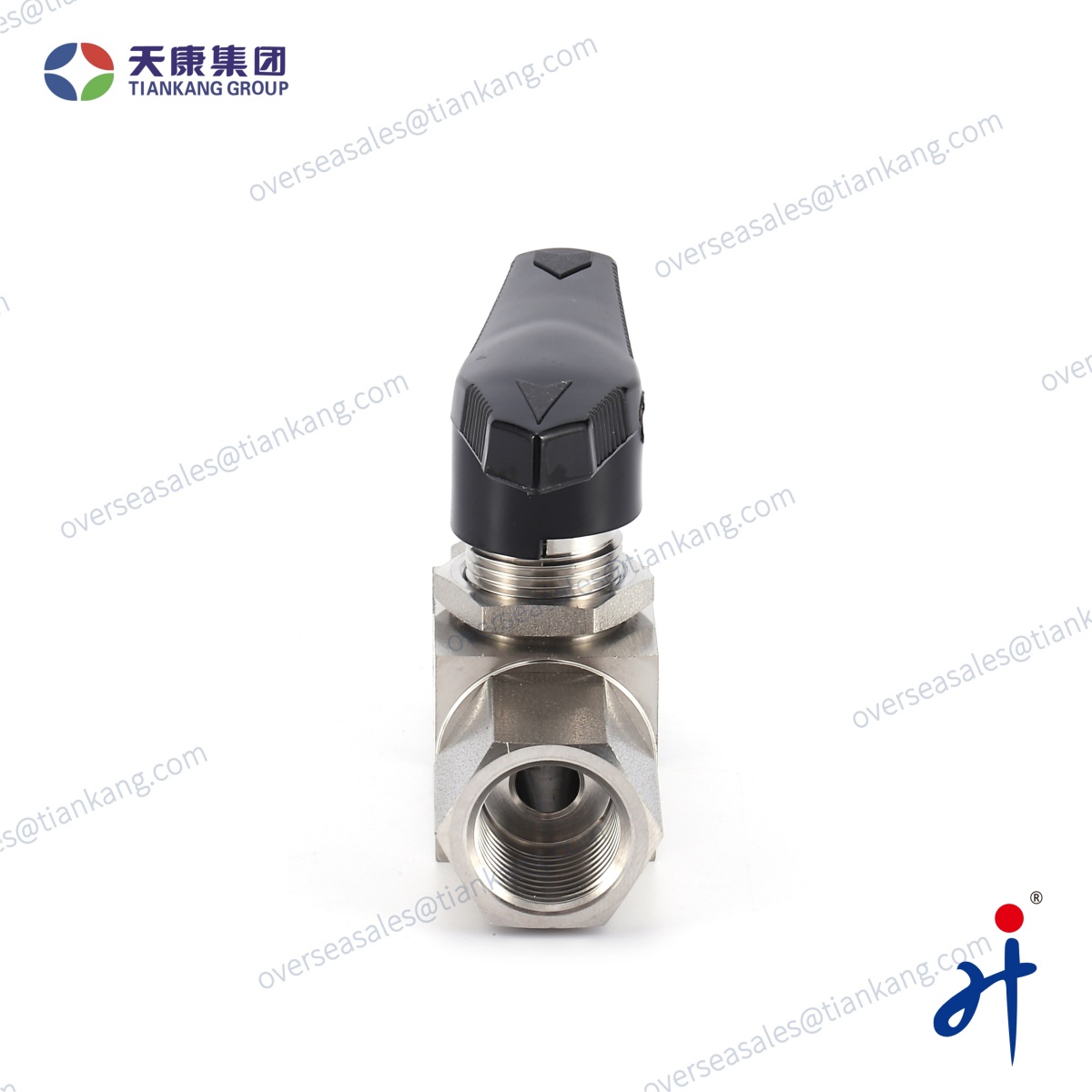

Tiankang Hongji High Performance Ball Valve is suitable for high-temperature and high-pressure environments and can handle various fluid media, including gases, liquids, and steam. With its simple structure, the stainless steel ball valve allows for easy maintenance, making it an essential component in industrial fluid control systems.
Technical Specifications
| Parameters |
Specifications |
| Working pressure |
6000psi(414bar) |
| Working temperature |
-65°F to 450°F (-54°C to 232°C)
|
| Seat material |
PTFE; PEEK; PCTFE |
| Flow pattern |
Straight; 3-Way; Angle |
| Process connection |
Ferrule; Thread |
| Orifice, mm |
2.4; 4.2; 4.7; 6.4; 9.5; 10.3 |
| Body material |
SS304; SS316; SS316L; Others |
Applications
- Oil and Gas: Used for controlling the on/off flow and regulating the flow of oil and gas, ensuring safe and efficient operation of the systems.
- Chemical Industry: Employed in controlling the flow of highly corrosive or high-temperature fluids in chemical reactions and processes.
- Water Treatment: Employed in both wastewater treatment and drinking water treatment systems to control the flow of water and ensure compliance with quality standards.
- Automation Equipment: Can be integrated with electric or pneumatic actuators to form automated control systems, enhancing operational efficiency.

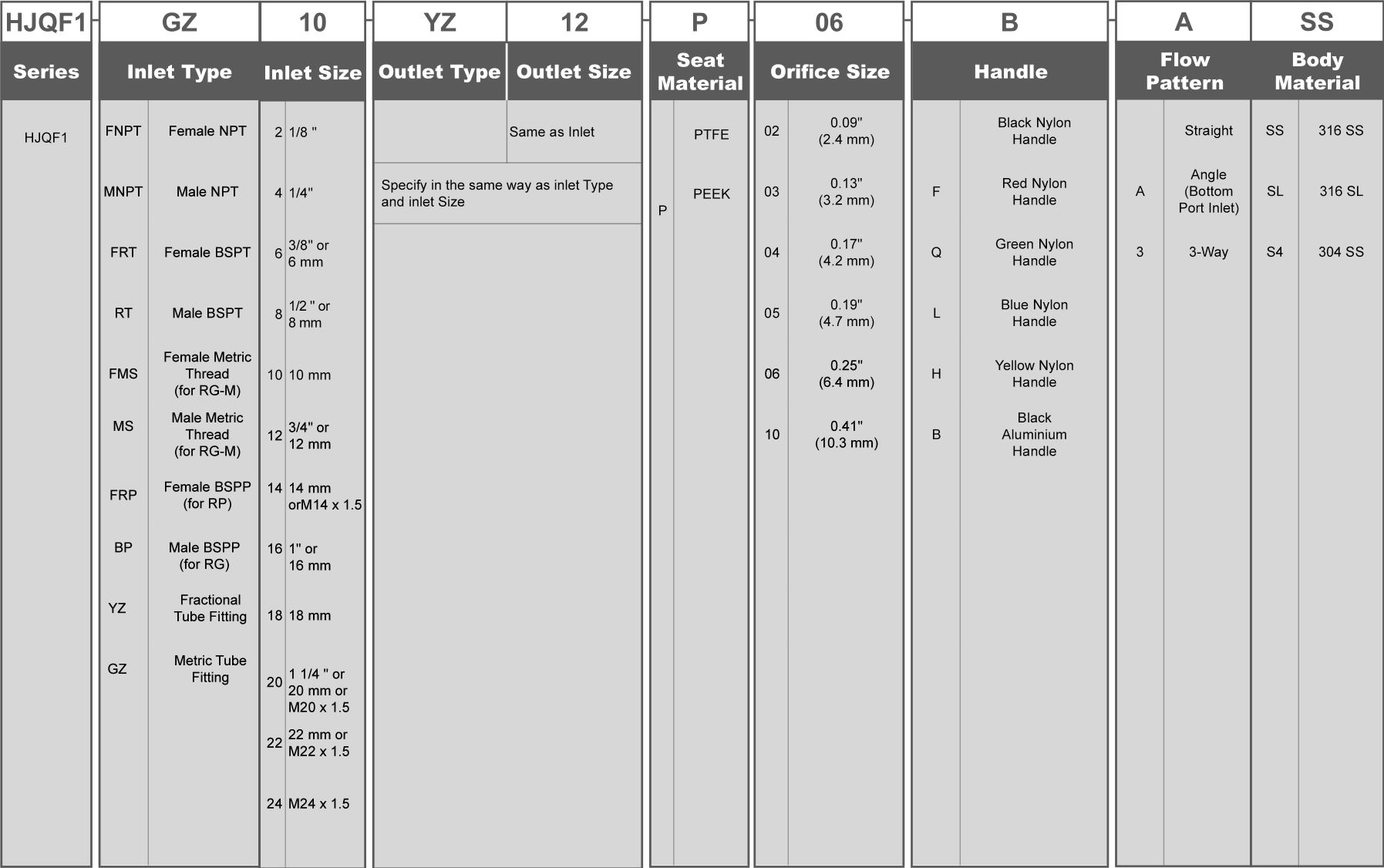

Ordering Number Description：
Note:1. Standard thread pitch for metric threads is as follows:
M10 and below: 1mm
M12 to M24: 1.5mm
