Overview

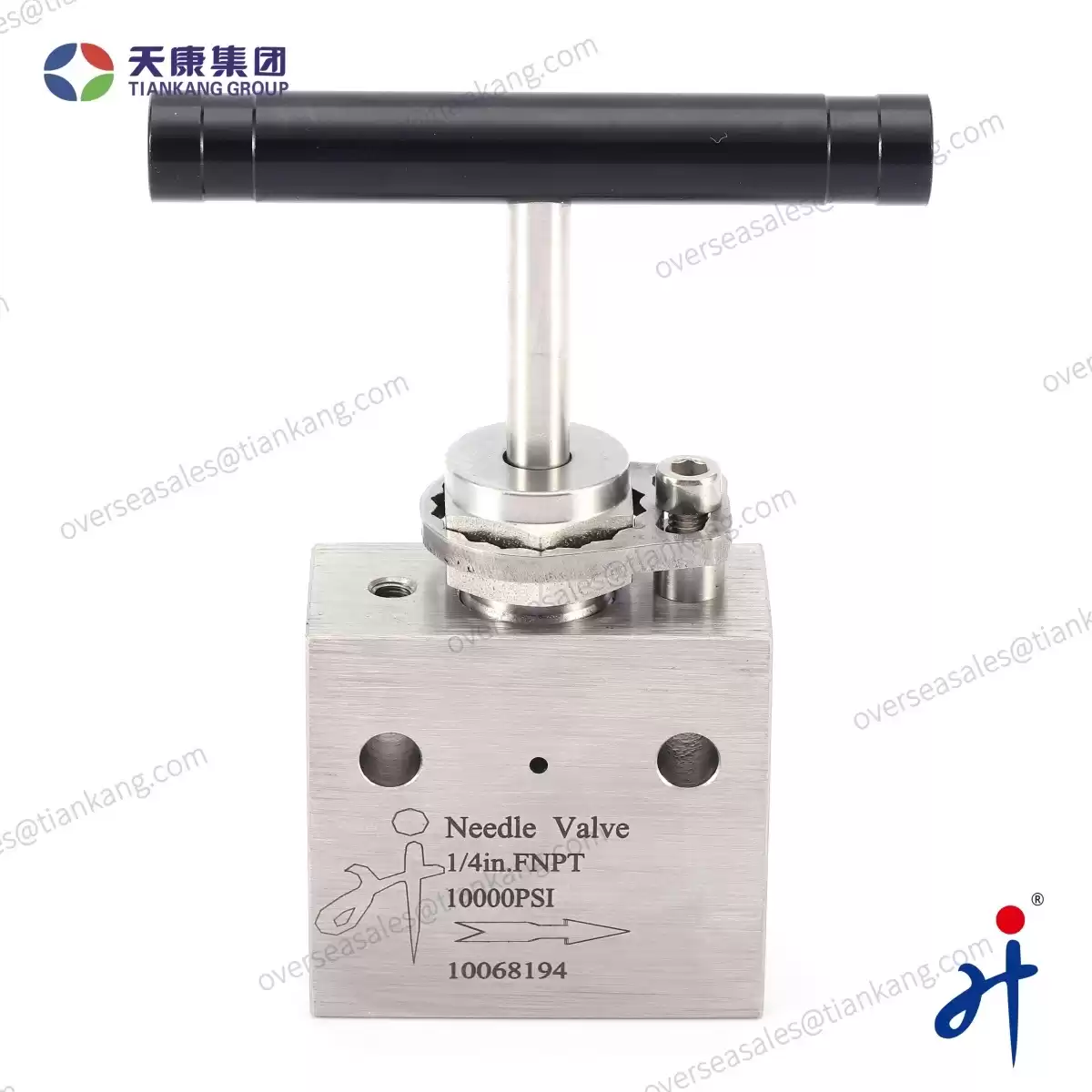

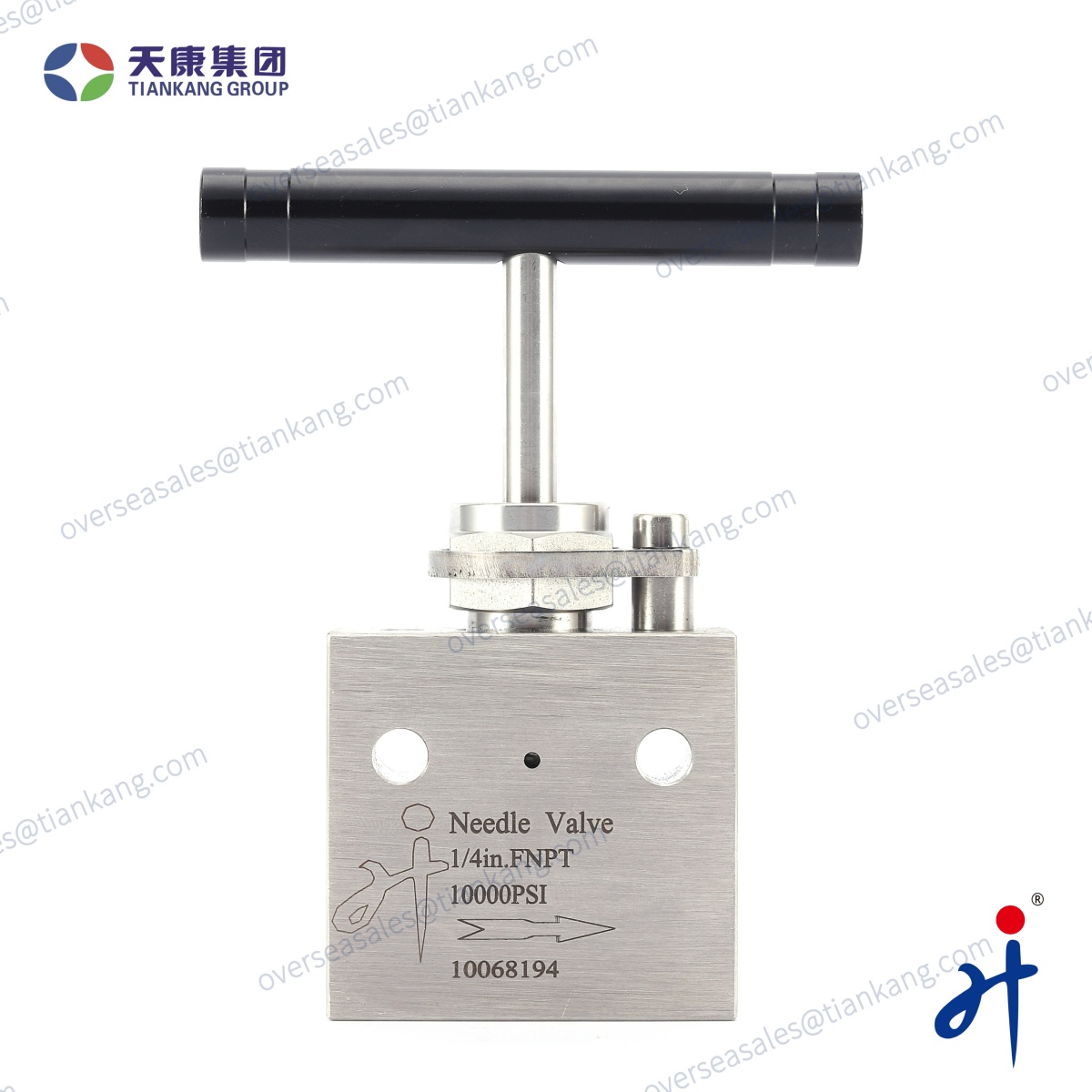

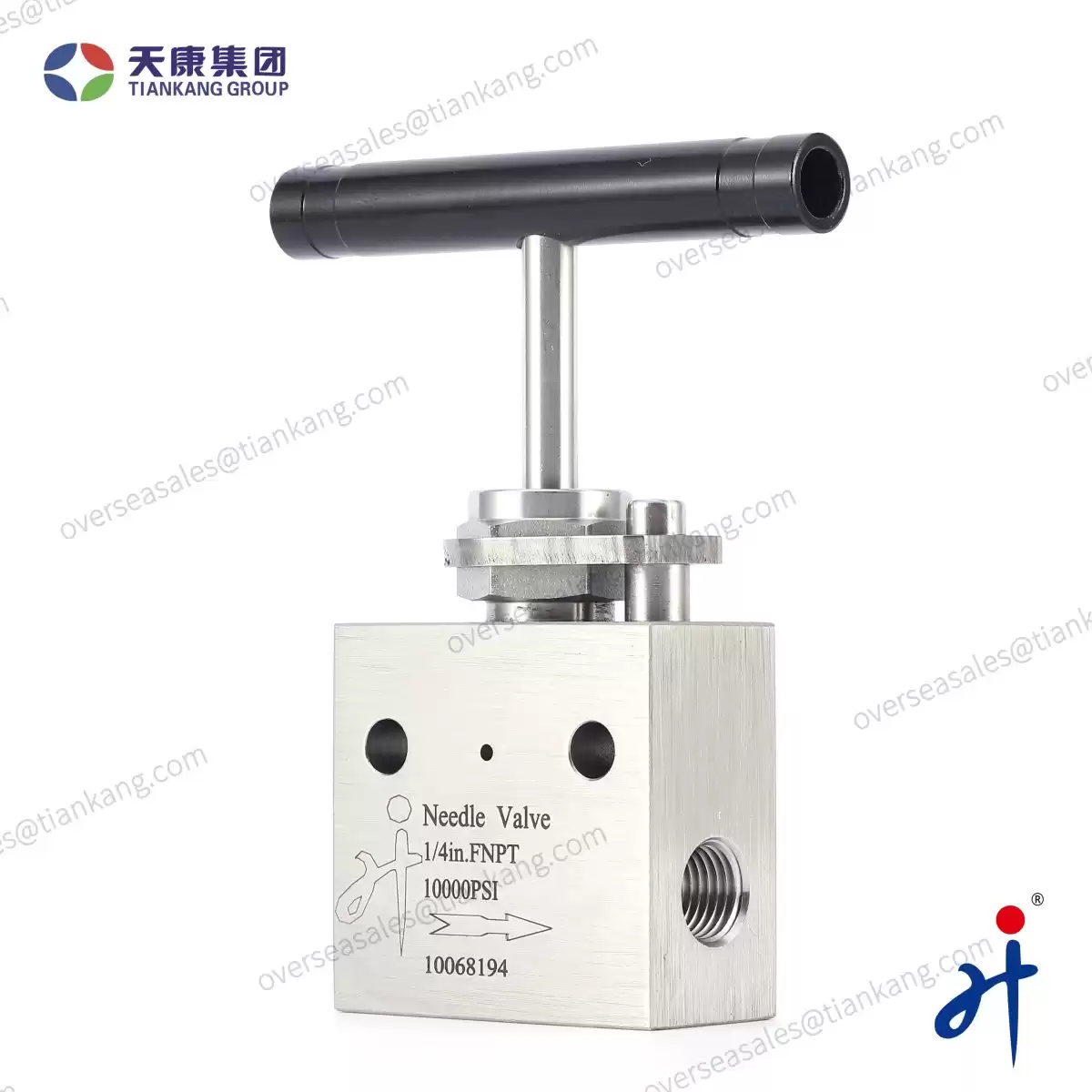

TianKang HongJi High Pressure Needle Valve 10000psi is a type of valves designed to control the flow of fluids (liquids or gases) in systems that operate at extremely high pressures-typically about 10,000 psi (690 bar) , depending on the design and materials. These High Pressure Needle Valve are commonly used in industries where precise flow control under high pressure is critical, such as oil and gas, chemical processing, aerospace, and other high-performance applications.
Technical Specifications
| Type |
Ultra High-Pressure Needle Valve |
Net Weight |
0.9kg(1/4") |
| Body Material |
SS316 |
Manufacturing Capacity |
800 pics/Month |
| Type of Connection |
Thread/Ferrule |
Warranty |
1 year |
| Seal Type |
Hard Sealing |
Manufacturing |
Forging and CNC |
| Packing |
PTFE/Graphite |
Pressure Range |
6,000Psi-15,000Psi (414Bar-690Bar) |
| Media |
Liquid, Gas, Steam, Oil |
Size Range |
9/16" ~ 1" |
| Graphite |
-0°F to 800°F (-17.8℃ to 427℃) |
PTFE |
-100°F to 450°F (-73℃ to 232℃) |
Applications
- Oil & Gas: For controlling the flow of fluids in high-pressure pipelines.
- Chemical Processing: To regulate corrosive fluids in process lines.
- Aerospace: In high-pressure hydraulic systems.
- Manufacturing: For precise flow control in high-pressure machinery.
- Machine& Equipment: For pressurized sealing purposes.
- Laboratories and Research Facilities: Regulating sample flow in analytical instruments like gas chromatographs and mass spectrometers.
Ordering Number Description
Notes:
Packing may need to be adjusted during valve use.
For better maintenance, TianKang HongJi instrumentation needle valves should be stored in the half-open position.

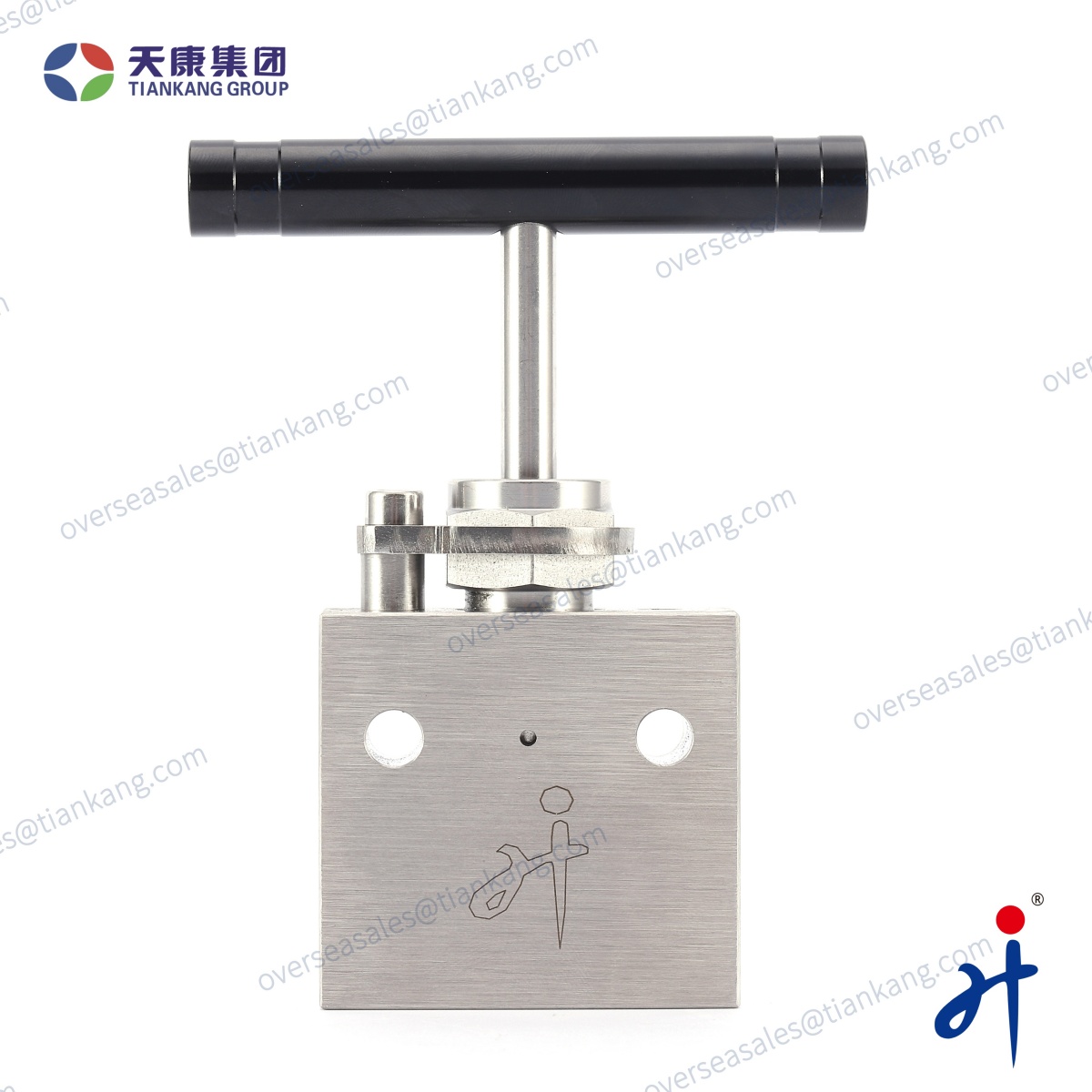

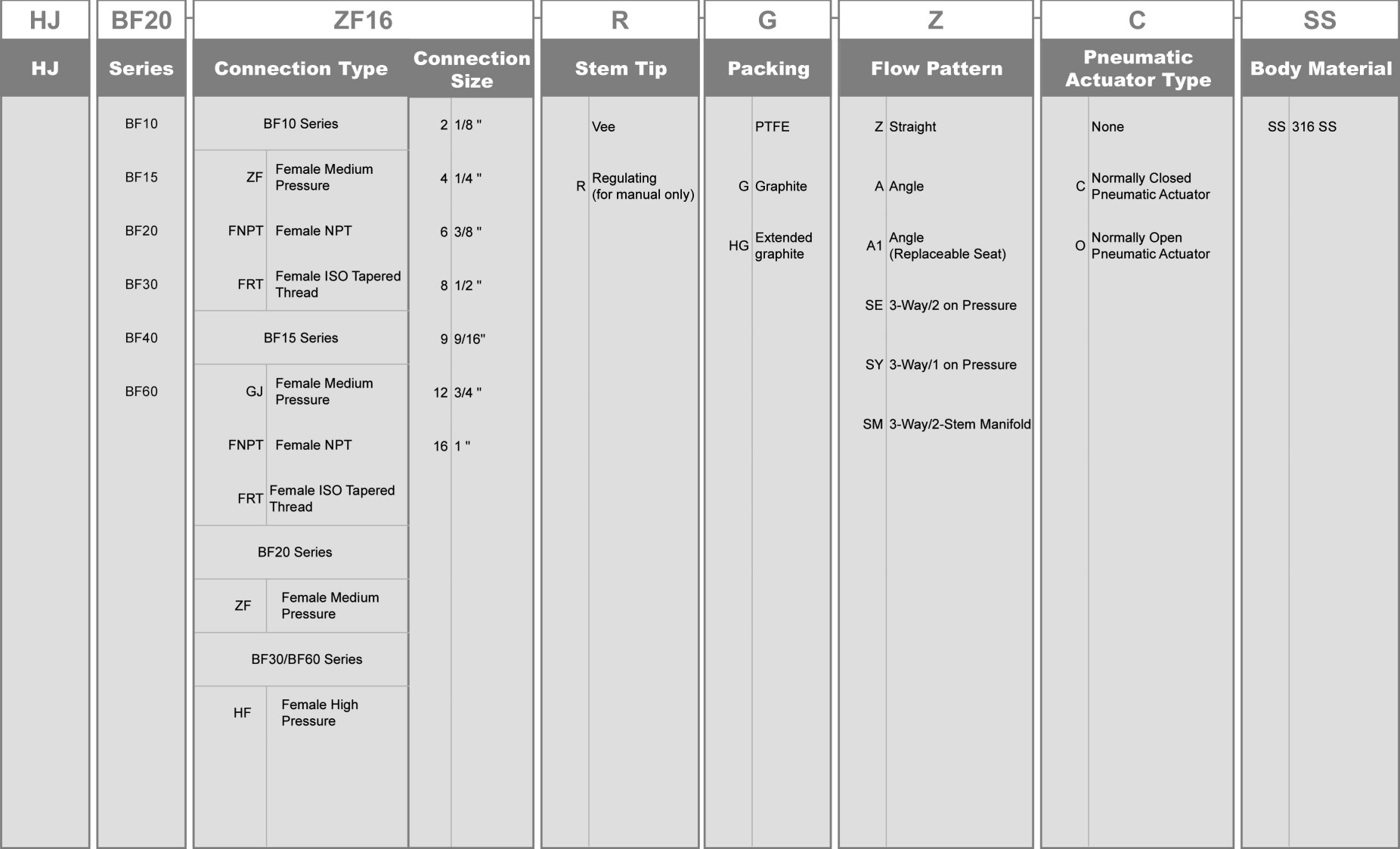

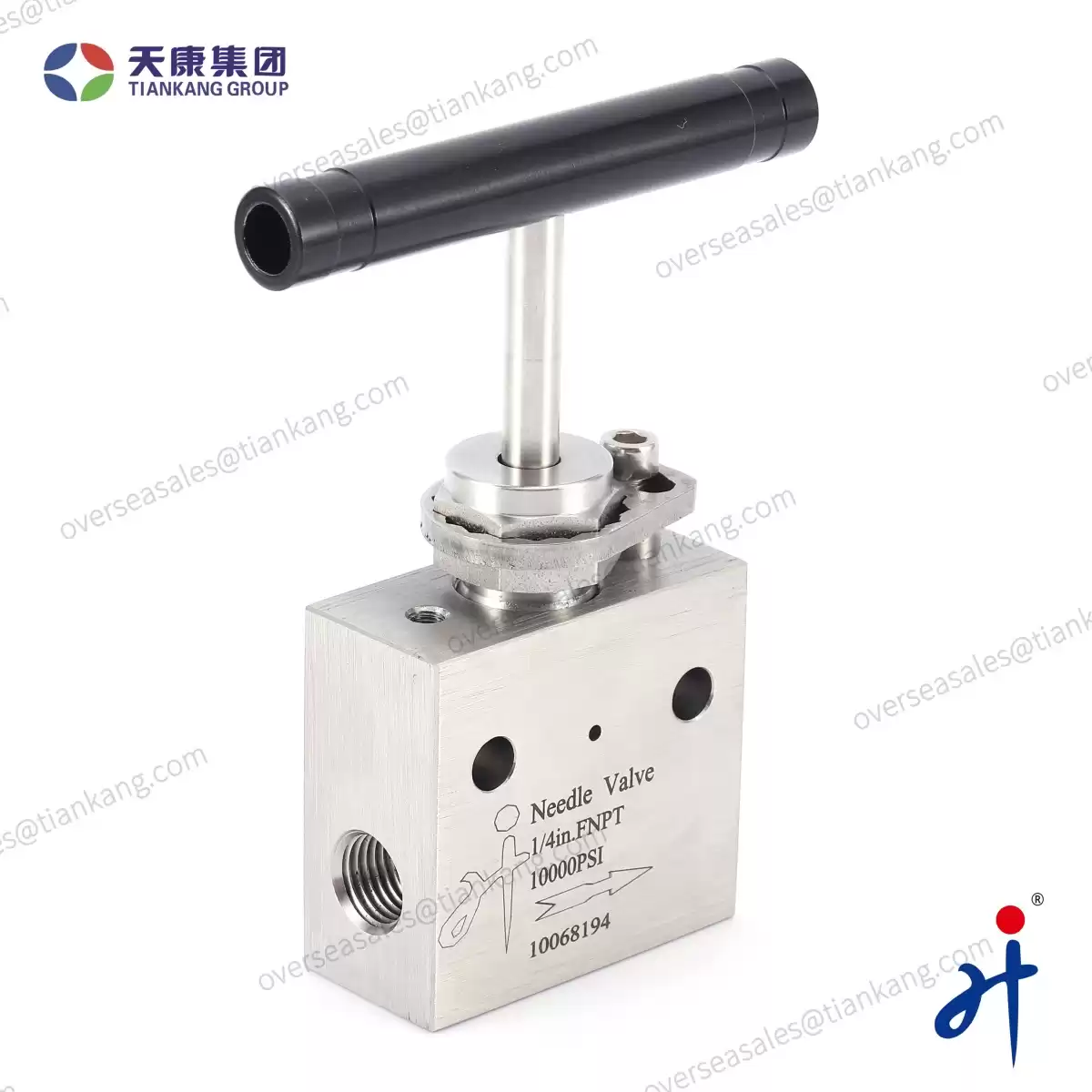

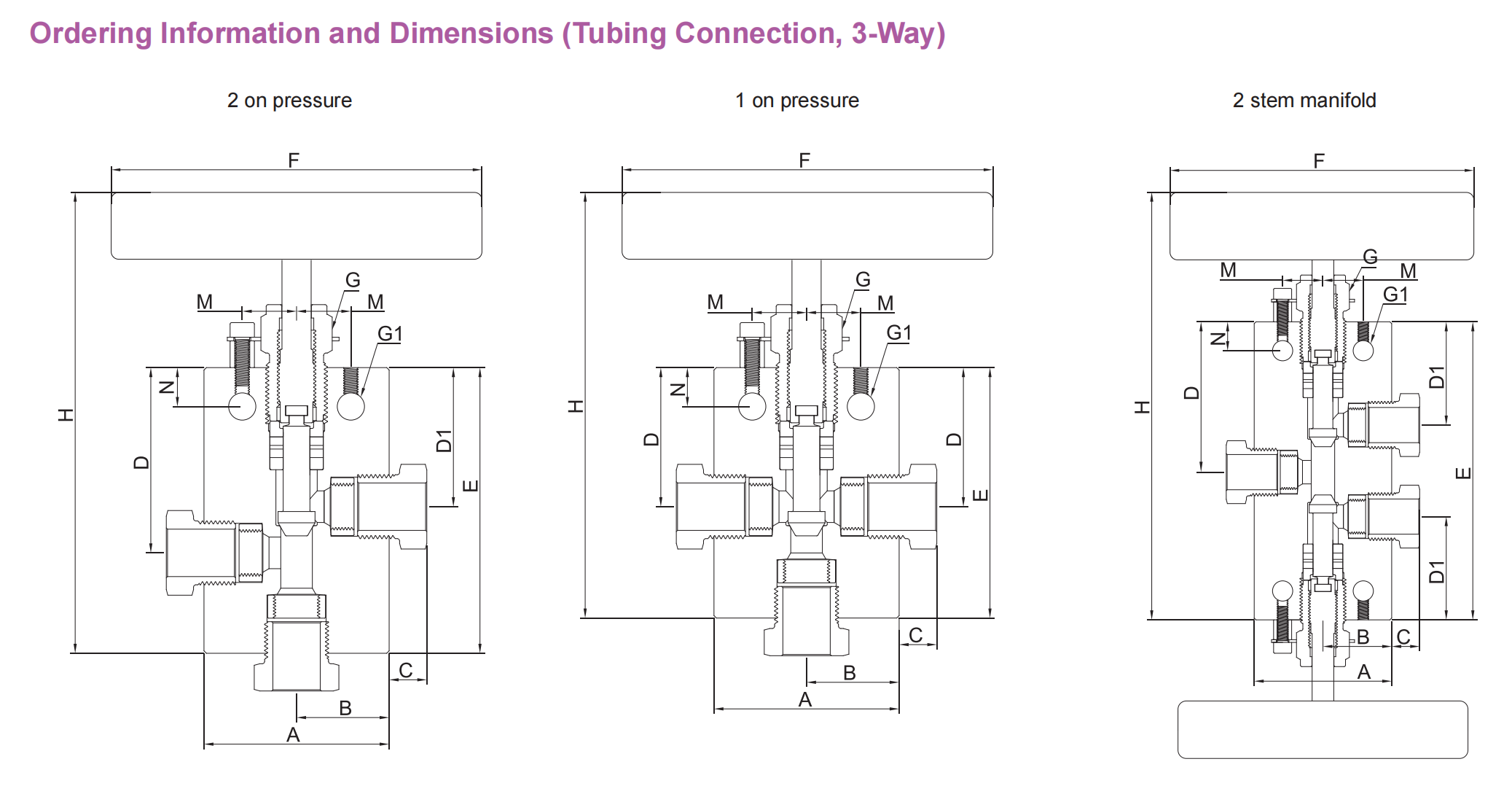

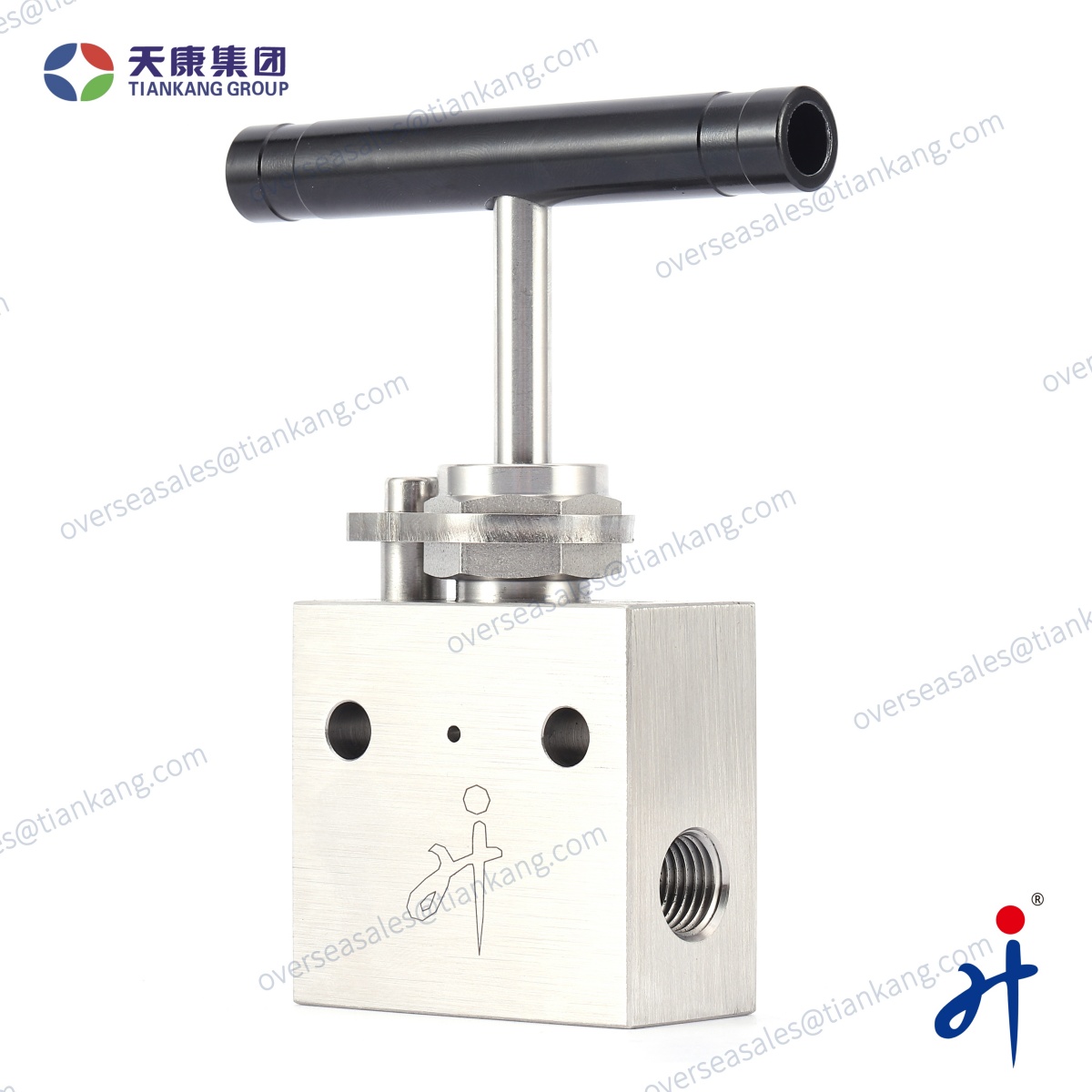

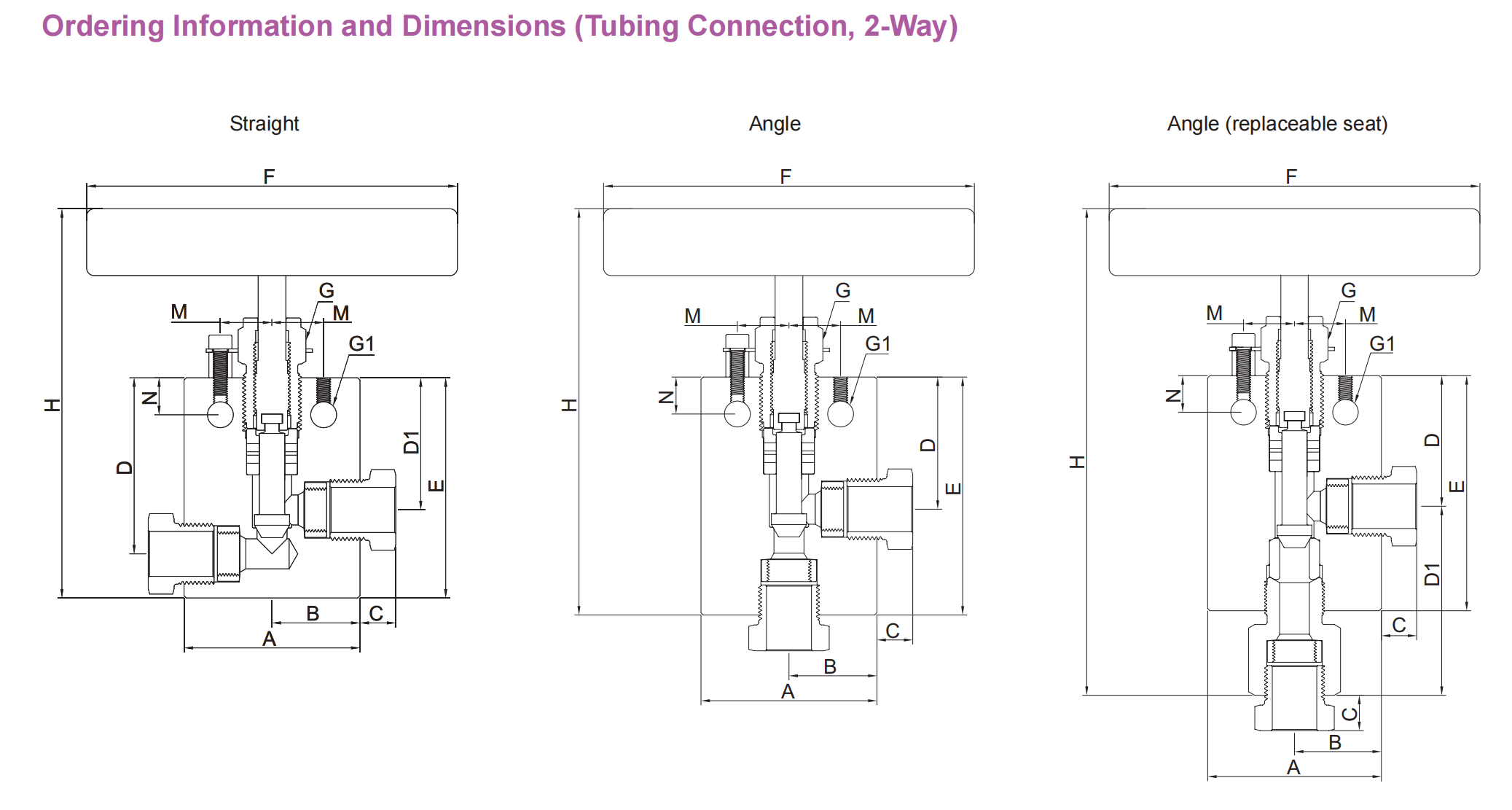

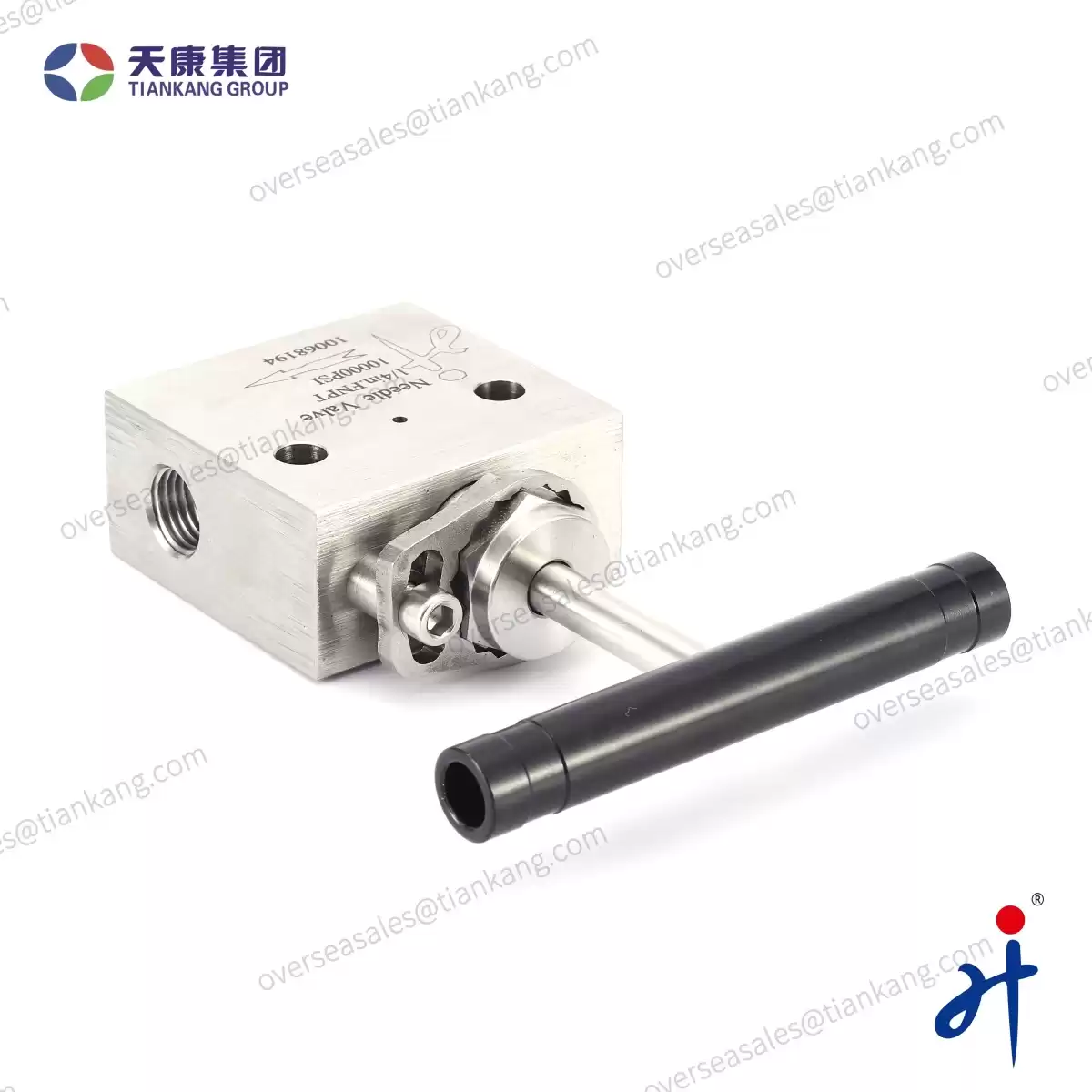

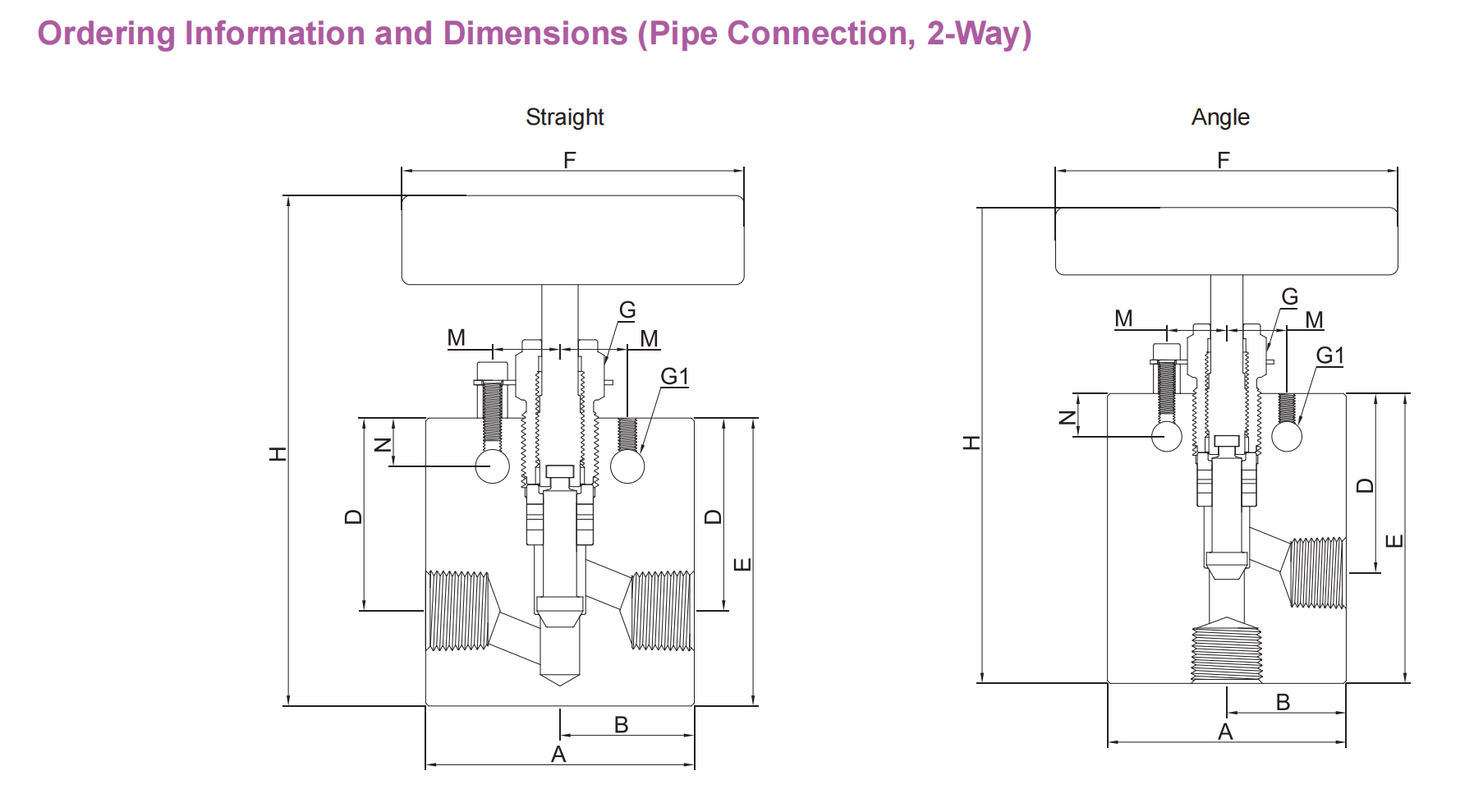

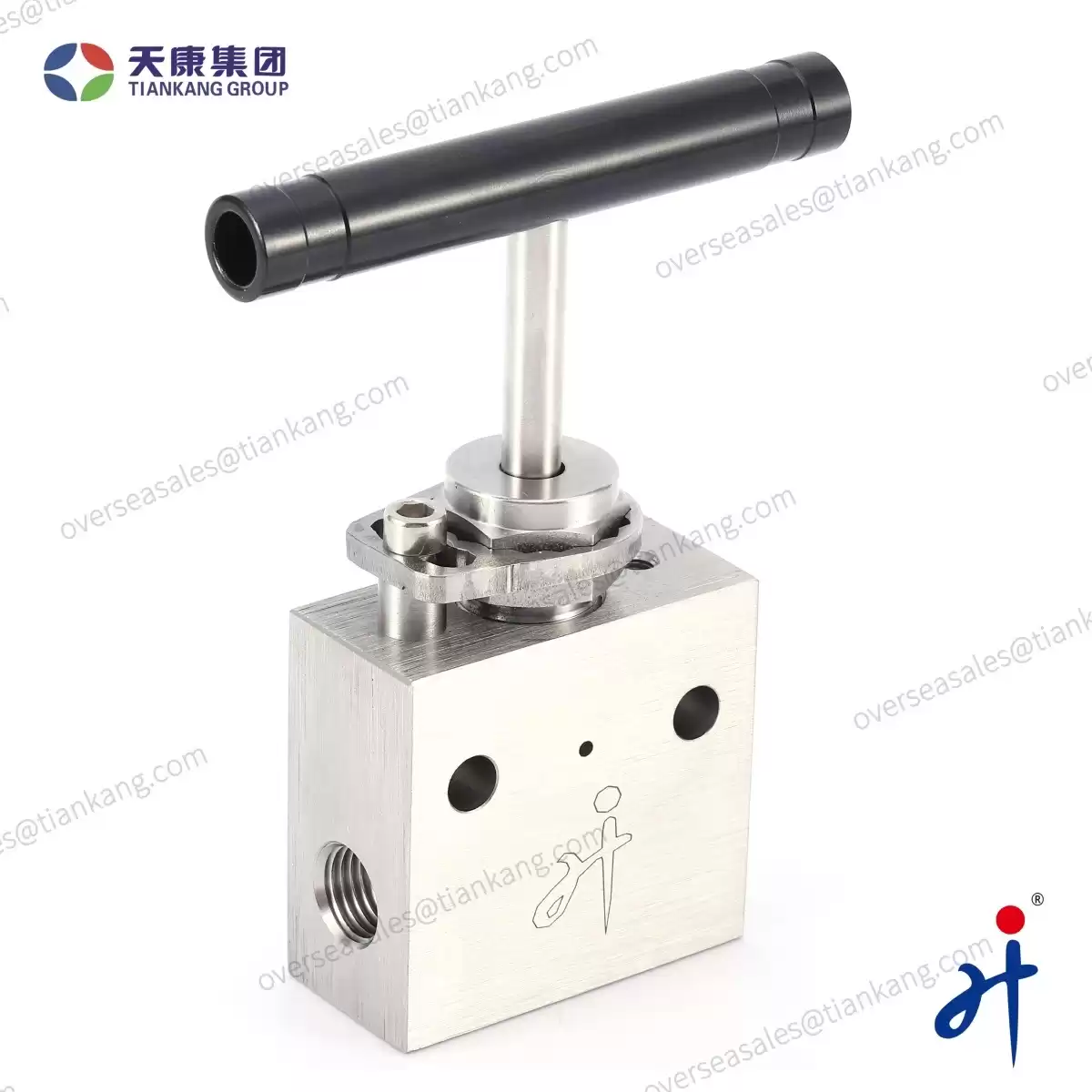

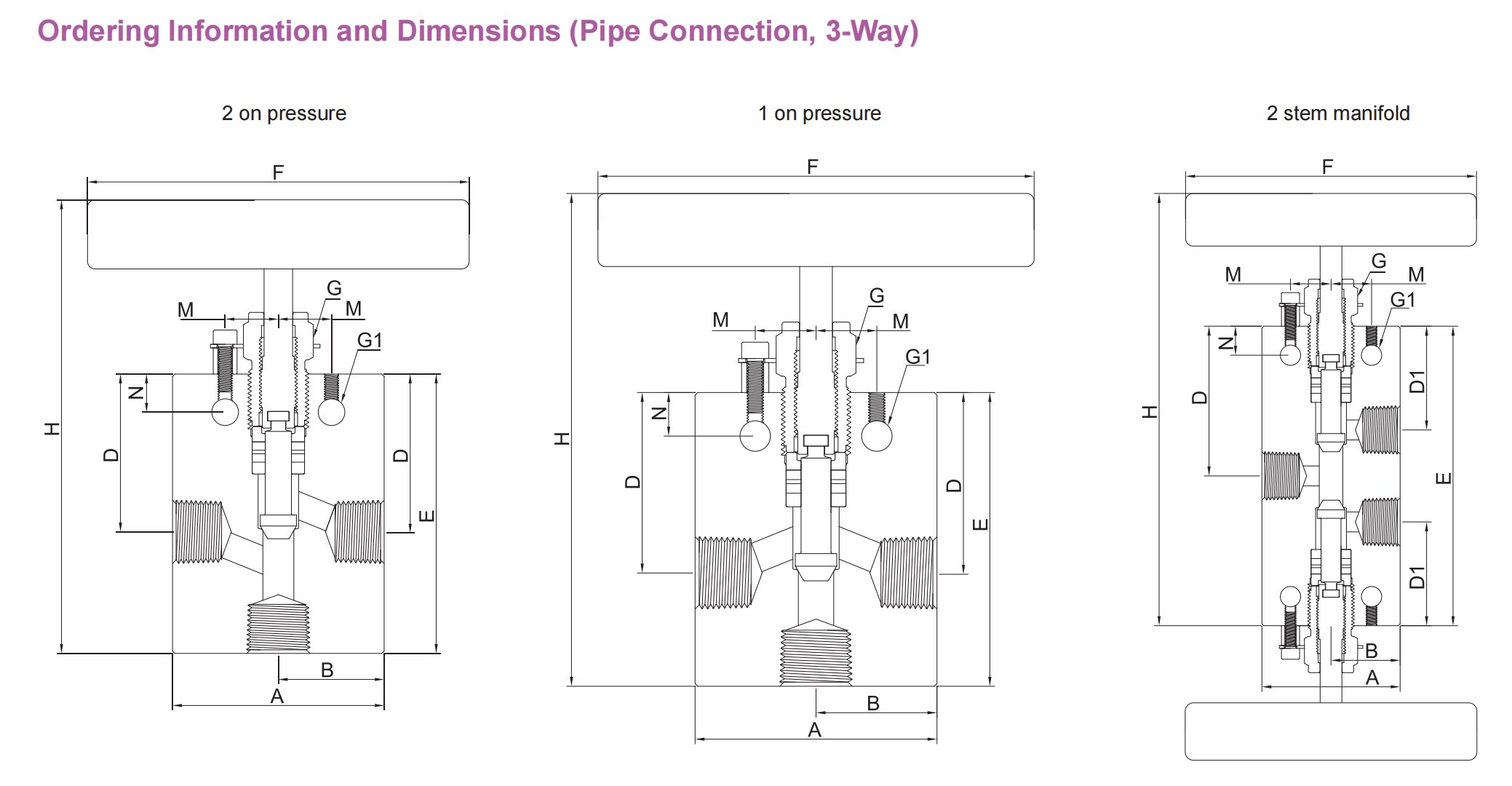

Ordering Information and Dimensions
Notes:
1. G is the drill dimension of packing gland mounting hole.
2. G1 is the dimension of bracket mounting hole.
3. Panel mounting drill size: 0.25" all valves.
4. H is the dimension of stem in closed position.
5. Cv values provided are for the 2-way straight valve pattern, For the 2-way angle pattern, increase the Cy value
by approximately 50% (based on water)
9/16" Female Medium Pressure Cv:1.75
3/4 " Female Medium Pressure Cv:2.80
1 " Female Medium Pressure Cv:5.20
3/4 " Female NPT & lSO Tapered Female Thread Cv:2.50
1 "Female NPT & lSO Tapered Female Thread Cv:4.40
