Overview

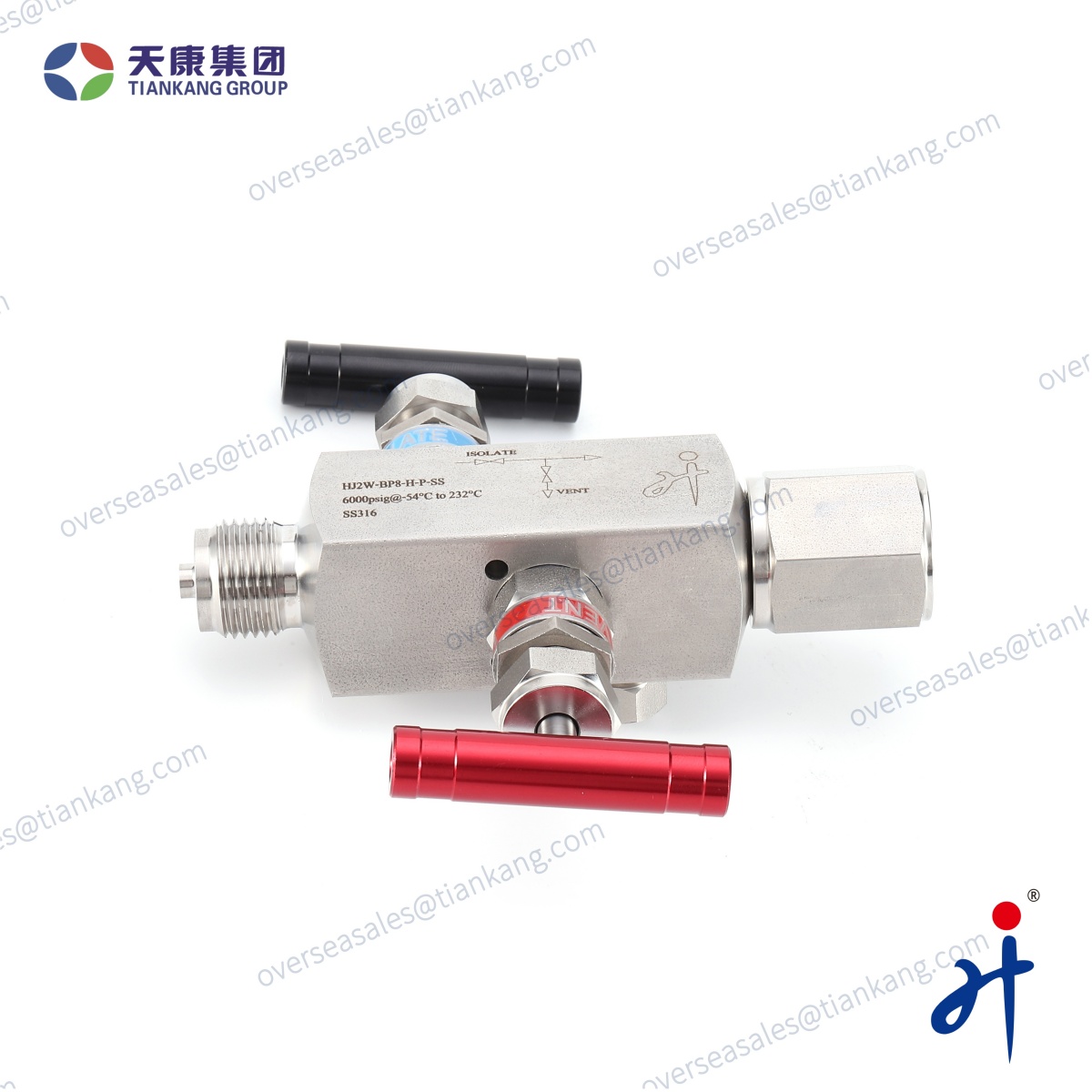

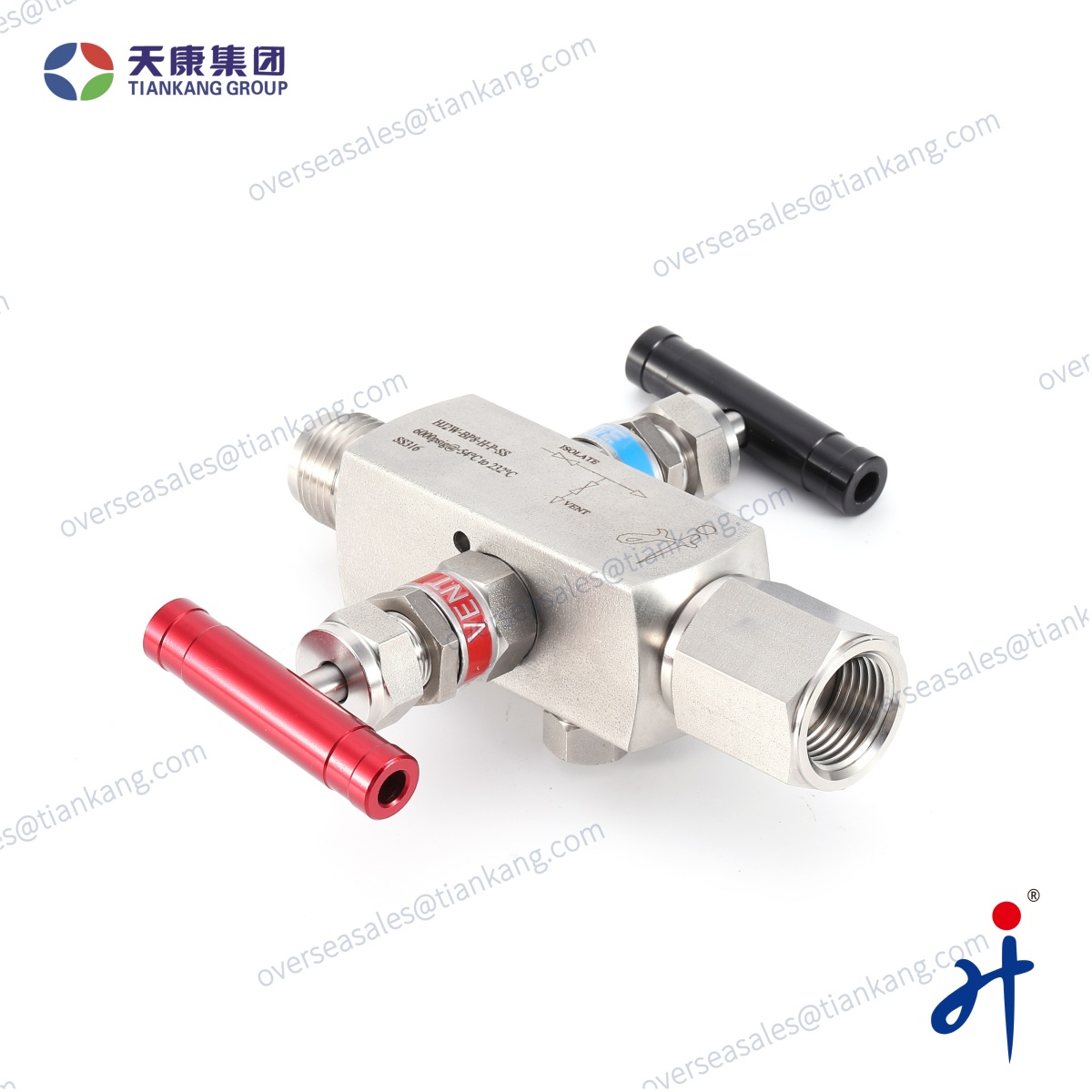

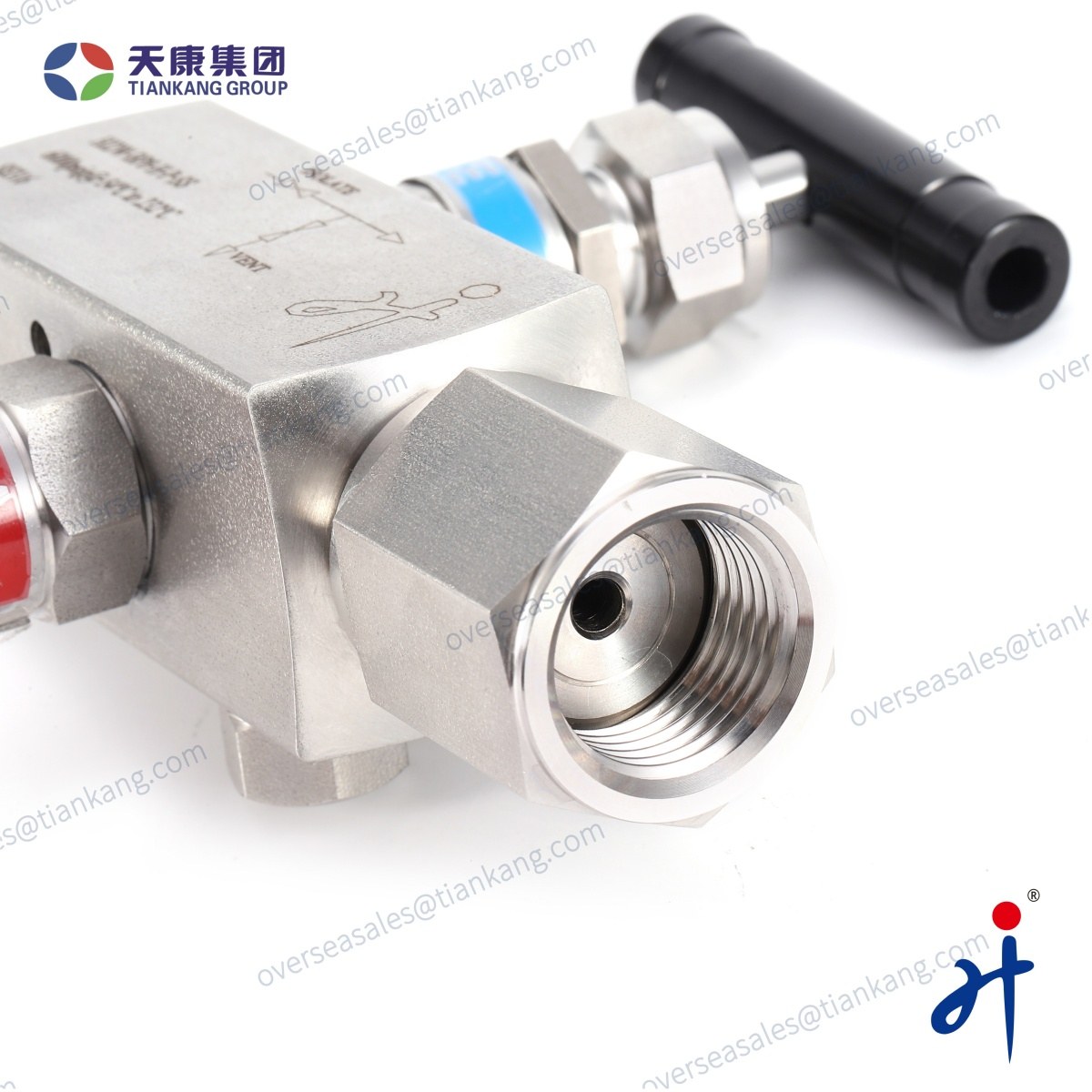

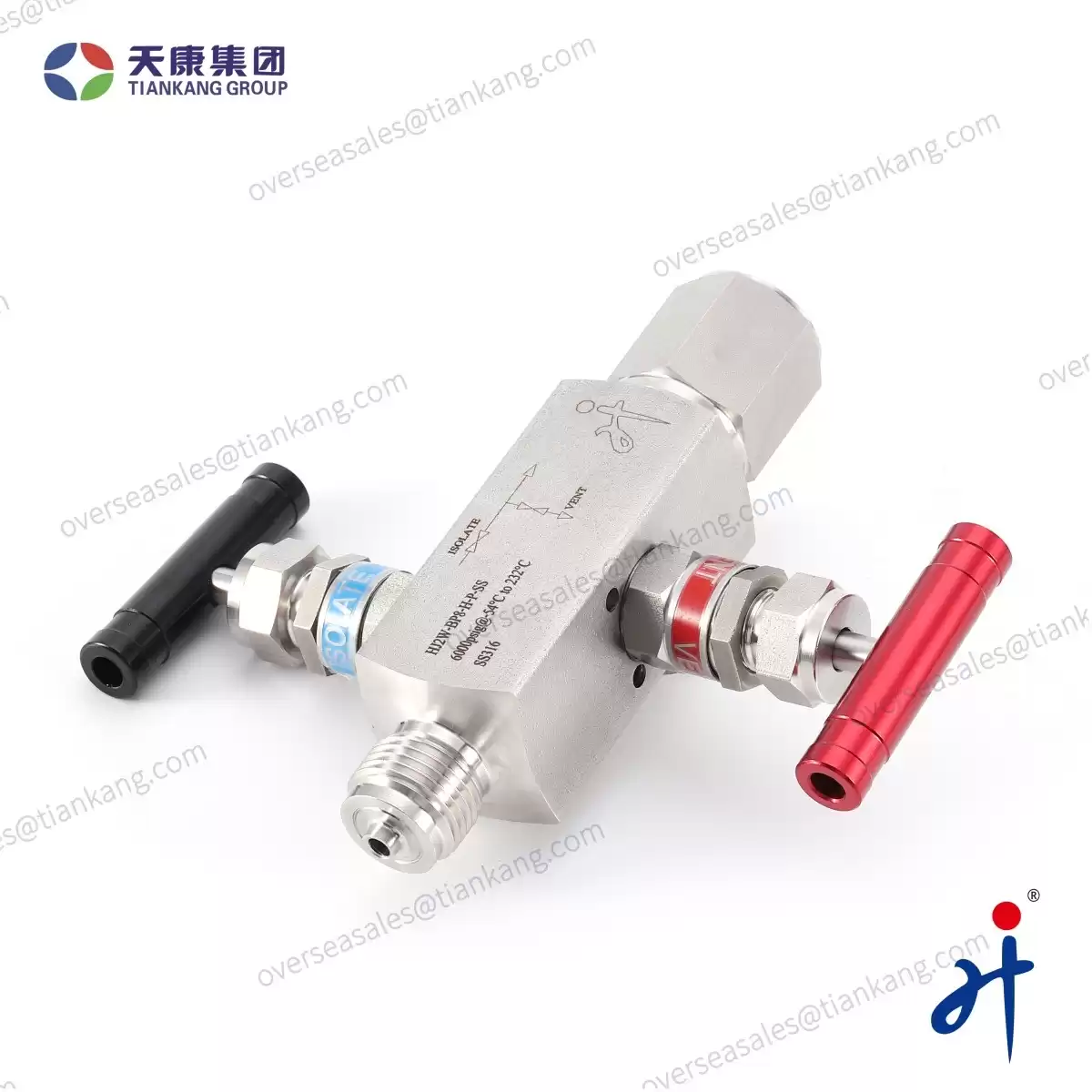

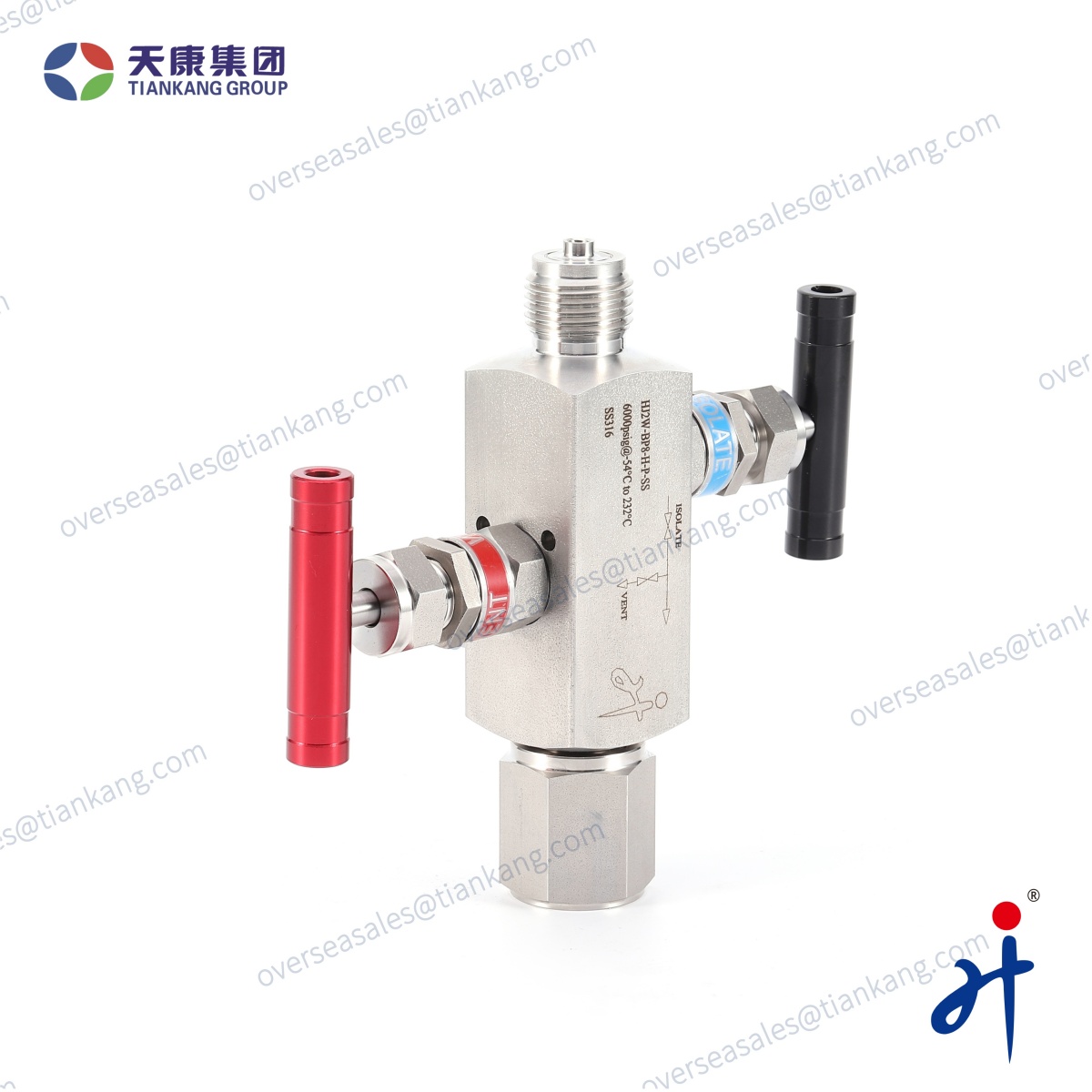

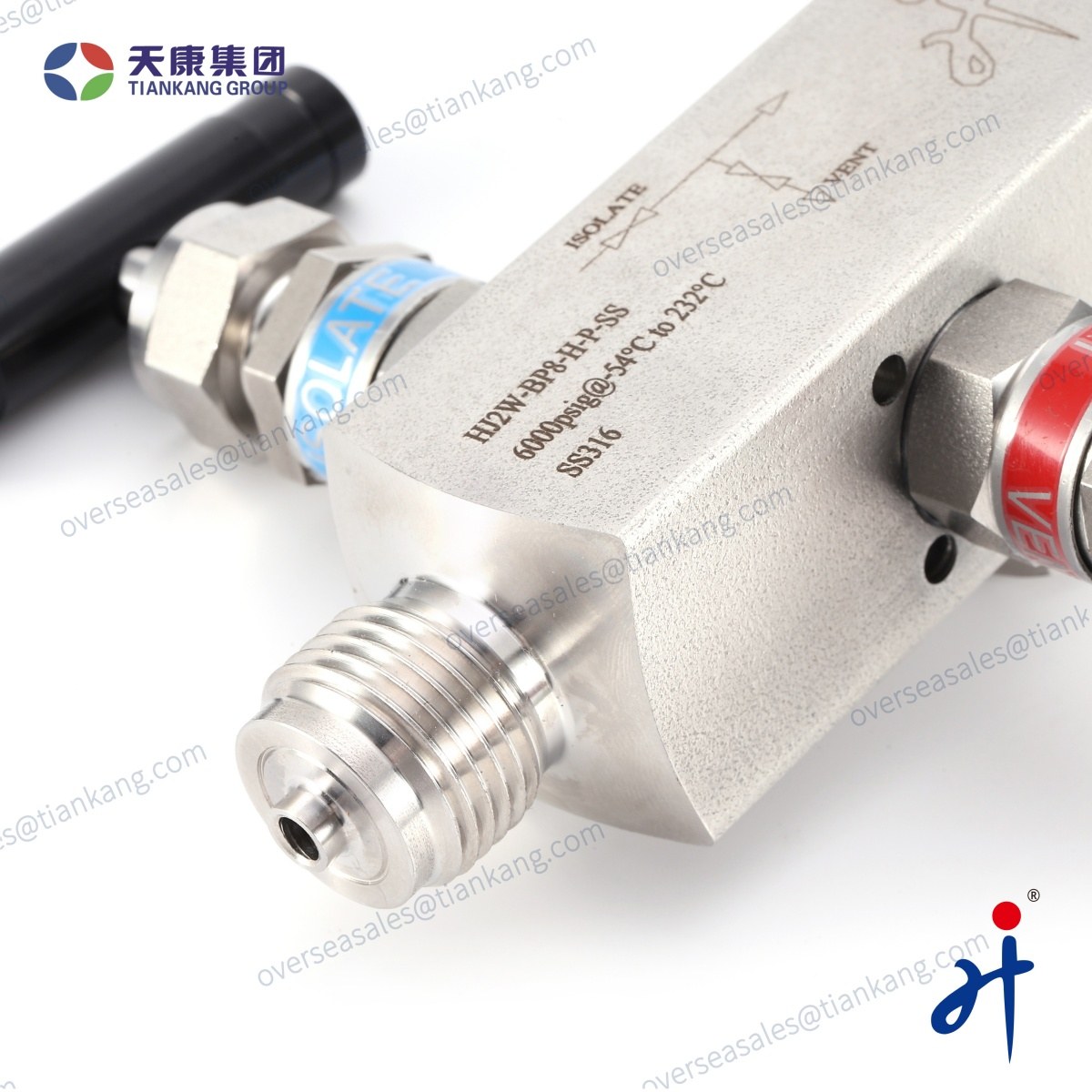

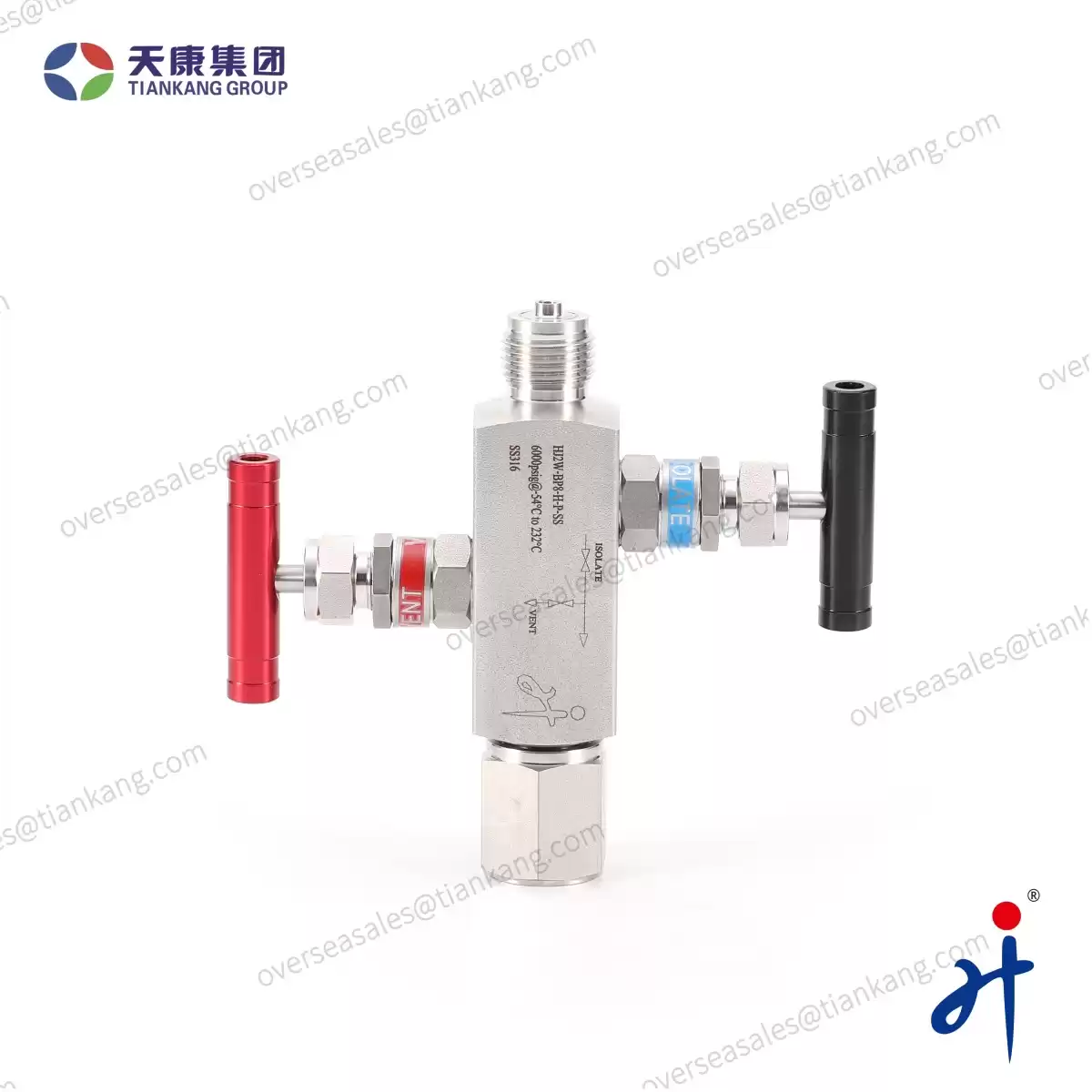

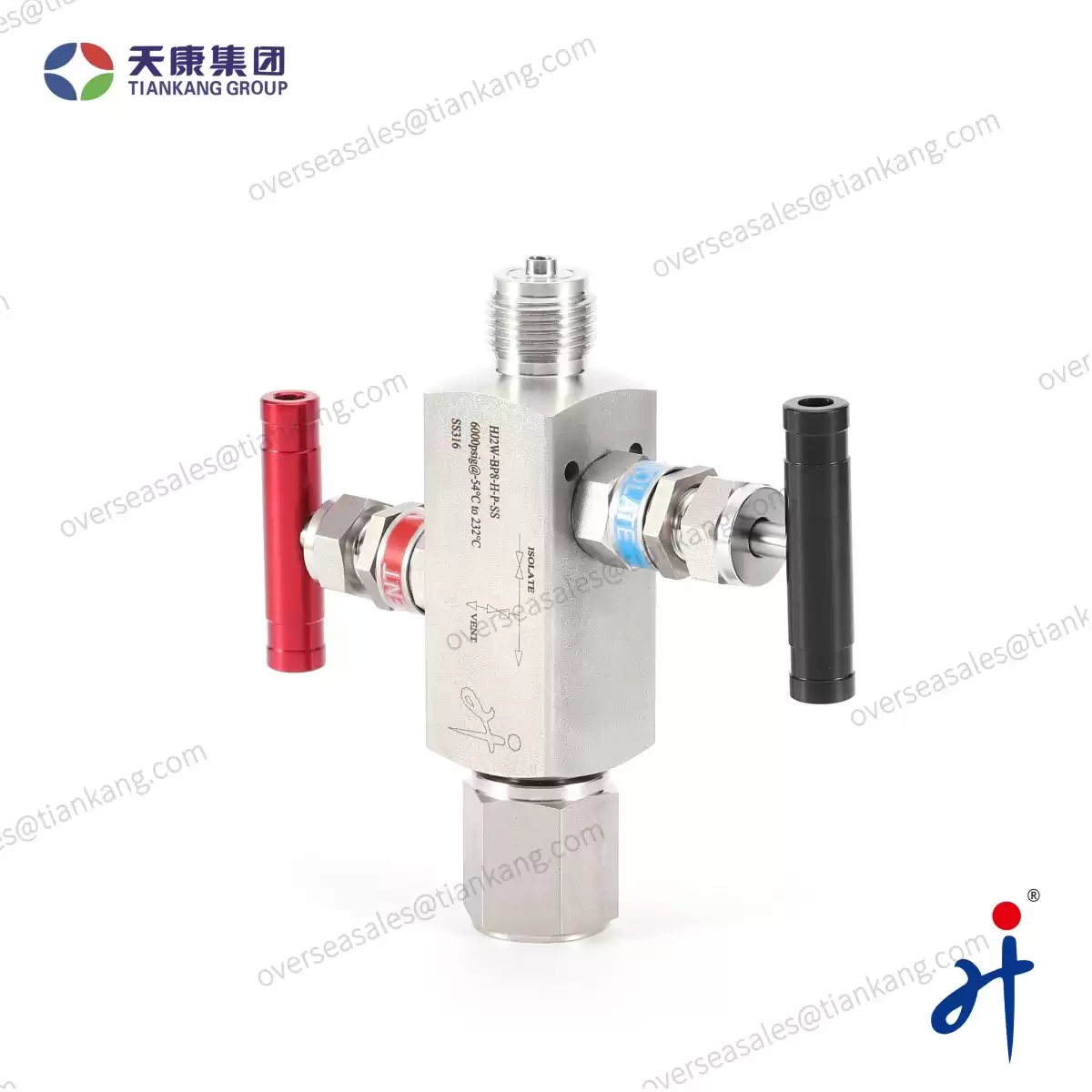

Tiankang Hongji In line Two Valve Manifold made by Hongji Instrument& Valve Manufacturing Co., Ltd. combine several valves in one body with multiple connections. This equipment assists pressure instruments such as pressure gauges, pressure transmitters, and differential pressure transmitters directly and indirectly in measuring and equalizing pressures, differential pressures, static, gauge, and variable in process instrumentation lines by bleeding, blocking, and calibrating.
Technical Specifications
| Type |
In line Type |
Net Weight |
0.9kg |
| Body Material |
316L,Alloy |
Manufacturing Capacity |
1800 pics/Month |
| Type of Connection |
Thread |
Warranty |
1 year |
| Seal Type |
Hard Sealing |
Manufacturing |
Forging and CNC |
| Packing |
PTFE/Graphite |
Pressure Range |
6000Psi-10000Psi(414 Bar-690 Bar) |
| Media |
Liquid,Gas,Steam,Oil |
Inlet/outlet |
1/2 NPT |
| Test/Vent |
1/4 FNPT |
Orifice: |
0.157(4.0 mm) |
| Graphite |
-65°F to 1200F(-54℃ to 649℃) |
PTFE |
-65°F to 450 F(-54℃ to 232℃) |
Applications
- Valve manifolds serve as indispensable components for fluid and gas control in a multitude of industries. In the realm of Oil & Gas, they play a pivotal role in maintaining pressure, measuring flow, and isolating high-pressure systems during drilling and refining operations. Within the domain of Chemical and Petrochemical Plants, these manifolds are relied upon for precise control of chemical processes and operational safety in reactors and distillation columns.
- In the field of Power Generation, valve manifolds are instrumental in managing the flow of steam and water, as well as supporting instrumentation in boilers and turbines. The Pharmaceutical and Biotechnology sector depends on these components for the delicate control of sterile fluids and the hygienic isolation necessary to uphold contamination-free manufacturing processes.
- Water Treatment facilities utilize valve manifolds to regulate flow and pressure throughout treatment and distribution networks. In HVAC systems, these components aid in the regulation of temperature and pressure for refrigerants, while facilitating system isolation for maintenance purposes. Furthermore, in Laboratories and Research Facilities, valve manifolds offer precise fluid management and multi-channel control for intricate experiments and testing apparatus. The adaptability and versatility of these manifolds make them an indispensable asset for ensuring safe and efficient operations in a variety of industries.

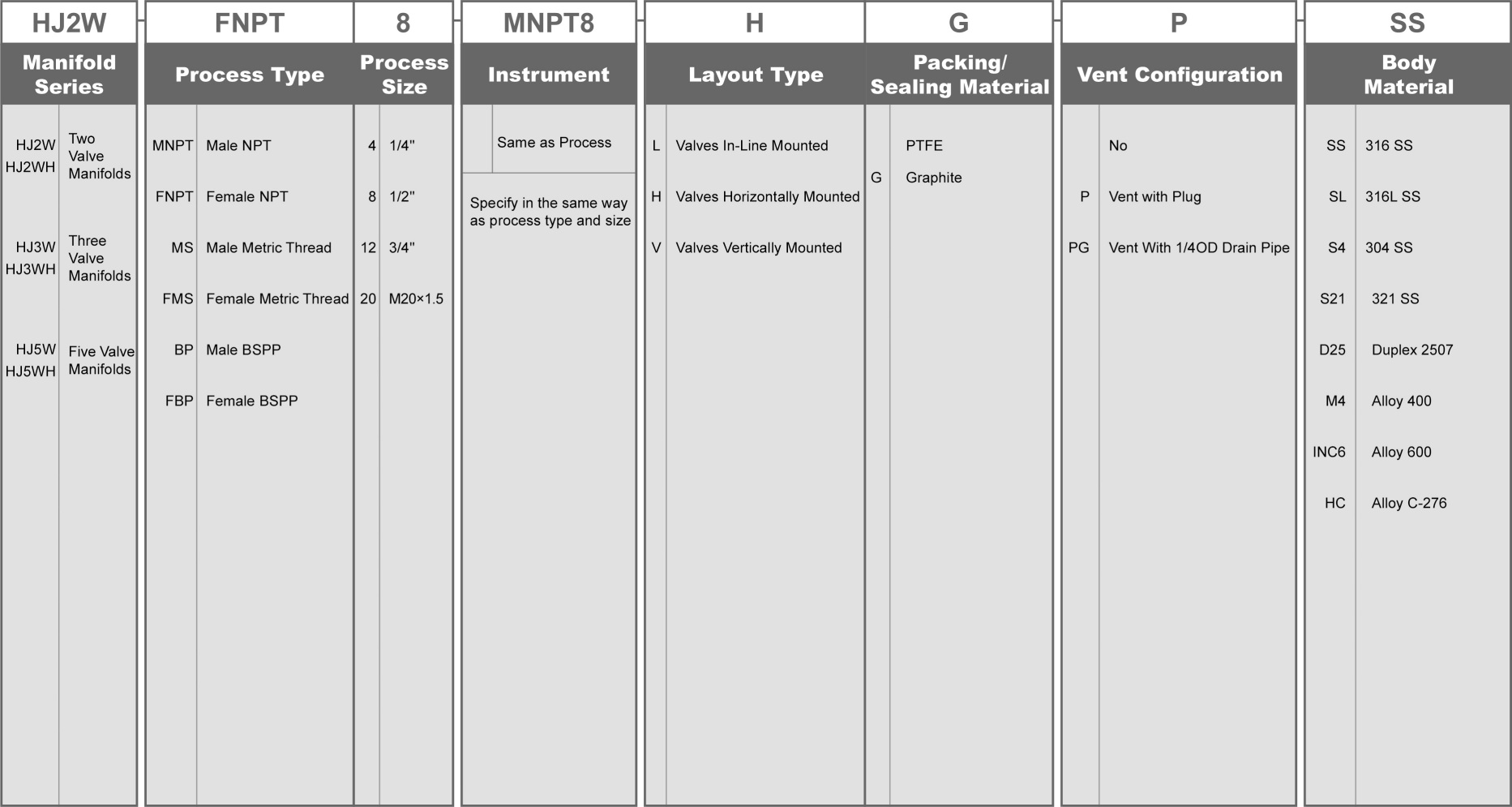

Ordering Number Description
Notes:
- Standard manifold instrument is flange (according to MSS SP-99), flange distance (center-to-center) is 2.13 (54 mm).
Distance of 2.19 (55.6 mm) suitable for transmitters of range 6, 7 and 1151.
Distance of 2.25 (57.2 mm) transmitters of range 8 and 1151.
- Ordering Number Indication illustrates the classification and combination of Hongji products, which can not be randomly combined.
- For those valves made of other type of material other than listed ,please contact the Hongji sales personnel.
- If an oxygen-dedicated valve manifold is required, include “O2” in the basic order number, for example:HJ2V-MNPT8-FNPT8-H-P-SS-O2
