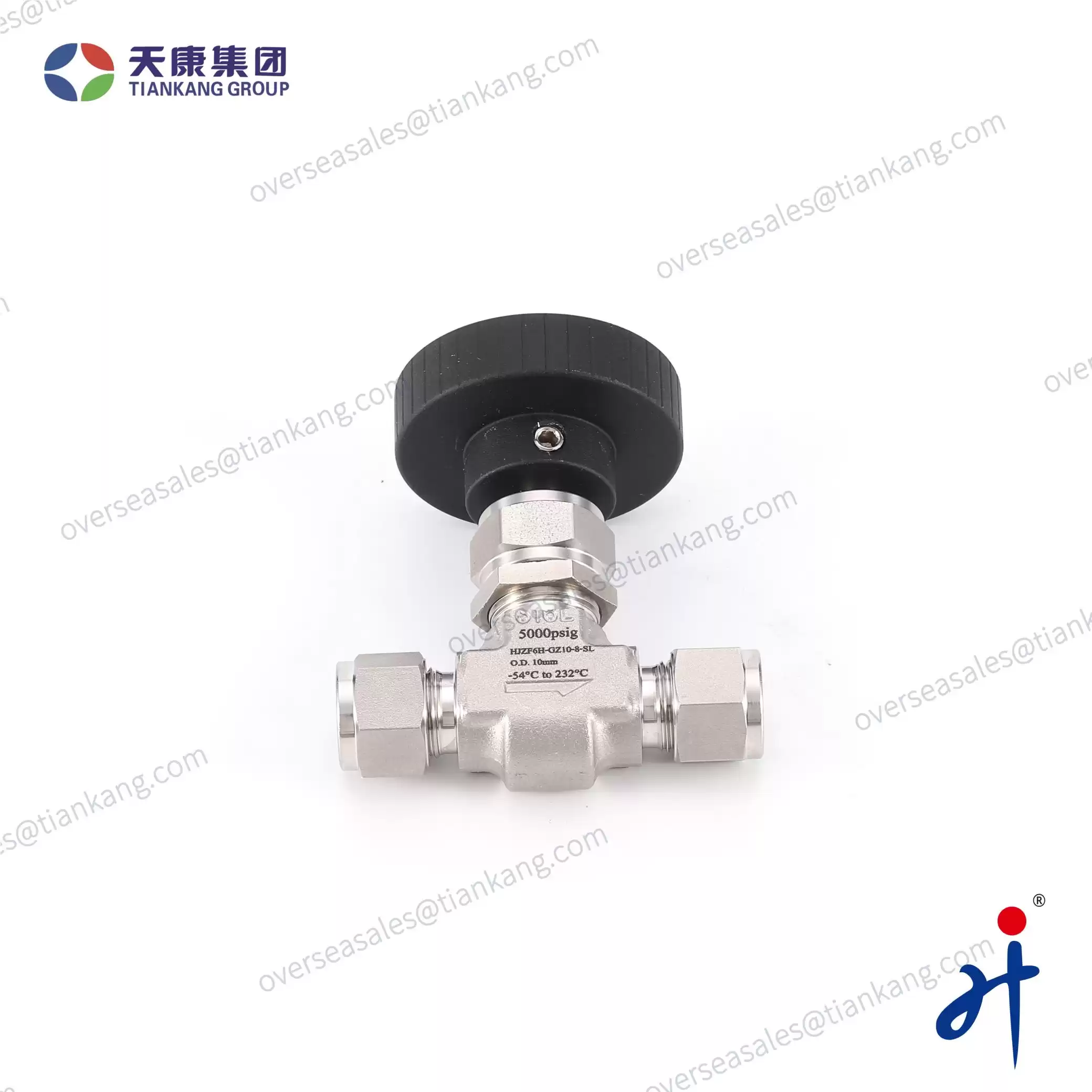

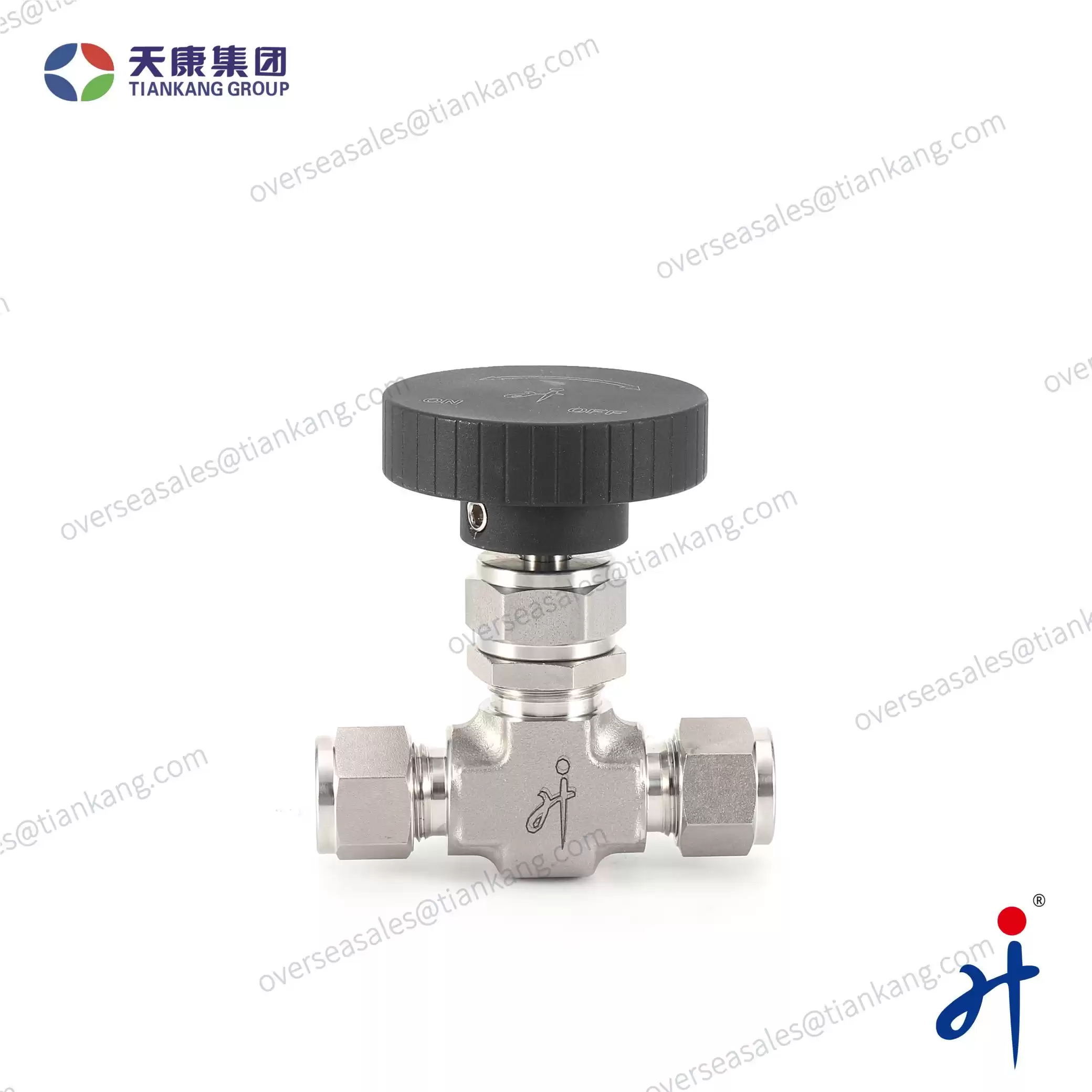

Overview

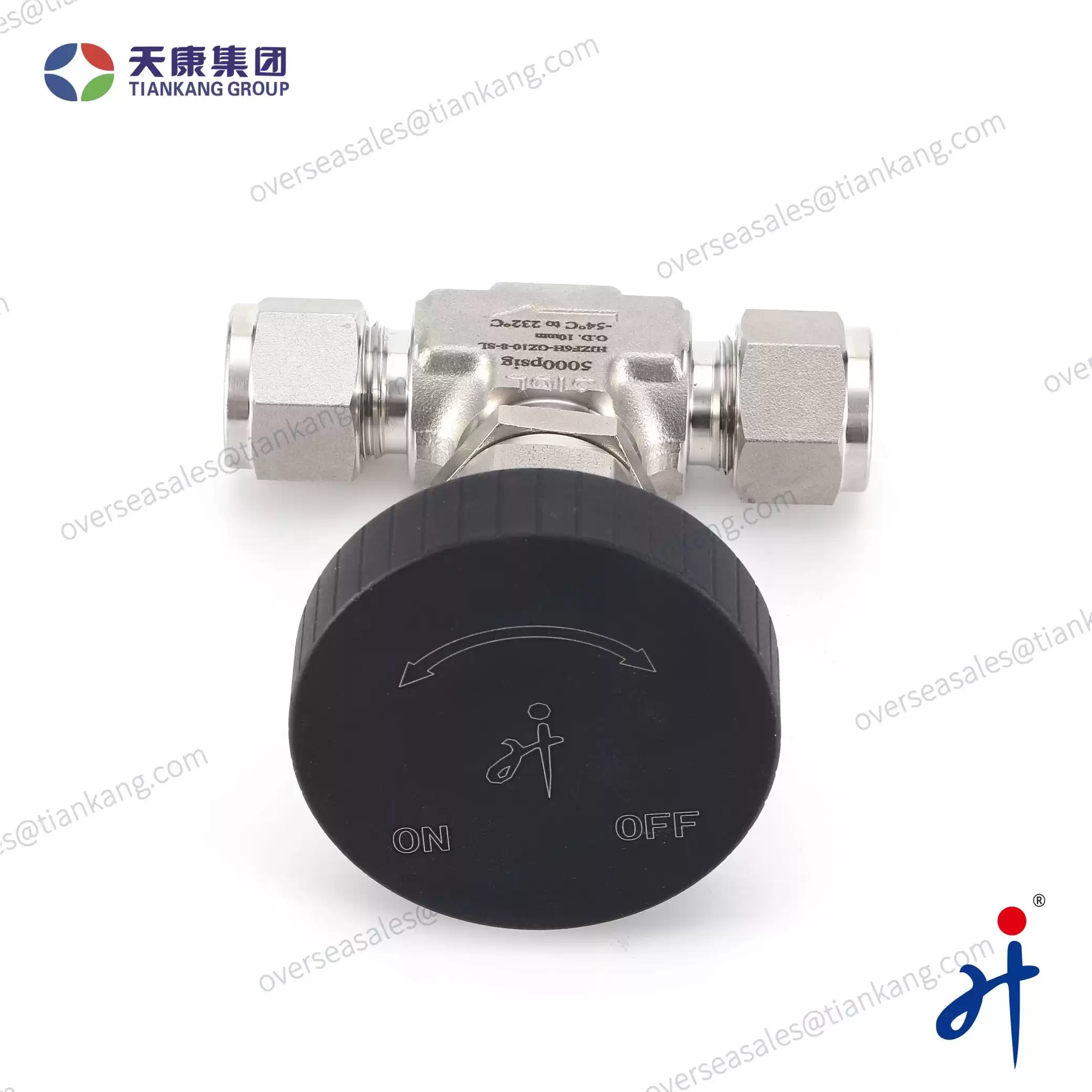

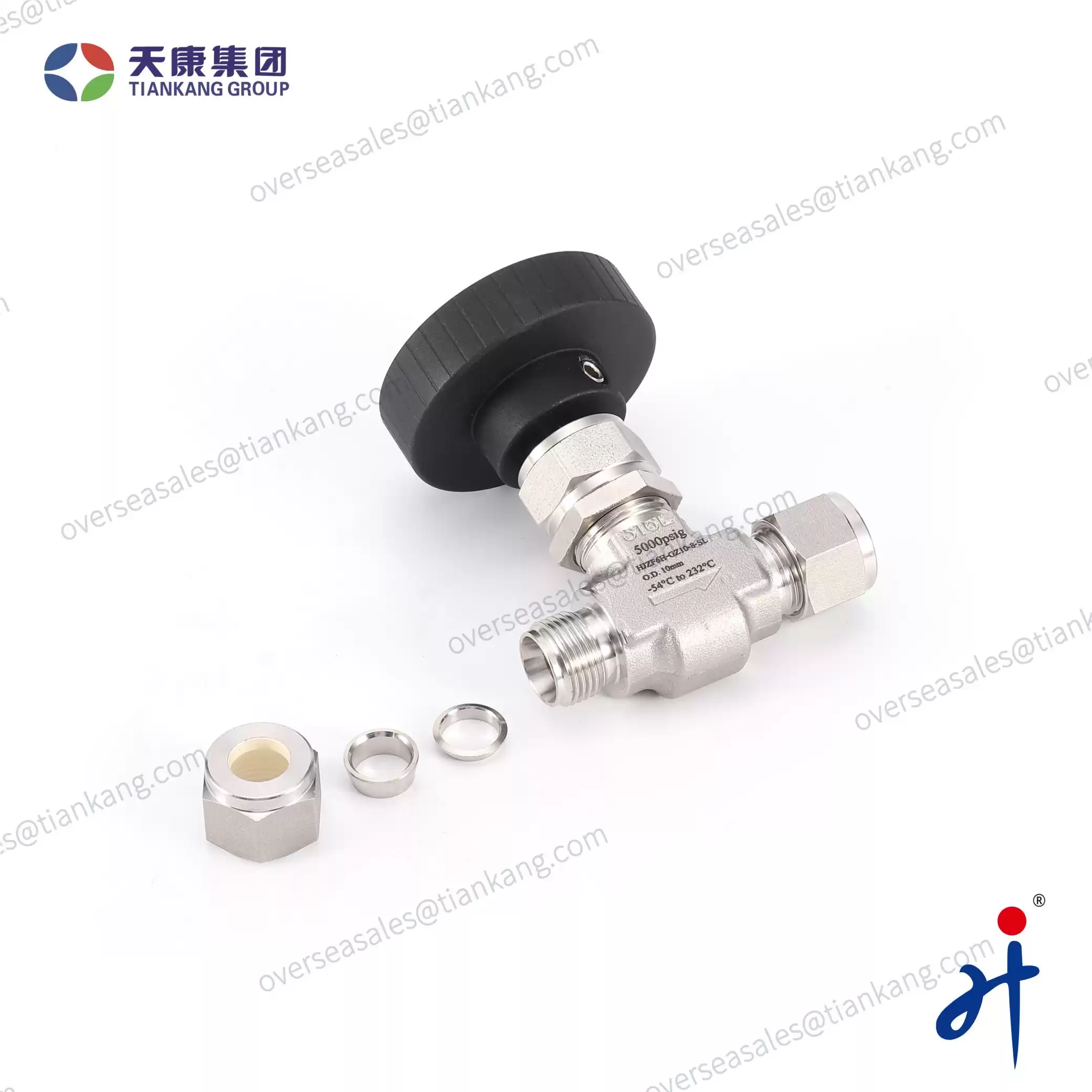

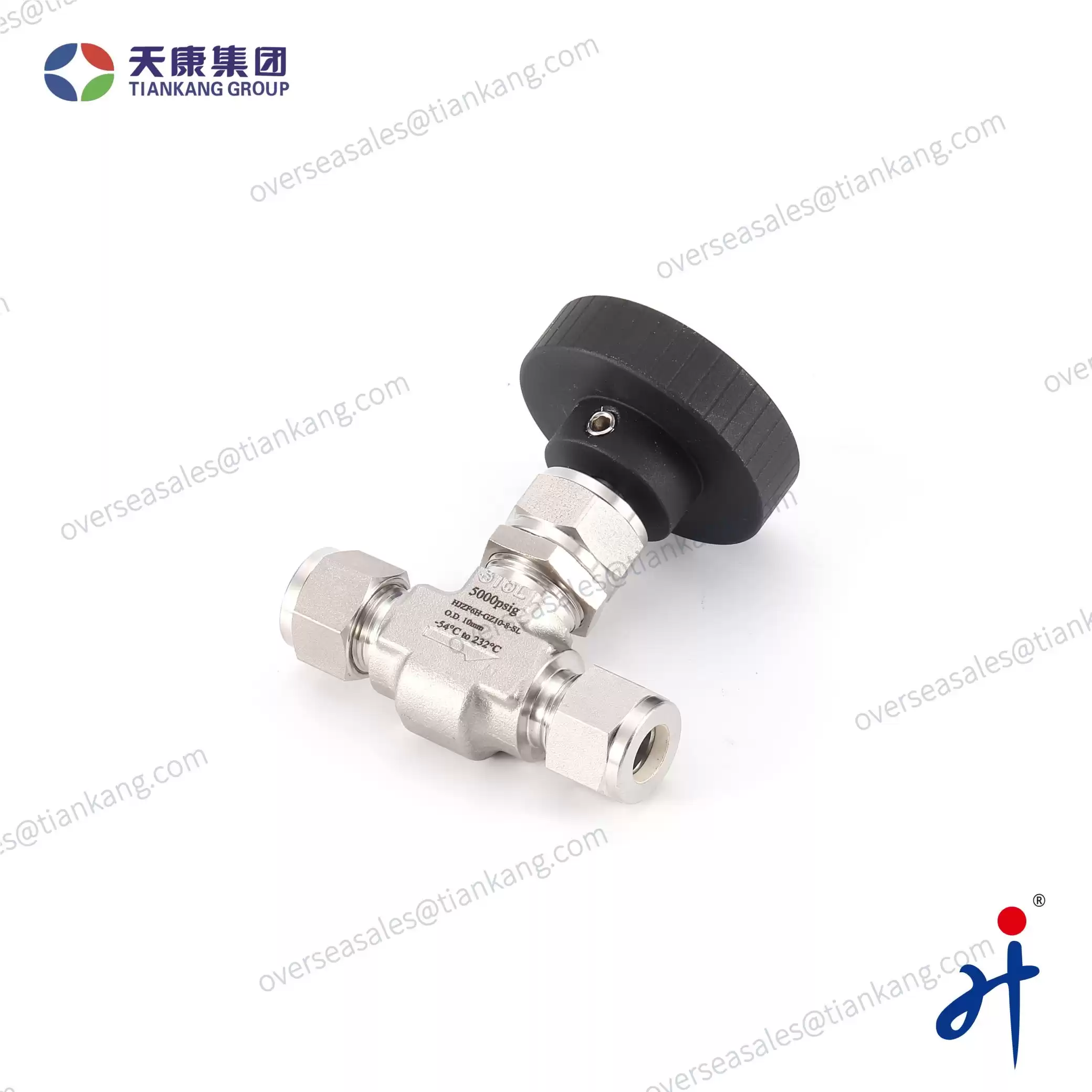

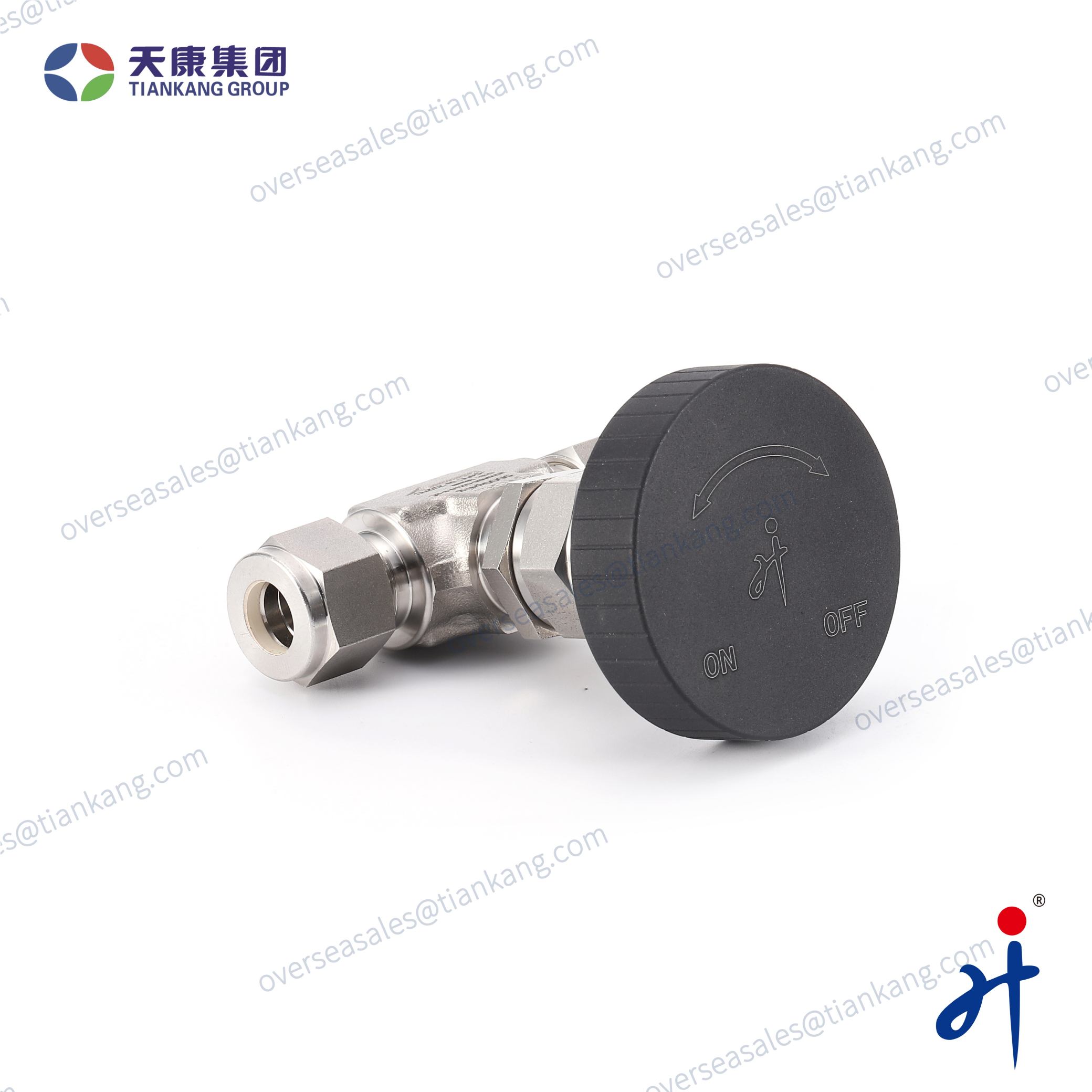

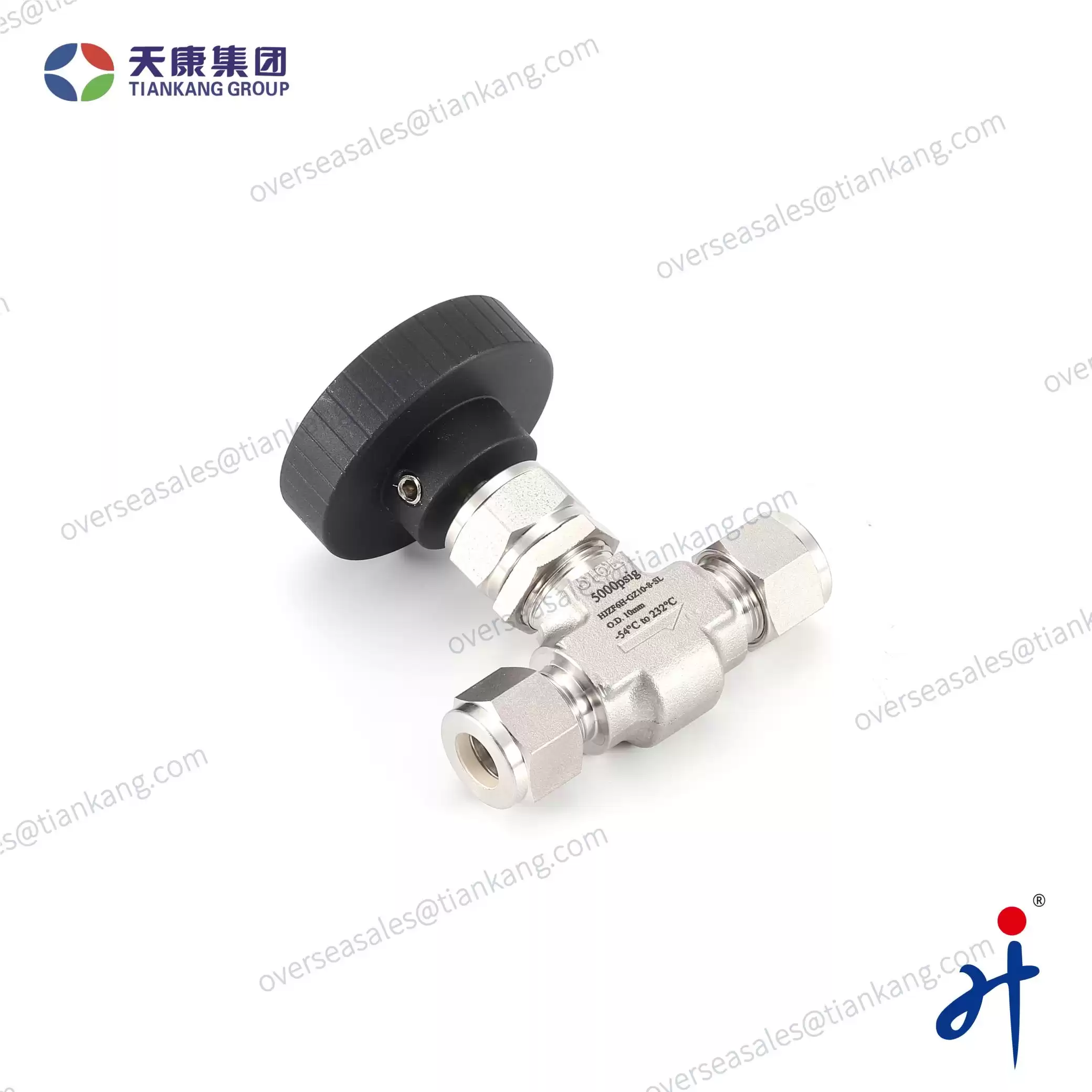

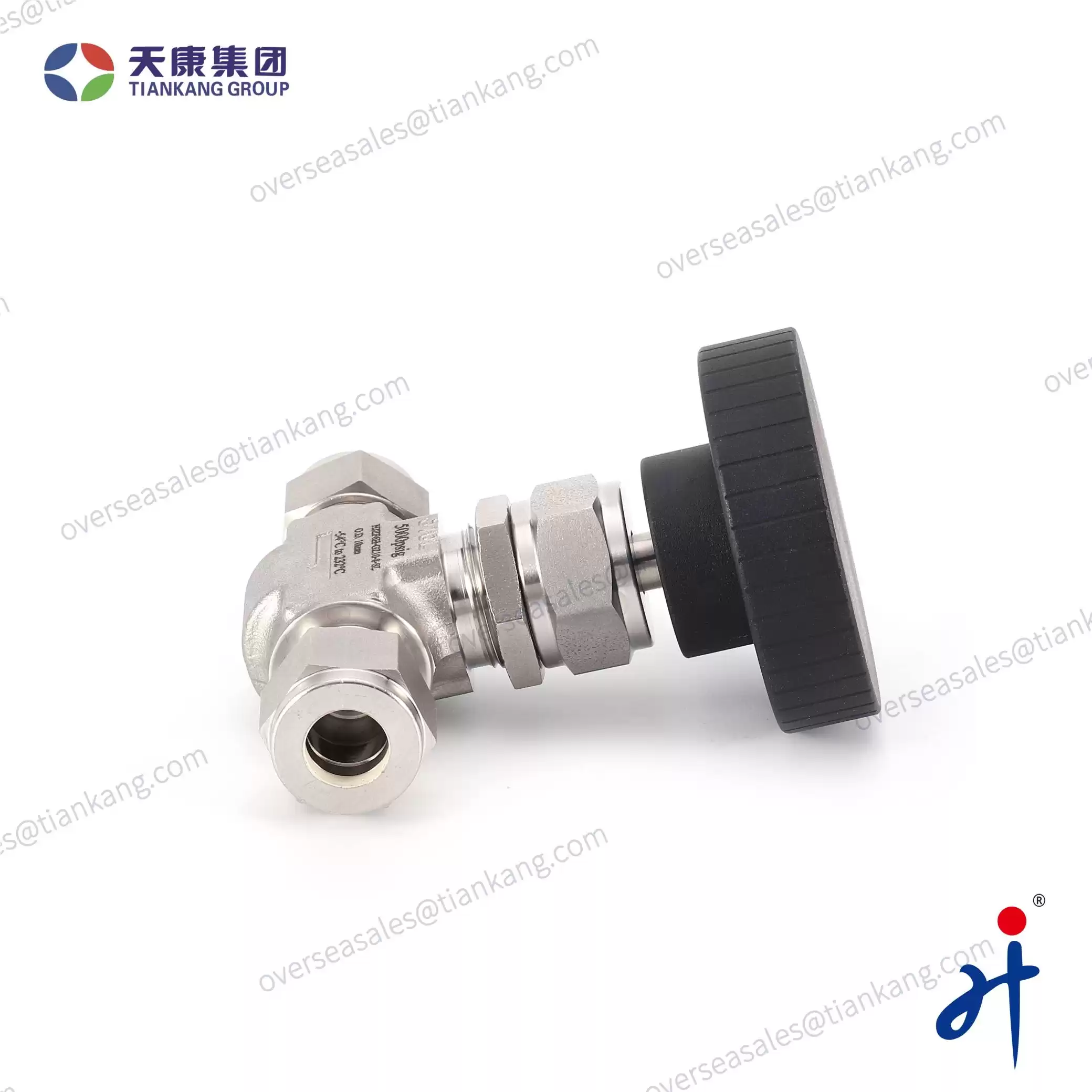

The Hongji Needle Valves are types of valves used for precise flow control of liquids or gases in a system. Constructed using forged materials, they offer superior strength, durability, and resistance to high pressure and temperature. Their one-piece body design minimizes leakage risks, making them ideal for harsh environments such as oil and gas, chemical, and industrial systems.
Technical Specifications
| Type |
Needle Valve with Ferrule Connection |
Net Weight |
0.3kg |
| Body material |
SS316; SS316L; SS304，Alloy |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Double Ferrule |
Warranty |
1 year |
| Seal Type |
Hard Sealing |
Manufacturing |
Forging and CNC |
| Packing |
PTFE/ PEEK |
Pressure Range |
3000Psi – 5000Psi(414 Bar – 690 Bar) |
| Media |
Liquid, Gas, Steam, Oil |
Prot Size |
6 mm Metric Tube Fitting |
| PEEK |
-65°F to 500°F(-54°C to 260°C) |
PTFE |
-65 °F to 450 °F (-54 °C to 232 °C) |
Applications
- Flow Regulation: Used in systems where the flow needs to be controlled very precisely, such as in gas or liquid pipelines.
- Testing and Calibration: Frequently used in instrumentation, laboratories, and process control applications to calibrate equipment and regulate test fluids.
- Gas and Liquid Distribution: Hongji Needle valves are common in gas and liquid distribution systems, including those in pharmaceuticals, food and beverage, and oil and gas industries.
- Pressure Control: Often used for controlling the pressure and flow of sensitive or hazardous fluids in applications like fuel systems, high-pressure systems, or critical fluid handling systems.

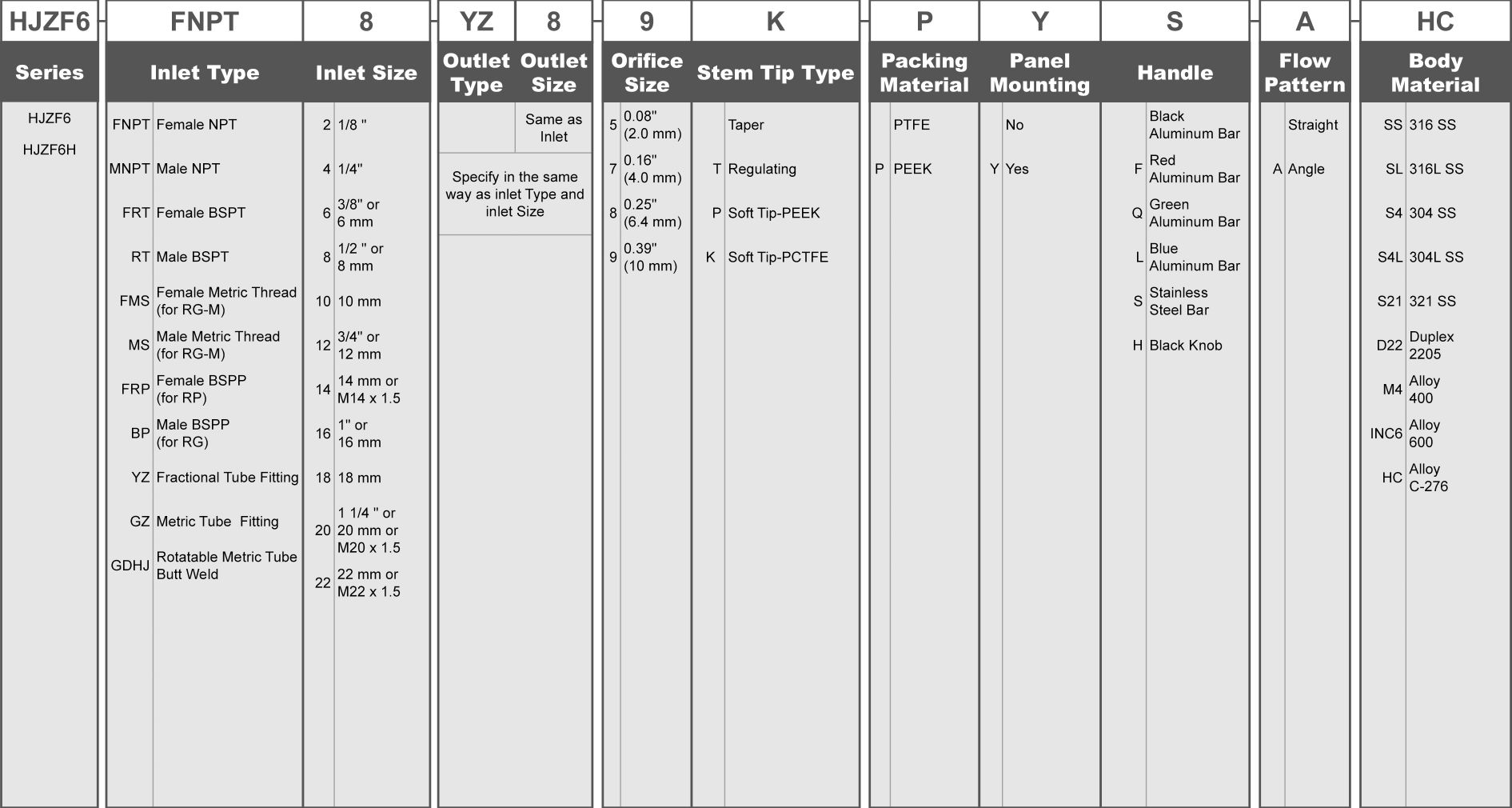

Ordering Number Description：

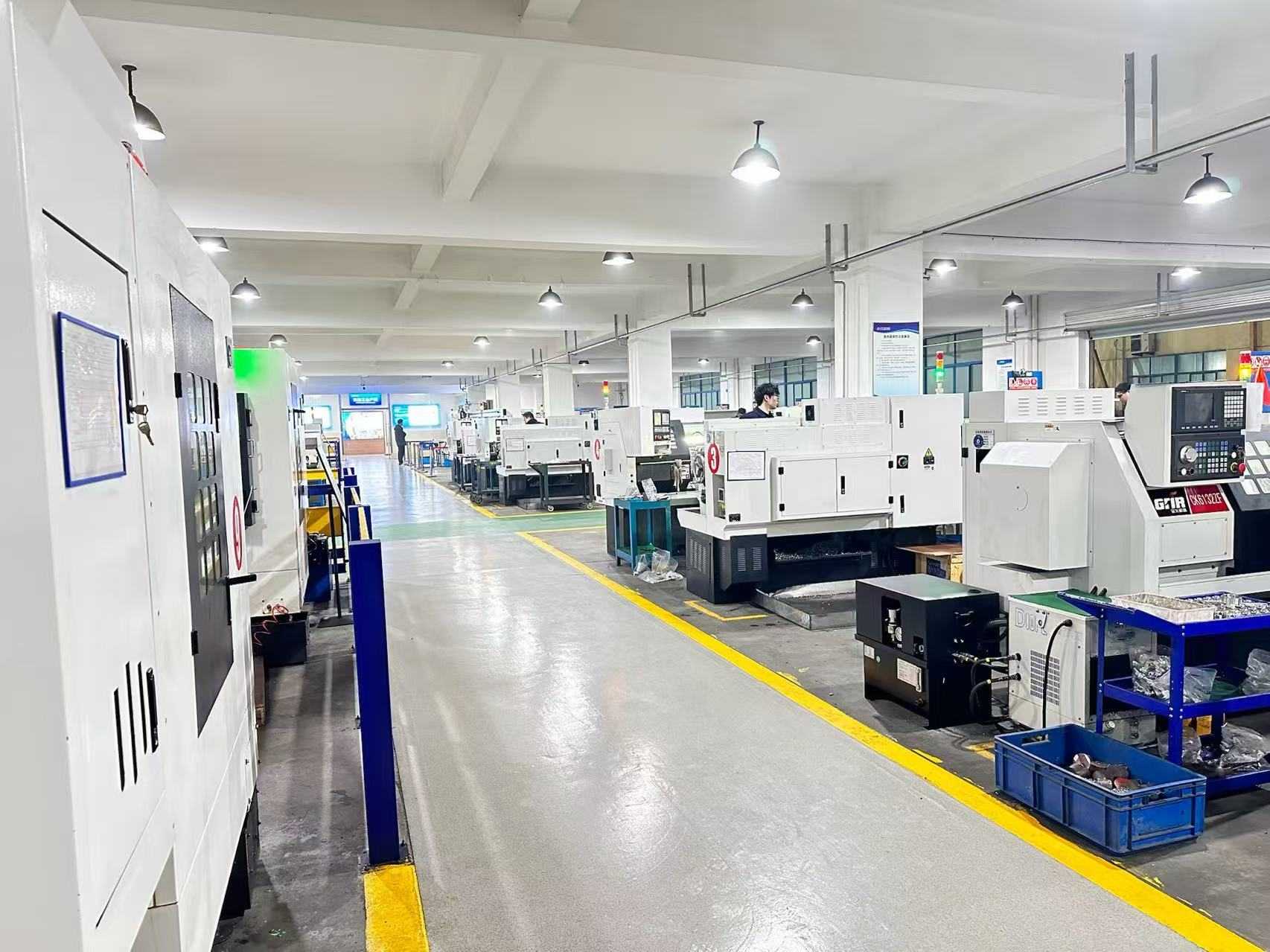

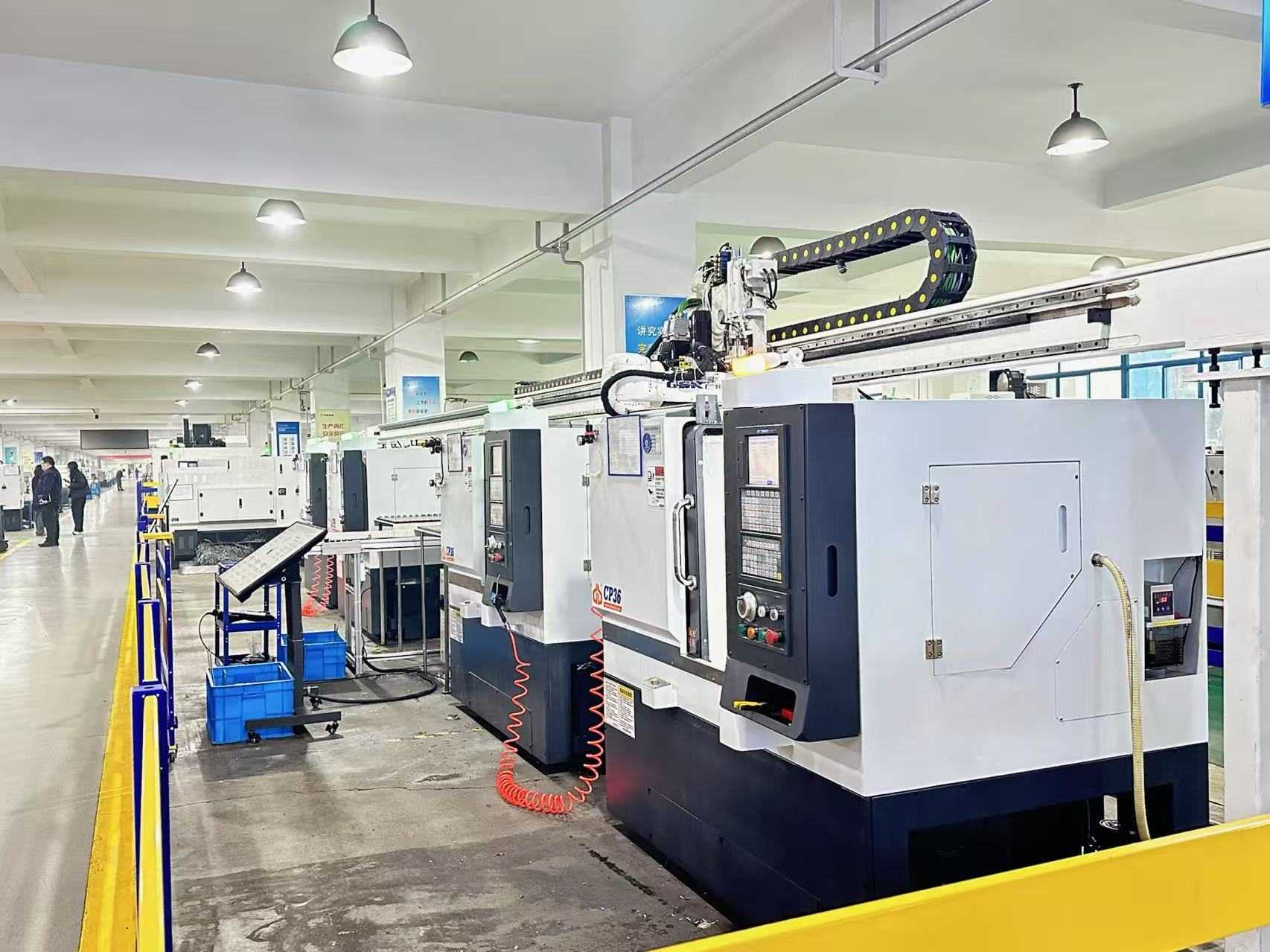

Factory Photos
