Overview:

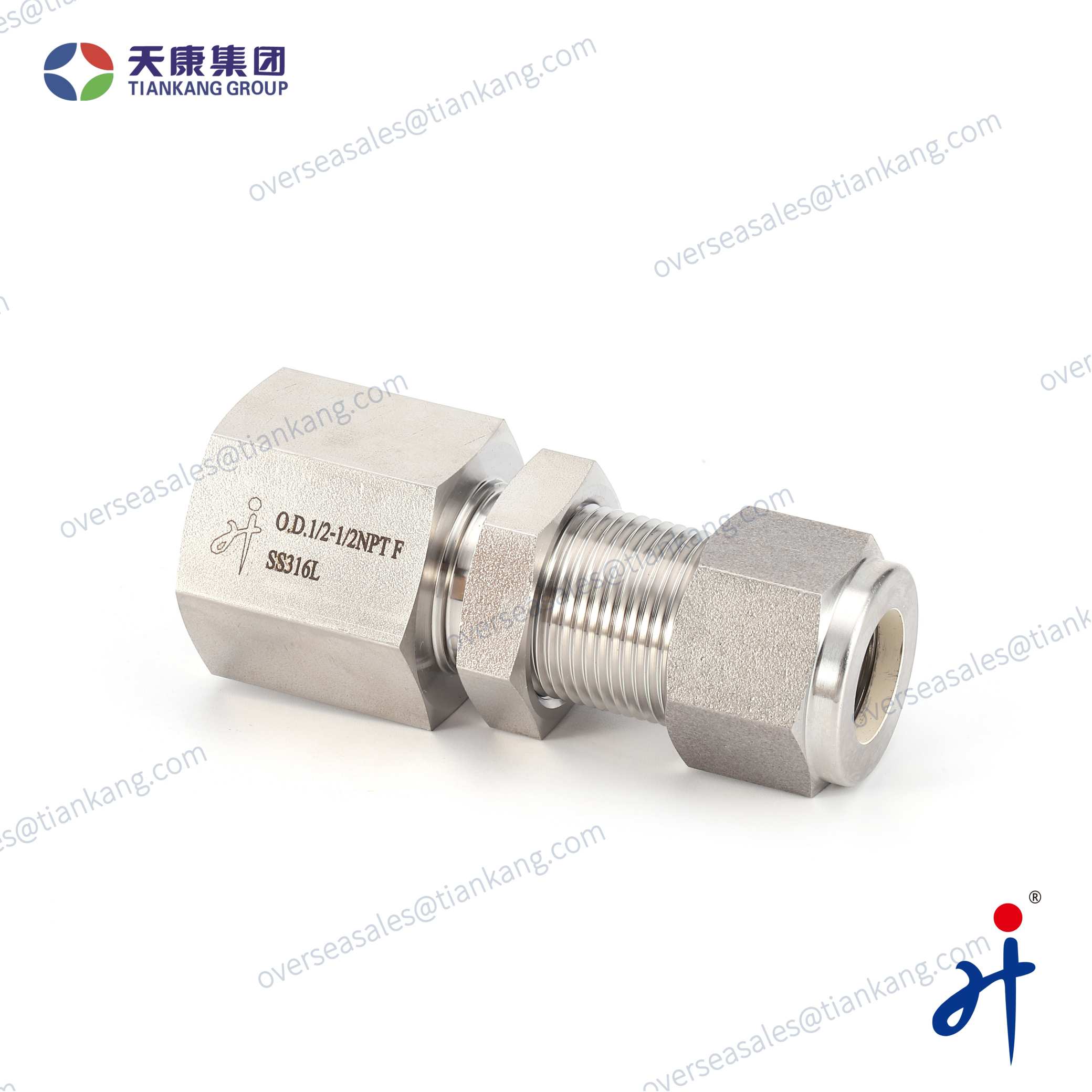

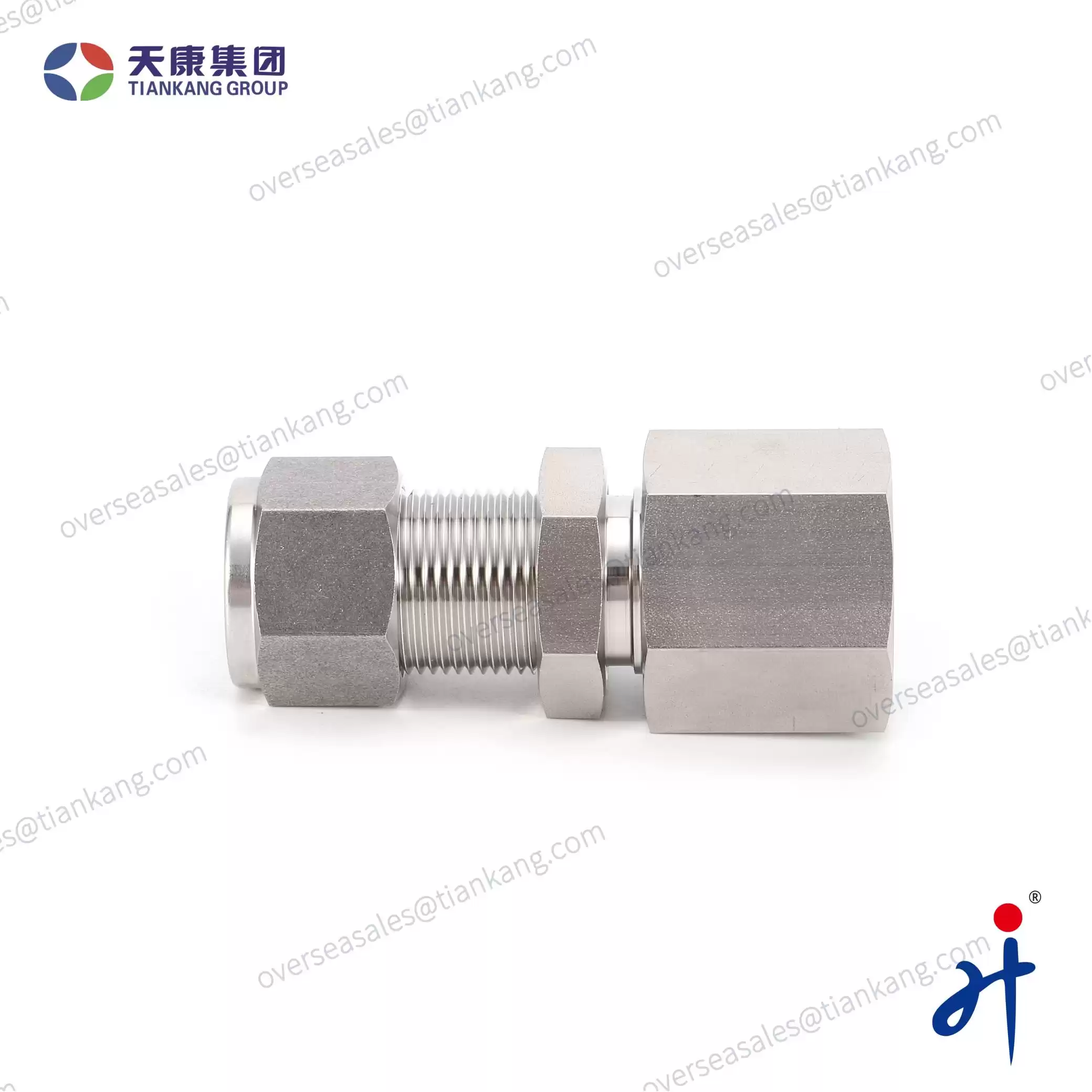

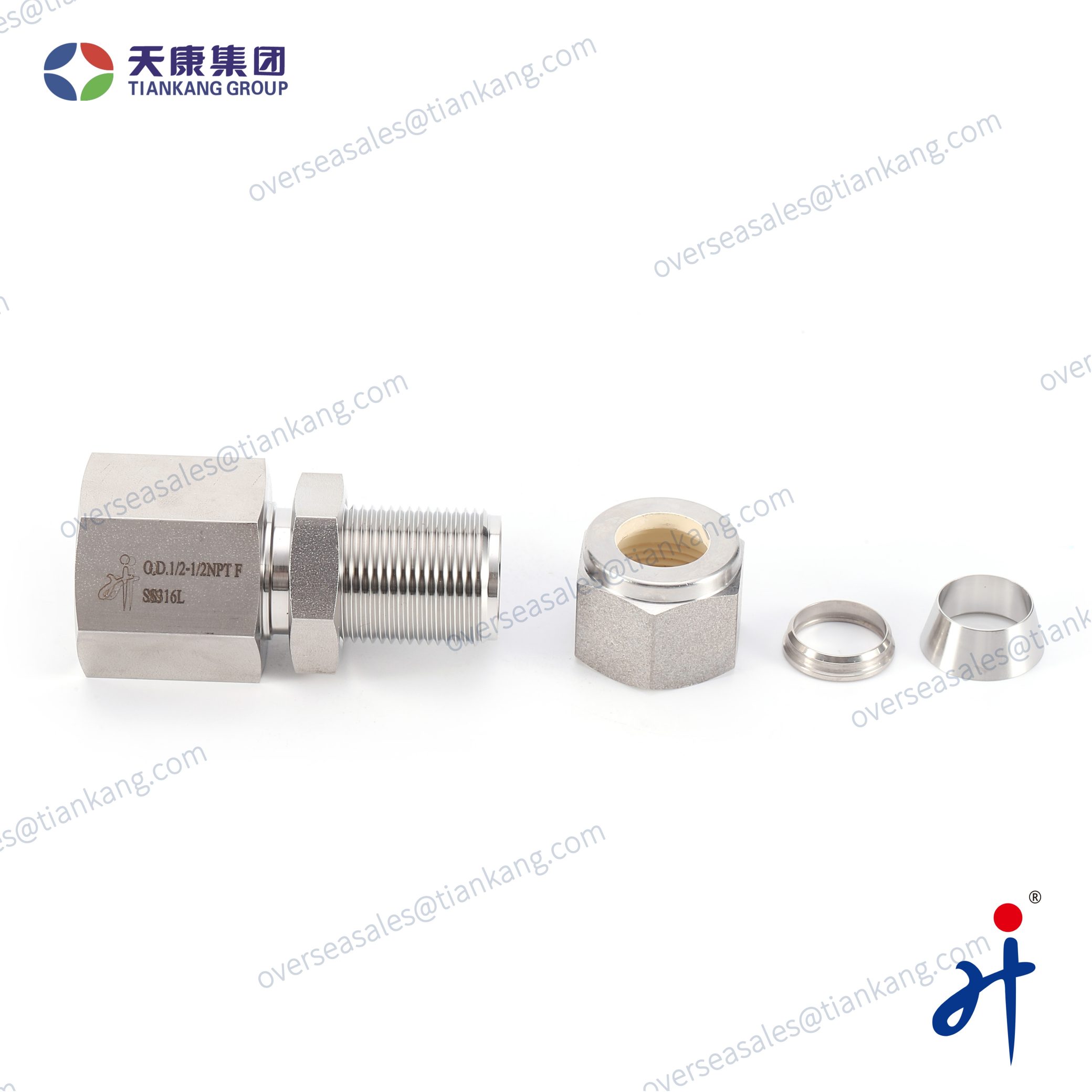

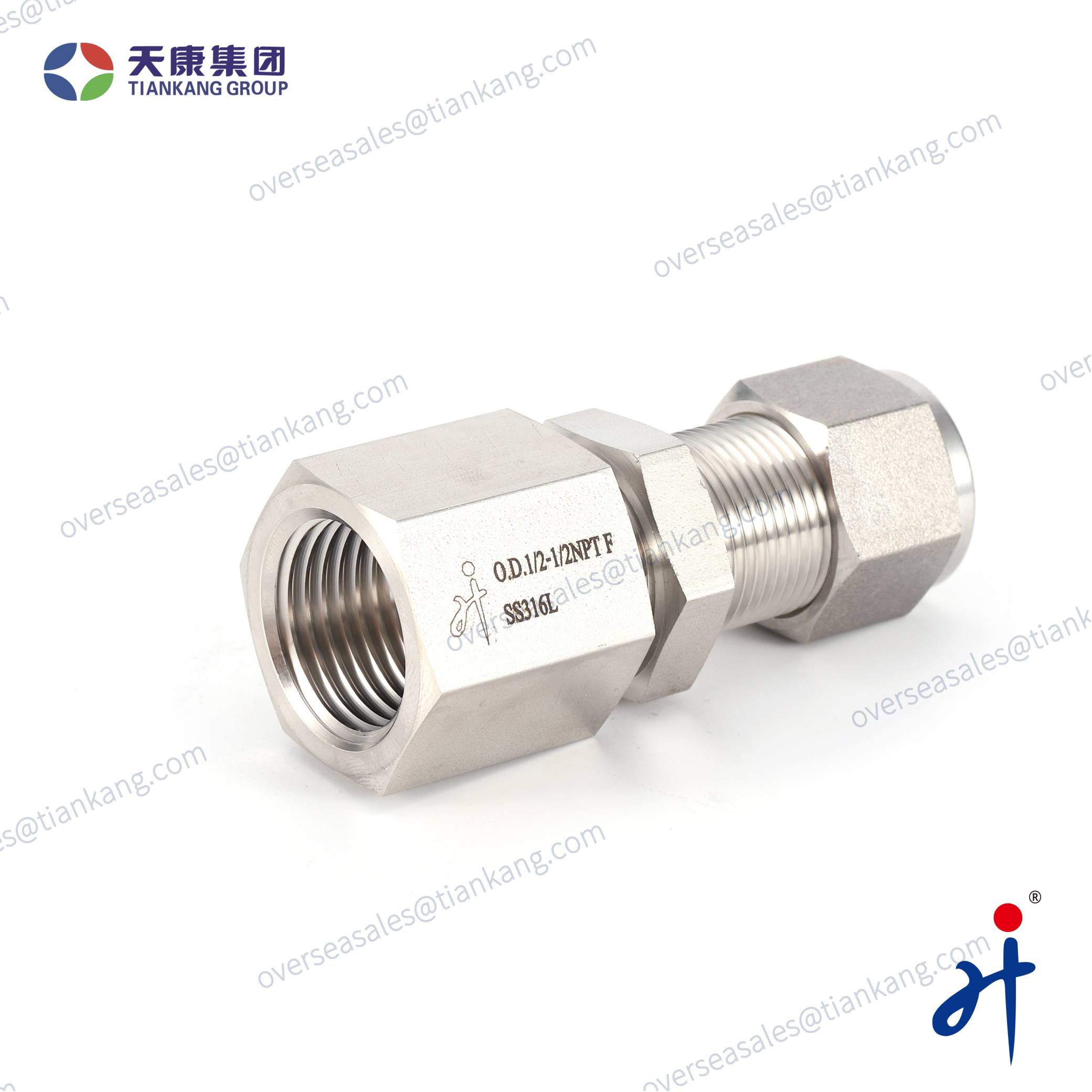

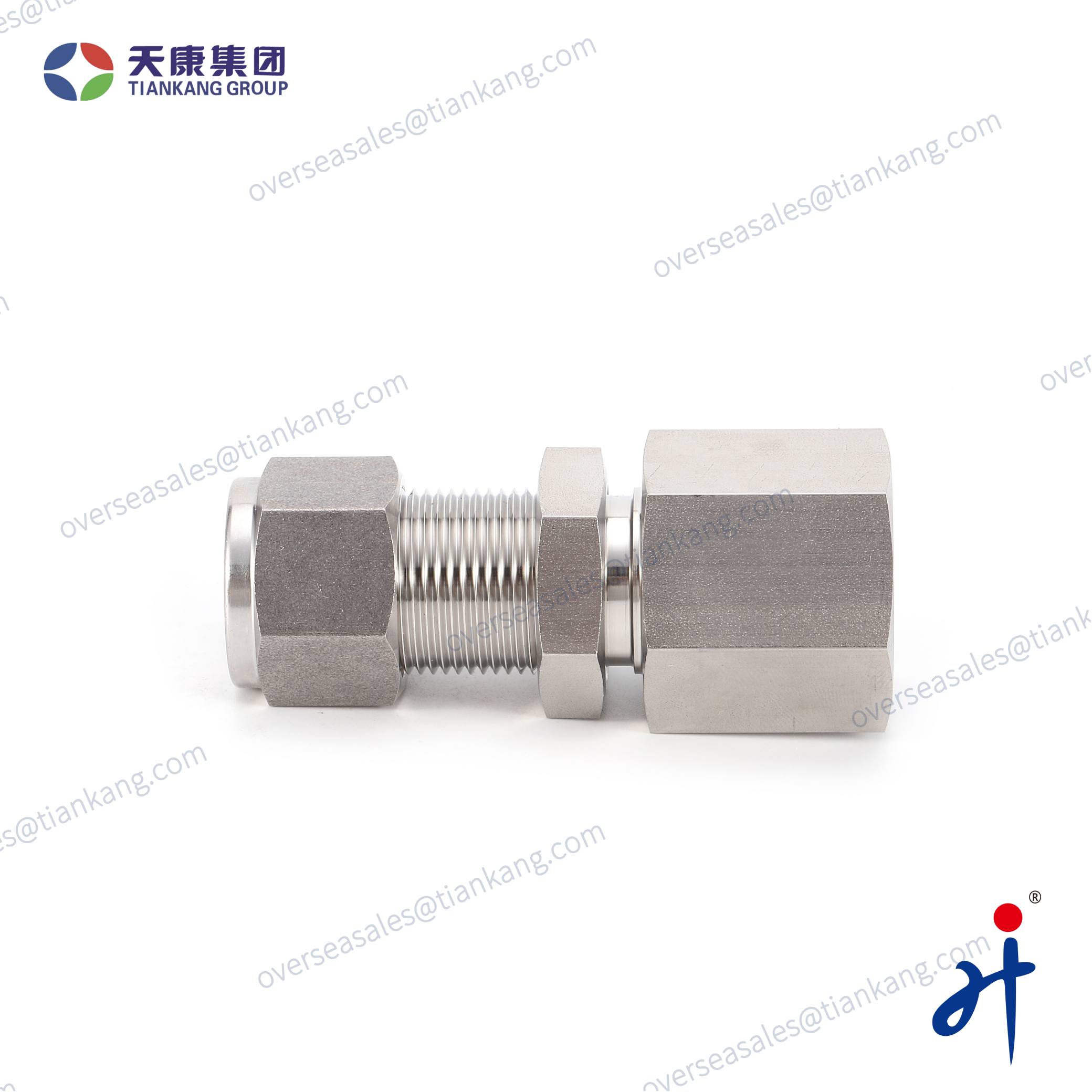

The Tiankang Hongji Bulkhead Female Connector is a connecting component used in pipeline systems, widely applied in hydraulic and pneumatic pipeline systems, especially in situations where it is necessary to pass through plates or bulkheads. The design of the fitting incorporates Hongji’s unique technologies: Silver Coating for the Nut and the Rear Ferrule Harden Process.
Specification:
| Type |
Bulkhead Female Connectors |
Net Weight |
0.13kg |
| Body Material |
Stainless steel, alloy, etc. |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Ferrule And Thread |
Warranty |
1 year |
| Connection 1 Dimensions |
1/2 |
Connection 1 Type |
Ferrule |
| Connection 2 Dimensions |
1/2 NPT |
Connection 2 Type |
Thread |
Applications:
- Hydraulic Systems: In hydraulic pipelines, bulkhead unions with female threads are commonly used to pass through the walls of equipment, ensuring the safe transmission of hydraulic fluid.
- • Pneumatic Systems: In pneumatic pipelines, they are used to connect air sources and equipment while preventing leaks.
- • Chemical and Pharmaceutical Industries: Particularly suitable for situations requiring pipeline connections on plates or bulkheads, ensuring sealing and corrosion resistance.
- • Marine and Mechanical Equipment: Frequently used in applications where pipelines need to pass through structural plates.

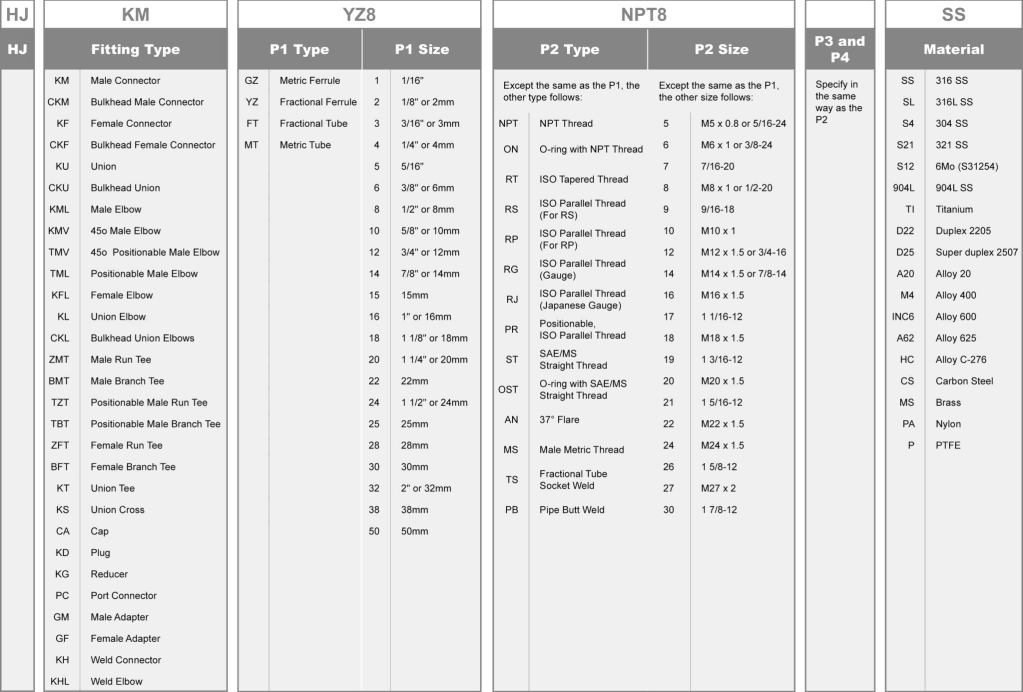

Ordering Number Description:
Note:
- P1, P2, P3 and P4 shall be described in the following orders.
- Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
- Describe in descending order as per size if the end connection types are the same.
- Describe the end of P1 if all end connections are the same.
