Overview:

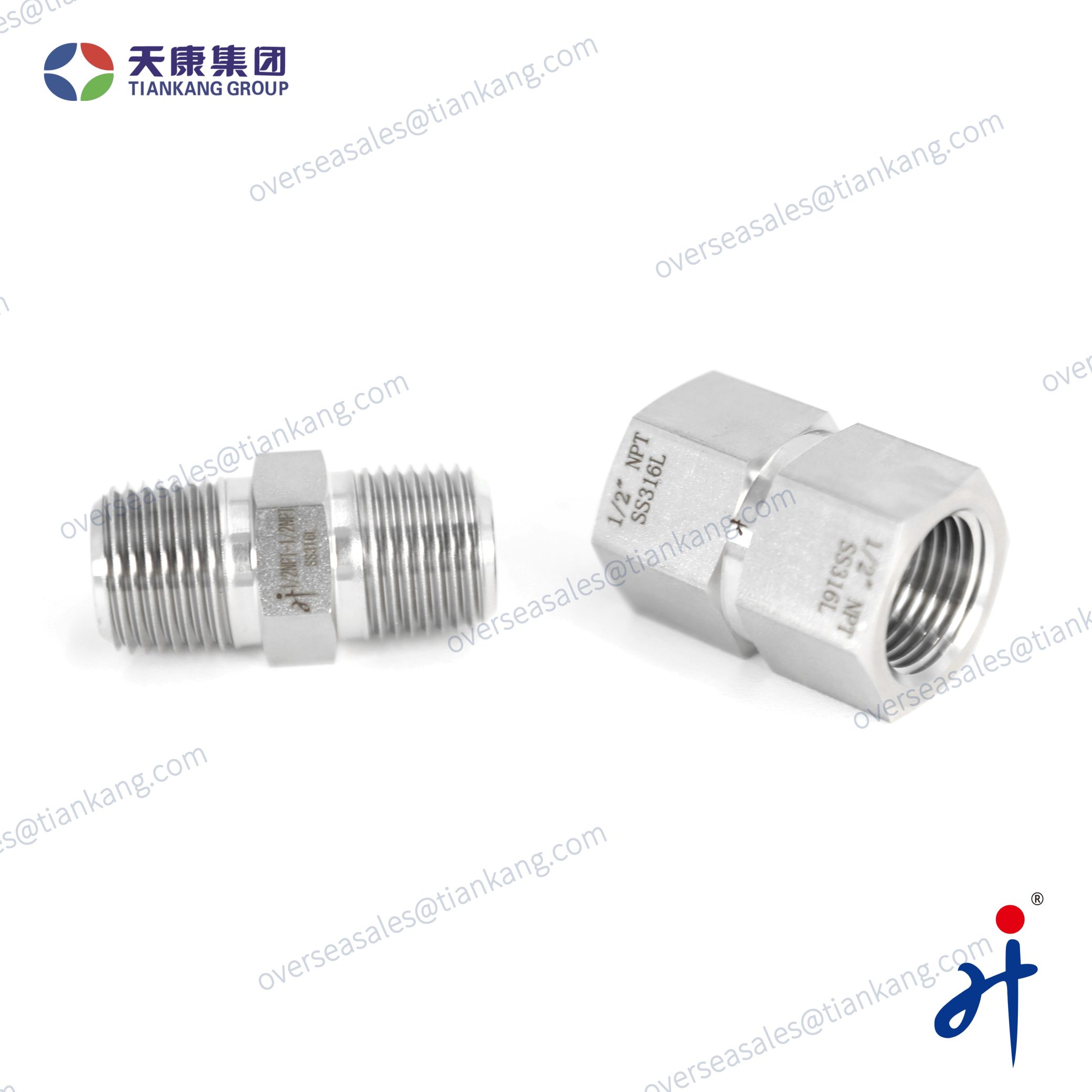

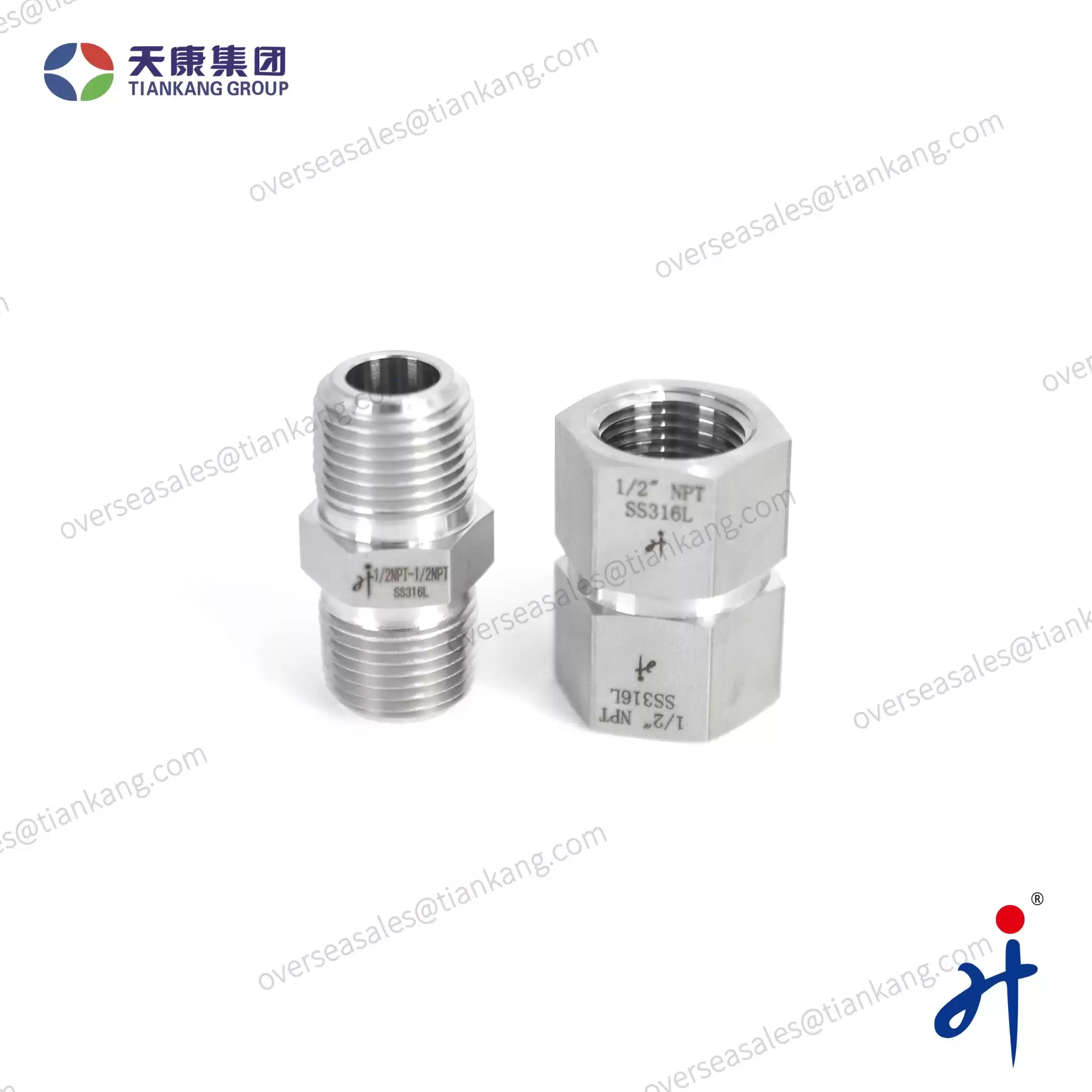

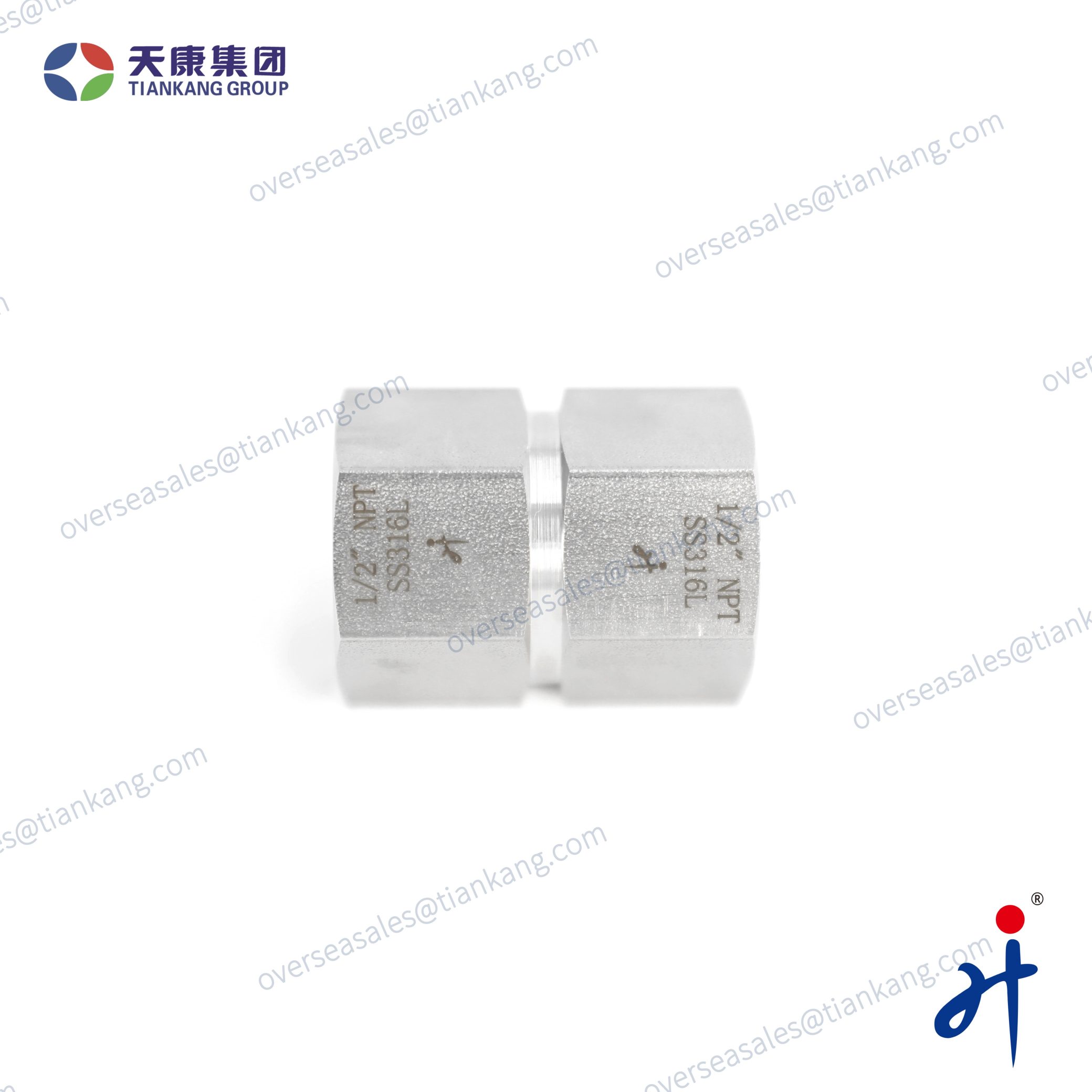

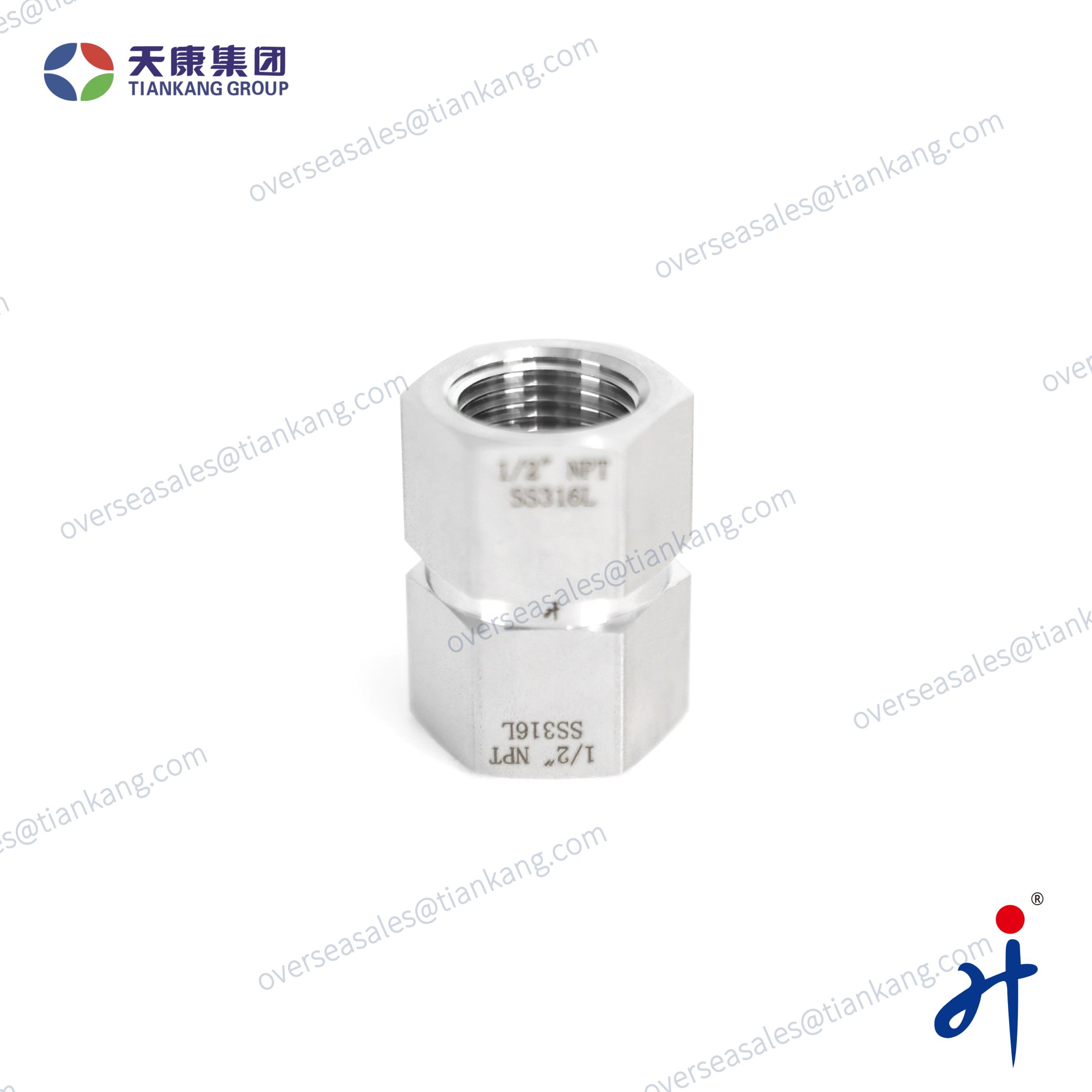

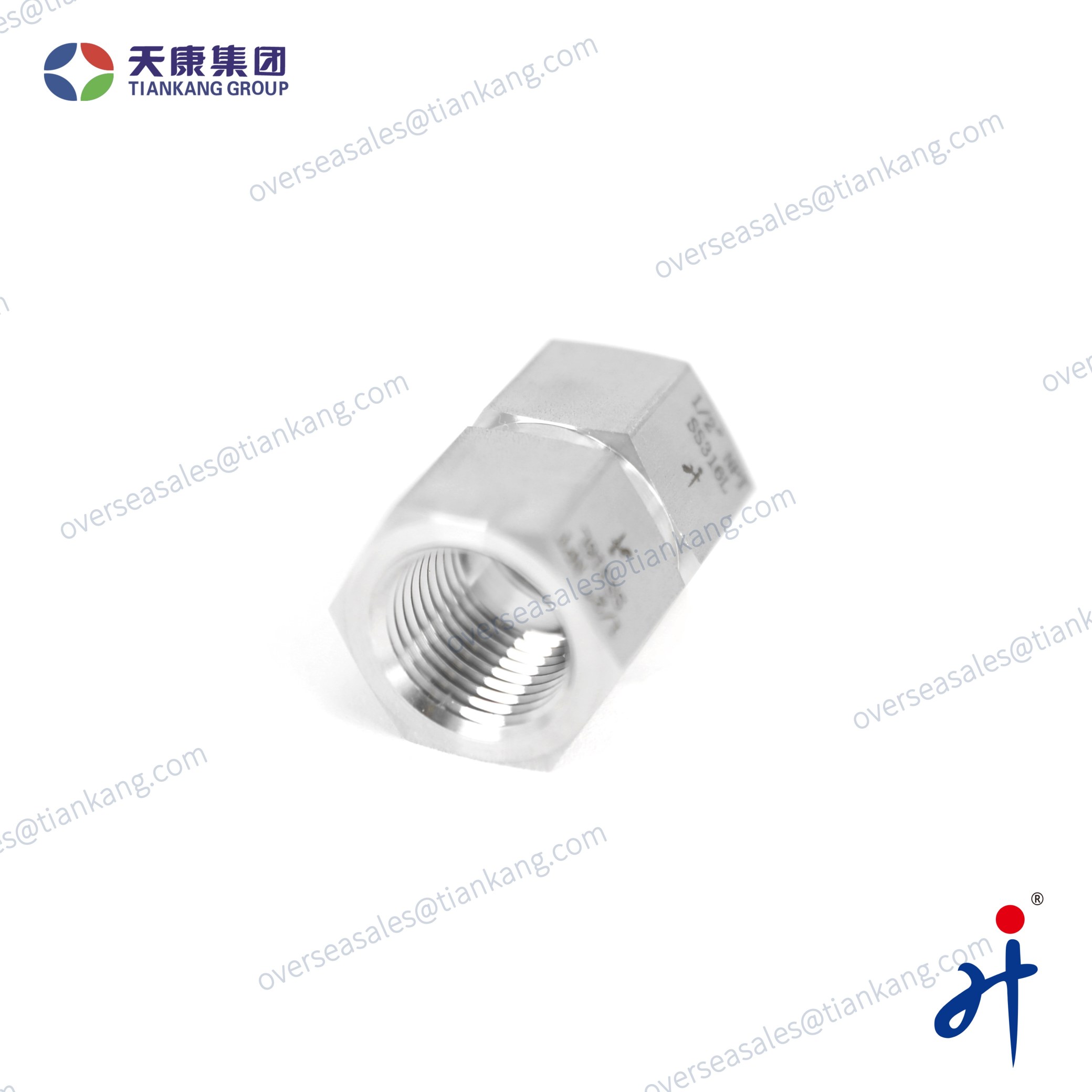

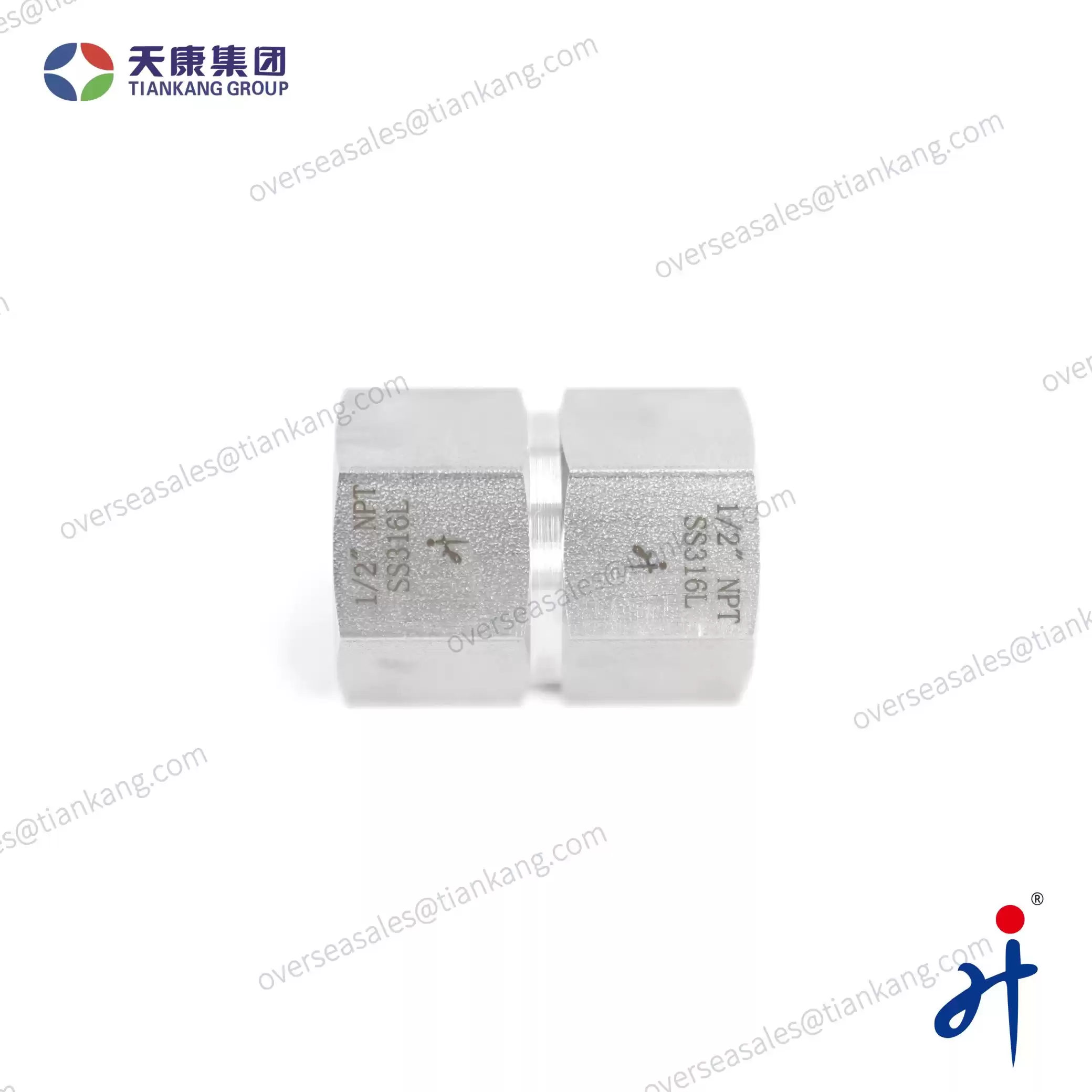

The design of the Tiankang Hongji stainless steel hex couplings incorporates Hongji’s unique technology, ensuring safe, reliable sealing while also offering convenient installation and disassembly. They are often used in high-pressure and high-temperature environments, such as in the chemical, petroleum, and natural gas industries.
Technical Specifications:
| Type |
Hex Couplings |
Net Weight |
0.02kg |
| Body Material |
Stainless steel, alloy, etc. |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Thread |
Warranty |
1 year |
| Connection 1 Dimensions |
1/2 NPT |
Connection 1 Type |
Thread |
| Connection 2 Dimensions |
1/2 NPT |
Connection 2 Type |
Thread |
Applications:
• Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
• Water Treatment: They are used to connect pipes in water distribution and filtration systems.
• Oil and Gas Industry: Hex couplings help in connecting pipelines and other equipment in oil and gas transport networks.
• HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
• Chemical Processing: Stainless steel Hex Nipples provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

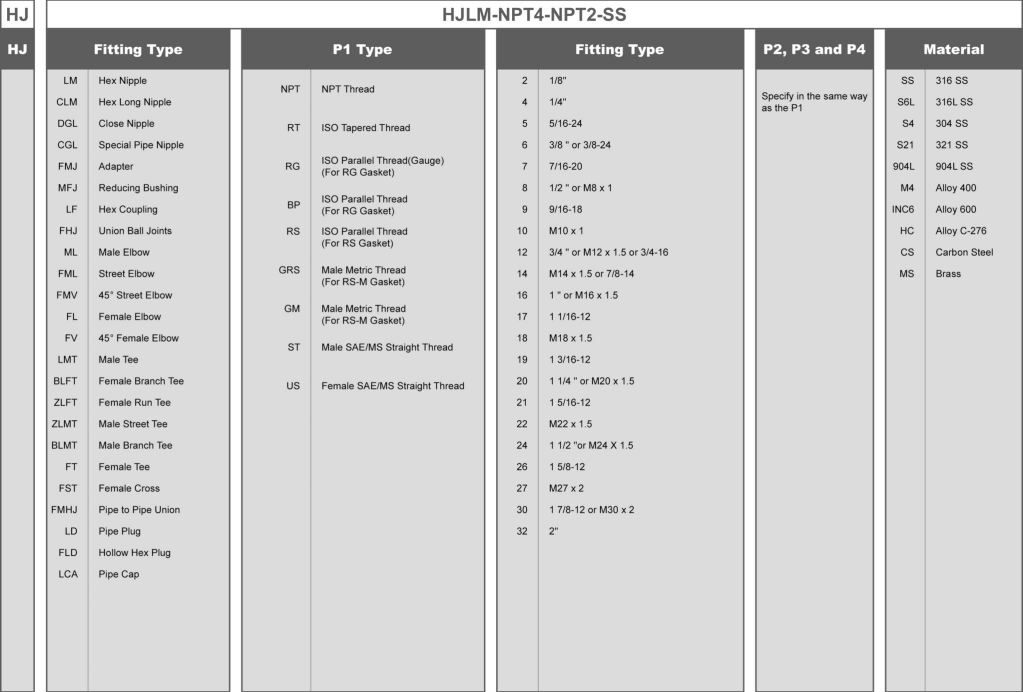

Ordering Number Description:
Note:
1. P1, P2, P3 and P4 shall be described in the following orders.
2. Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
3. Describe in descending order as per size if the end connection types are the same.
4. Describe the end of P1 if all end connections are the same.
