Overview:
The design of the weld connectors incorporates Hongji’s unique technology, featureing strong sealing and pressure resistance, making it suitable for the transportation of high-pressure fluids.It consists of two parts: the ferrule sleeve and the male threads, used component for pipe connections.
Specification:
| Type |
Male Adapters |
Net Weight |
0.13kg |
| Body Material |
Stainless steel, alloy, etc. |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Tube adapter And Thread |
Warranty |
1 year |
| Connection 1 Dimensions |
3/4″ Tube adapter |
Connection 1 Type |
Tube adapter |
| Connection 2 Dimensions |
1/2 NPT |
Connection 2 Type |
Thread |
Applications:
- Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
- Water Treatment: They are used to connect pipes in water distribution and filtration systems.
- Oil and Gas Industry: Male adapters helpx in connecting pipelines and other equipment in oil and gas transport networks.
- HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
- Chemical Processing: They provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

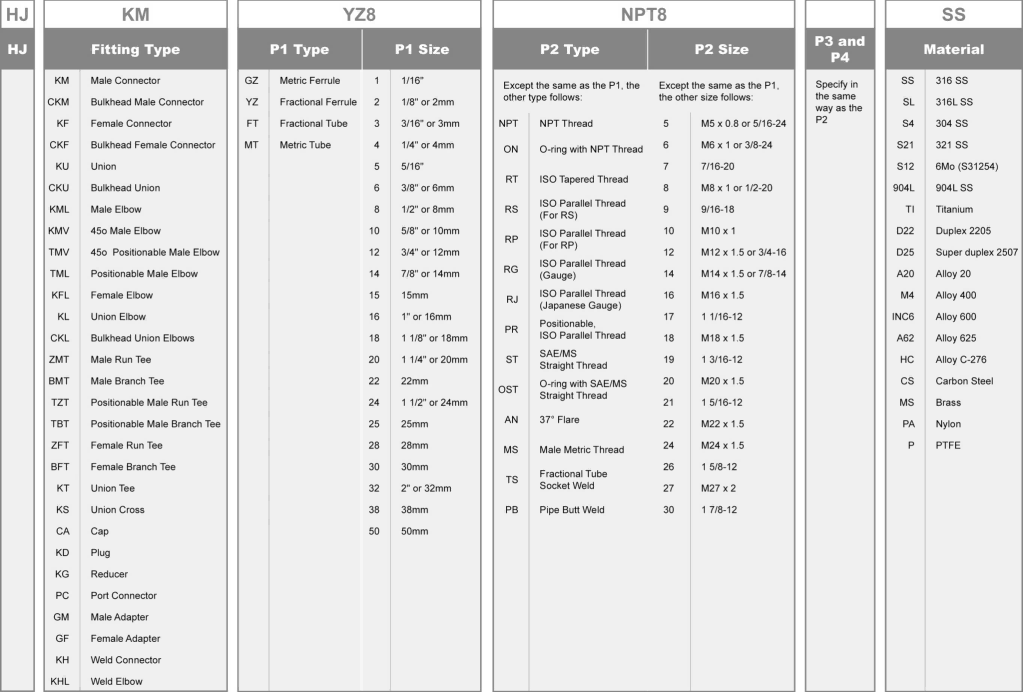

Ordering Number Description:
Note:
- P1, P2, P3 and P4 shall be described in the following orders.
- Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
- Describe in descending order as per size if the end connection types are the same.
- Describe the end of P1 if all end connections are the same.
