Overview

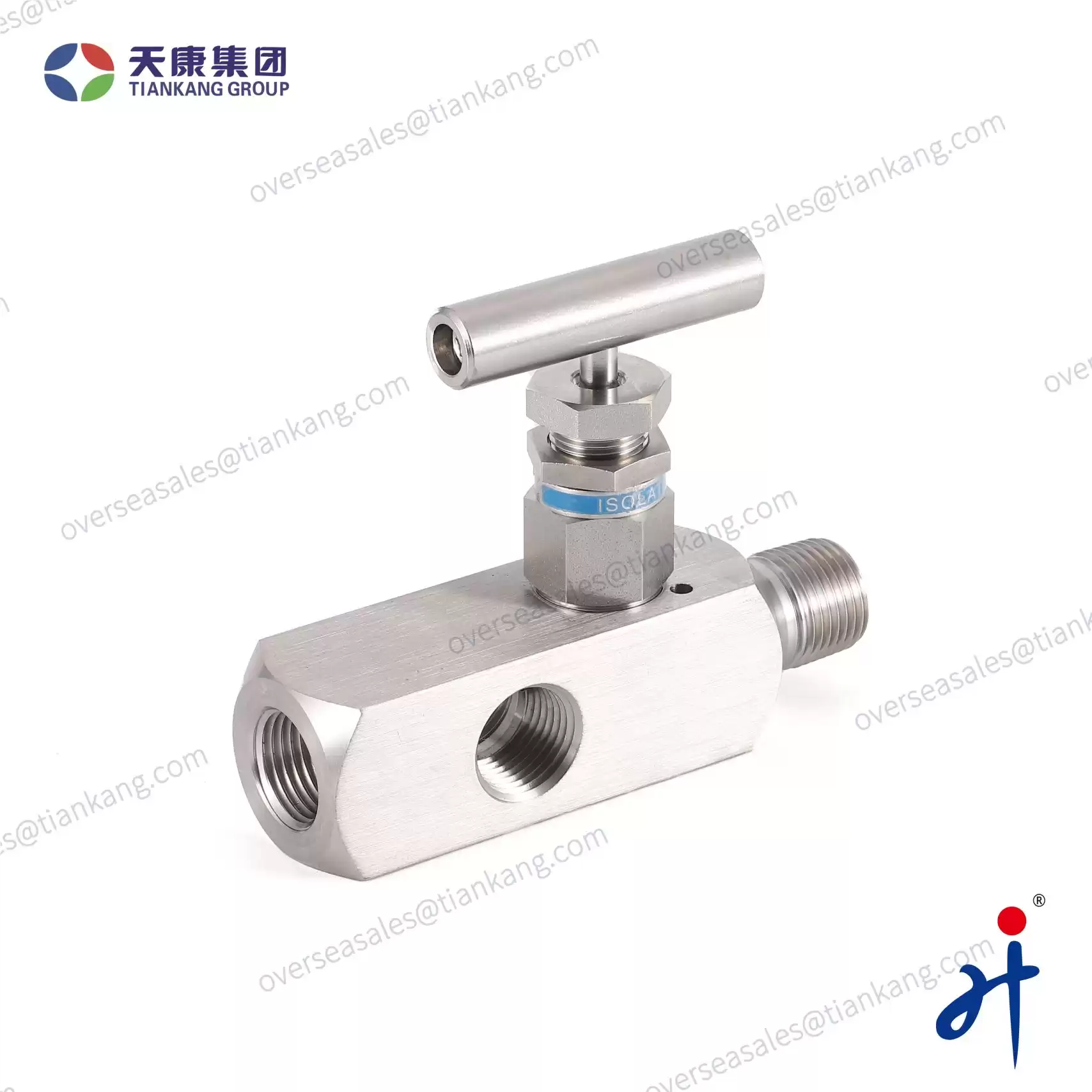

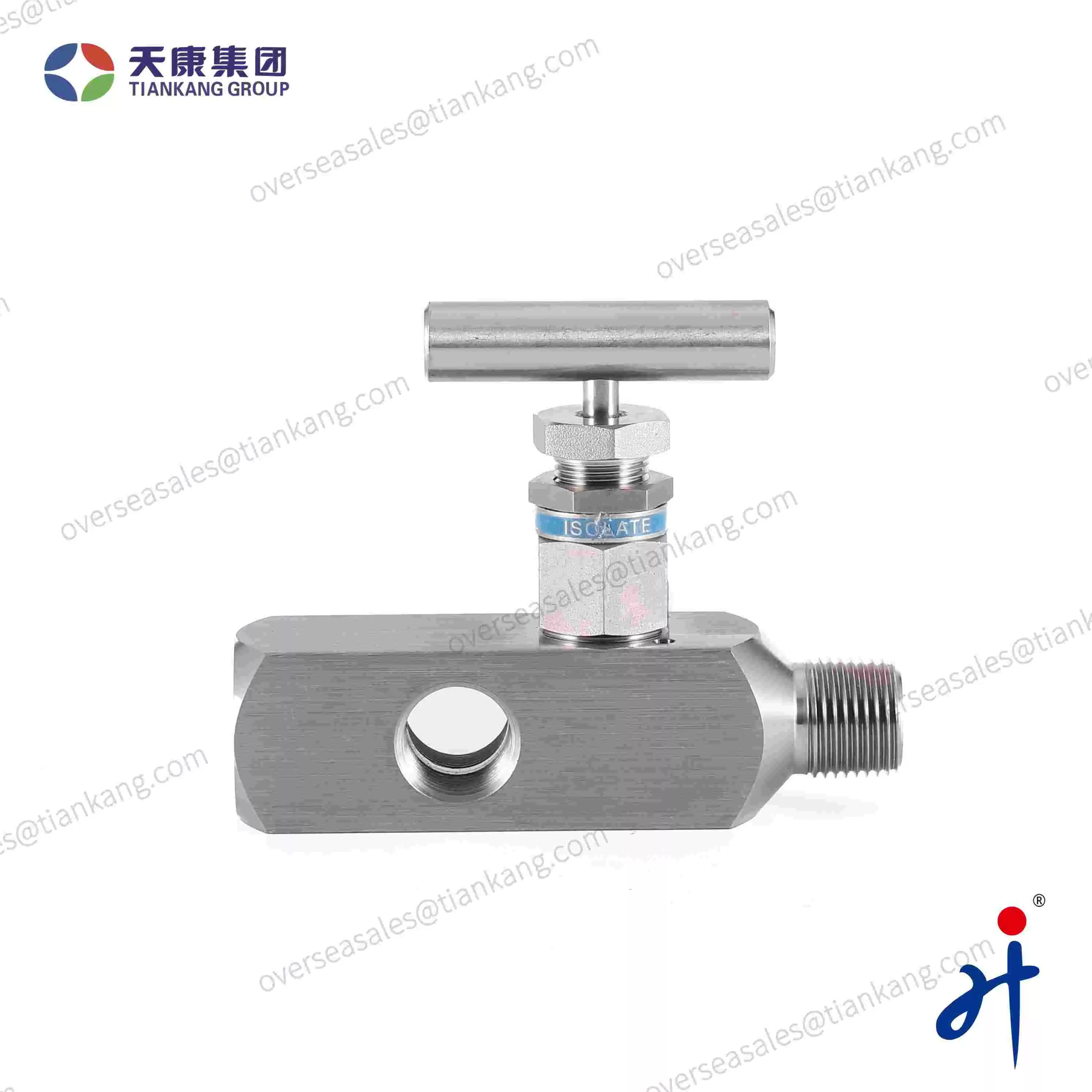

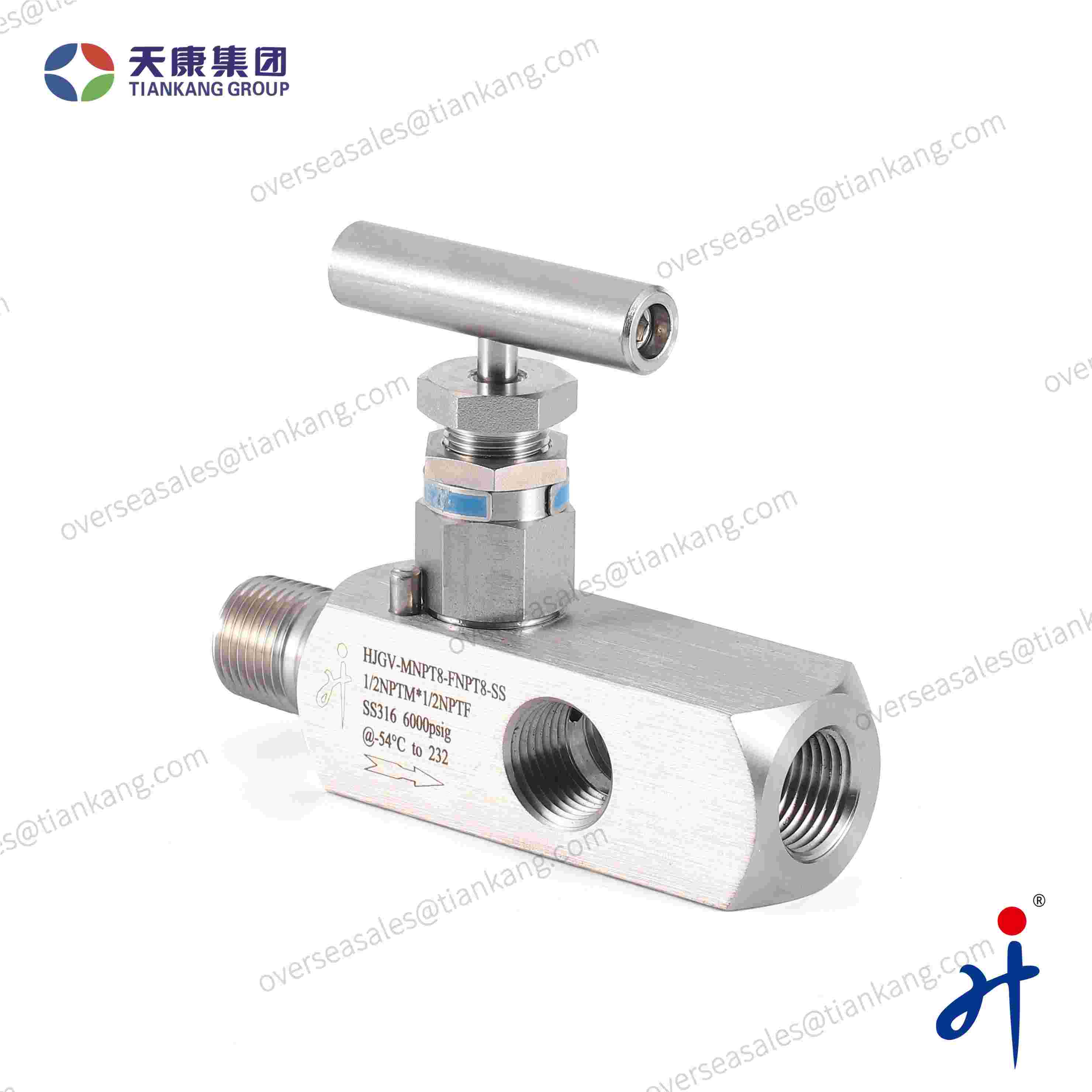

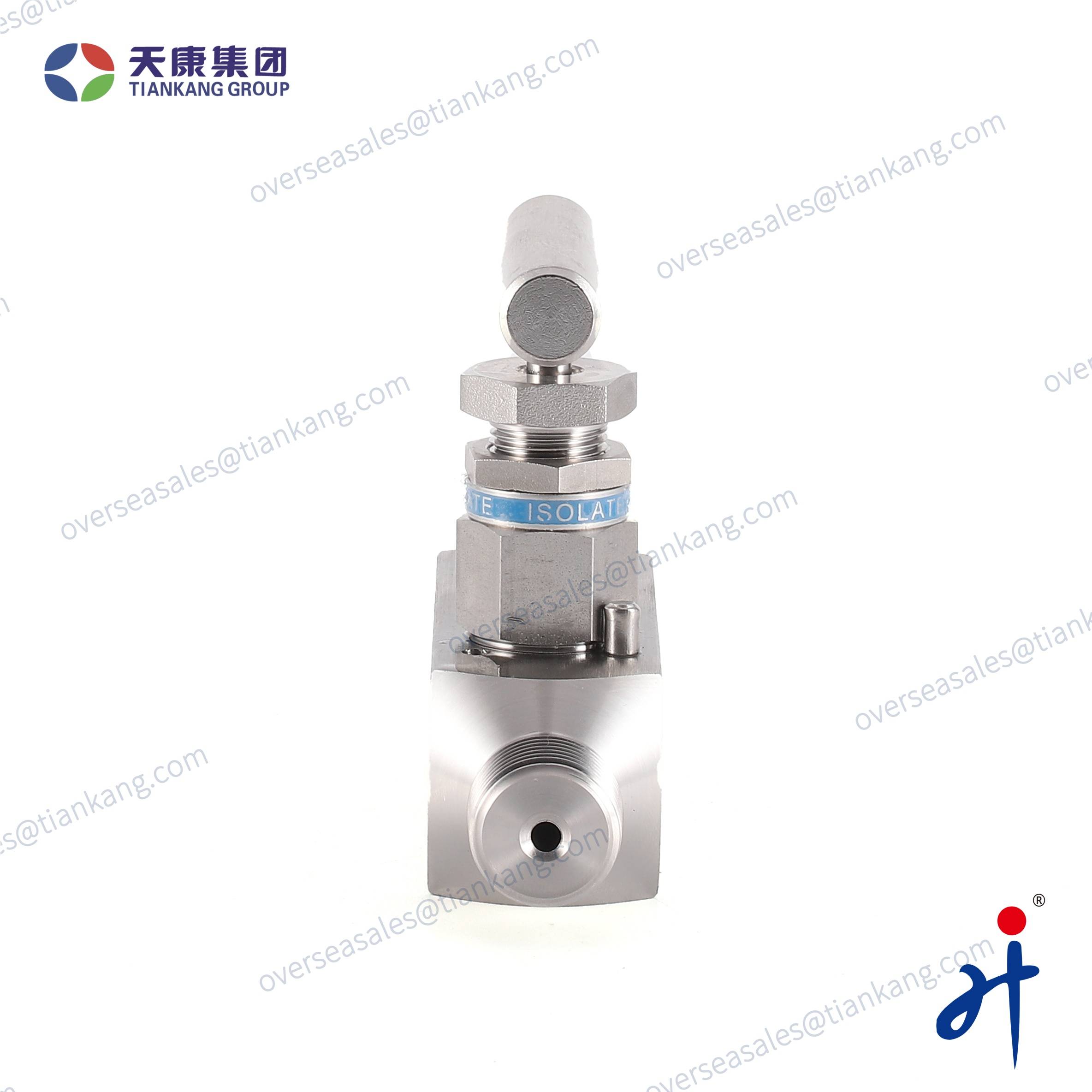

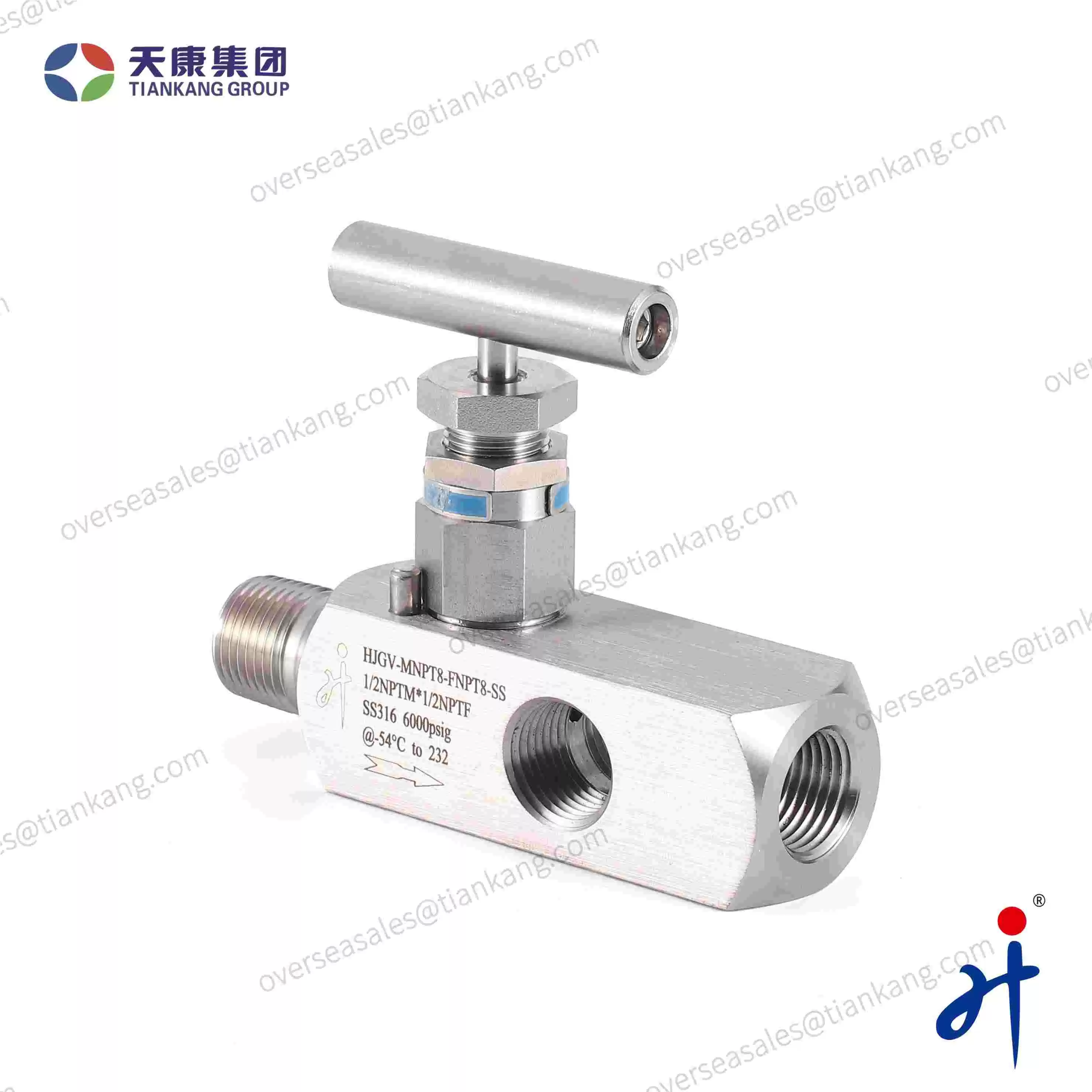

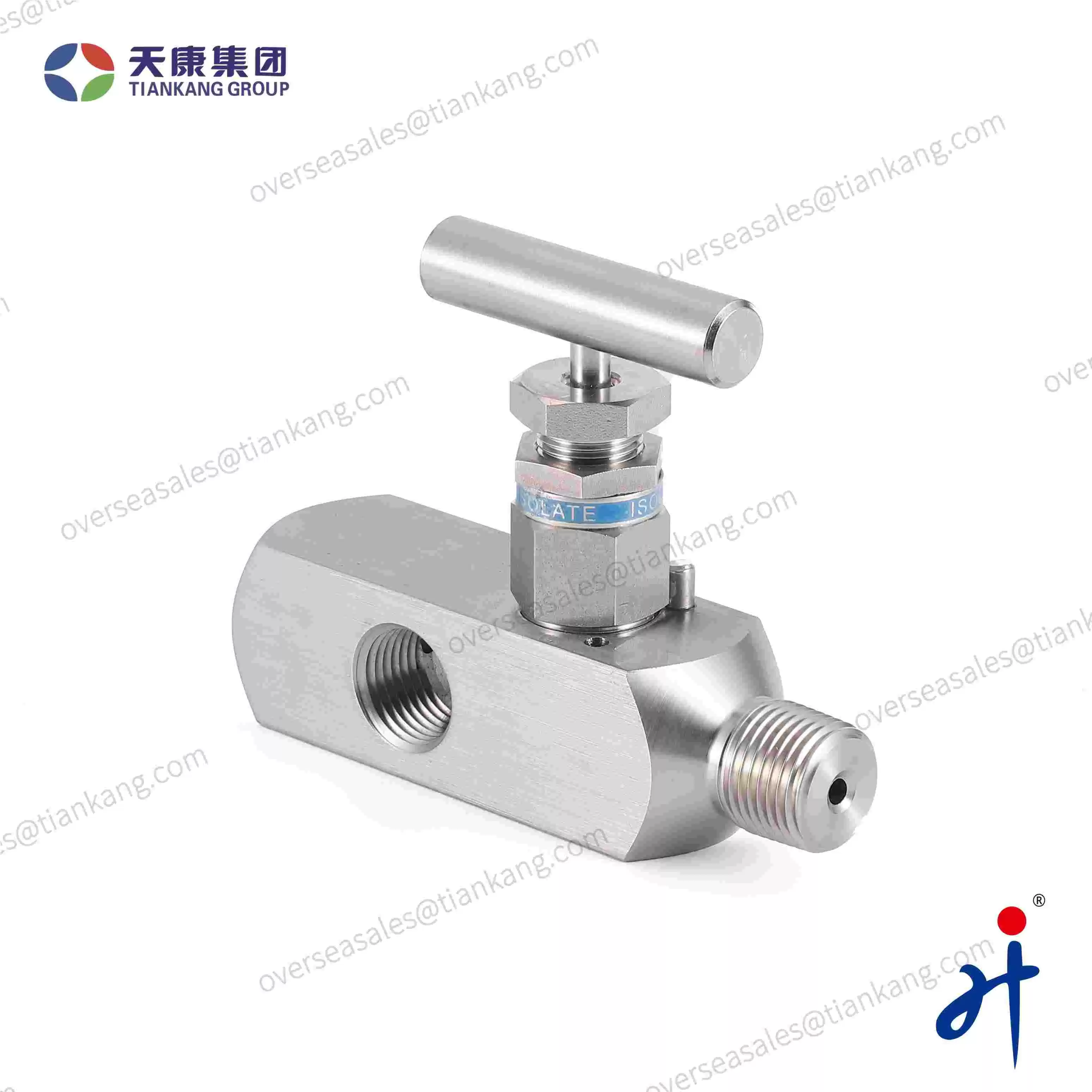

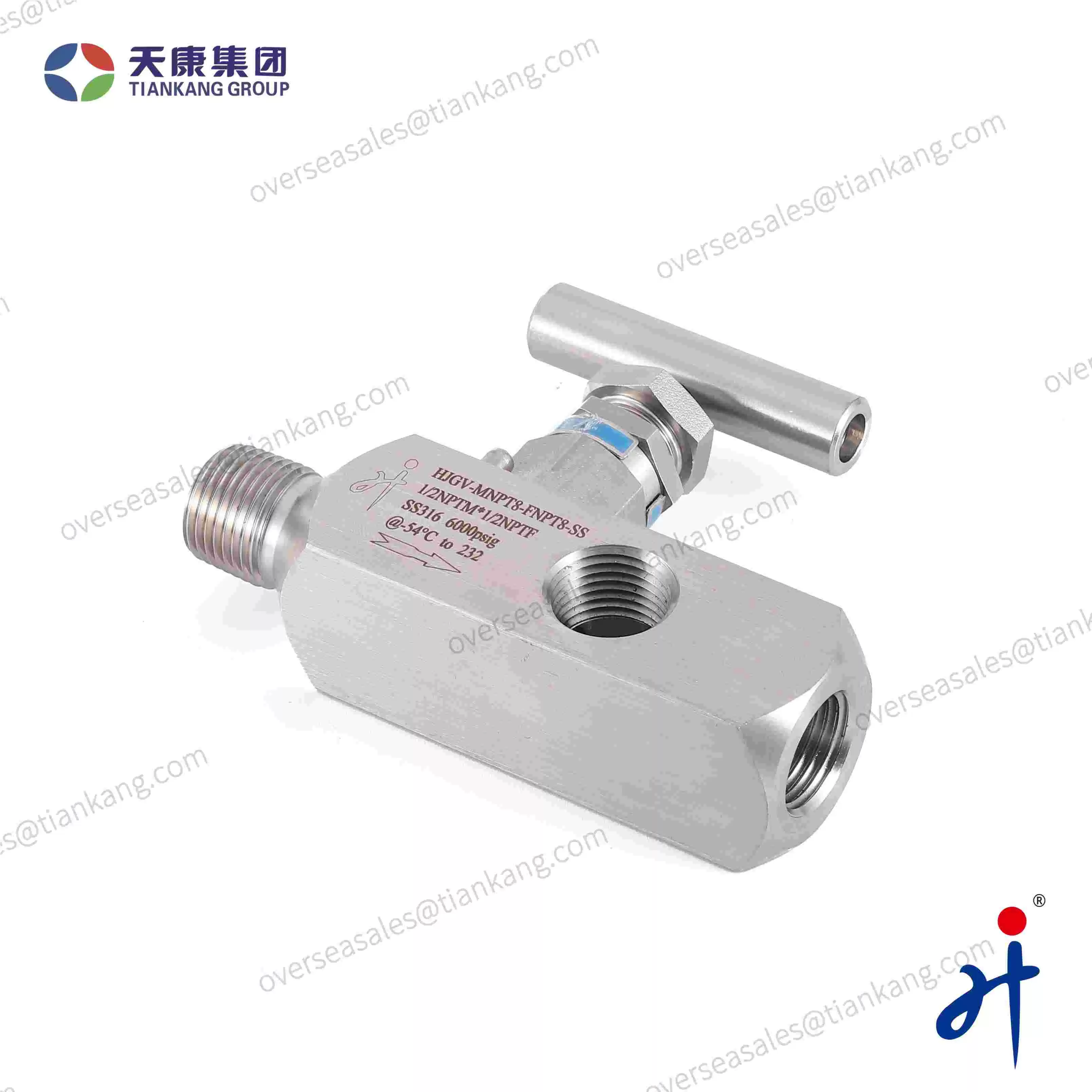

The Tiankang Hongji Screwed Bonnet Needle Valves-Straight Type Male Type are types of valves used for precise flow control of liquids or gases in a system. It is designed with a long, tapered needle-like plunger that fits into a similarly shaped seat. The valve’s construction allows for very fine adjustments to the flow, making it ideal for applications where precise control is needed.
Technical Specifications
| Type |
Needle Valve with Thread Connection |
Net Weight |
0.43kg |
| Body material |
SS316; SS316L; SS304，Alloy |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Male Thread |
Warranty |
1 year |
| Seal Type |
Hard Sealing |
Manufacturing |
Forging and CNC |
| Packing |
PTFE/ Graphite |
Pressure Range |
6000Psi – 10000Psi(414 Bar – 690 Bar) |
| Media |
Liquid, Gas, Steam, Oil |
Prot Size |
1/2 MNPT |
| Graphite |
-65 °F to 1200 °F (-54 °C to 649 °C) |
PTFE |
-65 °F to 450 °F (-54 °C to 232 °C) |
Applications
•Flow Regulation: screwed bonnet needle valves union weld type used in systems where the flow needs to be controlled very precisely, such as in gas or liquid pipelines.
•Testing and Calibration: Frequently used in instrumentation, laboratories, and process control applications to calibrate equipment and regulate test fluids.
•Gas and Liquid Distribution: Tiankang Hongji Needle valves are common in gas and liquid distribution systems, including those in pharmaceuticals, food and beverage, and oil and gas industries.
•Pressure Control: Often used for controlling the pressure and flow of sensitive or hazardous fluids in applications like fuel systems, high-pressure systems, or critical fluid handling systems.

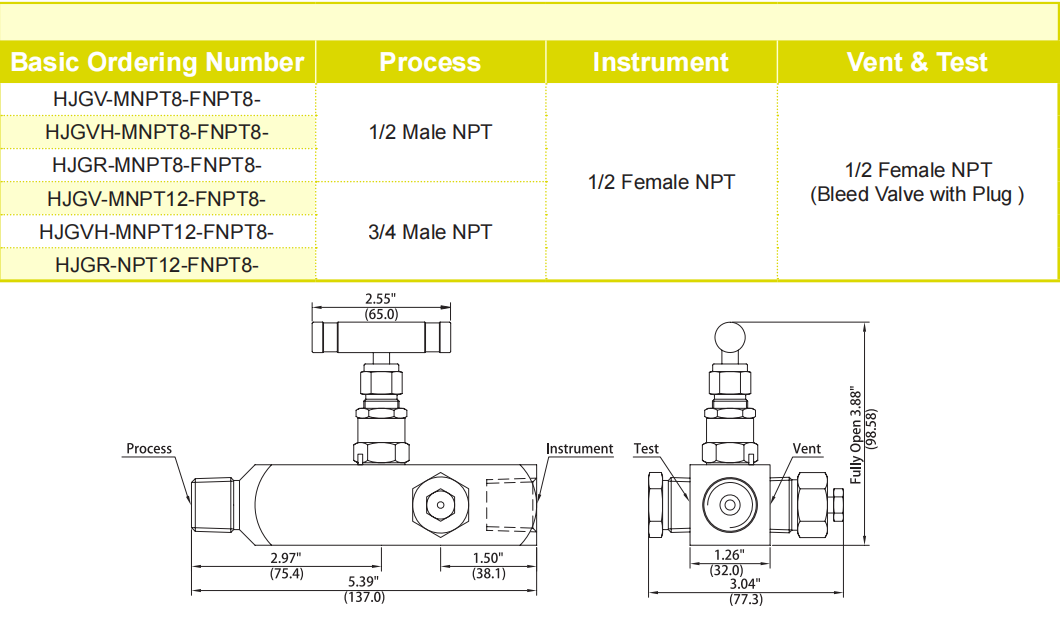

Ordering Number Description：

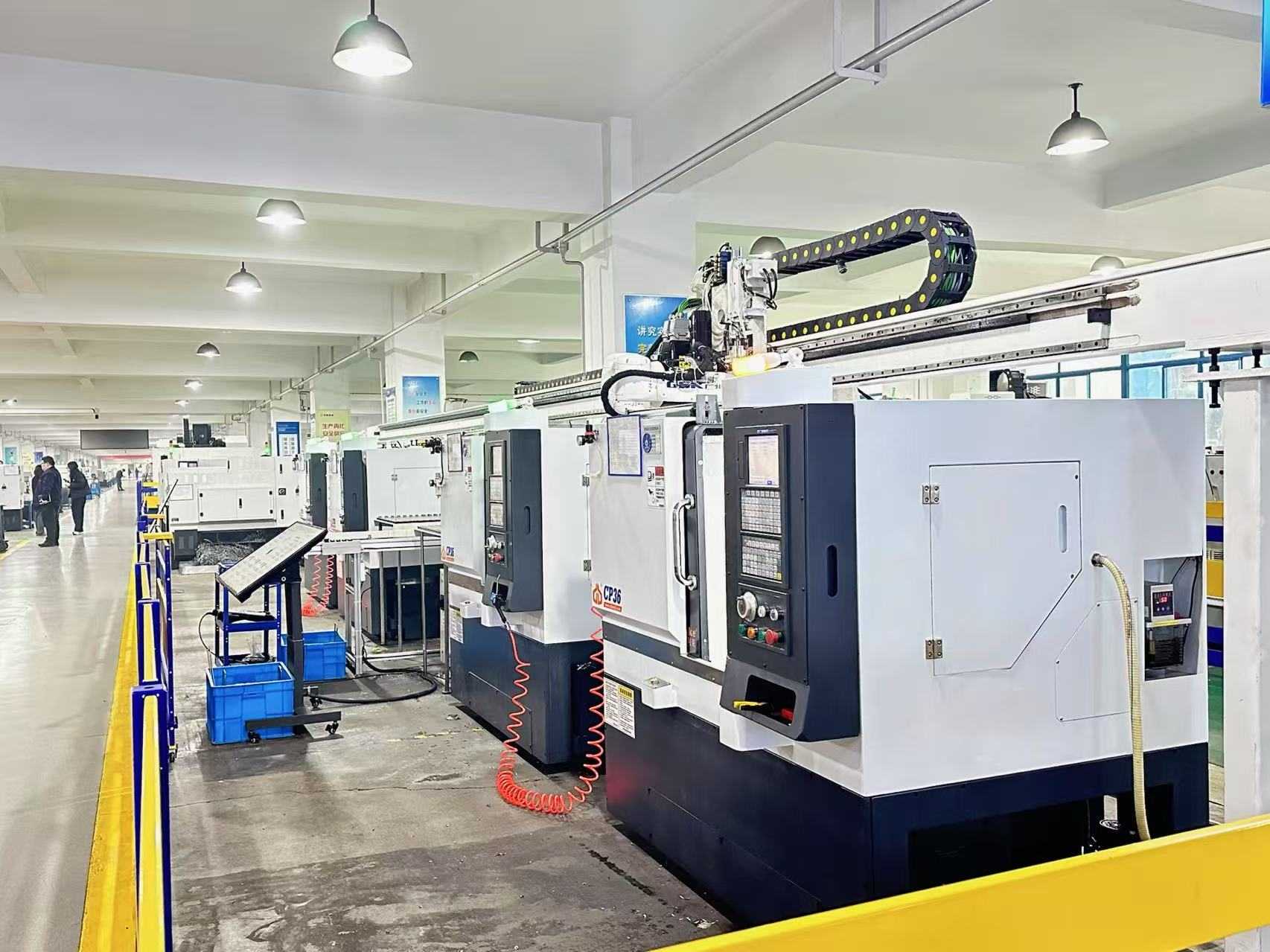

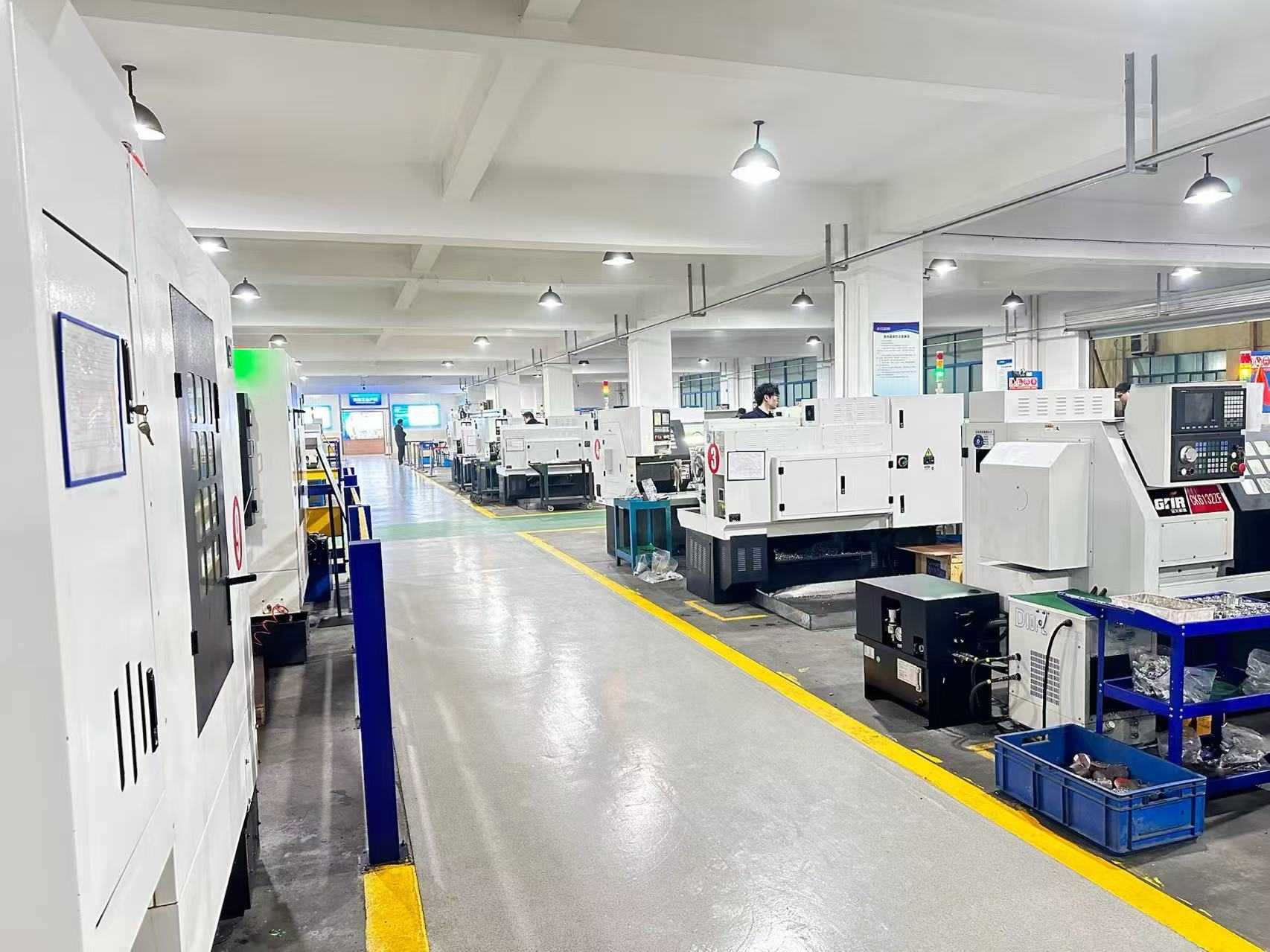

Factory Photos
