Overview:
Tiankang Hongji stainless steel reducer elbows commonly used in piping systems to connect two pipes of different sizes. It features two ends with different diameters, allowing for the transition between pipes of varying sizes while maintaining a secure and leak-proof connection. These fittings are typically used when a system requires the use of smaller or larger pipes without compromising the overall flow and pressure.
Specification:
| Type |
Reducer Elbows |
Net Weight |
0.13kg |
| Body Material |
Stainless steel, alloy, etc. |
Manufacturing Capacity |
4000 pics/Month |
| Type of Connection |
Ferrule |
Warranty |
1 year |
| Connection 1 Dimensions |
12mm |
Connection 1 Type |
Ferrule |
| Connection 2 Dimensions |
12mm |
Connection 2 Type |
Tube |
Applications:
- Fluid and Gas Systems: Used to connect various pipe sizes and hoses in fluid and gas transport systems.
- Water Treatment: They are used to connect pipes in water distribution and filtration systems.
- Oil and Gas Industry: Reducer elbows help in connecting pipelines and other equipment in oil and gas transport networks.
- HVAC Systems: Used for connecting air or water pipes in heating, ventilation, and air conditioning systems.
- Chemical Processing: They provide secure connections between pipes carrying chemicals, ensuring safe and efficient fluid transfer.

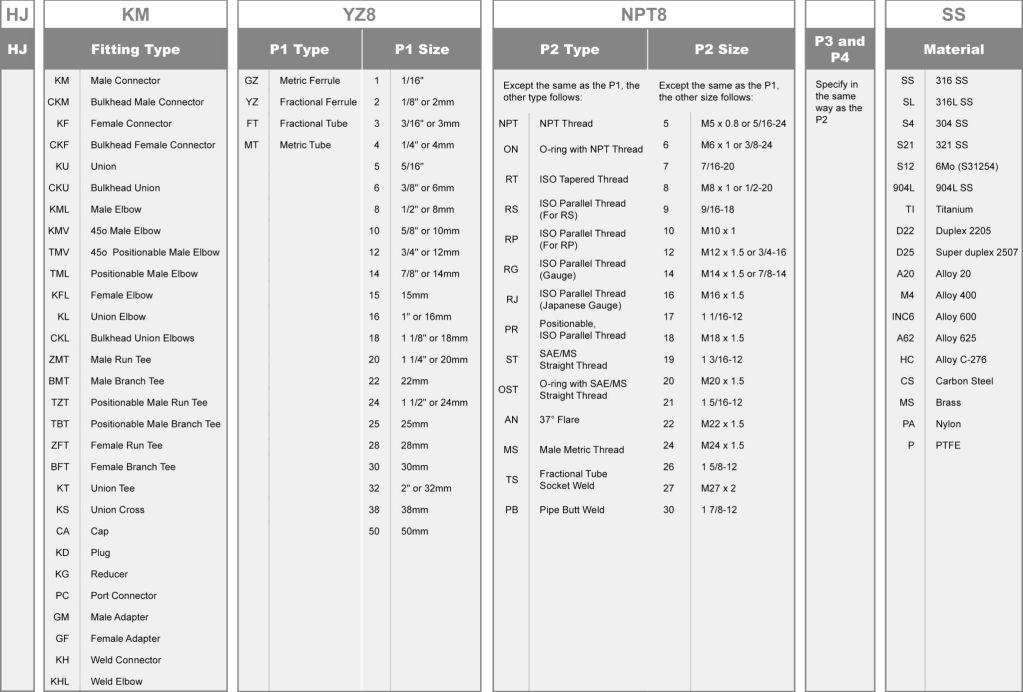

Ordering Number Description:
Note:
- P1, P2, P3 and P4 shall be described in the following orders.
- Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
- Describe in descending order as per size if the end connection types are the same.
- Describe the end of P1 if all end connections are the same.
