TianKang HongJi Ultra High Pressure Elbow Tube Fitting | 20000 psi

Overview:

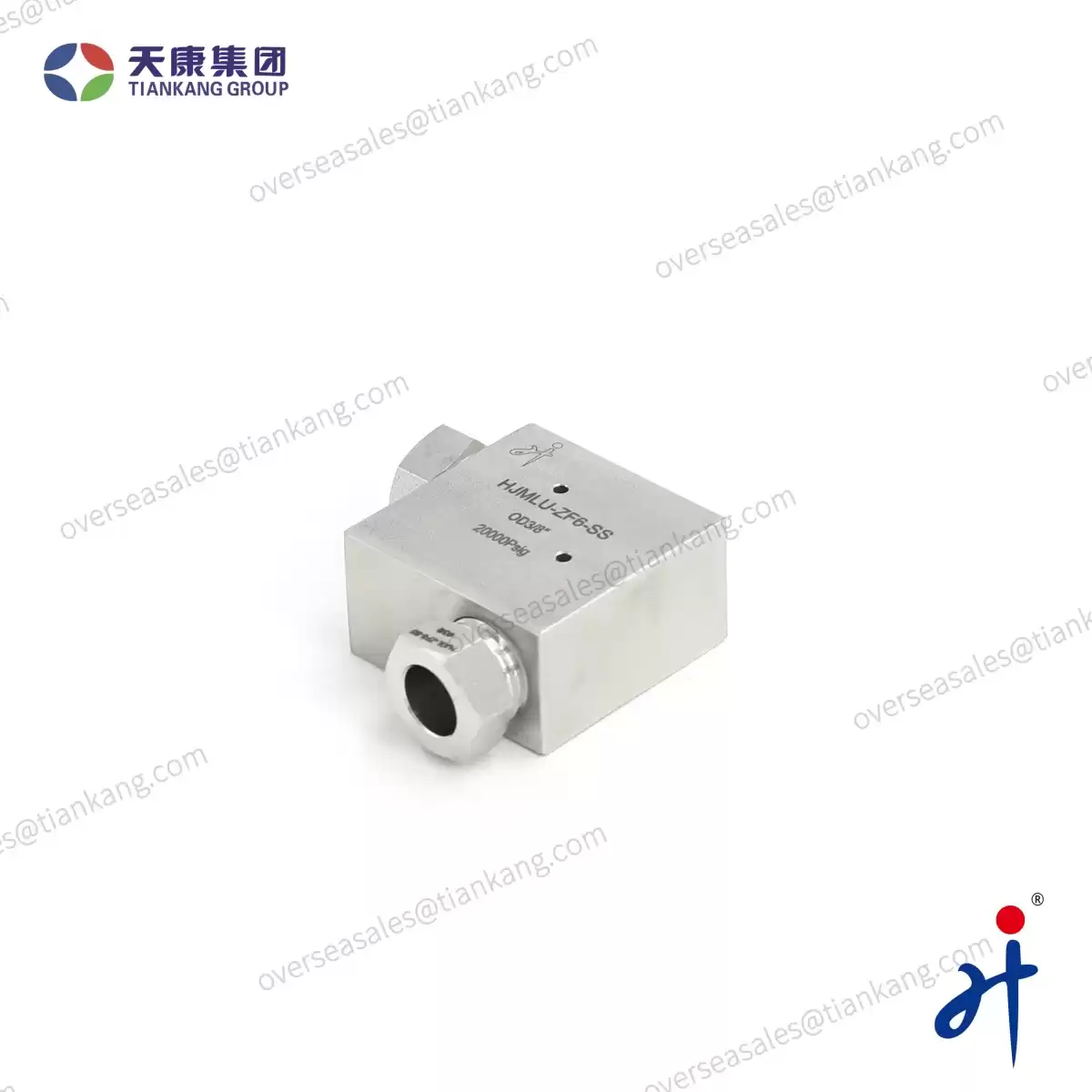

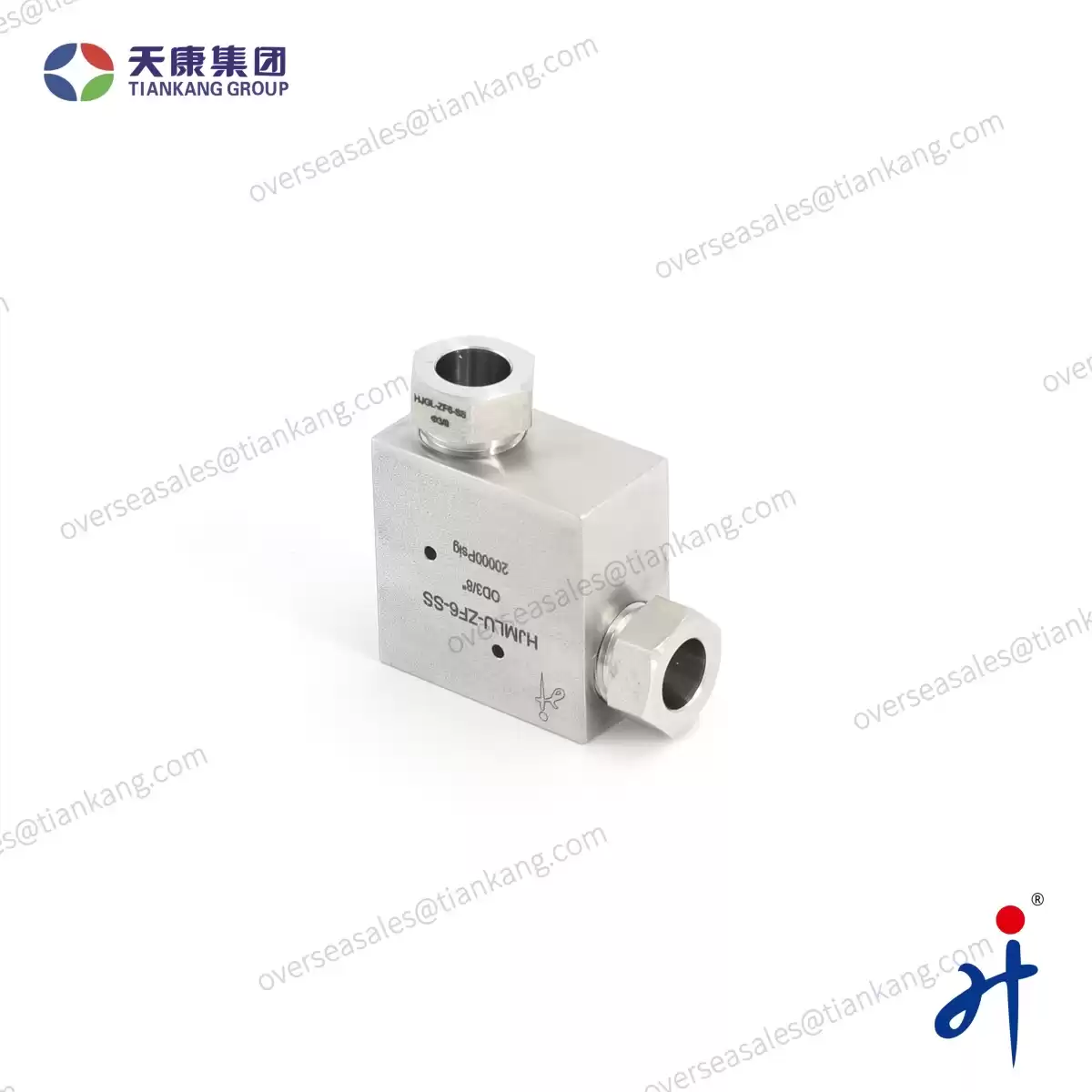

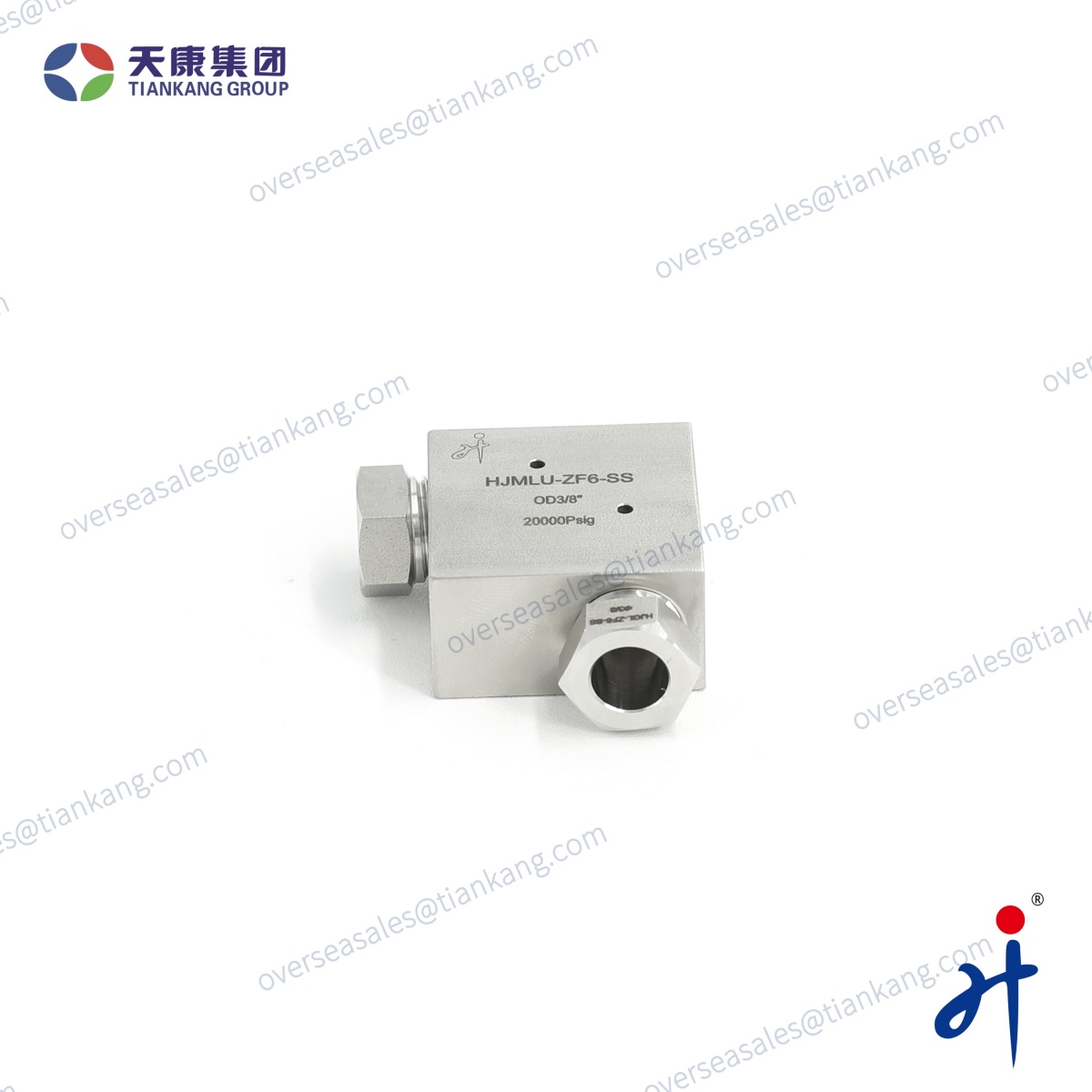

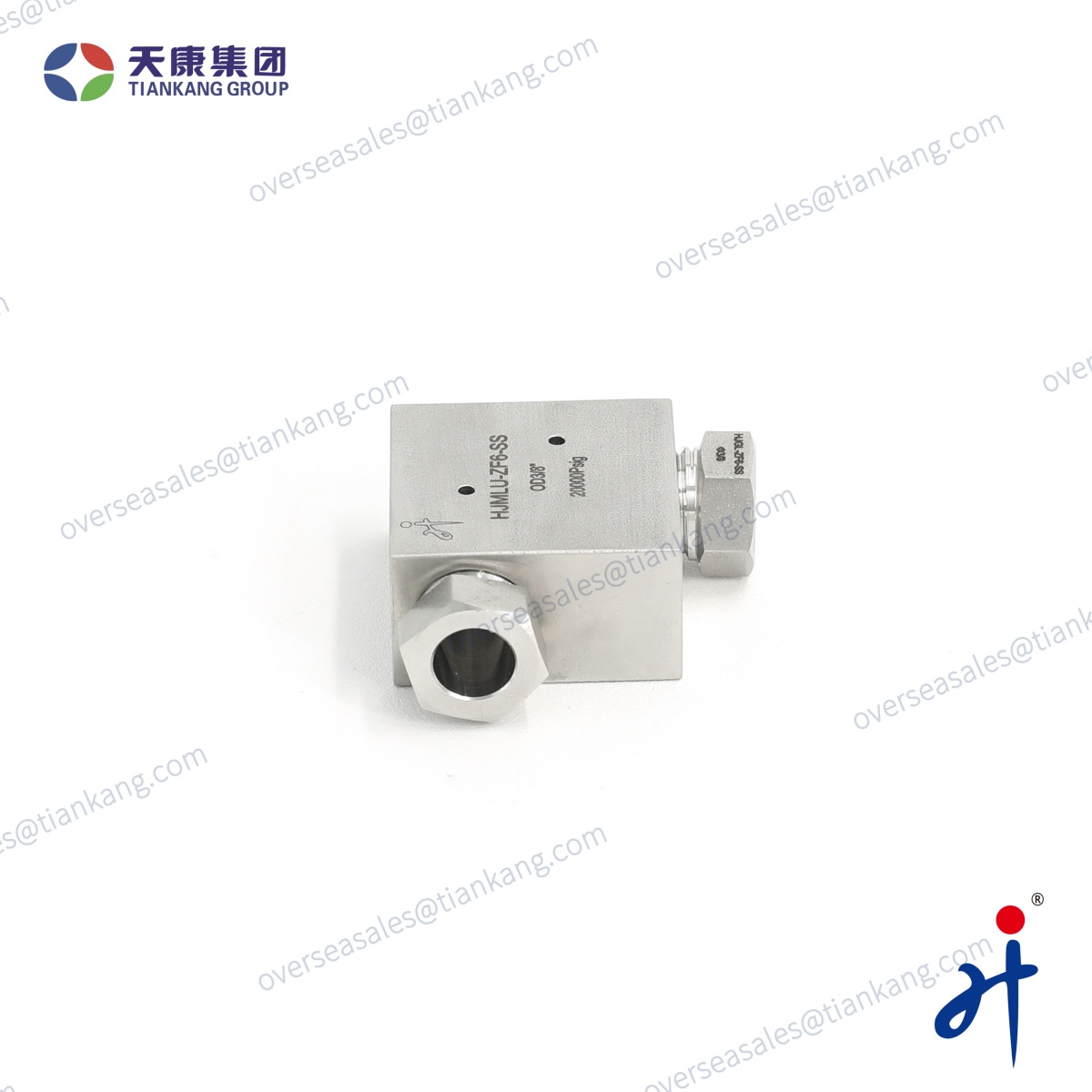

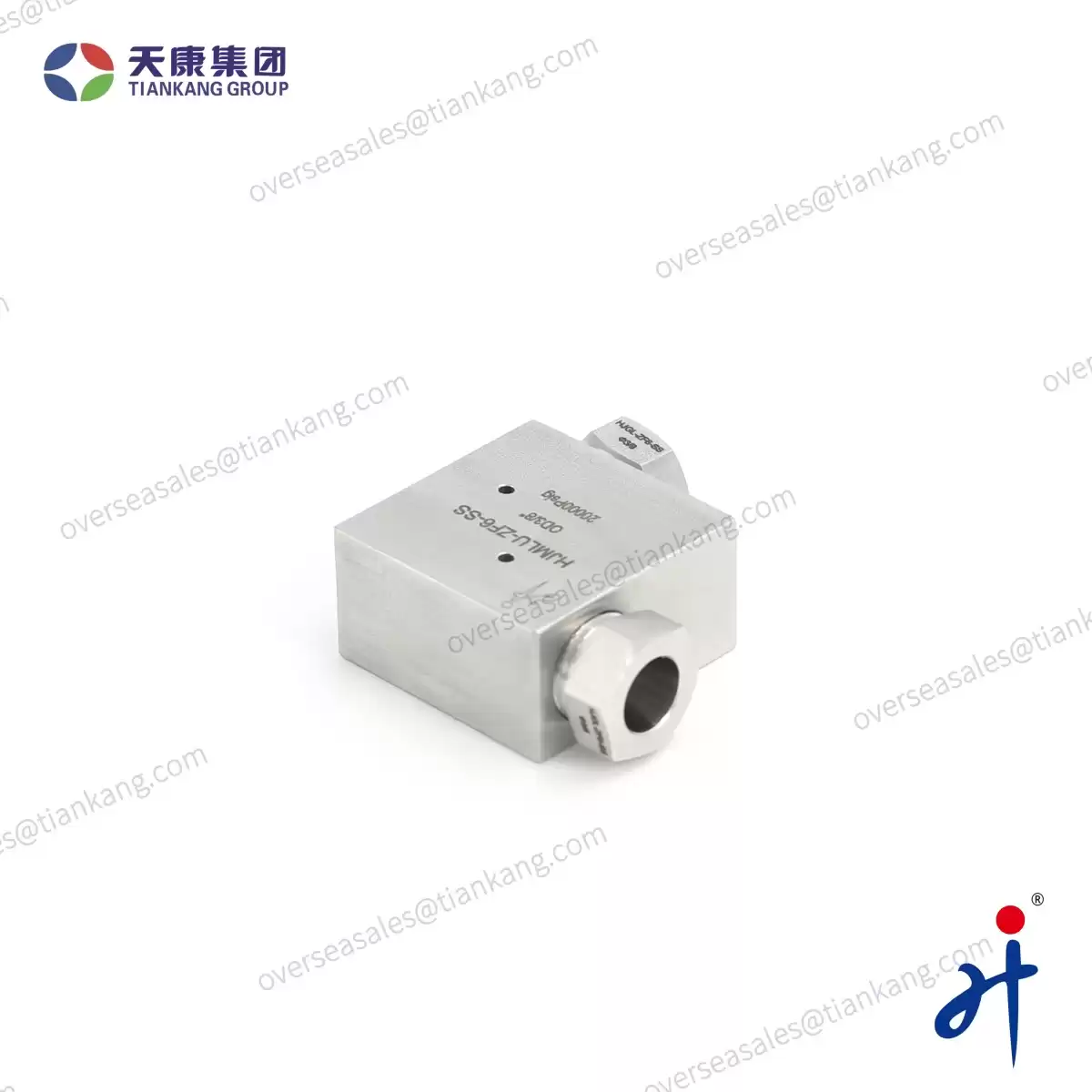

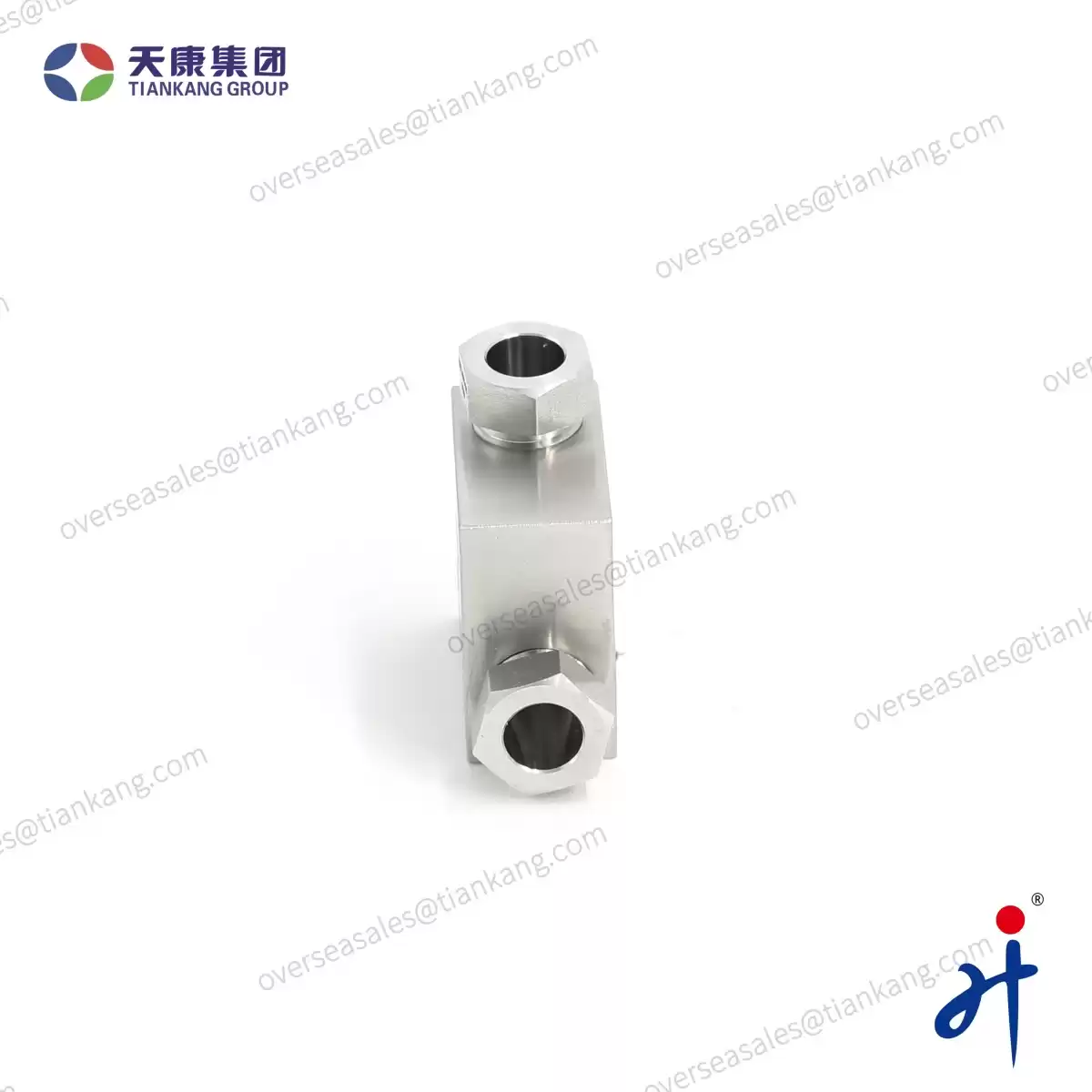

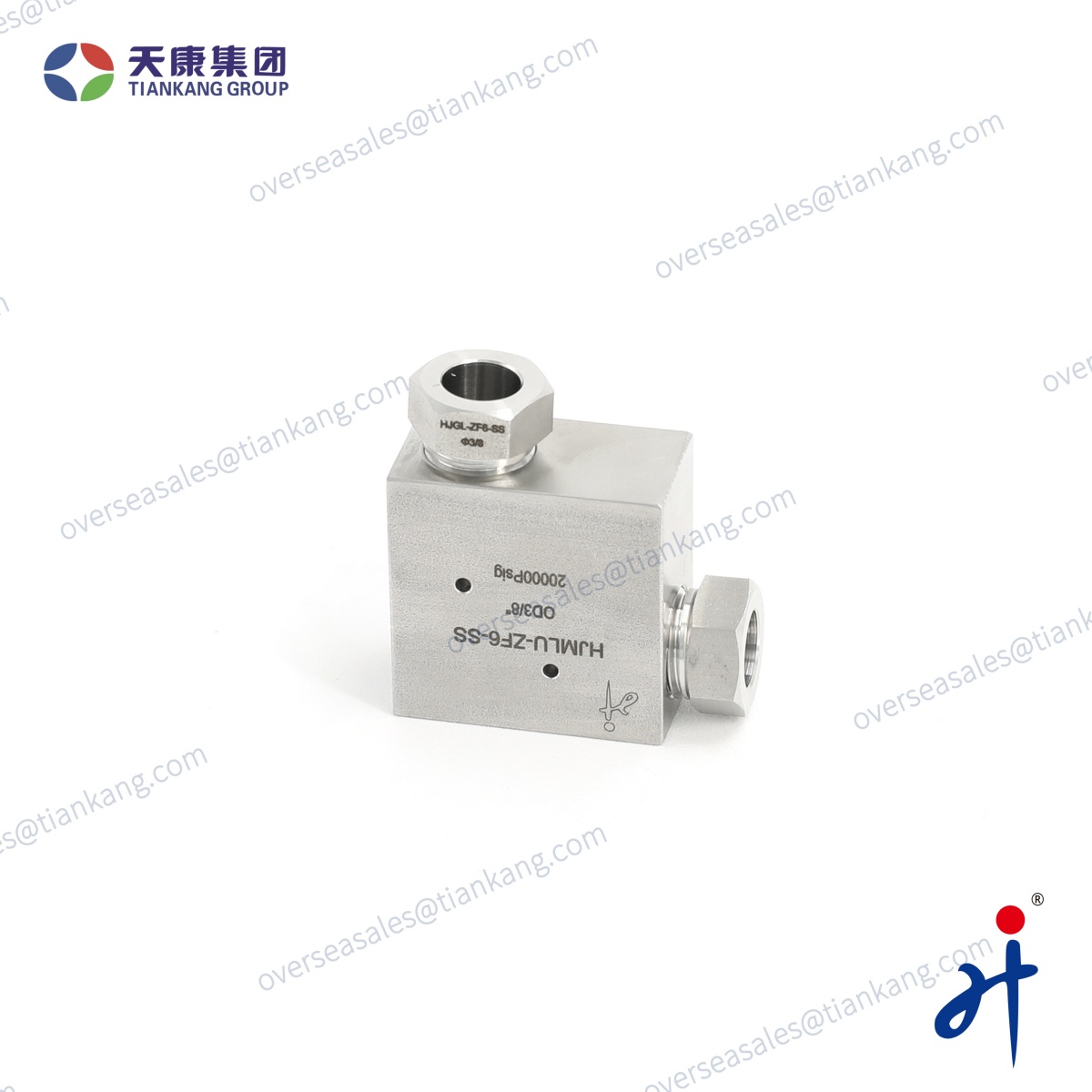

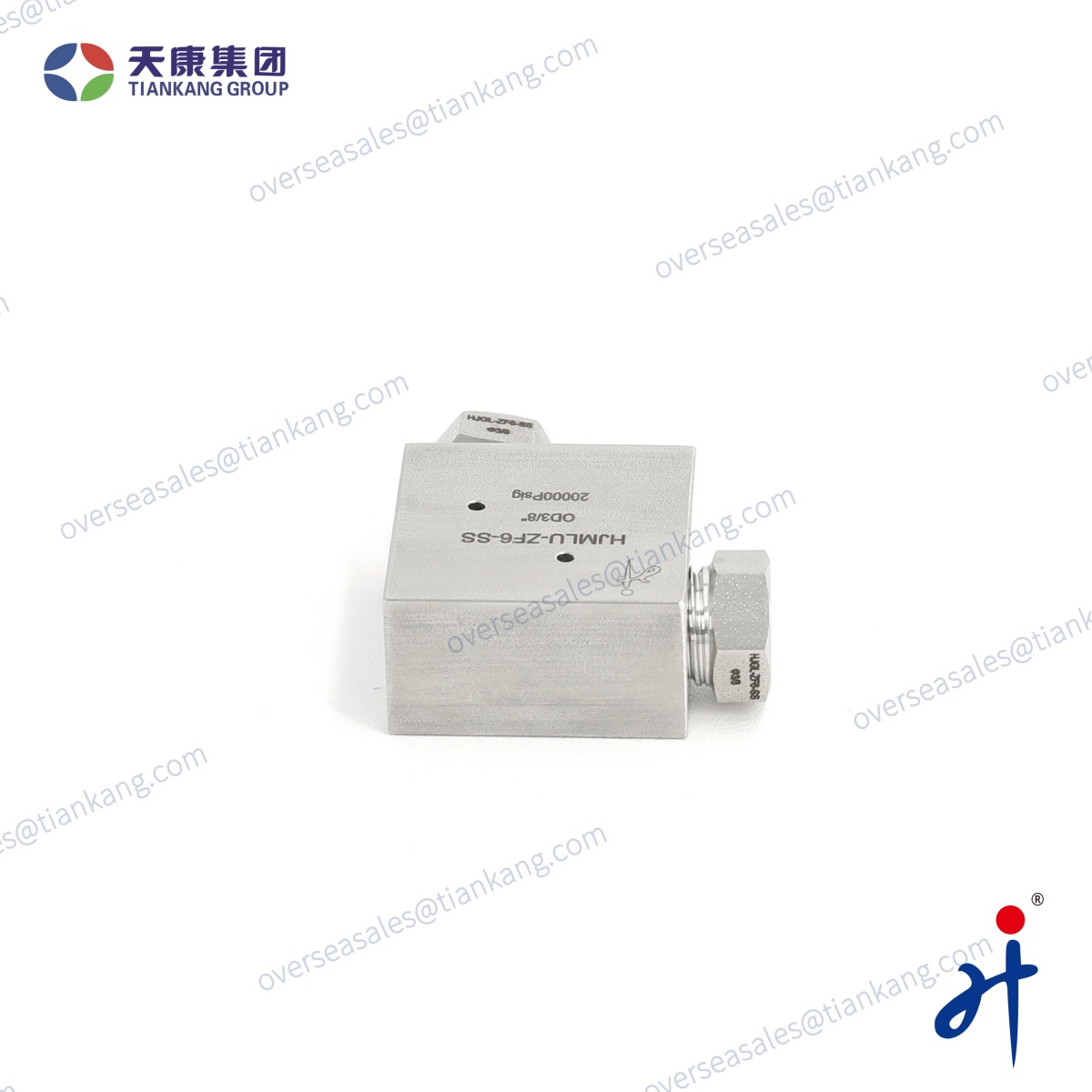

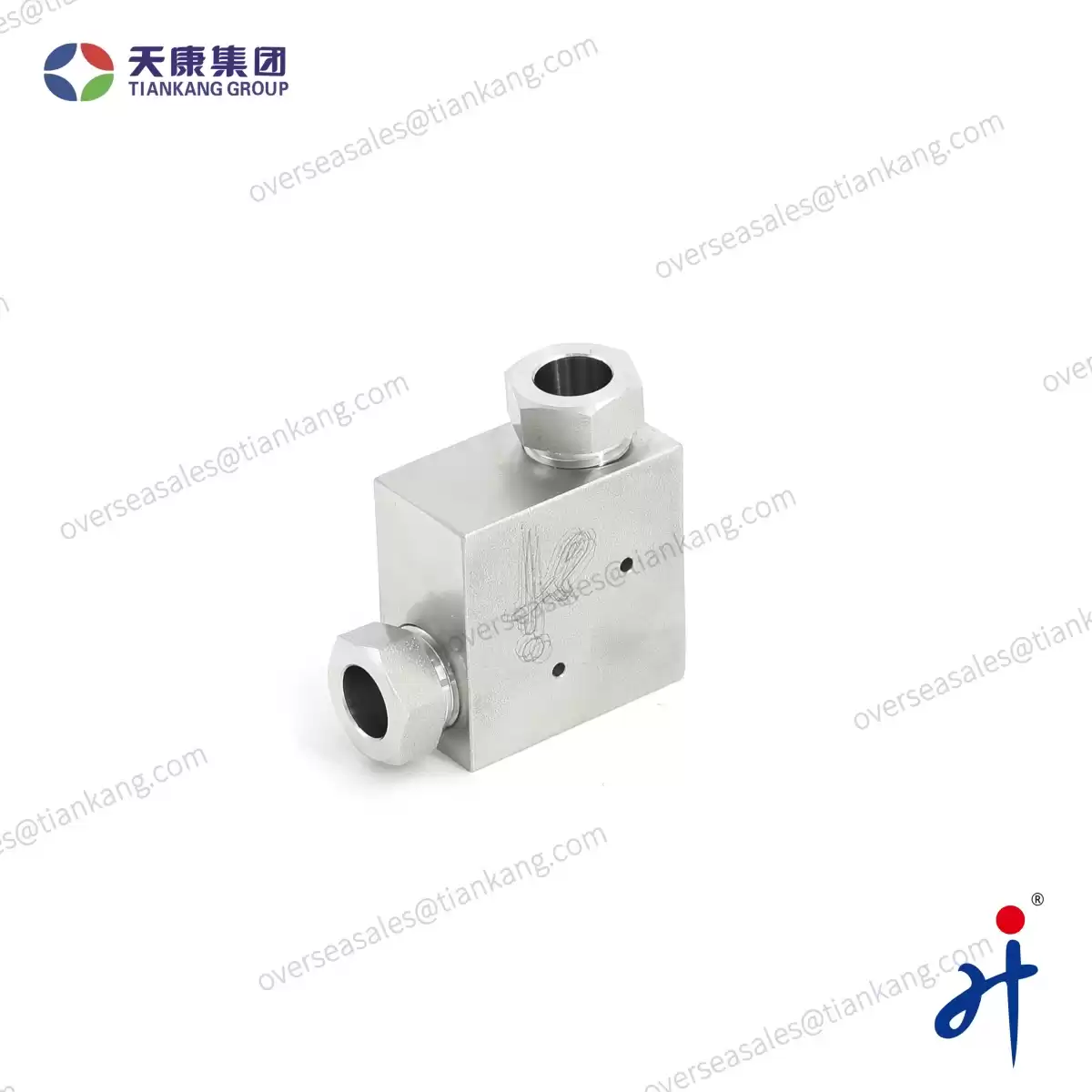

The TianKang HongJi Ultra High Pressure Elbow Tube Fitting provides a reliable 90° directional change for 3/8″ OD tubing in systems up to 20,000 psi (1379 bar). Using a coned & threaded connection for superior leak-tight sealing, it is manufactured from 316 stainless steel and fully compatible with HiP, Autoclave Engineers, and Butech fittings. Its compact design is ideal for tight layouts, ensuring durability and safety in ultrahigh-pressure environments.

Technical Specifications:

Applications:

• Fluid and Gas Systems: Connecting pipes of different sizes in fluid and gas distribution systems.
• Water Treatment Plants: Union Connector used to adjust the pipe sizes while maintaining flow efficiency in treatment processes.
• Chemical Processing: Provides flexible connections for pipes carrying different chemicals of various diameters.
• HVAC Systems: Unions allows seamless integration of different pipe sizes in heating, ventilation, and air conditioning systems.
• Oil and Gas Pipelines: Useful in pipelines where diameter changes are necessary without disrupting flow or pressure.

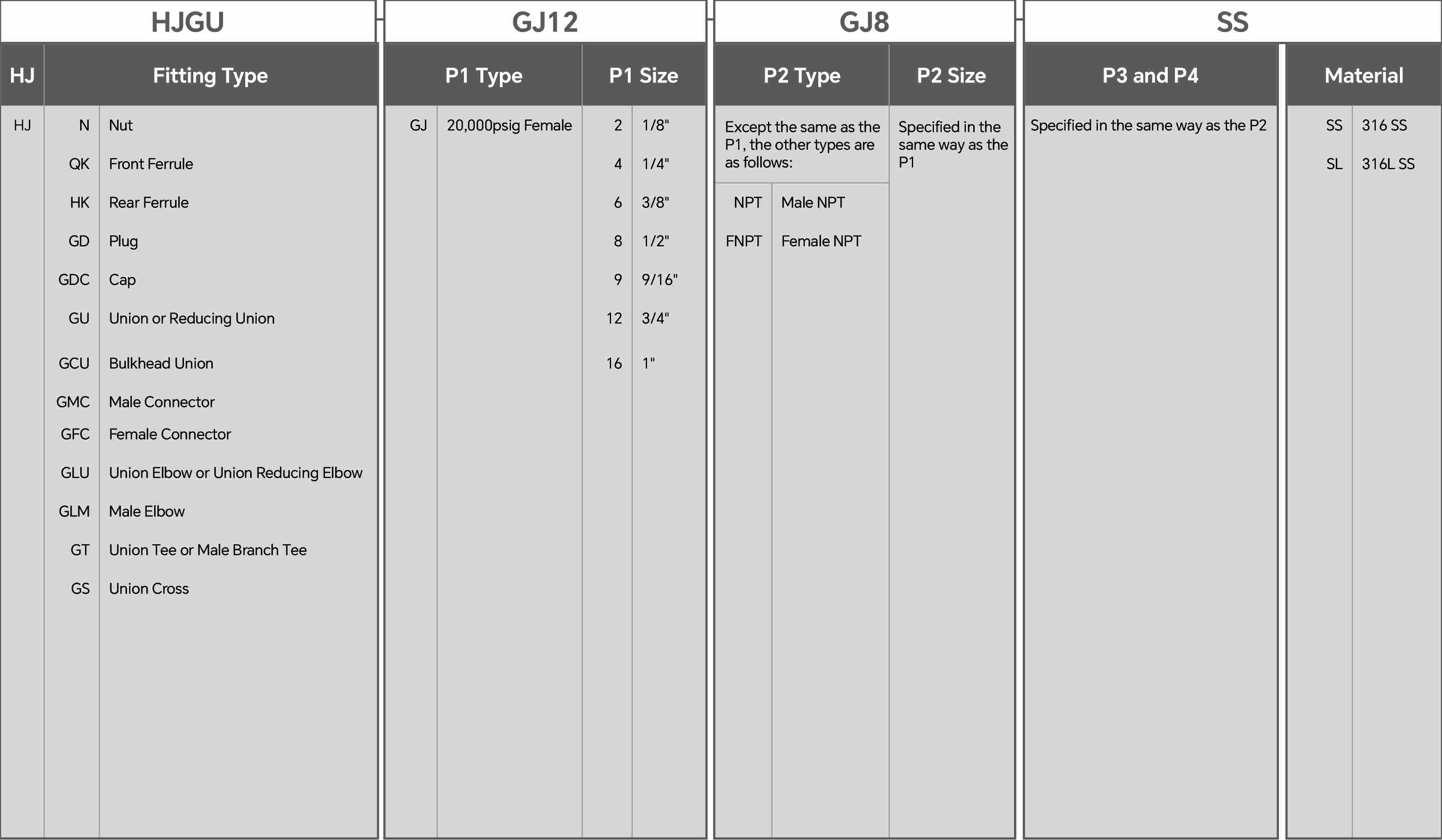

Ordering Number Description：

Note:

1. P1, P2, P3 and P4 shall be described in the following orders.
2. Ferrule – Tube – NPT Thread – ISO Tapered Thread – ISO Parallel Thread – SAE/MS Straight Thread – 37o Flare – Pipe Butt Weld – Fractional Tube Socket Weld – Others.
3. Describe in descending order as per size if the end connection types are the same.
4. Describe the end of P1 if all end connections are the same.
