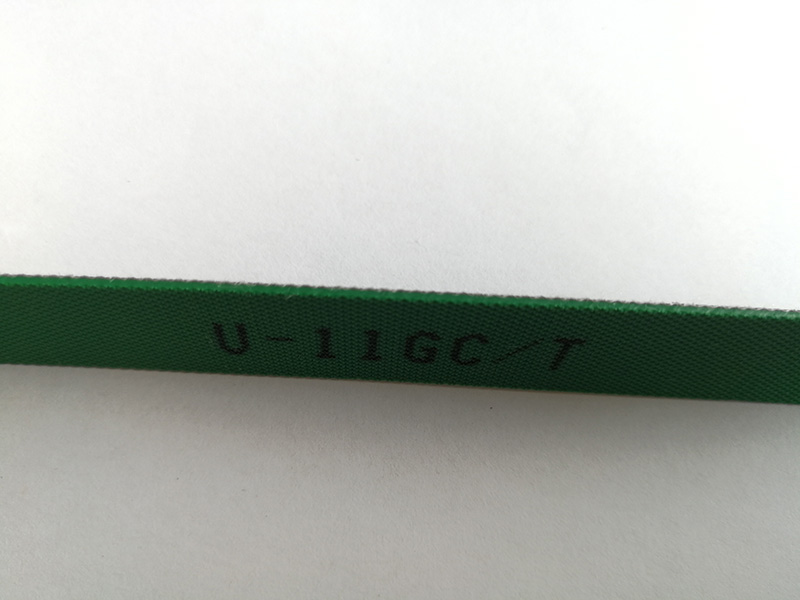

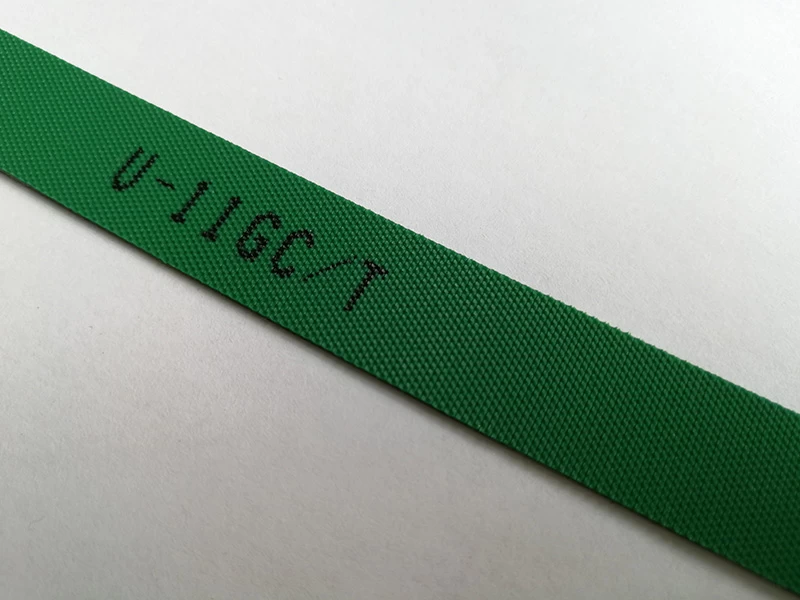

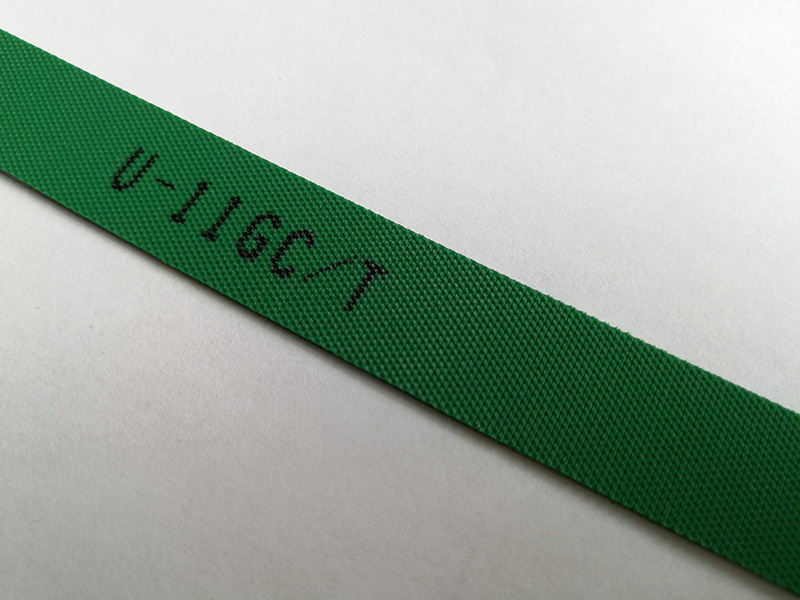

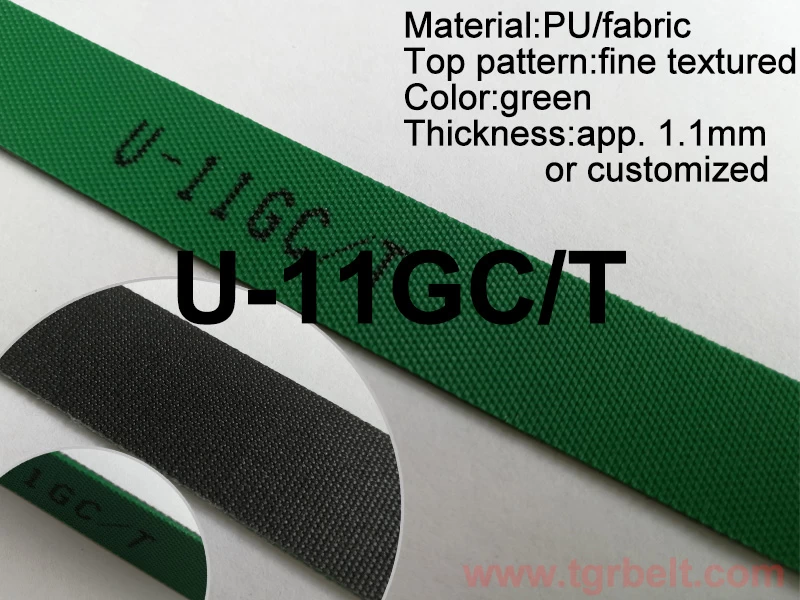

PRODUCT: PU conveyor belt, U-11GC/T
MAIN FEATURE
Tiger rough paper bag machine PU conveyor belt is anti-static,oil-resistant and FDA material.
TECHNICAL DATAS
|
Type
|
U-11GC/T
|
|
Belt thickness
|
1.1mm
|
|
Color
|
green top,black bottom
|
|
Surface
|
fine textured
|
|
Hardness top
|
90 shore
|
|
Weight
|
1.2kg/m2
|
0.246 lbs./ft.2
|
|
Force at 1% elongation
|
8N/mm
|
44.79 lbs./in.
|
|
Temperature range
|
-20 to 80°C
|
-4 to 176°F
|
|
Min. pulley diameter
|
30mm
|
1.181in.
|
|
Standard roll belt width
|
2000mm
|
78.74in.
|
|
Max. roll belt width
|
3000mm
|
181.11in.
|
|
Processing
|
cut to length or
endless ,welded guides on the top or bottom, and other special
processing requirement
|
|
Endless instructions
|
Hot splicing is
always preferable, finger splice, overlap or fasteners are all done according
to the application.
|
APPLICATION
Tiger 1.1mm green/black rough paper and package belt is largely used for plastic,paper or non-woven bag machines,and other conveying systems.
