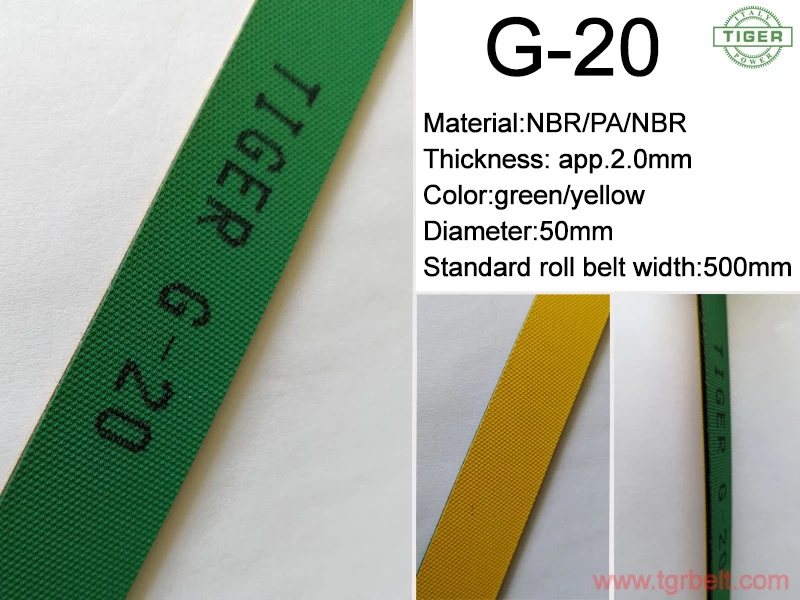

PRODUCT:G-series,G-20
MAIN FEATURE

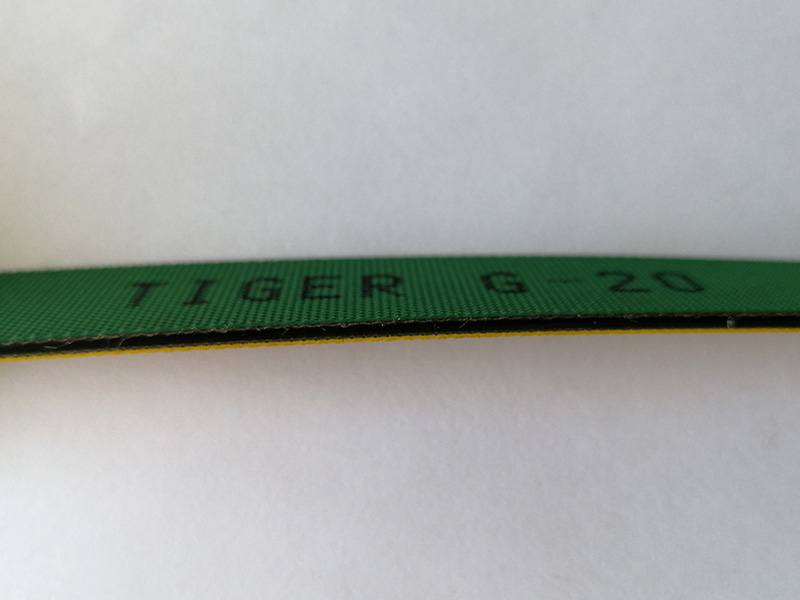

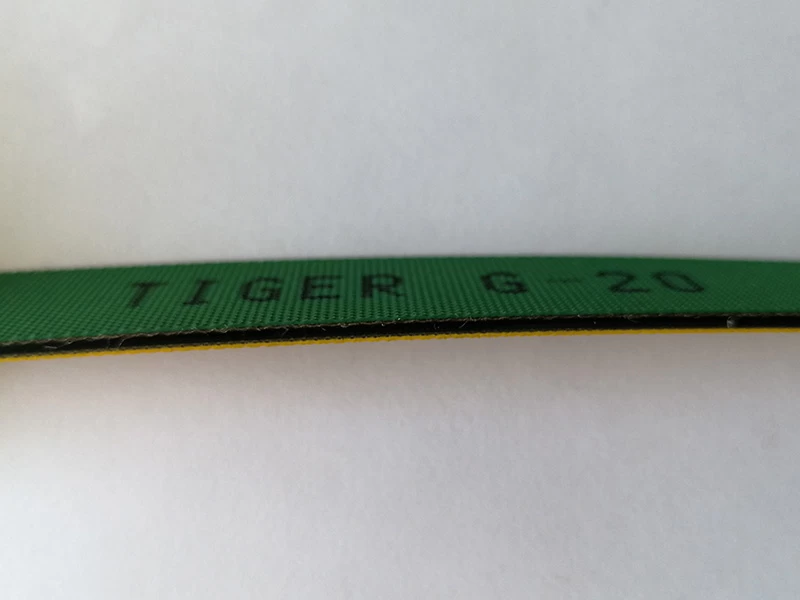

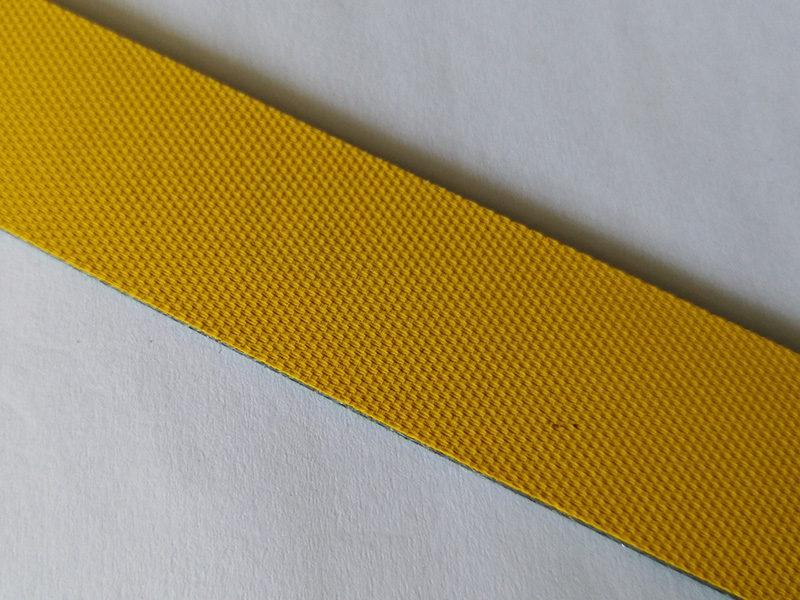

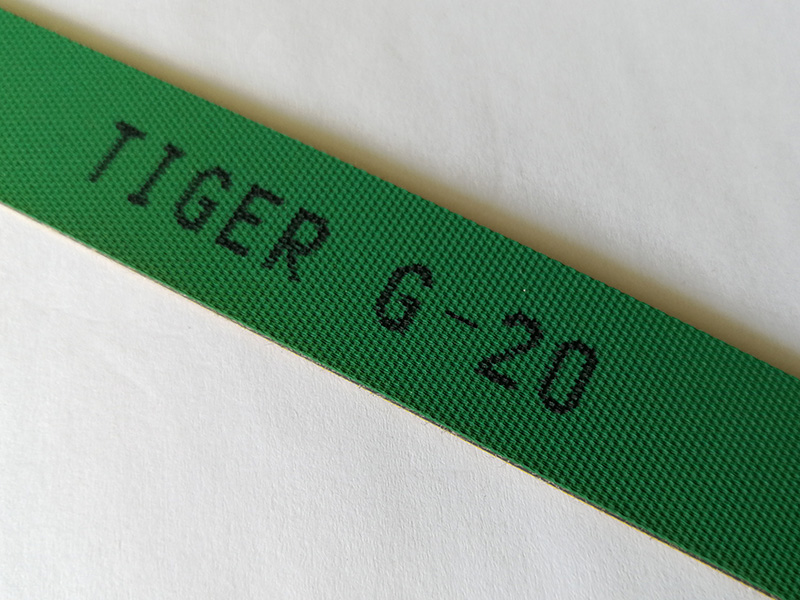

Tiger 2.0mm green/yellow polyamide power transmission belt is green and yellow NBR material,and polyamide tension layer.
TECHNICAL DATAS
|
Type
|
G-20
|
|
Belt thickness
|
2.0mm
|
|
Color
|
green,yellow
|
|
Surface
|
rough
|
|
Weight
|
2.2kg/m2
|
0.45 lbs./ft.2
|
|
Force at 1% elongation
|
6N/mm
|
33.59 lbs./in.
|
|
Temperature range
|
-10 to 110°C
|
14 to 230°F
|
|
Min. pulley diameter
|
25mm
|
0.984in.
|
|
Standard roll belt width
|
500mm
|
19.685in.
|
|
Max. roll belt width
|
540mm
|
21.26in.
|
|
Processing
|
Rubber coated on the top or other special processing requirement.
|
|
Endless instructions
|
Hot splicing with overlap is
always preferable.
|
APPLICATION
Tiger 2.0mm green/yellow polyamide power transmission belt is used as common transmission belt or tangential belt.
