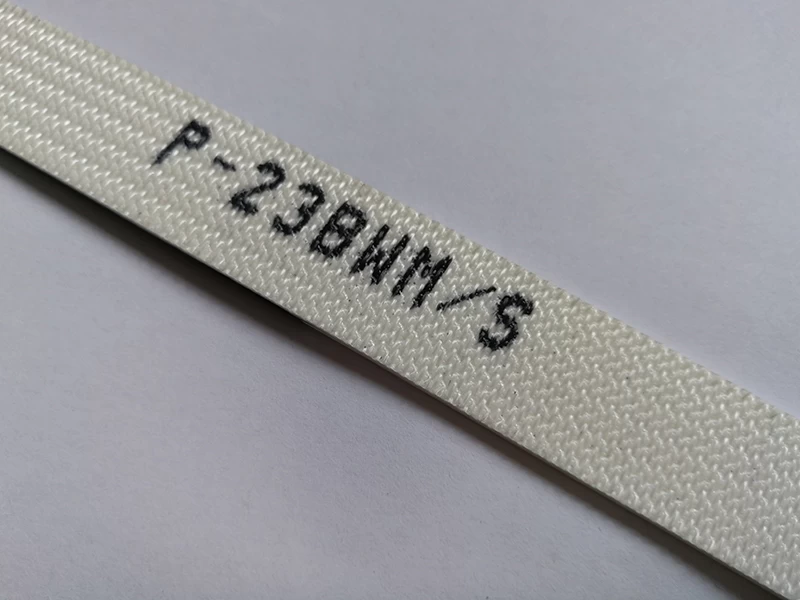

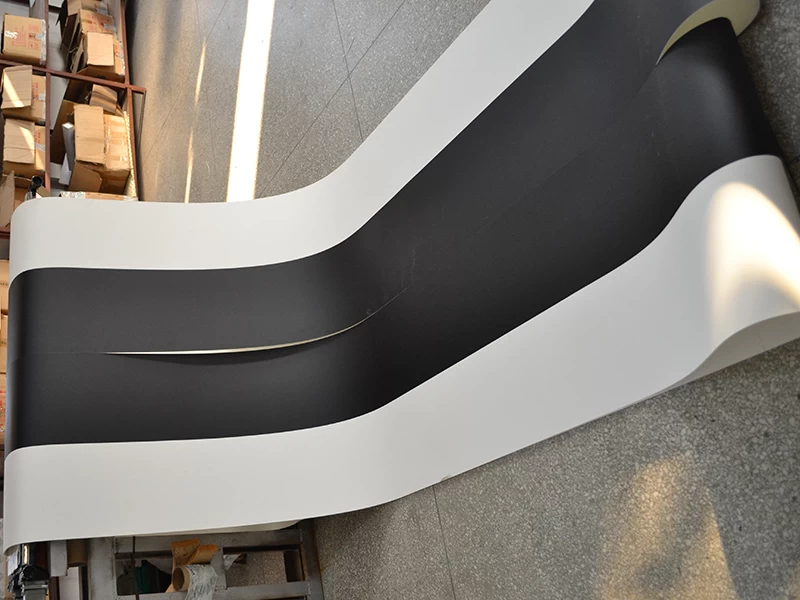

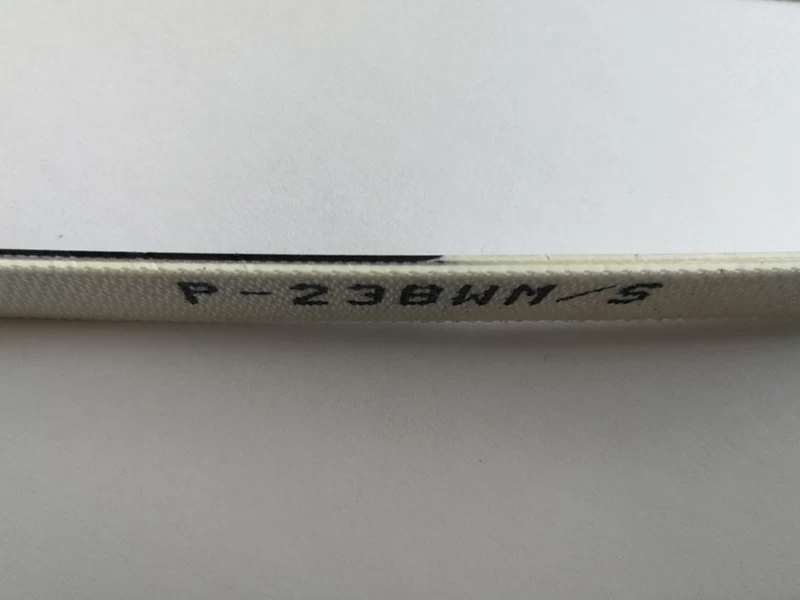

Tiger 2.3mm piano color low noise PVC conveyor belt

P-23BWM/S is two colors PVC coating top fabric conveyor belt,the bottom is low noise fabric.



PRODUCT:  PVC fabric conveyor belt,P-23BWM/S


Main Feature

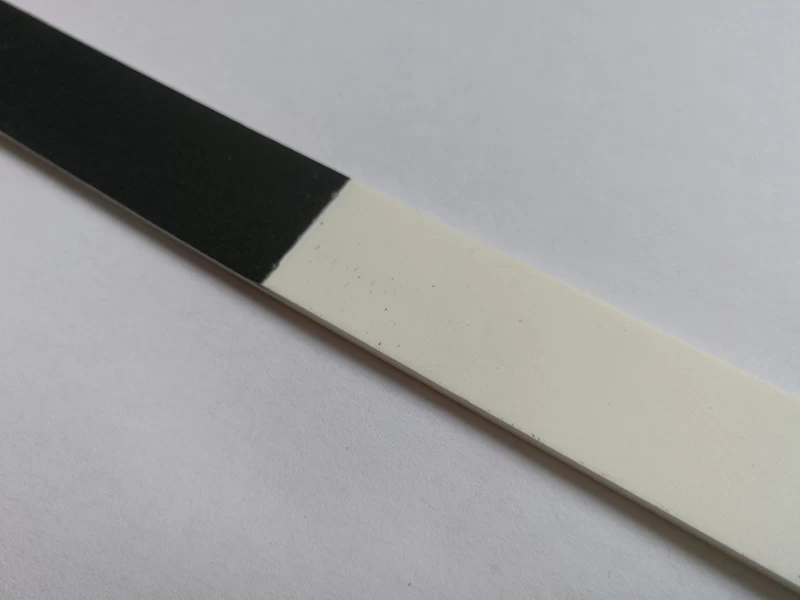

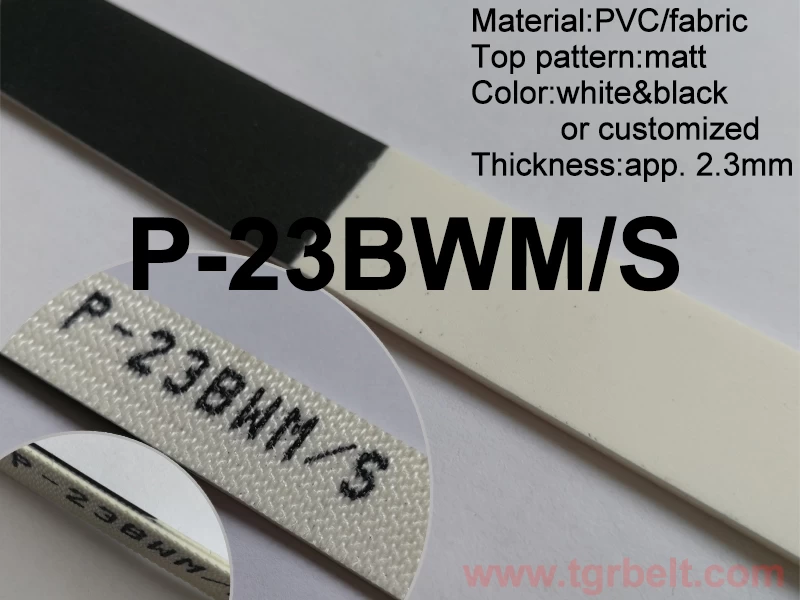

Tiger 2.3mm piano color low noise PVC conveyor belt is a kind of fabric PVC conveyor belt,2 polyester of fabric,white and black colors matt top,low noise fabric bottom. The colors can also be yellow and black or tailor-made.


Technical datas

Type

P-23BWM/S

Belt thickness

2.3mm

Colorw

white and black

Surface

matt

Weight

2.5kg/m2

0.51 lbs./ft.2

Force at 1% elongation

8N/mm

44.79 lbs./in.

Temperature range

-15 to 80°C

5 to 176°F

Min. pulley diameter

40mm

1.57in.

Standard roll belt width

2000mm

78.74in.

Processing

cut to length or endless ,welded guides on the top or bottom, and other special processing requirement

Endless instructions

Hot splicing is always preferable, finger splice, overlap or fasteners are all done according to the application.


Joint system example


Application in paper and printing machine,or other conveyors.




We are a reputed belting manufacturer and supplier:

Production lines-capacity

2

Facilities-machines conditions

50sets

Quality Assurance System

Tiger Standard

Sales staffs

10-20

Annual turnover

250-400USD

Telephone

86(0595)68883000,(0595)88811642

Fax

86(0595)83112333

E-mail

info@tgrbelt.com

Trademark

TGRBELT

Managing Director

Mr. Li


Our advantages:

  • QUALITY ASSURANCE:Guarantee that the commodity hereof complies in all respects with the quality and specification stipulated in the contract.
  • DELIVERY GUARANTEE:Ship the goods within the shipment time from the port of shipment to the destination in the contract.
  • FACTORY PRICE:Prices refer to the cost of raw materials directly from factory.
  • TEAM OF PROFESSIONALS:Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
  • FABRICATION WORKSHOP:Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides,etc.
