PRODUCT: hot pressing machine or vulcanizing machine
DESCRIPTION

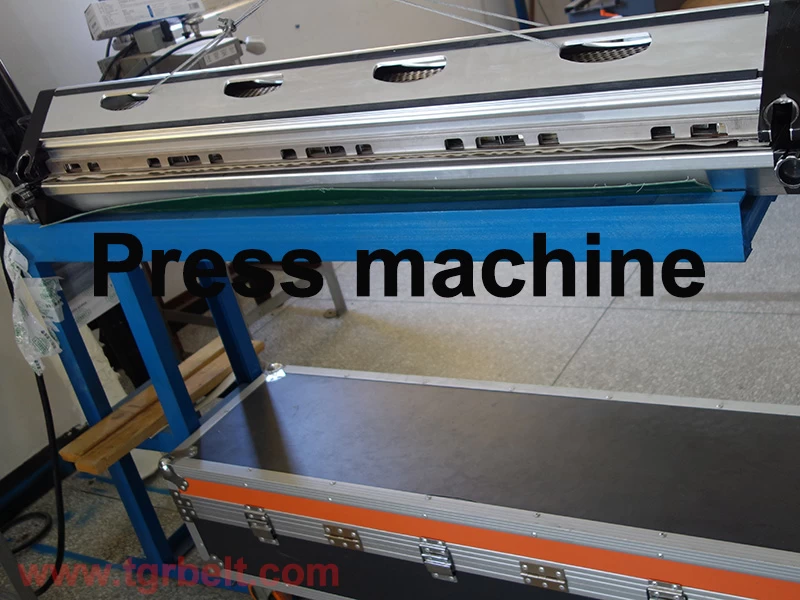

Tiger hot pressing machine for conveyor belt is an all-in-one solution for splicing thermoplastic conveyor belts (e.g. PVC,PU). No need external control box, air pump, or water cooling tank.
Advantages:
-
Short joining cycle time. It takes 7-15 minutes to completely meet the requirement of the belt joint.
-
All-in-one design. No extra external accessorial machine.
-
Integrated air-cooling system. No need control box, hoses and cooling tank.
-
Easy to carry. Each machine is packed by a flight case for easily carry and on-site service.
TECHNICAL DATAS
|
Model
|
VPM600
|
VPM900
|
VPM1200
|
VPM1500
|
VPM2000
|
|
Effective belt length
|
600mm/24”
|
900mm/36”
|
1200mm/48”
|
1500mm/60”
|
2000mm/79”
|
|
Effective belt width
|
130mm/5.1”
|
130mm/5.1”
|
130mm/5.1”
|
130mm/5.1”
|
130mm/5.1”
|
|
Weight
|
30KGS/66lbs
|
38KGS/84lbs
|
54KGS/119lbs
|
62KGS/136lbs
|
70KGS/154lbs
|
|
Machine length
|
805mm/31.7”
|
1105mm/43.5”
|
1405mm/55.3”
|
1705mm/67.1”
|
2205mm/87“
|
|
Machine height
|
225mm/8.86”
|
225mm/8.86”
|
225mm/8.86”
|
225mm/8.86”
|
225mm/8.86”
|
|
Machine width
|
250mm/9.8”
|
250mm/9.8”
|
250mm/9.8”
|
250mm/9.8”
|
250mm/9.8”
|
|
Max. temperature
|
200℃/392°F
|
200℃/392°F
|
200℃/392°F
|
200℃/392°F
|
200℃/392°F
|
|
Packing size
|
1012*352*260mm
(40*14*11”)
|
1312*352*260mm
(53*14*11”)
|
1612*352*260
(66*14*11”)
|
1912*352*260
(75*14*11”)
|
2412*352*260
(95*14*11”)
|
|
Packing weight
|
35KGS/77lbs
|
43KGS/95lbs
|
84KGS/185lbs
|
96KGS/211lbs
|
120KGS/264lbs
|
