DESCRIPTION

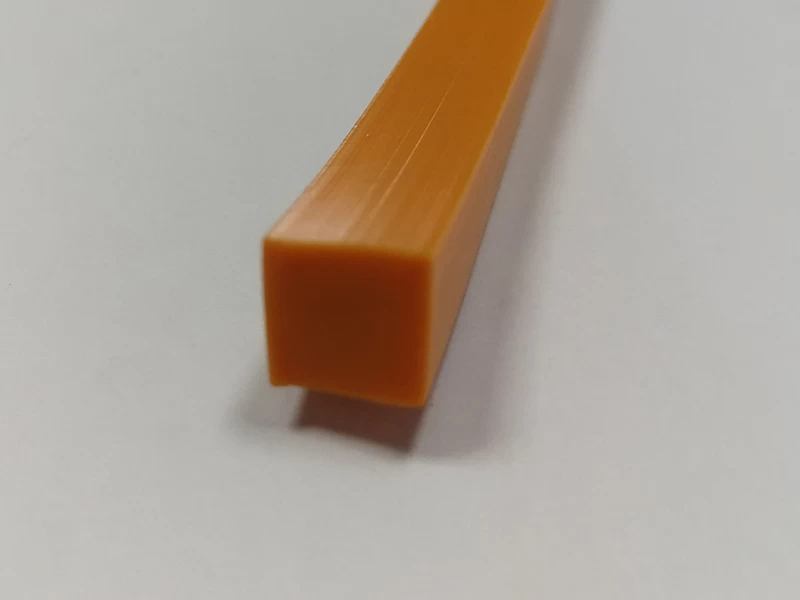

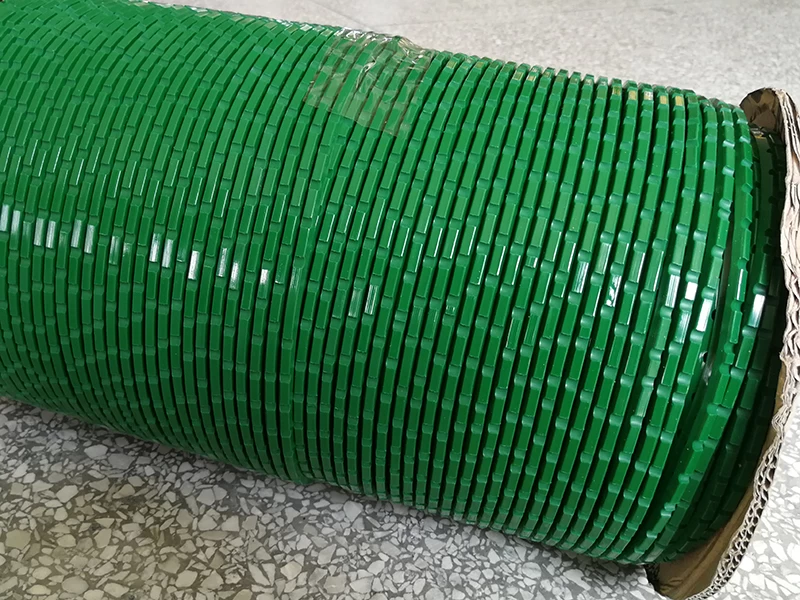

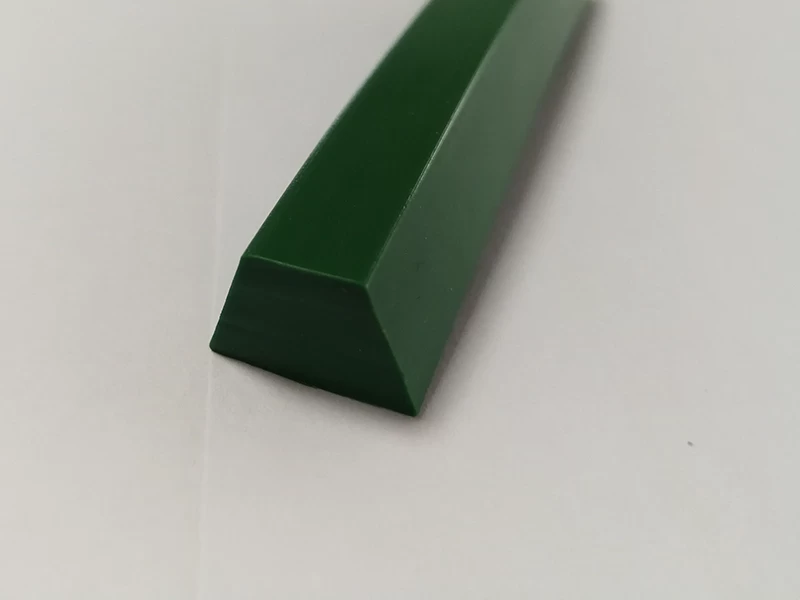

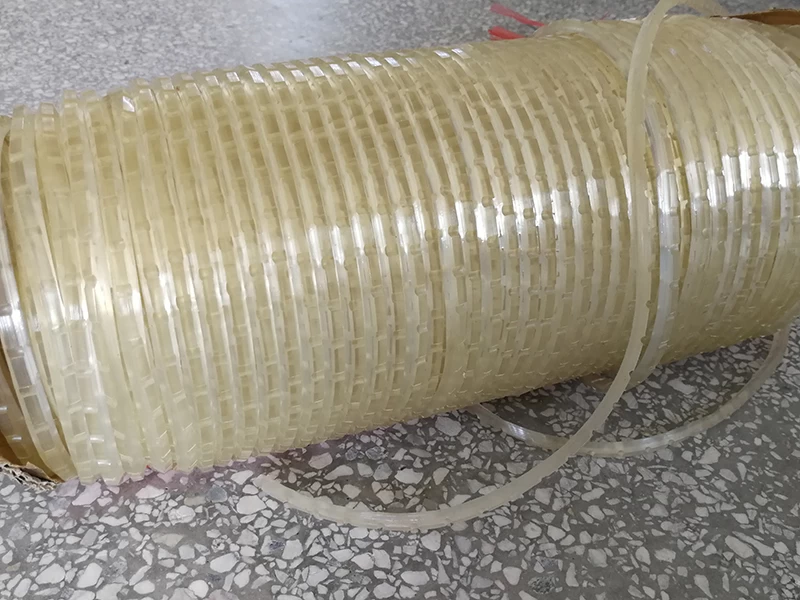

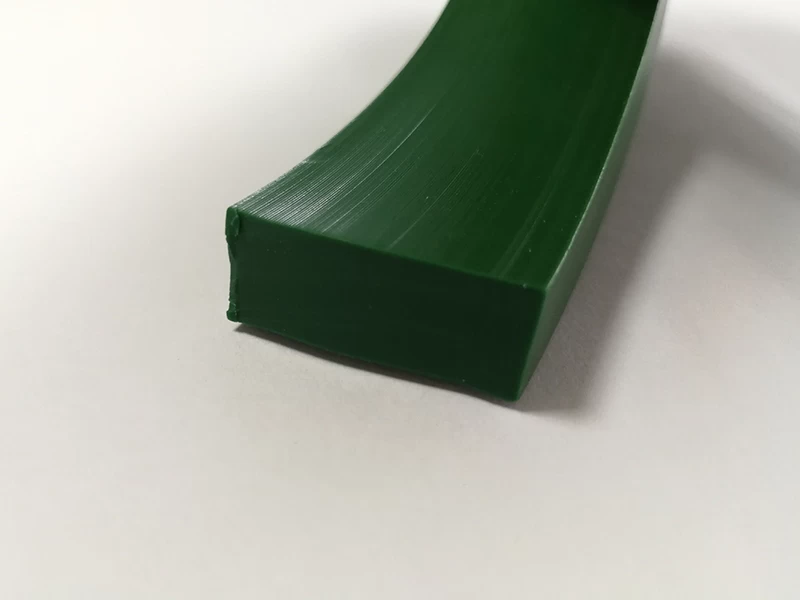

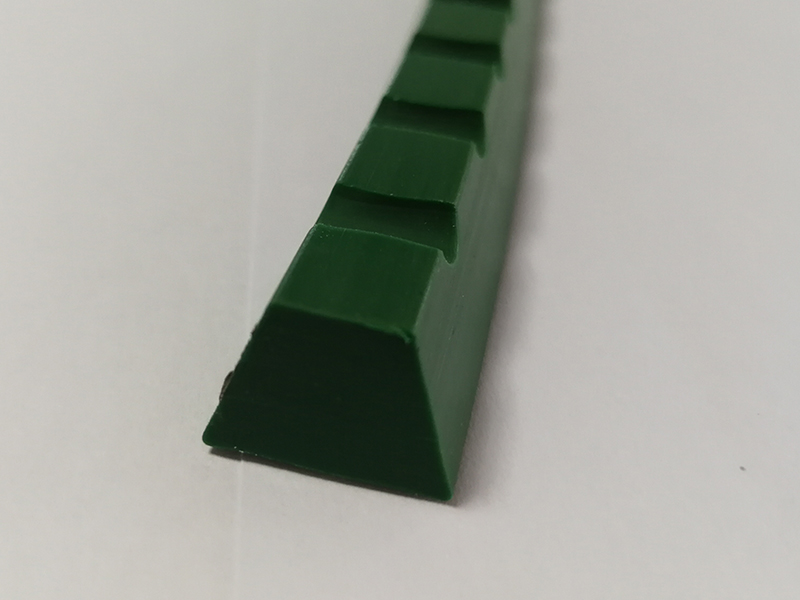

Tiger PVC or PU V tracking guide profiles are added to conveyor and processing belts, as well as timing belts, to assist conveying and product placement.The tracking guides can be notched to provide maximum flexibility around the pulleys.
STANDARD TYPES
|
SYMBOL
|
B×H（mm)
|
MIN(mm)
|
MATERIAL
|
|
K6/KN6
|
6×4
|
20
|
PVC,PU
|
|
K8/KN8
|
8×5
|
80/60
|
PVC,PU
|
|
K10/KN10
|
10×6
|
100/80
|
PVC,PU
|
|
K13/KN13
|
13×8
|
120/100
|
PVC,PU
|
|
K17/KN17
|
17×11
|
150/130
|
PVC,PU
|
|
K22/KN22
|
22×14
|
200
|
PVC,PU
|
|
K10×10
|
10×10
|
50
|
PVC,PU
|
|
K13×6
|
13×6
|
100
|
PVC,PU
|
|
T20/TD20
|
20×20/6×20
|
100/50
|
PVC,PU
|
|
T30/TD30
|
25×30/6×30
|
100/50
|
PVC,PU
|
|
T40/TD40
|
25×40/6×40
|
120/60
|
PVC,PU
|
|
T50/TN50
|
30×50/6×50
|
150/80
|
PVC
|
|
T60/TD60
|
35×60/6×60
|
150/80
|
PVC
|
|
T70/TD70
|
40×70/6×70
|
150/80
|
PVC
|
|
T80/TD80
|
45×80/8×80
|
180/90
|
PVC
|
|
T100/TD100
|
50×100/8×100
|
200/100
|
PVC
|
|
L30
|
30×30
|
100
|
PVC,PU
|
|
L50
|
30×50/6×50
|
150
|
PVC
|
|
L80
|
30×80
|
180
|
PVC
|
APPLICATION
V guiding profiles are primarily used in general conveying on inclining or declining
transport in linear movement, or in applications where transveral forces
occur.
