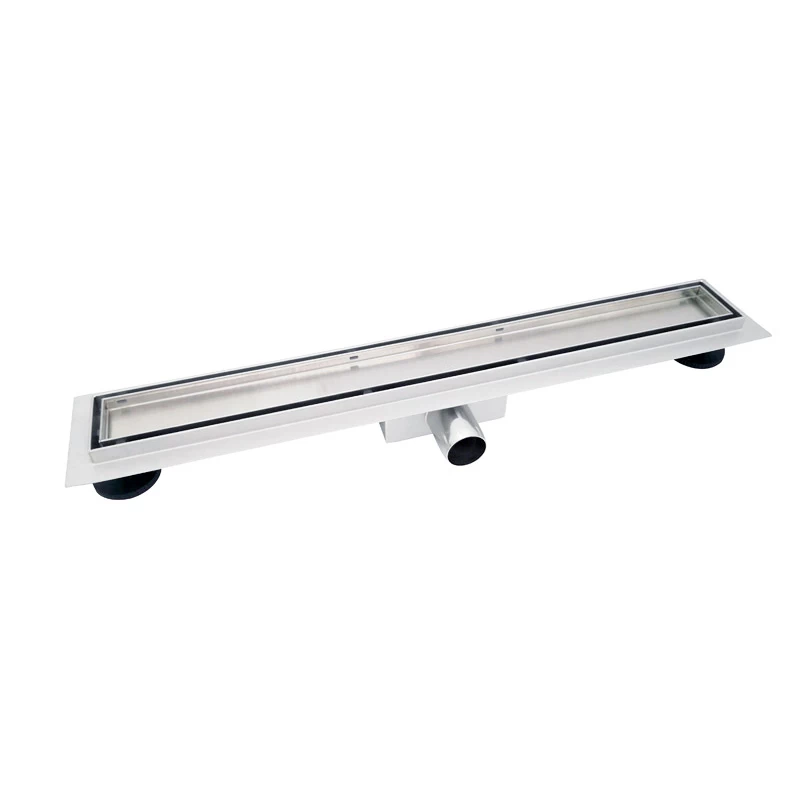

Modern Design Stainless Steel 304 Shower Room Tile Insert Linear Shower Drain
Type: 2 in 1 tile insert with horizontal outlet
Material: 304 stainless steel
Length: 300mm,400mm,500mm,600mm,700mm,800mm,900mm,1000mm,1100mm,1200mm,1300mm,1400mm,1500mm
Width: 70mm
Height:67mm
Edge: 20mm
Flow capability: 30L/min
Siphon parts: Included
Hair trap: Included
Outlet: 40mm with 50mm adapter
Install height adjustable
The NEUNAS floor drain, made by stainless steel 304 of shower room series has a modern design and barrier-free showering,

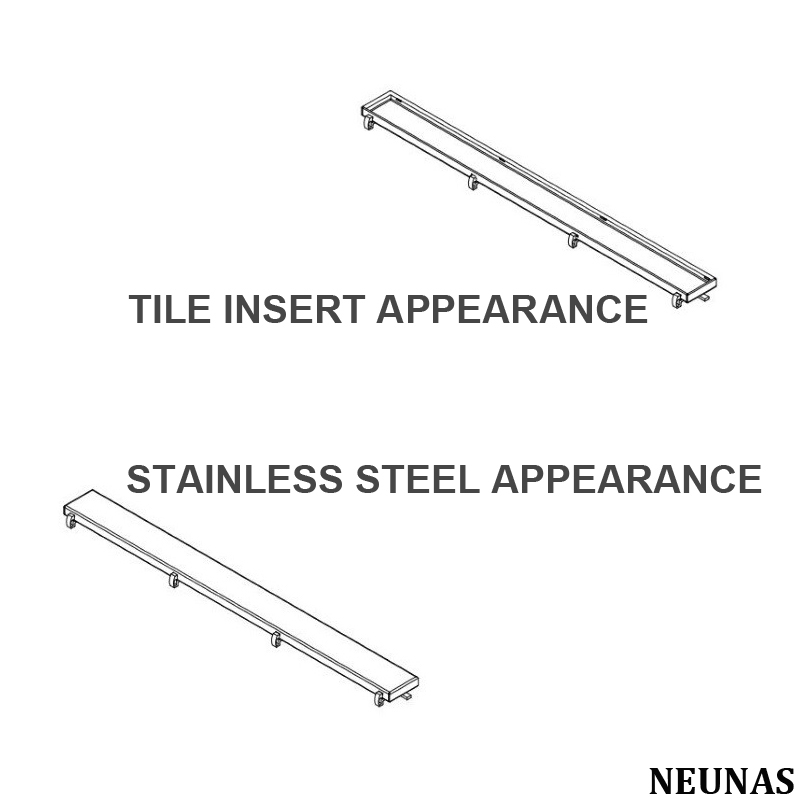

with 2 in 1 function tile appearance and original stainless steel appearance.
Up to 30 litres of water per minute can be drained directly through the floor drain after using a shower without the need for a step.
After tile installed in the adapted frame, you can only see the side leak gap with a width of about 6 mm.
The extremely flat design of the shower channel is suitable for extremely low heights. Since the anchoring feet are adjustable, you can also easily adjust the mounting height. The shower channel has a 40 mm drain and comes with a 50 mm adapter.

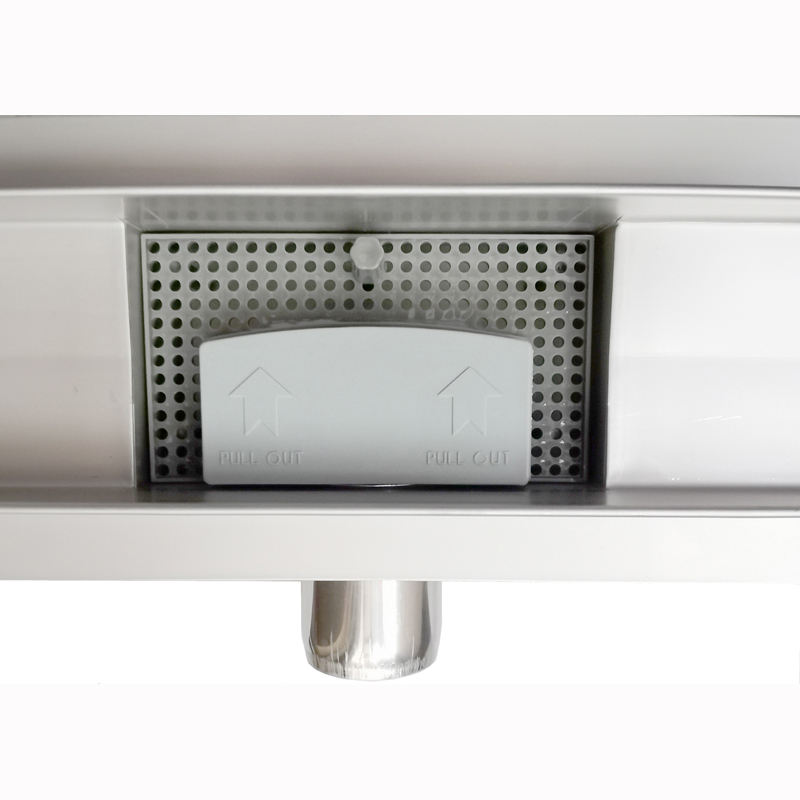

You can easily see the siphon and hair trap through the removable drain cover, which makes the shower trough and drain pipe easy to clean. In addition, a built-in integrated deodorizer prevents odors from penetrating.
Choose the length you want 300mm,400mm,500mm,600mm,700mm,800mm,900mm,1000mm,1100mm,1200mm,1300mm,1400mm,1500mm.
