Tile Roof Hook Solar Mounting Brackets System

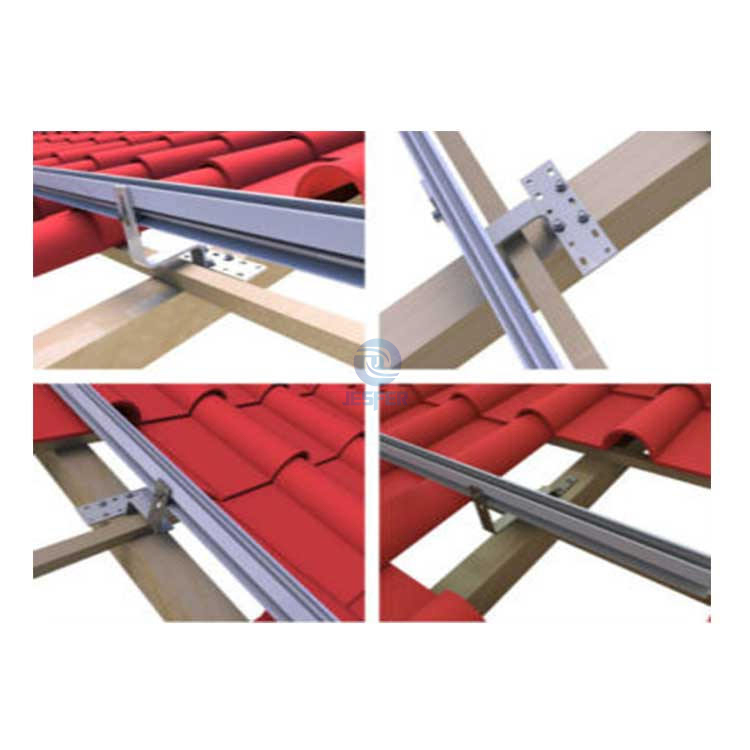

Tile Roof Solar Mount Solution is suitable for almost any pitch roof.it accommodate all framed and unframed solar modules on the market .Jesfer's complete product range of mounting brackets provide fast and simple fixing t purlins or rafters,without affecting the integrity or function of the tiles themselves .the roof brackets are available for tradional profile tiles and flat tiles.Jesfer has now installed more than 100 roofs all over the world. we offer various roof hook to meet each clients' requirment.
Related Component
Technical Parameters
System Name
|
Tile Roof Hook
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Asphalt shingle Tile,Tile,Flat Tile,Slate Tile
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
5-45 degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Installation Site
|
Pitched Roof
|
Small Components
|
Anodized AL-6005-T5
|

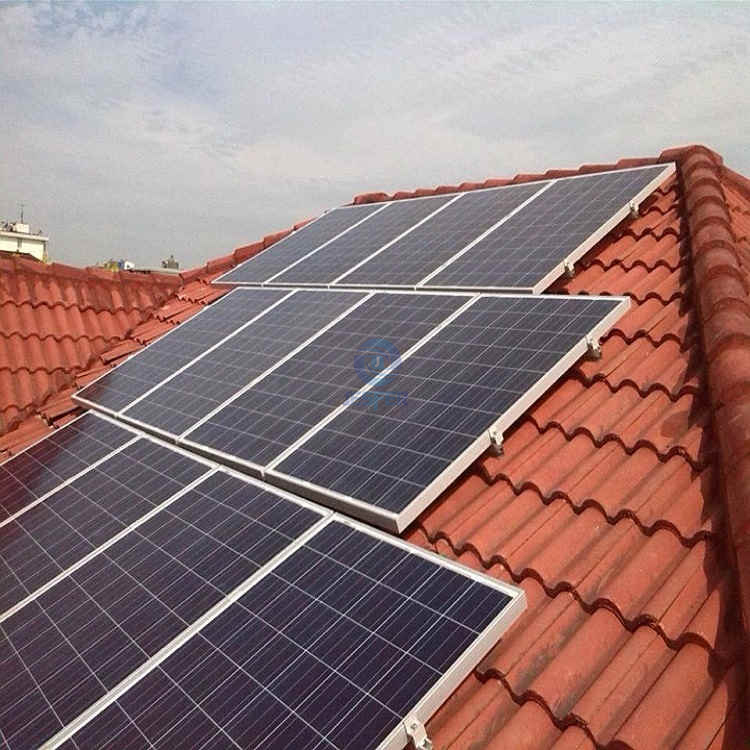

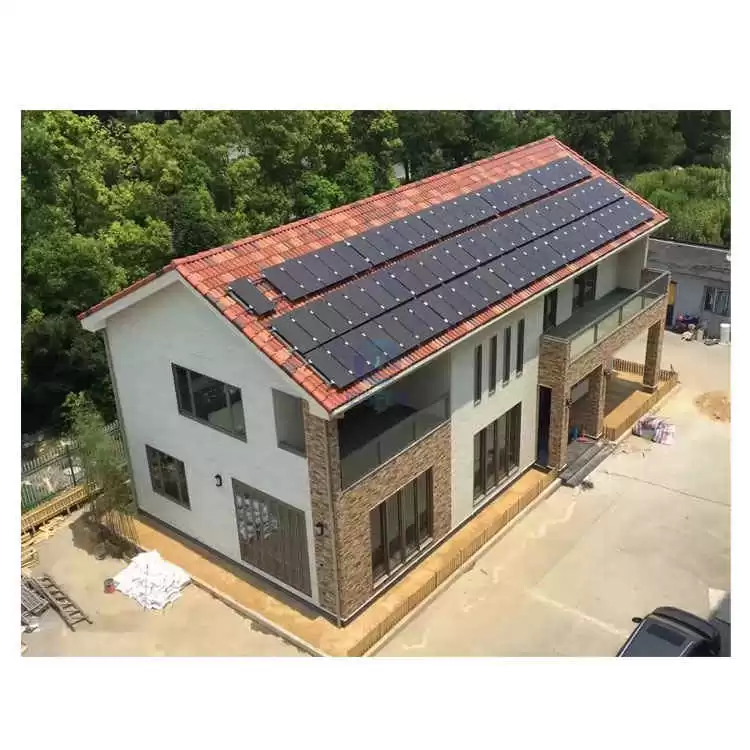

Project Case

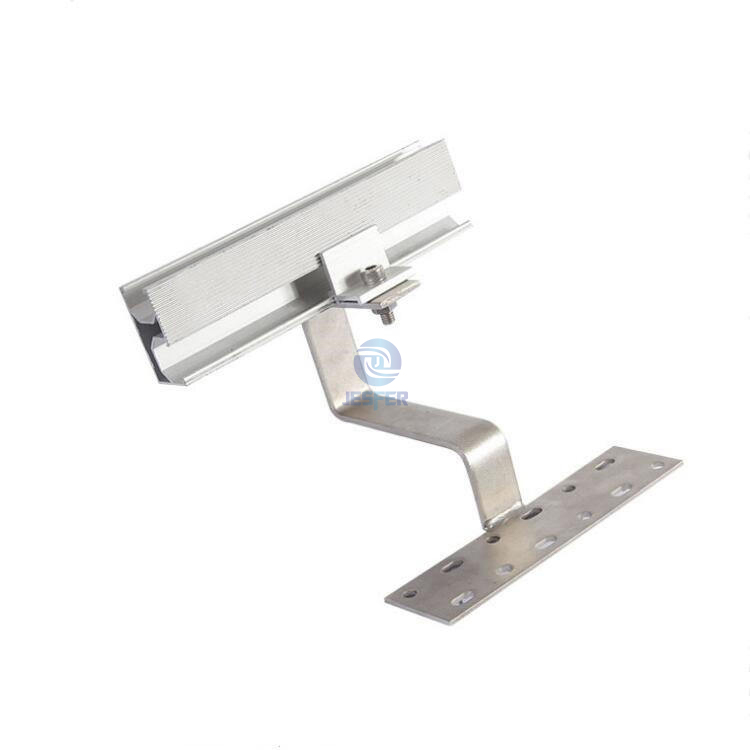

Optional Roof Tile Hooks Type
We only offer the best solar roof mounting
brackets at low wholesale prices, designed to make installation cost
effective and simple. And don't worry about rusting on our solar roof mounting brackets because all components are weatherproof aluminum or
stainless steel components.
Warranty
1.Quality Standards
The production shoud be conducted with the local "National Industrial Production Standards" and fully meets the local calculation requirements. We mainly use high-quality stainless steel 304 and 6005-T5 grade high-strength aluminum alloy materials.
2.Warranty Period
In order to make it easy for customers to use Jesfer products, Jesfer solar provides a 10-year quality guarantee for all mounting racks, during which the company shall be liable for defects in materials and workmanship.
3.Warranty Conditions and Contents
Jesfer Solar guarantees that at the time of goods delivery conditions, all components of the supplied products should be 100% new products and the raw materials are brand new materials, and resolutely resist scrap aluminum and iron. If it is reasonably proved that the product is defective from the date of delivery to the date of delivery, Jesfer Solar shall repair or replace the defective product. At the end of the warranty period, the product must be installed in accordance with the customer's design requirements and installed in accordance with Jesfer's written installation instructions, and then the construction party's insulation and construction quality inspections.

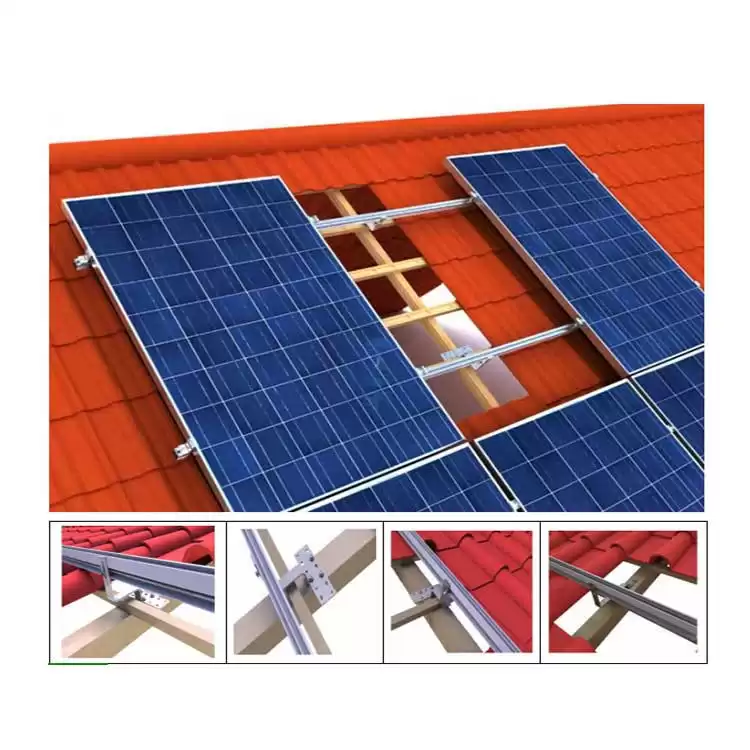

The general installation process is as follows: 1. The guide rail is bolted to the bracket to support the panel. 2. The panels are fastened to the rails using specially designed clips that are bolted to the edges. 3. The cable is fed under the tile and into the roof void where it connects to the inverter. Solar panel brackets tile roof plays an important role in the installation process, and the choice of bracket is very important.
