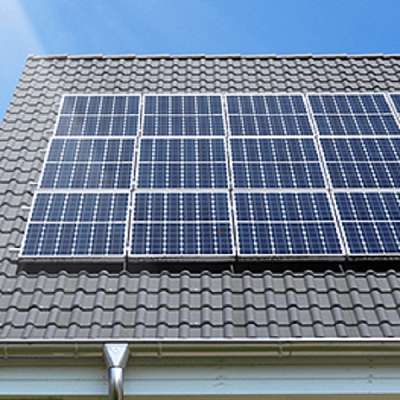

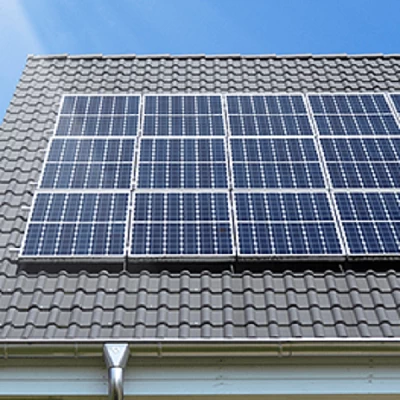

Tile roof solar mounting system

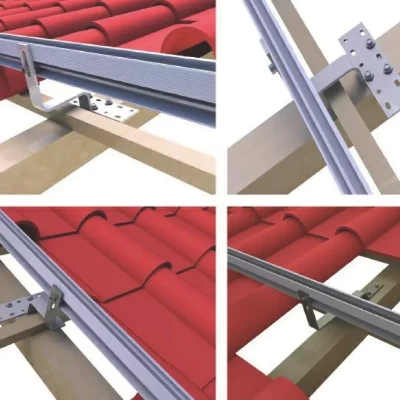

The ceramic roof photovoltaic bracket generally uses the hook as the fixing member


  • Warranty15-25 years
  • BrandHuge Energy


Tile Roof Solar Mounting System


Overview


Since the ceramic roof photovoltaic bracket generally uses the hook as the fixing member, the roof has a certain inclination angle, so the direction of the load action is not necessarily perpendicular to the plane of the hook bottom plate. The following calculation and analysis of the bearing capacity of the hook for different angles can be referred to the following data, other angle value can be taken by linear interpolation.


Easy Installation

  • Factory pre-assembled and shipped

Wide Range of Applications

  • Suitable for bordered panels and all flat roofs

High Safety and Reliability

  • Design according to the benchmark of JISC8955 2017


Parameter


Installation area:
Roof with angled flaps or flat roof
Installation angle:
0-30 degree
Building height:
<20m
Maximum snow load:
2.4KN/M2
Design Standards:
J I S C 8 9 5 5 2 0 1 7
Material:
AL6005-T5 / SUS304
Product color:
natural
Corrosion resistance treatment:
Anodized

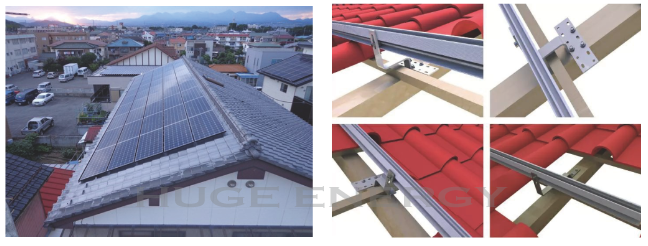

Project



Why Huge Energy


Reliability

Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.


Quality Control

With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.


Quality Assurance

Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.

We have a 15 year quality guarantee on Huge products.


After-sales Service

Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.

 Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
