Tile Roof Solar Panel Mounts- Hook Solution

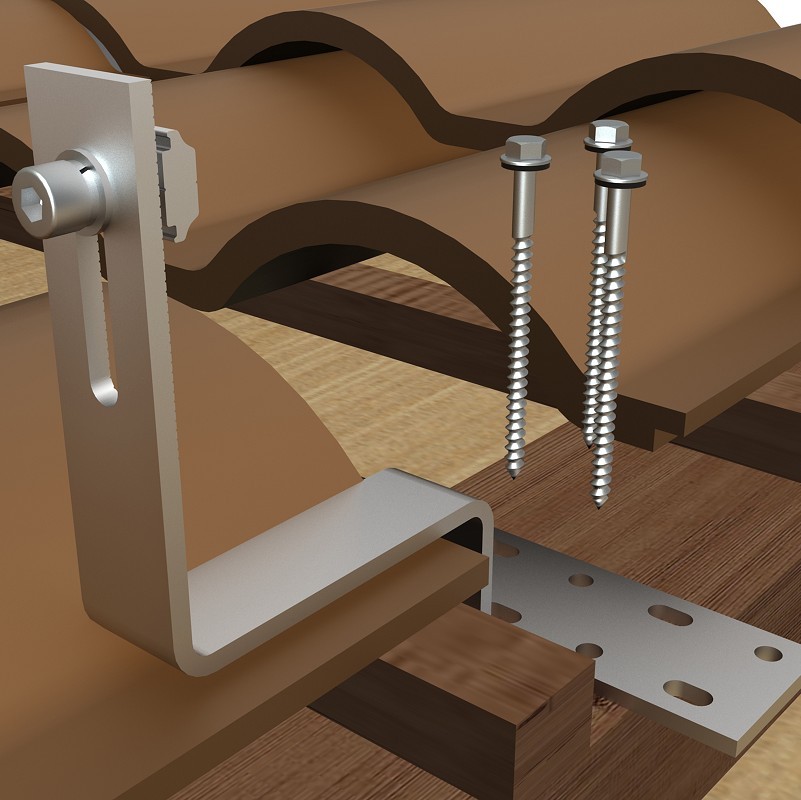

SunModo’s EZ Tile Hook Mount product line allowing mounting of solar PV systems on most tile roofs. We offer 4 choices of hook for vertical rail orientations and 4 hooks for flat mounting of strut type rails. The hooks provide a nominal 110 pound load and uplift capability when mounted into roof trusses with two 1/4 x 3-1/2 inch long Roofing Screw (included).
Key Features and Benefits:
- The EZ Tile Hook Mounts accommodate a variety of tile heights.
- Multi-screw mounting plate allows hook to be positioned to bolt onto roof truss.
- All Hooks supplied with two 1/4 x 3-1/2 inch long stainless steel Roofing Screws with Sealing Washers for maximum strength mounting and protection.
- All Hooks have an attached EPDM Hook Base Gasket between hook and roof surface.

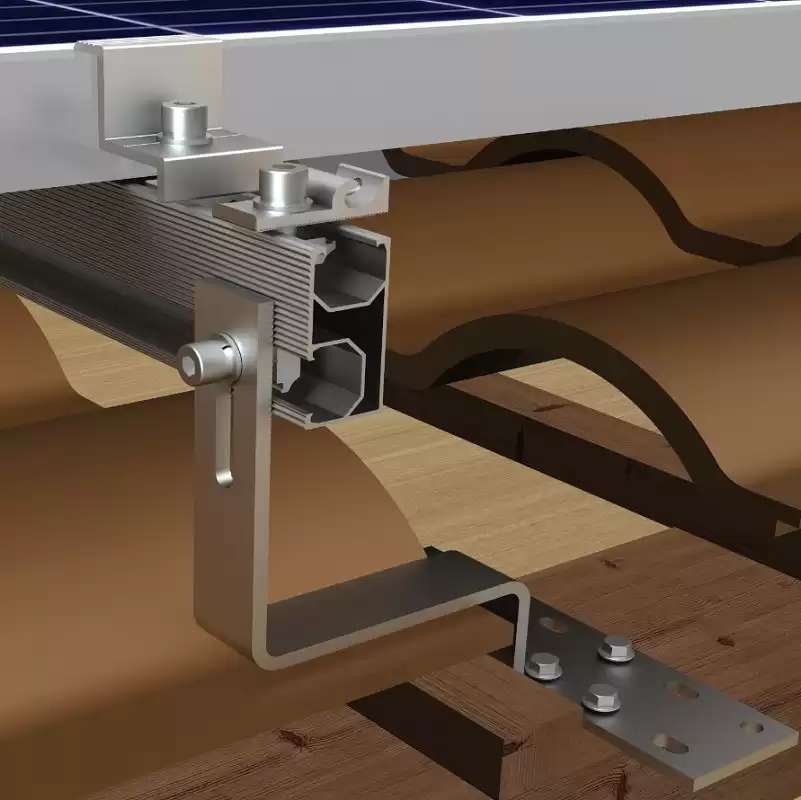

- Side-rail mounting and top to bottom of strut channel mounting versions allow maximum flexibility.
- Heavy duty one-piece stainless steel design provides strong support for PV systems; tested to 122 lbs. uplift and 130 lbs. load capability (by independent test lab on K10169).
TECHNICAL DATA
- Application: Tile Roof
- Material: High grade aluminum, 304 stainless steel hardware
- Finish: Clear Anodized
- Warranty: 20 years
