Tile Roof Solar Panel Mounts- TopTile Solution
SunModo’s innovative TopTile™ Mount is the world’s first PV mounting system that is mounted entirely above the tiles. The patented mount eliminates the need to deconstruct the tile roof and significantly reduce time and minimize tile breakage during installation. The system also allows installation on the ridges of curved tiles for superior water leak protection. The TopTile Mounts are easy to install which significantly reduces installation time.
TopTile Mount is High-Velocity Hurricane Zone Approved.

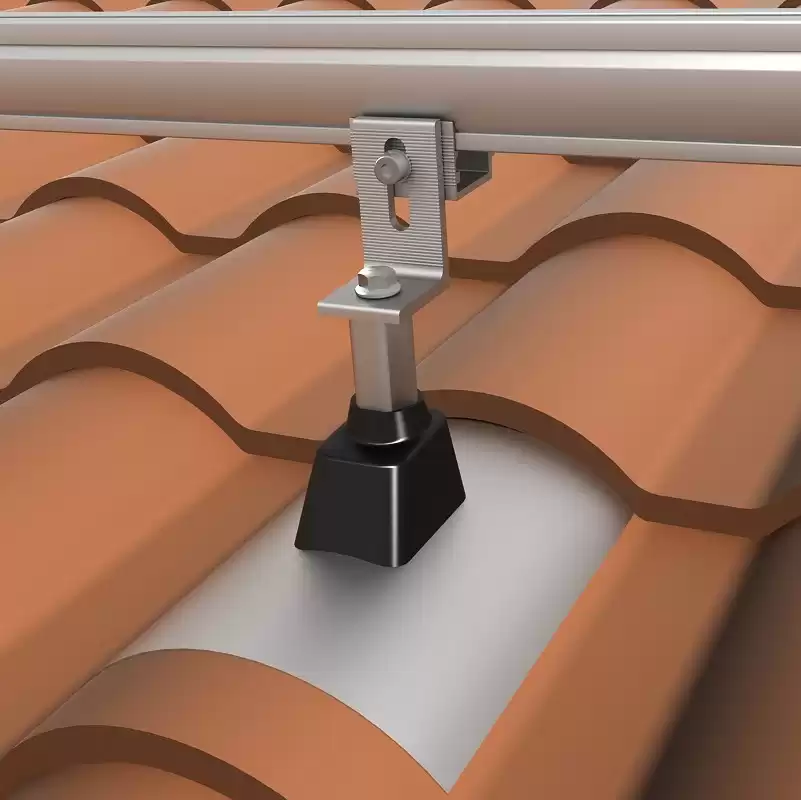

The TopTileTMMount System features two mounting options that secure panels 4-7 inches above the tile surface, using stanchions with water-proof sealing washers and moldable flashing. Installers can choose either SunModo’s patented deck mounting system when anchoring into deck or a rafter mounting system.
The TopTile™ Mount Advantage
- No more lifting roof tiles, broken tiles or finding rafters.
- Mounting stanchion can be mounted on a tile ridge independent of rafter position.

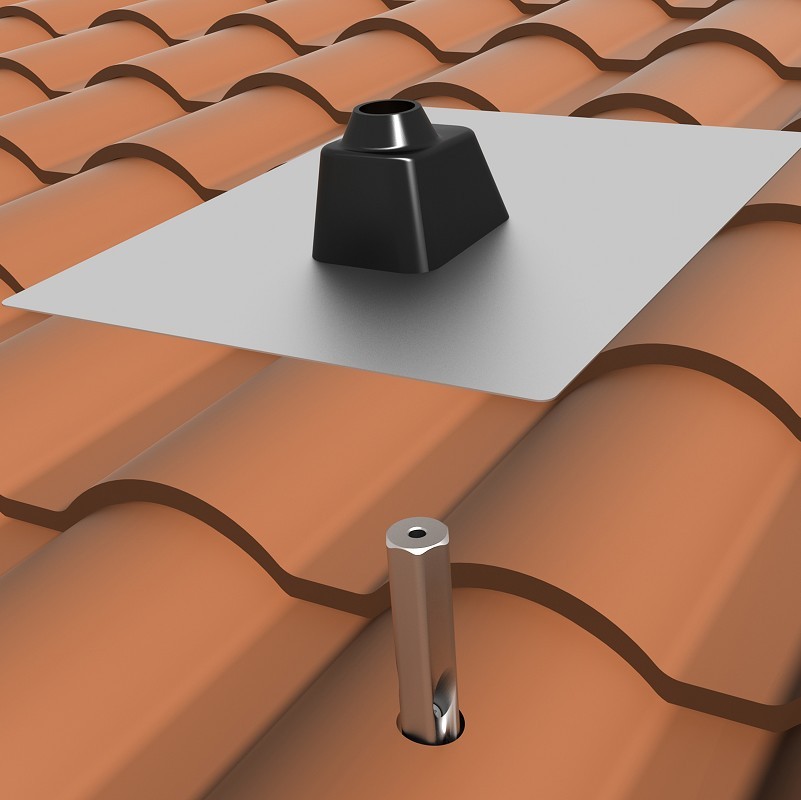

- Hand bendable flashing and EPDM Rubber Boot for easy fit and superior leak protection.
- High-Velocity Hurricane Zone Approved - Passed TAS 100 (a) Wind -Driven Rain Test.
TECHNICAL DATA
- Application: Tile Roof
- Material: High grade aluminum, 304 stainless steel hardware
- Finish: Clear Anodized
- Flashing Size: 9 x 12.5x0.03 inch
- Stanchion Height: 5”and 7” standard; 6”and 8” can be achieved with 1” spacer
- Roof Attachment:Rafter (wood truss or rafter), Decking (1/2” min Plywood)
- Structural integrity: IBC and IRC Compliant
- Warranty: 25 years
