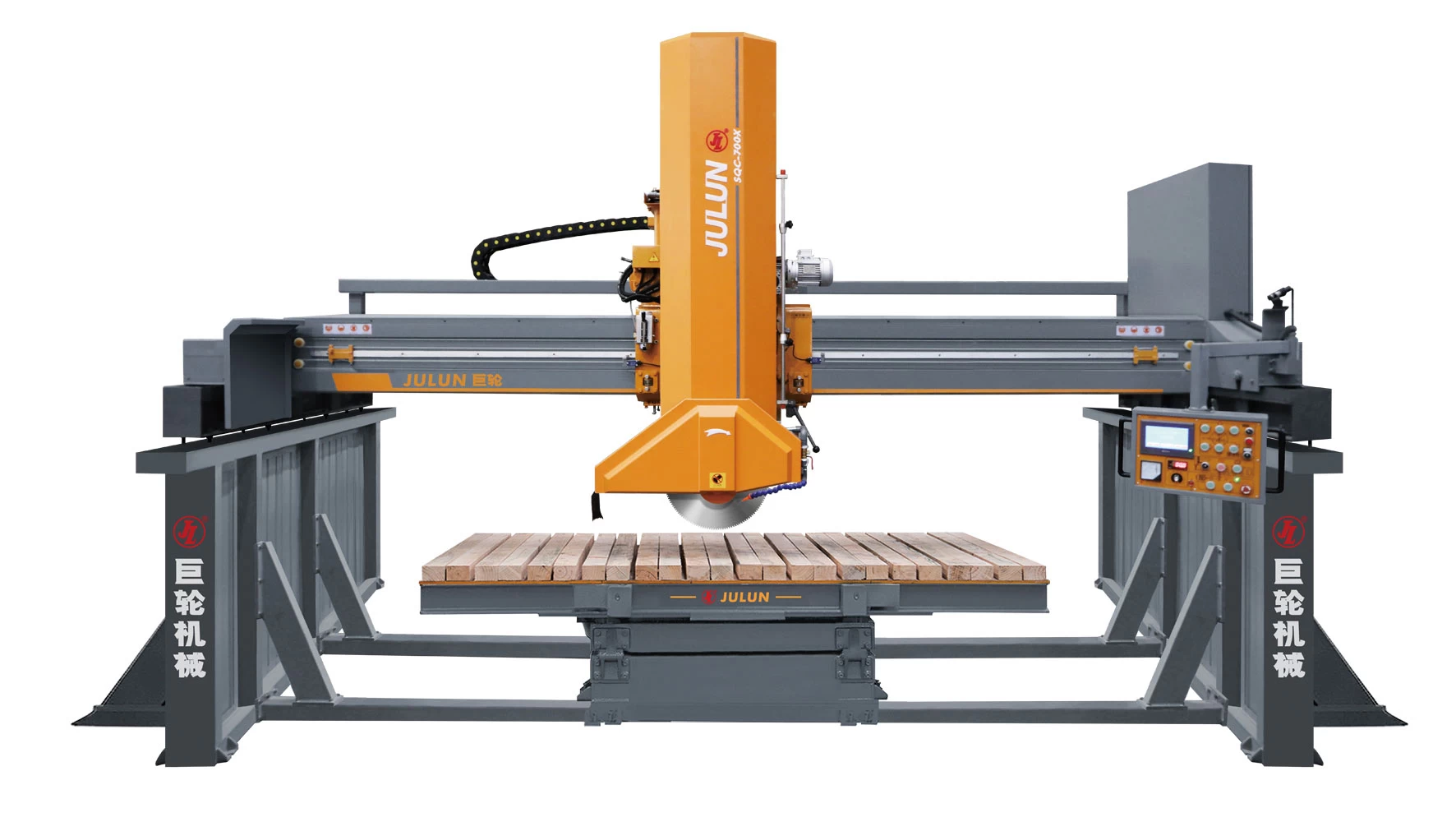

45° Tiltable Bridge Cutting Machine
1.Head rotation stone cutting machine uses PLC system and Human-machine Interface , combined with Ultra-high precision rotary encoder to locate and infrared device ,
2.It uses inverter to control left –right feeding , adjusts the speed according to the stone material .

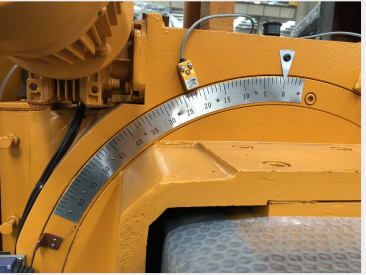

3.It uses hydraulic lifting system , main spare parts adopt imported good –quality materials , the head can rotate 0-50°, applied in a wider range .
Thus the whole machine is featured as high cutting efficiency , high cutting precision , high stability , easy-operating to suit granite and marble with high value and big size , and shaped stone products.
Specification
|
Appellation
|
Unit
|
SQC-700X
|
|
Max.blade diameter
|
mm
|
Φ700
|
|
Max.lifting stroke
|
mm
|
470
|
|
Worktable size
|
mm
|
3200×2000
|
|
Blade tilt range
|
°
|
0°- 45°
|
|
Worktable rotation range(optional)
|
°
|
0°- 90°/0°- 360° （Set up by each 45 degree)
|
|
Worktable turn-over degree
|
°
|
85°
|
|
Water consumption
|
m³/h
|
3
|
|
Power of main motor
|
kw
|
18.5
|
|
Total power
|
kw
|
25
|
|
Dimension(L×W×H)
|
mm
|
6000×5700×3600
|
|
Weight
|
kg
|
6400（with steel stand 7500kg ）
|

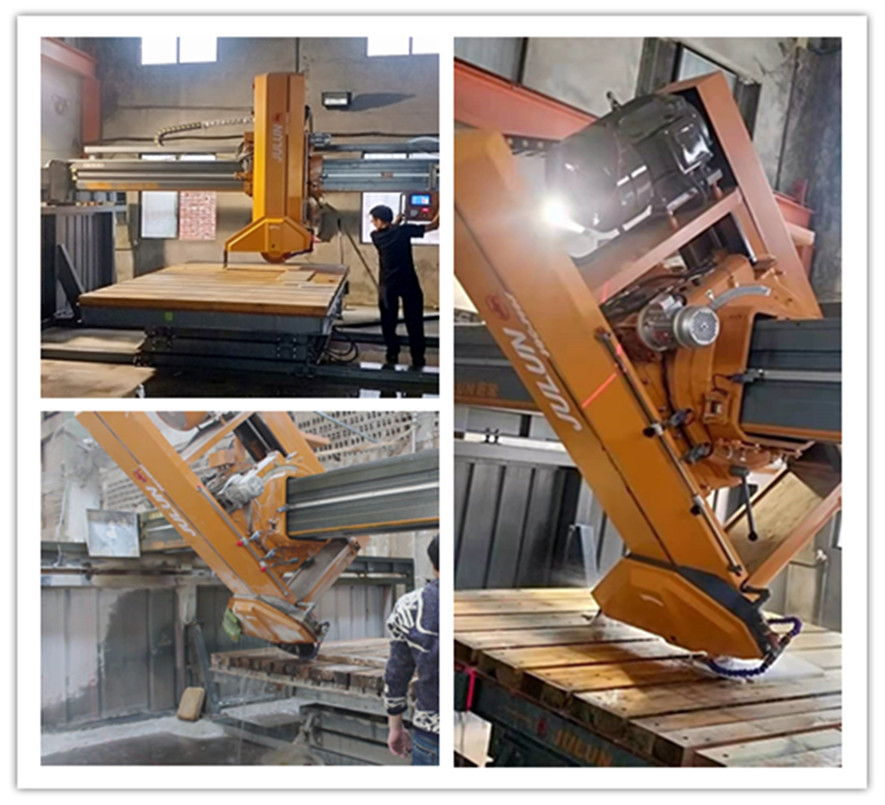

Photos
