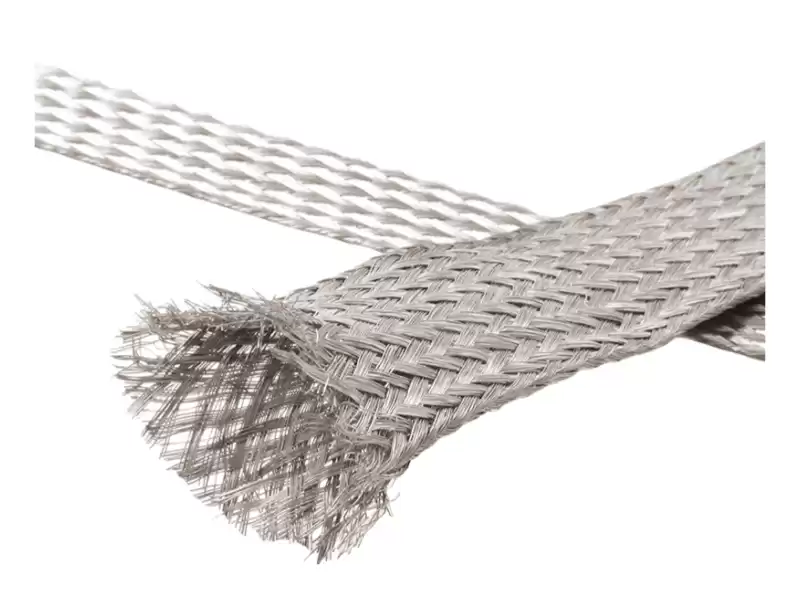

Tinned Copper Braided Sleeve

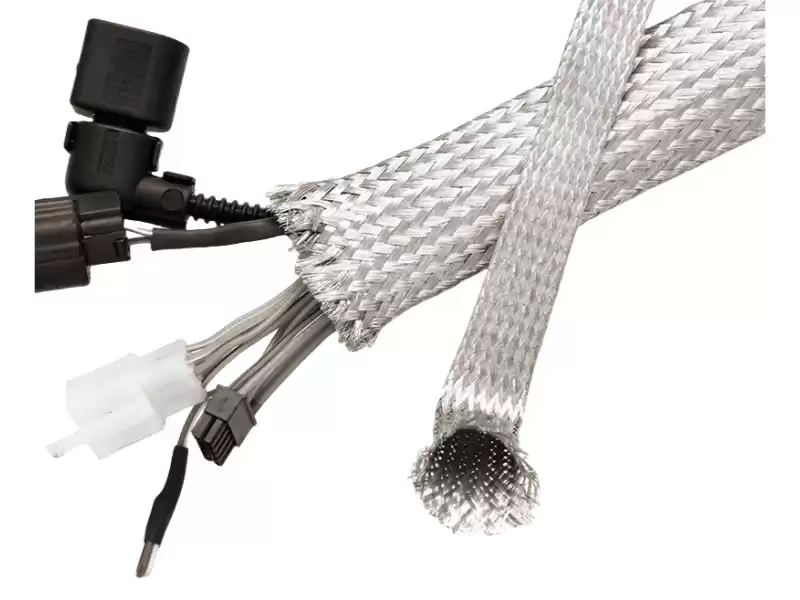

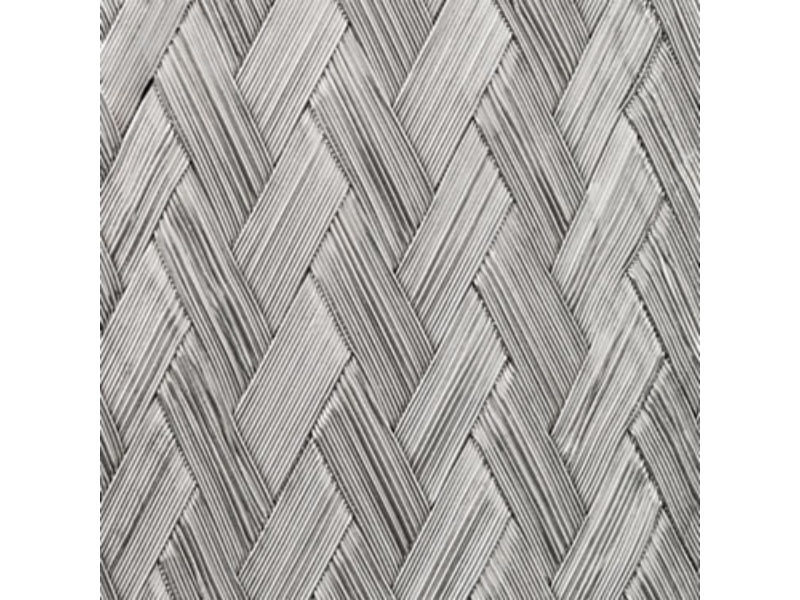

Tinned Copper Braided Sleeve is applied to Tinned Copper Braided Sleeve is braided of copper-cored wire. It has charateristics of flexibility and abrasion resistance.It can essily tighten the irregularly shaped obejects. Besides,Thinned Copper Braided Sleeve keeps softness in low temperature to high temperature.It also has good ventilation rates of diffusion for its unique mesh characteristic.



Features


Material: Tinned copper



✔ Approval: ROHS, REACH

✔ Working Temperature: -60℃~+200℃

✔ Features: Excellent Flexibility, Scalability and

✔ Resilience: Corrosion and Abrasion Resistance

✔ Standard Color: Silver

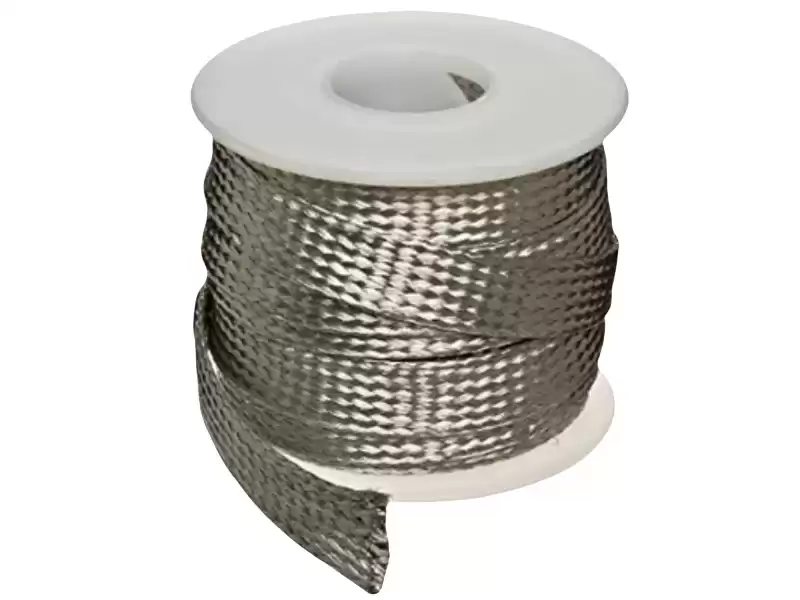

✔ Packing: By Roll




Specification



P/N.:

SIZE

Expansion Range

Packing

(Inch)

(mm)

Min(mm)

Max(mm)

M/Roll

G-TCB-003

1/8”

3

1

6

1000

G-TCB-006

1/4”

6

3

9

500

G-TCB-008

5/16”

8

5

14

350

G-TCB-010

3/8”

10

7

17

350

G-TCB-012

1/2”

12

8

24

300

G-TCB-016

5/8”

16

10

27

250

G-TCB-019

3/4”

19

14

30

200

G-TCB-025

1”

25

18

35

200

G-TCB-032

1-1/4”

32

20

50

150






NOTES
• The size means the flat width of the sleeve, not the diameter.
• The size tolerance is big, because of the expansion feature.
• Detailed specification is available if needed.





FAQ



Q: If you have  Rohs,UL, REACH certificate?

A:Yes,except these,if you also need other certificates,we also can help to apply.



Q: You are factory or trading company?

A: we are factory, Our Boss invest into 2 factory in total, One is Insulation Material Factory, One is Machinery Factory.



Q: Can you guarantee your quality?

A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.



Q: What is the payment term?

A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping.



Q: What about after service?

A: We can offer 12 months free warranty.



Q: What Products can you make?

A:  We can make Insulation Materials such as Cold Shrink tube, Braided Sleeve, Dual wall Shrink Tube, Special Shrink Tube, Fiber Glass Sleeve, Medium&Heavy Wall Shrink Tube, Skidproof Shrink Tube, Thin Wall Shrink Tube, Vonnector Tube and etc, If you need any insulation materials, Pls   just contact us. We will sending our detail specs and quote to you accordingly.



Q: How to reach our factory?

A: Our factory is located in Dongguan, Guangdong province, which is nearby Guangzhou airport(60minutes), shen zhen airport(50 minutes) and Hongkong airport(90 minutes) by car. And we will arrange pick-up if need. Welcome to contact us at any time!
