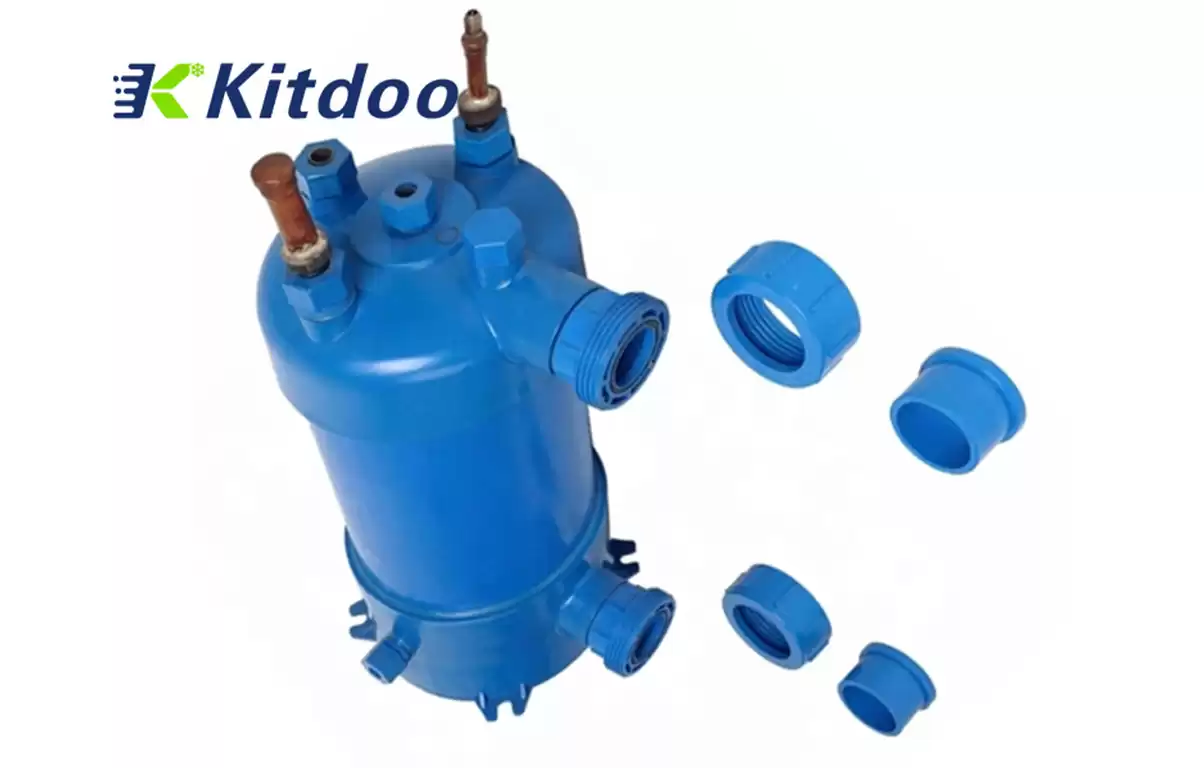

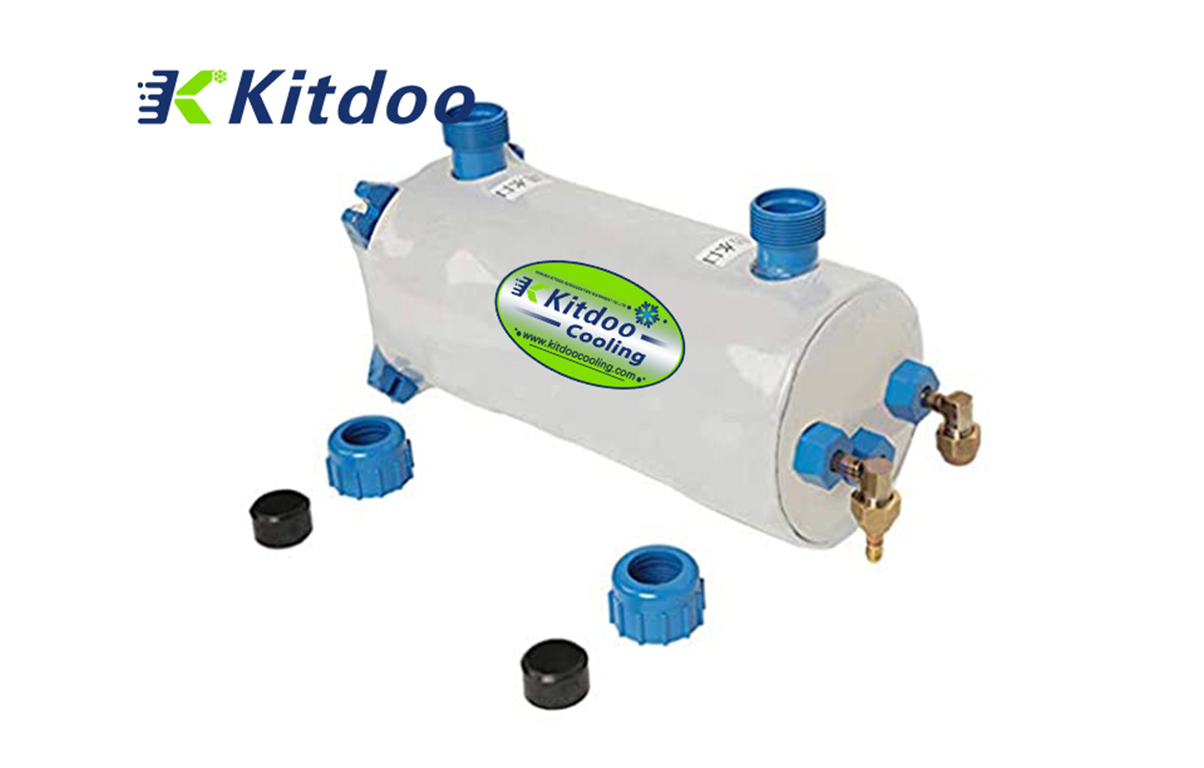

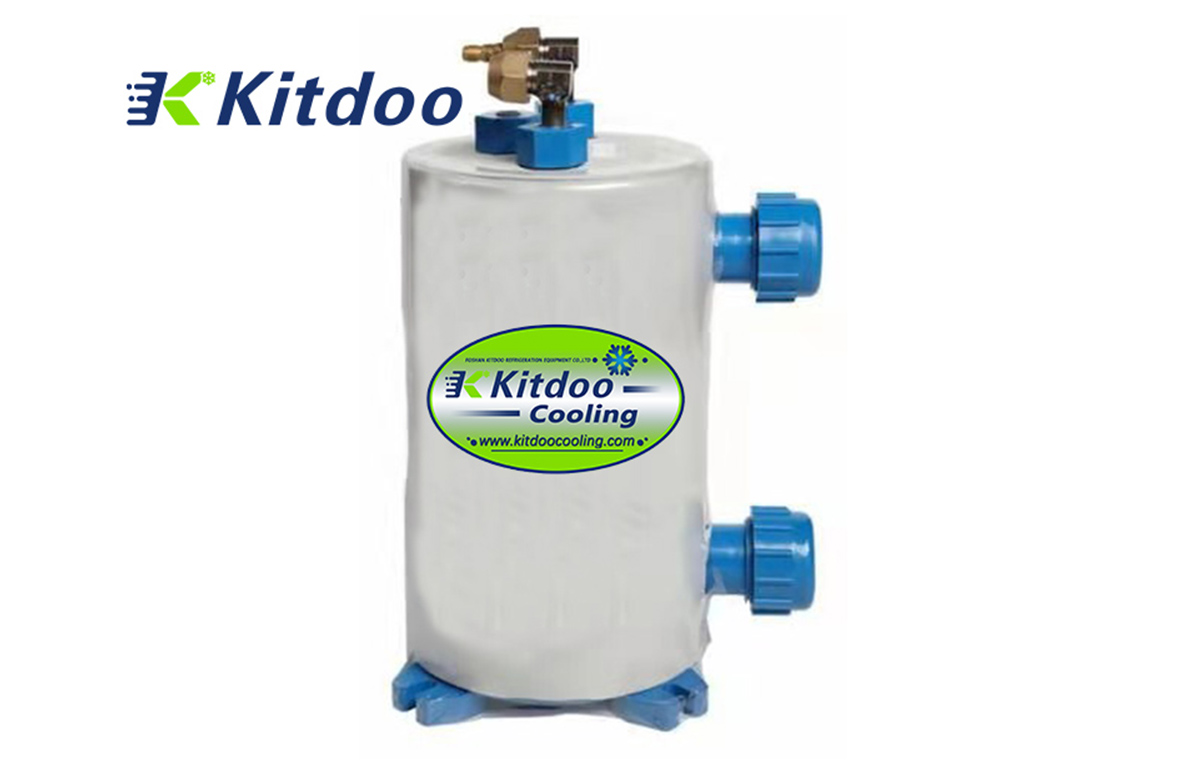

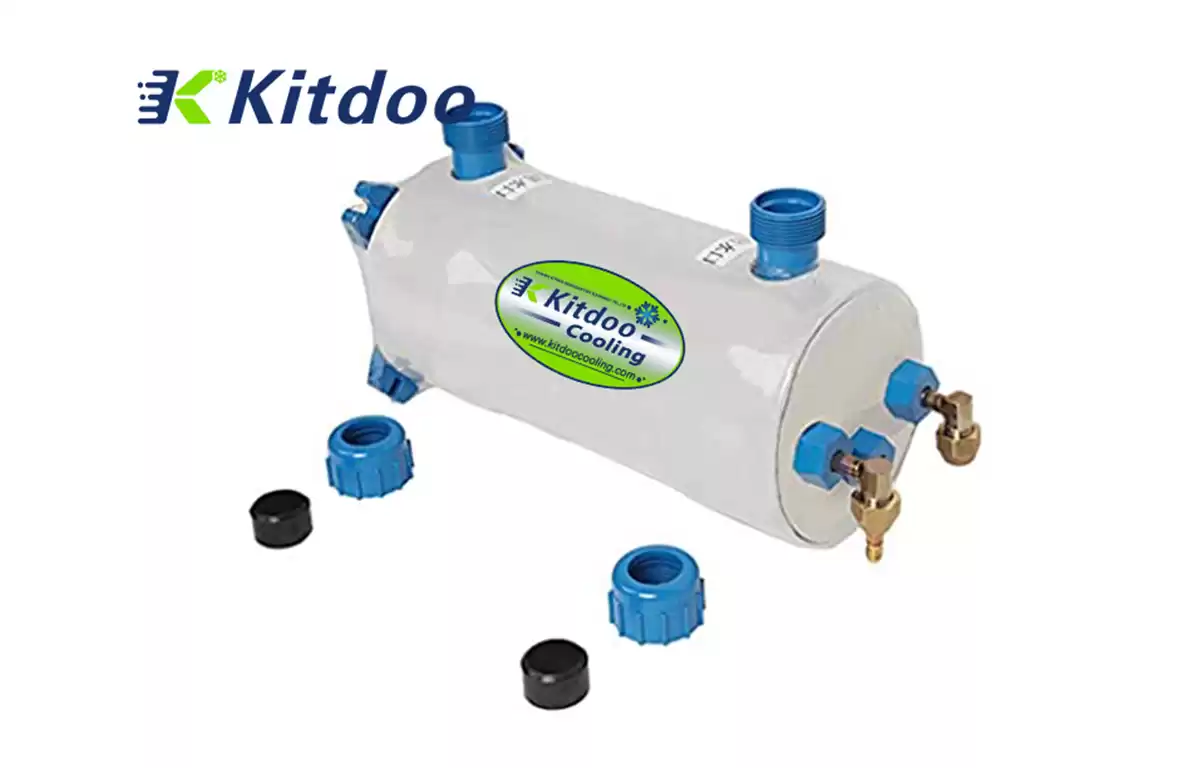

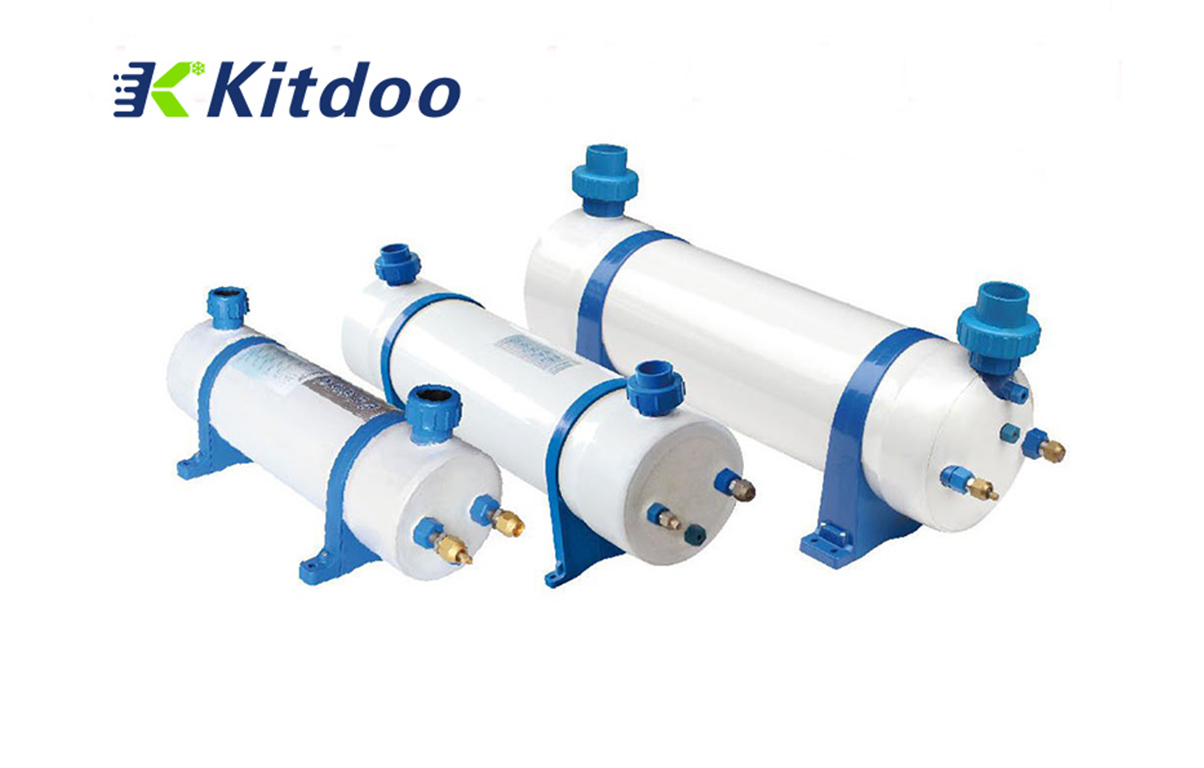

Titanium evaporator condenser and titanium heat exchanger for pool heat exchanger

The titanium evaporator produced by KITDOO uses high-quality titanium tubes, which have strong corrosion resistance and can withstand greater pressure. Titanium evaporator is used as a pool heat exchanger, generally used for refrigeration and heating of seafood and fresh seawater. It is widely used in swimming pools, aquariums, and aquaculture farms.


  • PortGuangzhou/Foshan/Shenzhen
  • RefrigerantR22/R404a/WATER
  • ColorSilver/black
  • Packingcarton

Titanium evaporator condenser and titanium heat exchanger for pool heat exchanger

The titanium evaporator produced by KITDOO uses high-quality titanium tubes, which have strong corrosion resistance and can withstand greater pressure. Titanium evaporator is used as a pool heat exchanger, generally used for refrigeration and heating of seafood and fresh seawater. It is widely used in swimming pools, aquariums, and aquaculture farms.

1KITDOO choose high quality raw materials to ensure the quality of our products:

KITDOO engineers will select different materials according to the working conditions of your titanium heat exchanger, develop appropriate processing technology, and inform our customers of the correct use and maintenance methods, so as to ensure that exchanger will not produce corrosion, pitting, rust or wear. Our different types of stainless steel/Titanium/copper heat exchangers are well used in industrial corrosion environment without chloride, marine environment, acidic water, saline water and chemical corrosion environment.

2Titanium heat exchanger evaporator for aquarium or aquaculture

Titanium has a strong corrosion resistance, and the corrosion in sea water is basically zero. It is not easy to produce oxide layer on the surface. It does not pollute the medium and is environmentally friendly and non-toxic. The shell can be made of PVC, titanium, stainless steel, etc. Titanium heat exchanger effectively prolongs the service life of heat exchanger in special occasions, and costs less maintenance. It also has the advantages of small size and strong heat transfer capacity.

3Titanium heat exchanger evaporator application:

Titanium tube heat exchangers can be widely used for temperature control in swimming pools, aquariums, aquariums, sea water baths, plating tanks, marine heating and cooling systems of chemical equipment. It can also be used in anti-corrosion areas such as seawater utilization and surface treatment industries. In addition, the titanium tube heat exchanger is also used in food, distilled water, pure water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in the field of environmental protection, such as waste gas condensation recovery, pollutant (solvent) recovery and so on.

4Advantages of KITDOO titanium coil heat exchange products

1). Choose the appropriate stainless steel model according to the customer's working conditions, give full play to its maximum corrosion resistance and ensure the heat transfer effect.

2.)Professional and standardized welding process to ensure that the weld is not leakage, the starting point and source of corrosion.

3.)Factory price and professional engineering services.



model

PowerHP

Water flow

m2/h

Diameter of refrigerant inlet and outle

(mm)

Diameter of water inlet and outlet (mm)

Distance between inlet and outlet(mm)

KD-V1PT

1

0.7

Φ12.7/Φ12.7

Φ50

185

KD-V1.5PT

1.5

1

Φ12.7/Φ12.7

Φ50

235

KD-V2PT

2

1.5

Φ12.7/Φ12.7

Φ50

285

KD-V3PT

3

2.8

Φ12.7/Φ19

Φ50

335

KD-V5PT

5

4.5

Φ12.7/Φ19

Φ50

375

KD-V8PT

8

7

Φ12.7/Φ19

Φ50

755

KD-V10PT

10

8.6

Φ19/Φ25

Φ50

875

KD-V15PT

15

15

Φ19/Φ25

Φ63/Φ75

890

Titanium Heat ExchangerPool Heat ExchangerTitanium Evaporator
