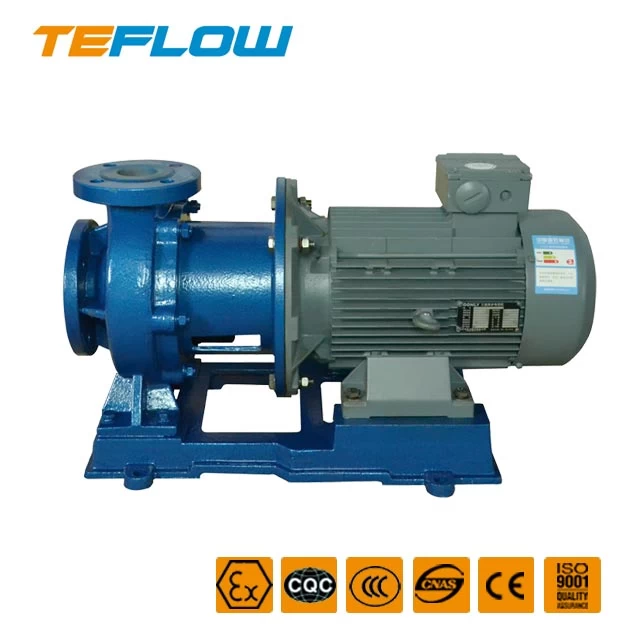

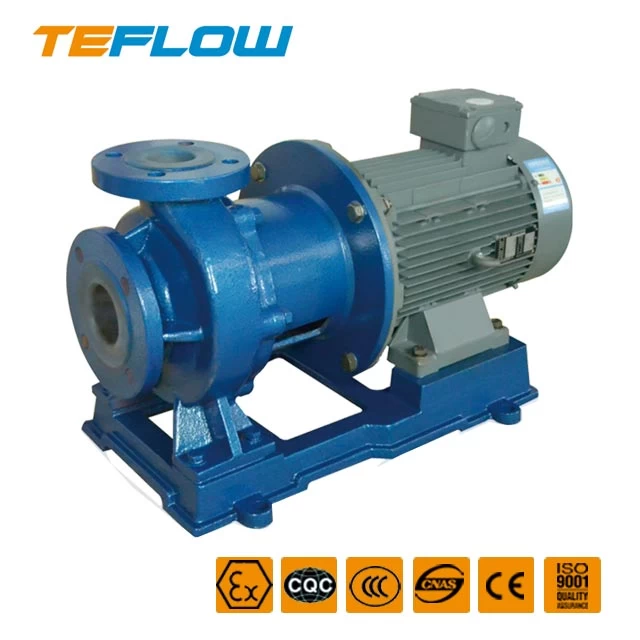

TMF horizontal leakage-free Magnetic driven salt pump
TMF horizontal leakage-free Magnetic driven salt pump is the main product of our company, and its performance is similar to CQB-F full pump body magnetic pump, IMD heavy corrosion resistant magnetic pump, are made of polytetrafluoroethylene lining, can withstand a variety of strong acids and bases, is an ideal solution for industrial chemical industry.

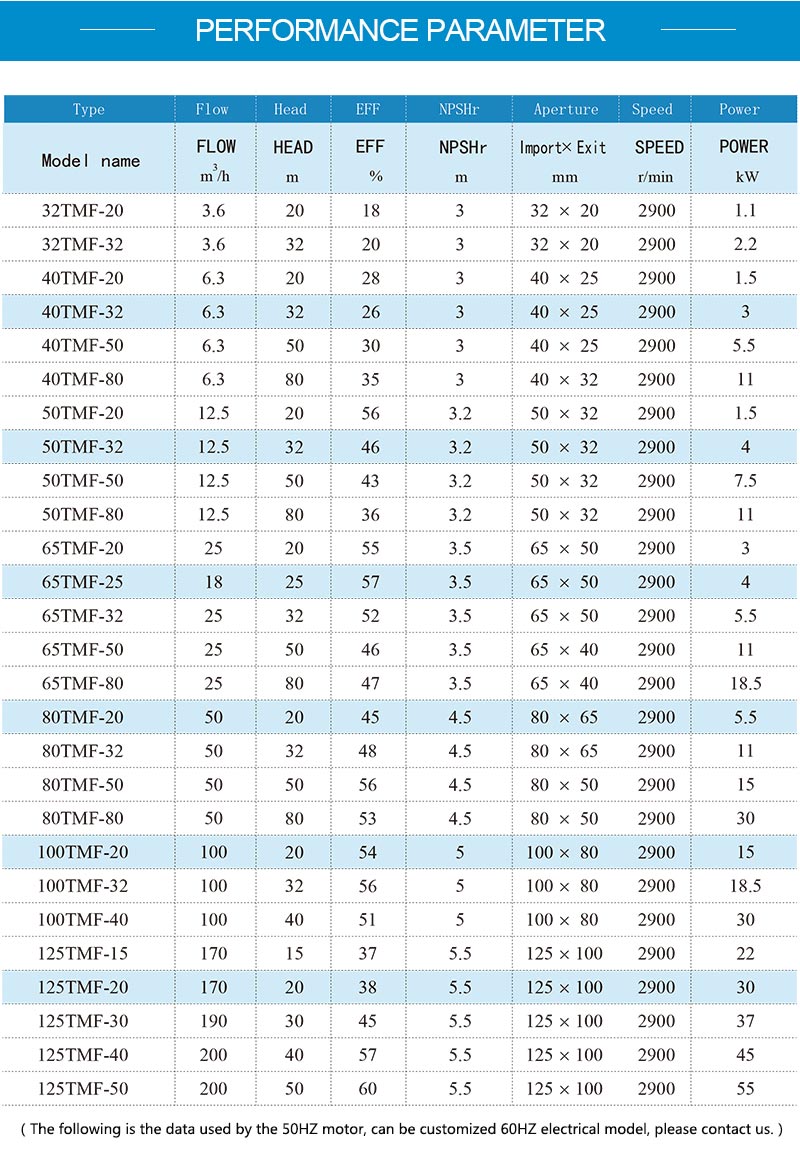

Anhui Tenglong pump valve teflon lined mag drive pump main parameters:
-
Flow : 1.6 m³/h - 200 m³/h (1600L/h-200000L/h)
-
Head: 5 m - 80 m(0.5bar-8bar)
-
Power: 1.5 kw - 55 kw(2HP-75HP)
-
Applicable medium: Salt water,any concentration of acid, alkali, salt, organic solvents, etc.
-
Operating temperature: - 20 ℃ to 150 ℃ medium density: 1.8 or less.
Our company can according to actual working condition, choose different configuration, provide an accurate solution. Technical consulting, please dial the service hotline: +86(0086)18130250095 E-mail: tlpumps@tlpumps.com
Click here,The professional engineer will help you solve the problem.
TMF series can be customized according to specific working conditions.
-
1.High temperature type-G, High temperature 180 degrees Celsius.
-
2.Lye type-J, Transportation of alkaline liquid.
-
3.Granular type-K, Transport 10% particulate matter.
For other special requirements, please contact us.
Click here to get quotations and technical information immediately.
