TNC Female Straight Connector Solder Attachment 4 Hole Flange Mount with Slot Terminal

TNC Connector Features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be press in, bulkhead, 4 hole panel or mount-less;
  • Attachment methods include clamp/solder, crimp/solder, solder or solder/solder;
  • Body is brass or stainless steel.

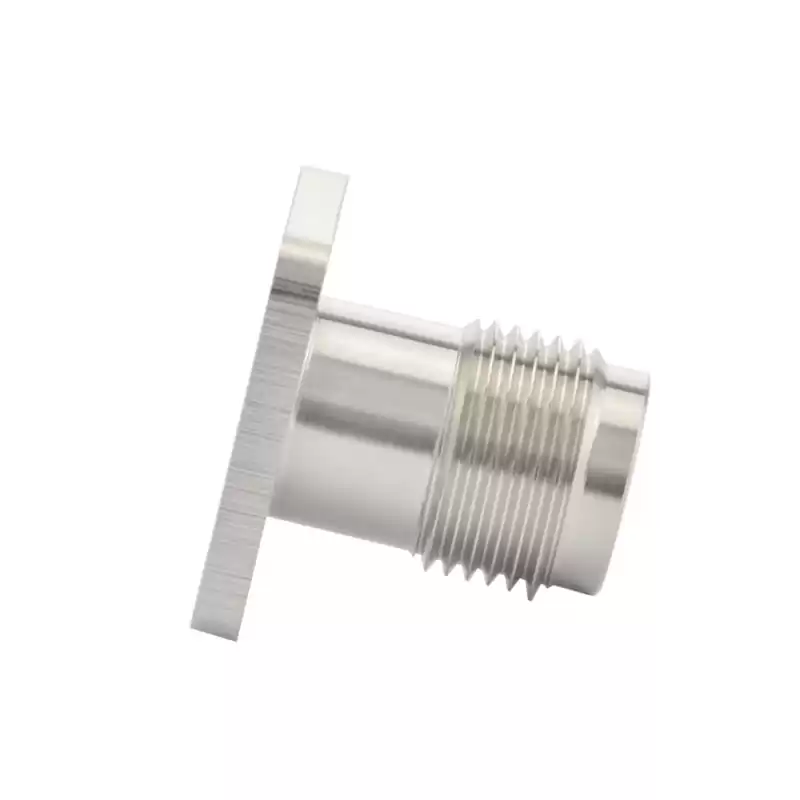

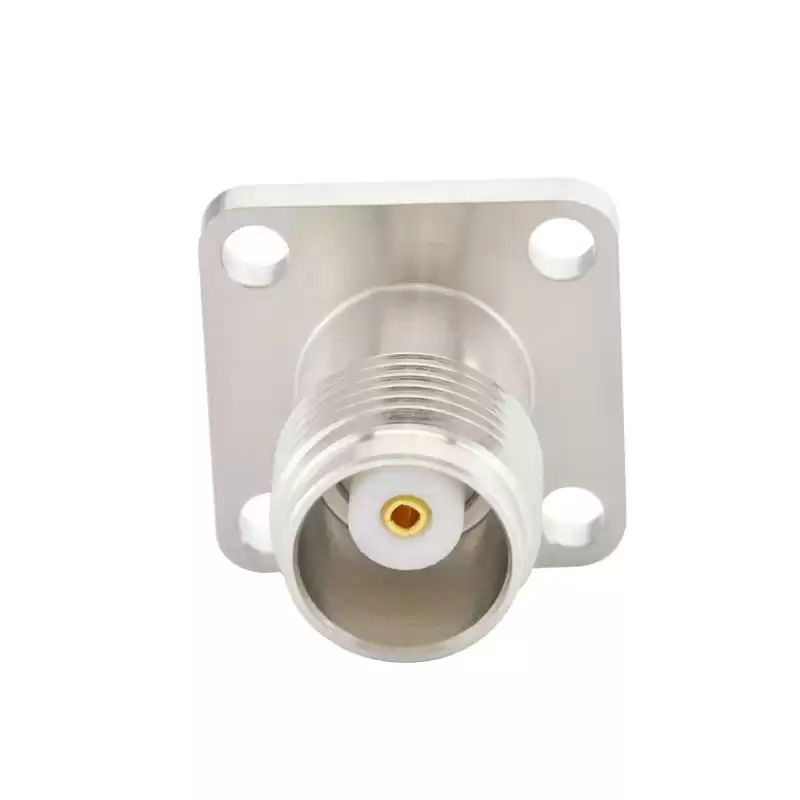

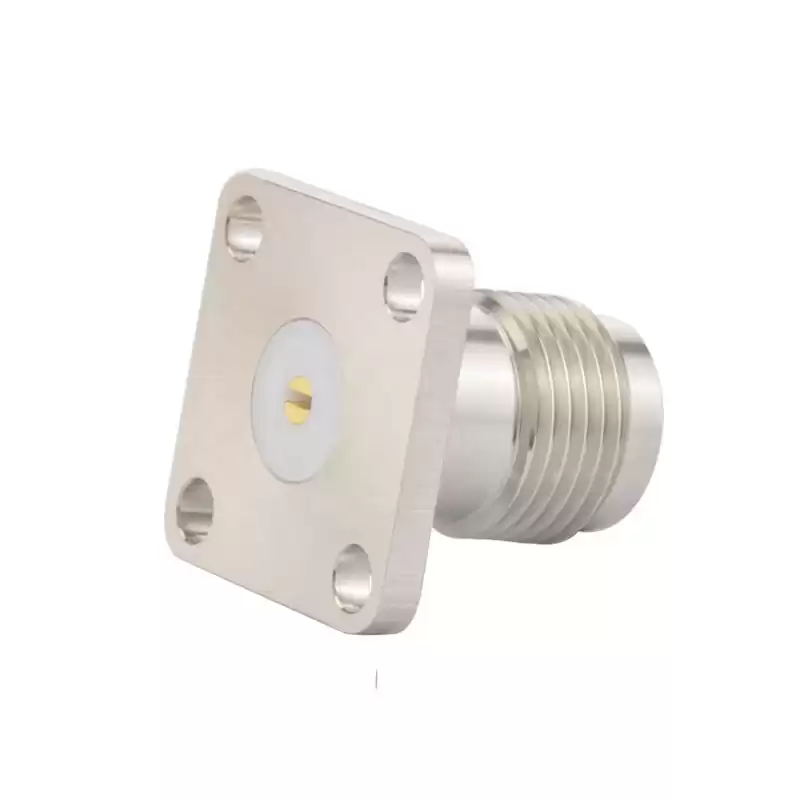

TNC Female Straight Connector Solder Attachment 4 Hole Flange Mount with Slot Terminal



The TNC connector series is a miniature, threaded weatherproof series with a constant 50 ohm impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BNC series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC; this TNC female terminal connector with 4 hole flange has an interface type of Pin Terminal and a 50ohm impedance, attachment method uses shield/contact solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency Range 11GHz
Dielectric withstanding voltage (at sea level) 1500V,50Hz
Working Voltage (at sea level) 500V rms,,50Hz
Insulation Resistance 5000mΩ
Contact Resistance Inner conductor: 1.5mΩ
Outer conductor: 1mΩ
RF leakage(2-3GHZ) 90dB
MECHANICAL DATA
Coupling nut torque Recommended: 46Ncm--69Ncm / 4.1 in. lbs--6.1 in.lbs
Proof torque: 170 Ncm / 15.0 in.lbs
Coupling nut retention force 450N / 101.2lbs
Contact captivation 27N / 6.1lbs
Durability (matings) 500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Ternary alloy plating
Pin contacts Brass--Au plating
Socket contacts Copper beryllium alloy--Au plating
Crimp ferrules Brass-- Ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Industrial
  • Military
  • Antennas
  • Broadband
  • Wireless
