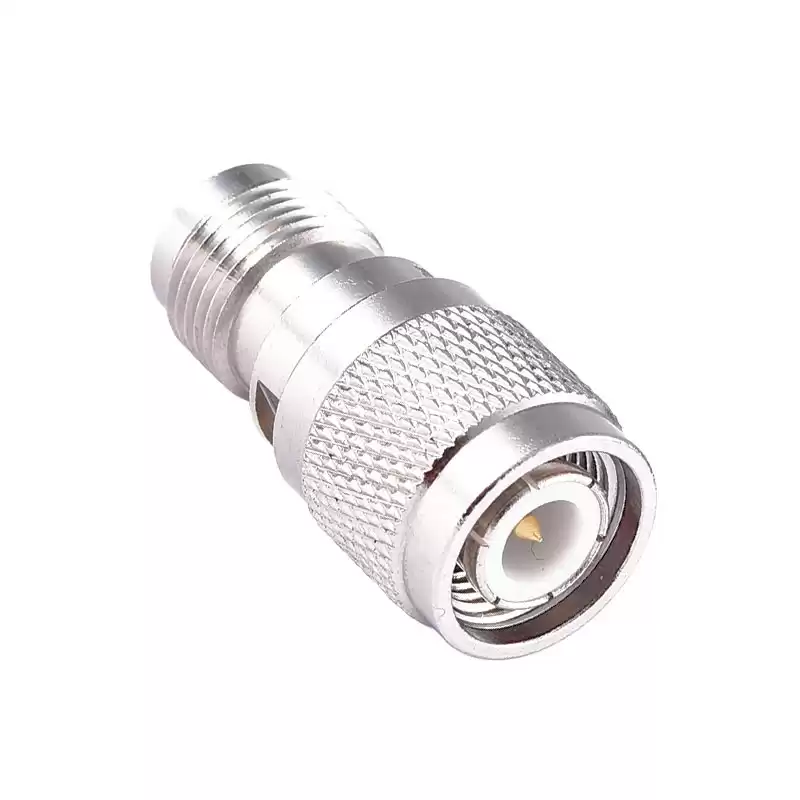

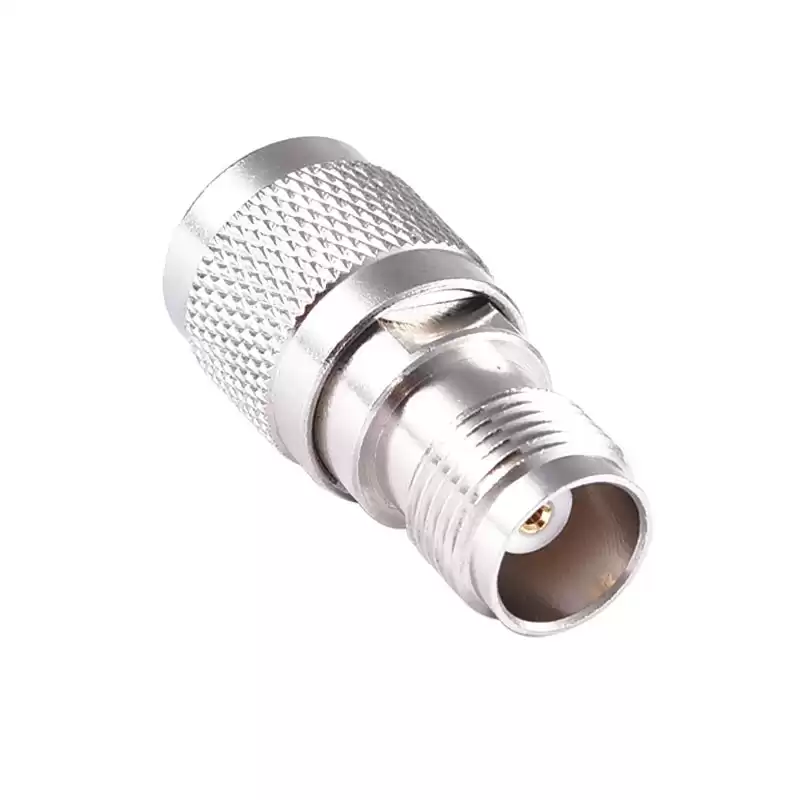

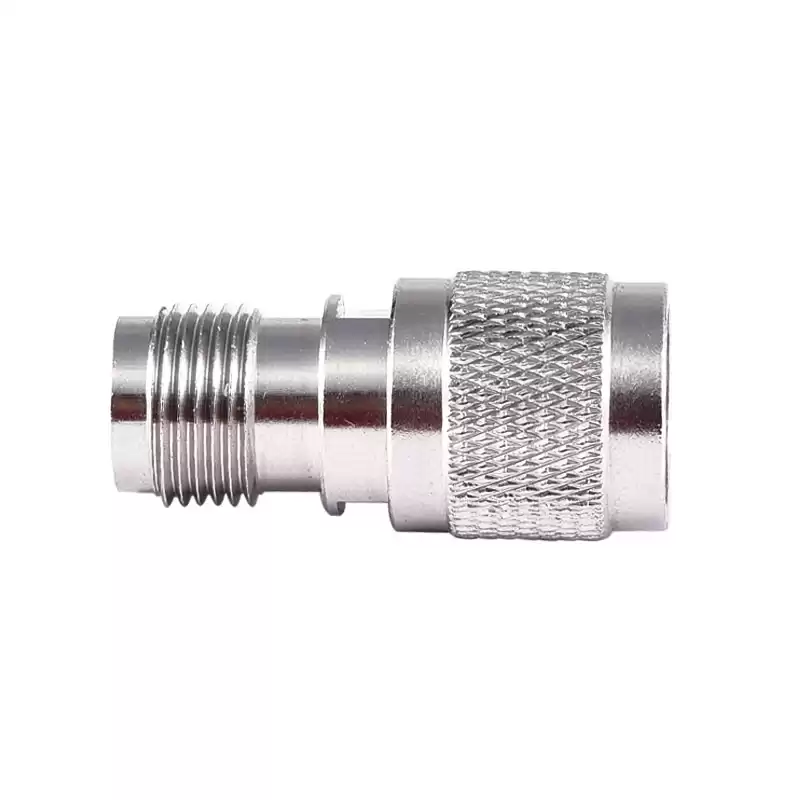

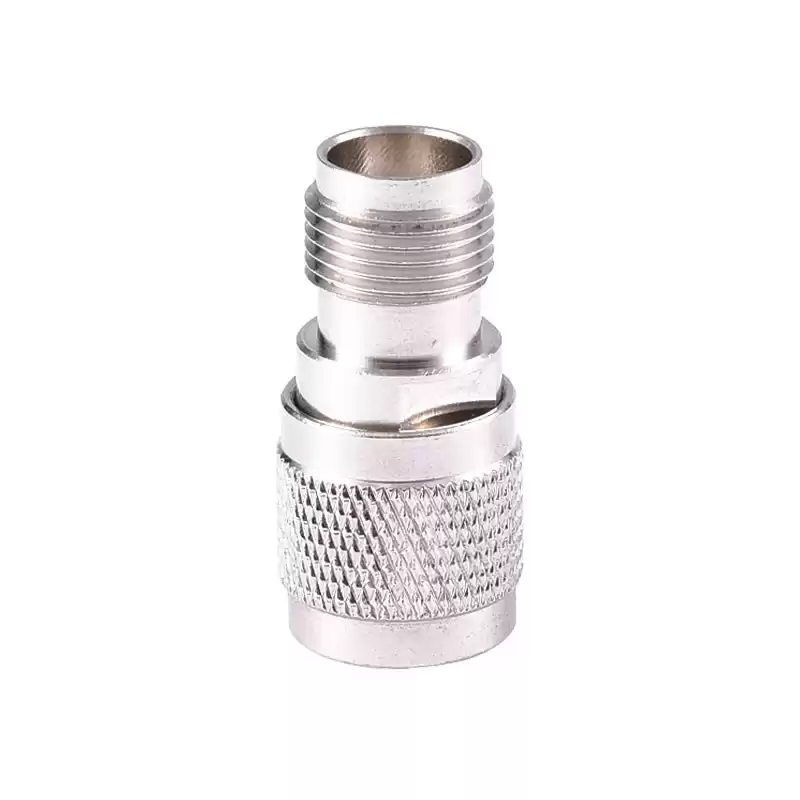

TNC Male to TNC Female Straight RF Connector Adapter
The TNC Adapter has different TNC to TNC adapter gender, that is a series coaxial adapter, The TNC to TNC adapters has female to female, female to male, male to female or male to male gender designs. it has straight or right angle body, and has bulkhead or mountless configurations. ROHO's TNC to TNC adapters offers standard polarity or reverse polarity options, it is available in quick disconnect (QD) or standard interfaces.This TNC male to TNC female adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
TNC |
| Adapter Side 1 Style |
Male |
| Adapter Side 2 Series |
TNC |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antenna
- CCTV, Radios
- Wi-Fi,Broadcast
- Telecom,LMR
- Wireless LAN Devices
- Microwave Applications
- Digital Communication System
