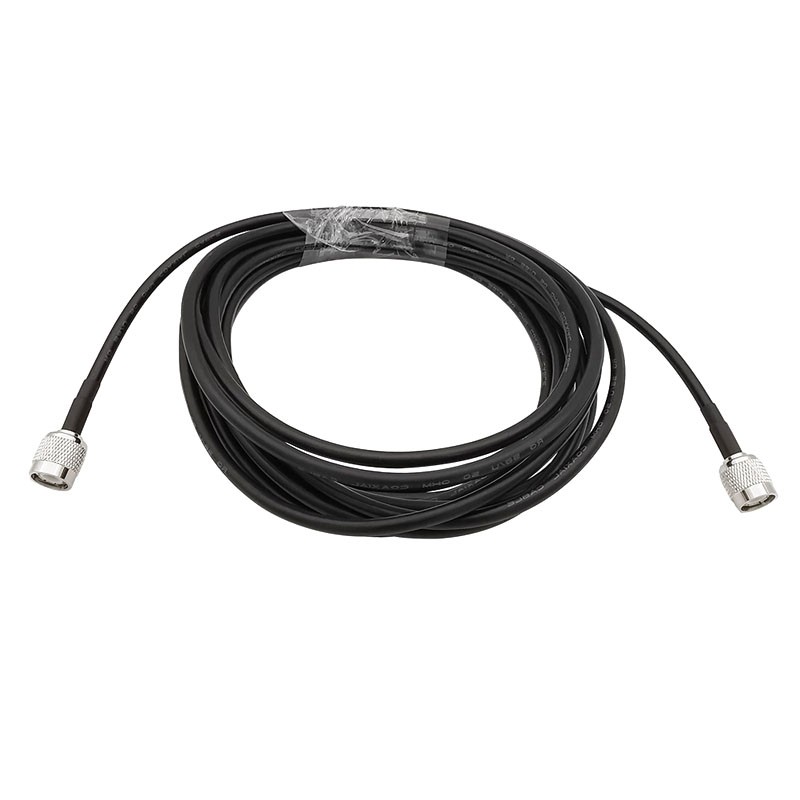

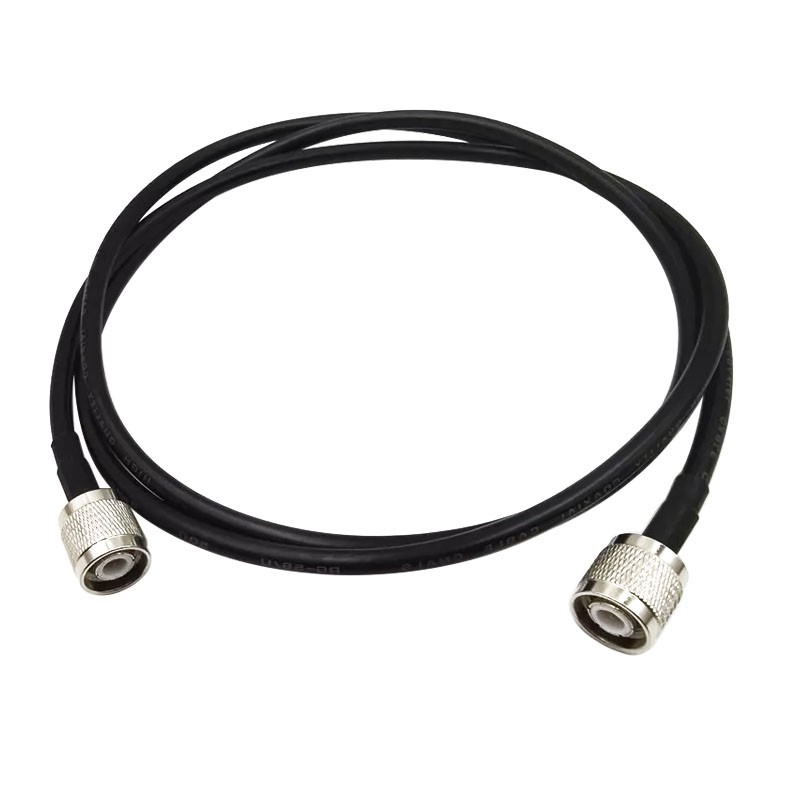

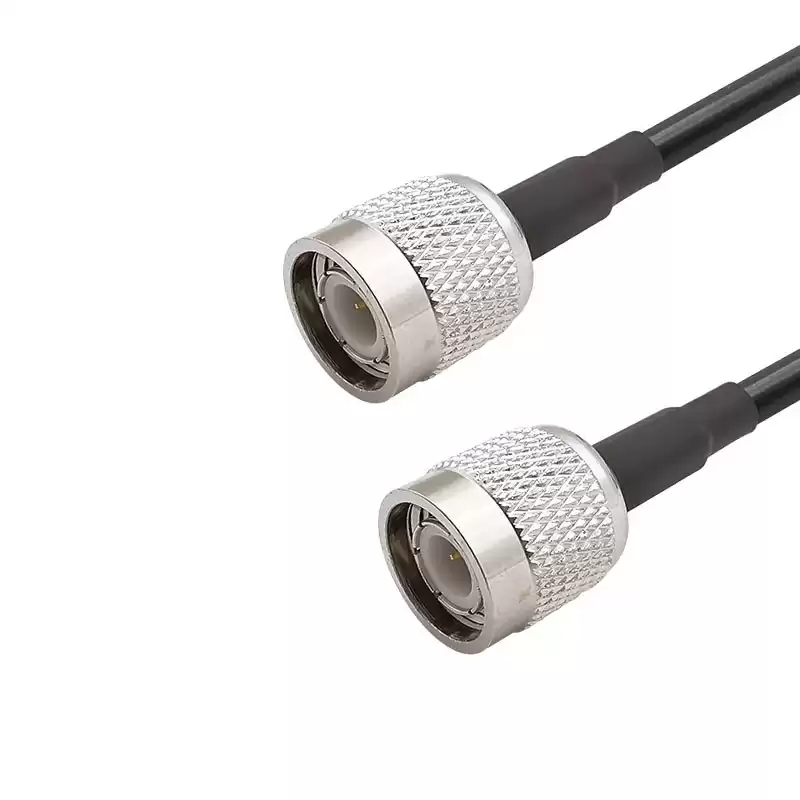

TNC Male to TNC Male Connector Cable Assembly with RG58 Coaxial Cable

TNC Cable assembly Features:

  • Can be combined with BNC, FAKRA, MCX, MMCX, N, SMA, SMB or TNC connector;
  • Body Can be right angle or straight connectors;
  • Max Frequency 18 GHz;
  • Cable Can use flexible, formable or semirigid cable.



TNC Male to TNC Male Connector Cable Assembly with RG58 Coaxial Cable



The TNC cable assembly can use flexible, formable or semirigid coaxial cable such as LMR195、LMR240、LMR400、RG142、RG174、RG178、RG188、RG213、RG214、RG223、RG316、RG393、RG400、RG401、RG402、RG58、RG8; the body of TNC to TNC cable assembly is right angle or straight connectors which is female to female, female to male, male to female or male to male gender. This TNC male to TNC male cable assembly uses a 50ohm straight TNC for connector 1 and a 50ohm straight TNC for connector 2, Cable is a 50ohm flexible RG58.



Specifications

ELECTRICAL DATA
Connector 1 Series TNC
Connector 1 Style Str Male
Cable Type RG58
Connector 2 Series TNC
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM Yes
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Automated Test Systems
  • Airborne Systems
  • Phased Arrays
  • EW and Countermeasures
