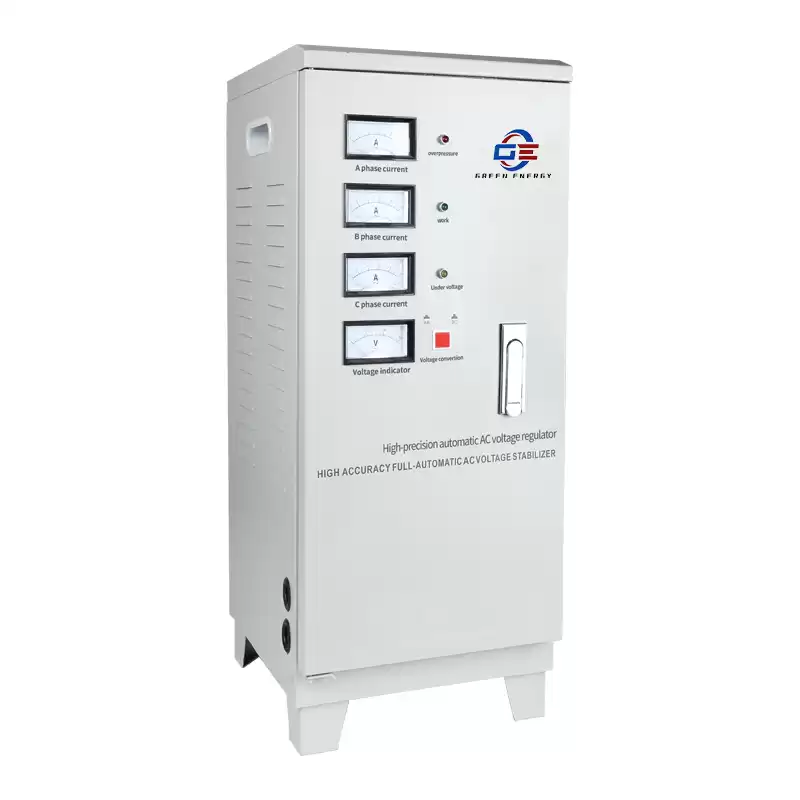

TNS/SVC Three-Phase High-Precision AC Voltage Stabilizer for Machine Tool
⇒ PRODUCT DESCRIPTION

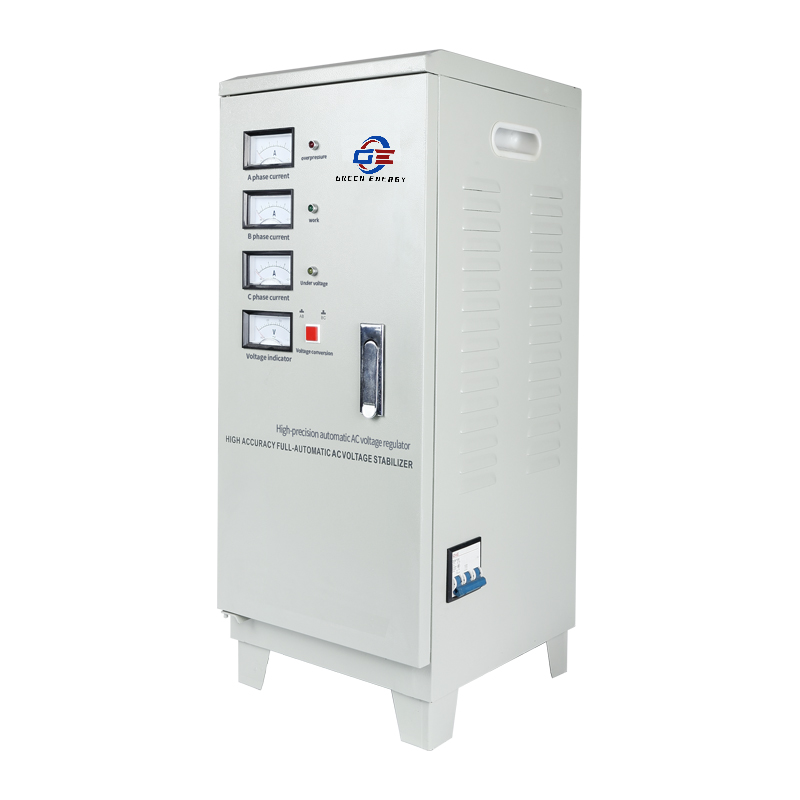

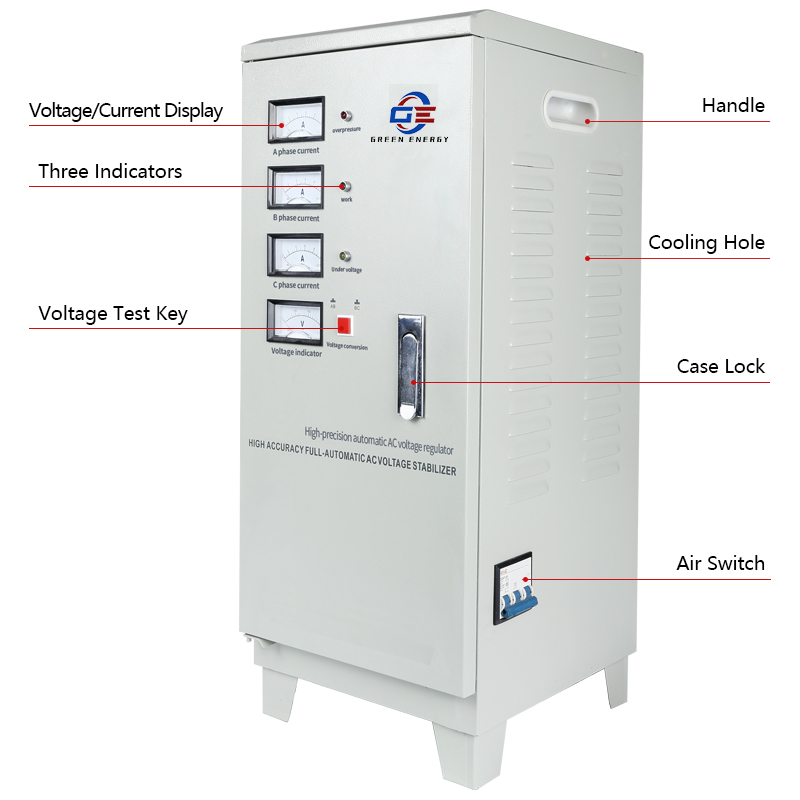

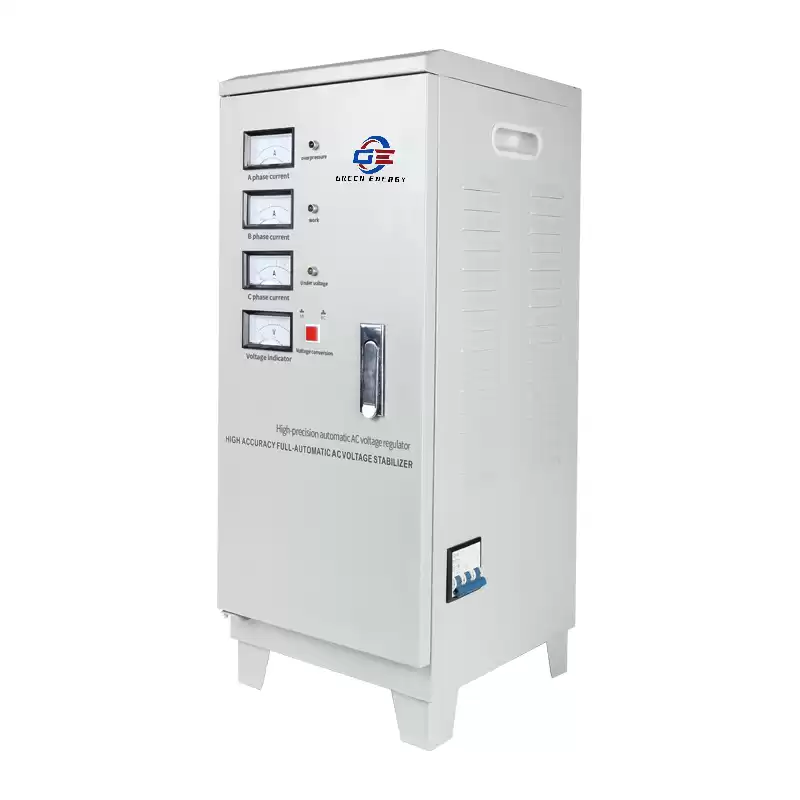

TNS series high-precision automatic three-phase AC voltage stabilizer is composed of single-phase TND (SVC) series high-precision automatic AC voltage stabilizer. Phase four-wire system, star (Y-shaped) connection, the output can be three-phase four-wire system or three-phase three-wire system, the current of each phase is indicated by three ammeters, and a switch and a voltmeter are used to change gears Detects input and output line voltages. TNS series high-precision automatic three-phase AC voltage stabilizer of 20KVA and above specifications is composed of three single-phase automatic voltage stabilized power supplies of corresponding specifications, and adopts self-coupling type.
Field of Use
♦CNC machining center
♦SMT placement machine equipment
♦PCB drilling machine
♦Laser cutting machine
♦CT medical equipment
♦Printing machine
♦Spark machine
♦CNC punch
♦Various industrial production equipment
|
Input Voltage
|
Regular models 260-450V/500V, Customized ultra low voltage models
|
|
Output Voltage
|
380V
|
|
Voltage Regulation Accuracy
|
3%
|
|
Frequency
|
50Hz/60Hz
|
|
Overvoltage Protection Value
|
Output voltage 430V±4V
|
|
Undervoltage Protection Value
|
Output voltage 320V±4V, regularly not set undervoltage protection
|
|
Load Power Factor
|
0.8
|
|
Adjust Time
|
When the voltage change by10%<1S
|
|
Waveform Distortion
|
No additional waveform distortion
|
|
Dielectric Strength
|
1500V/1min
|
|
Insulation Resistance
|
Three phase >2MΩ
|
|
Insulation Class
|
Class E
|
|
Working Environment
|
Temperature :-10℃ to +40℃, Humidity: <95%
|
|
Effectiveness
|
>95%
|
|
Temperature Rise
|
<60℃
|
⇒ RELATED PRODUCT

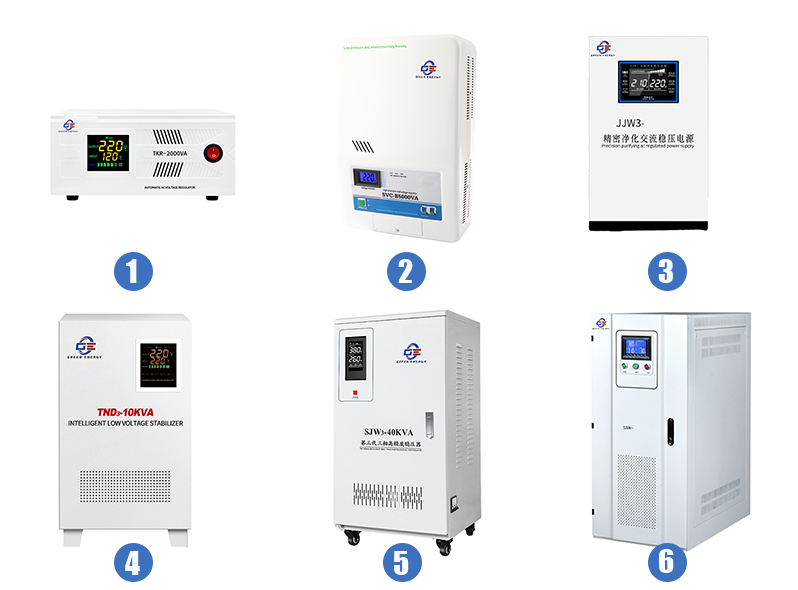

1.TKR Electronic Voltage Stabilizer/Regulator
