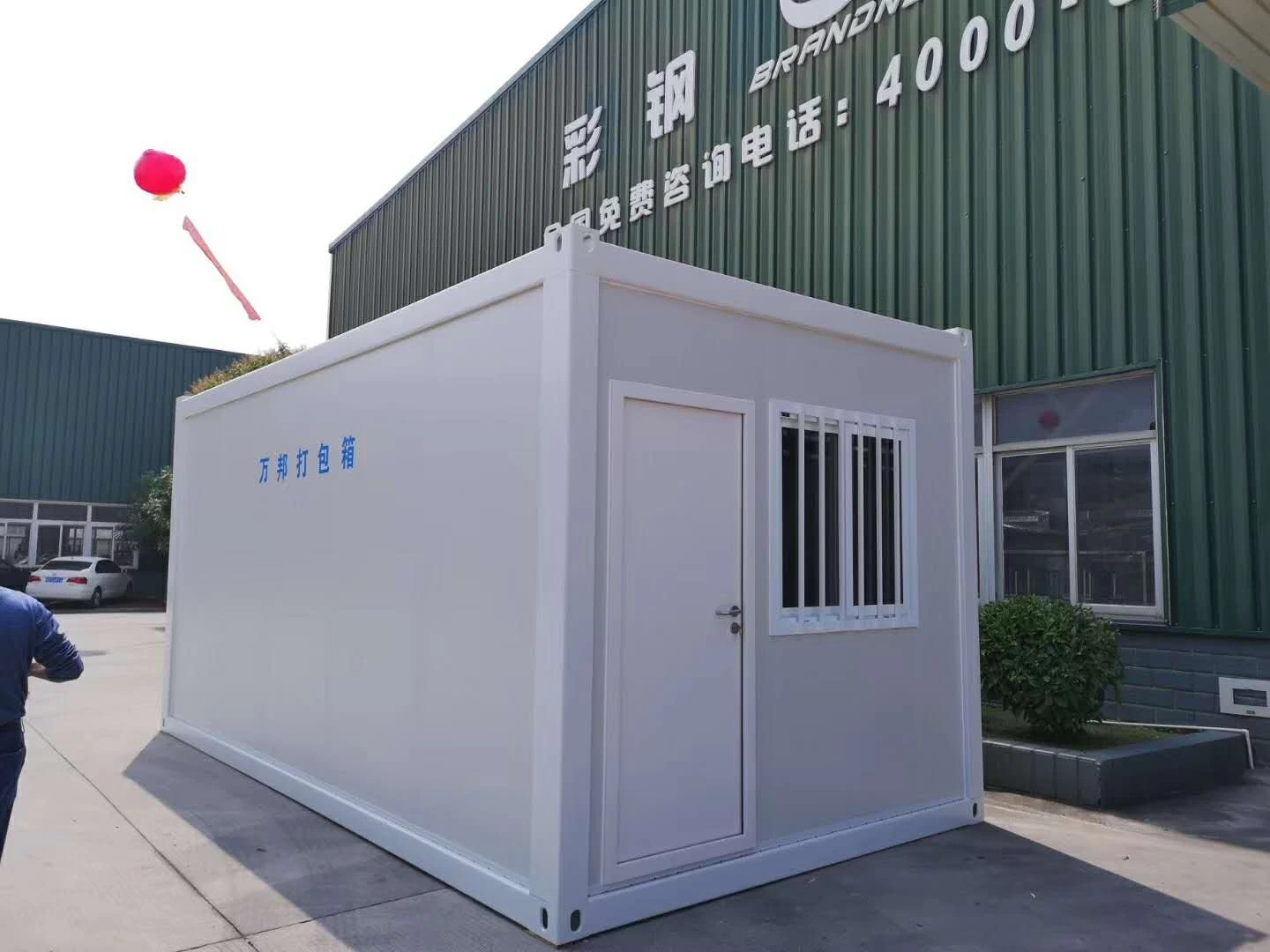

Movable, Reusable, Modular building house

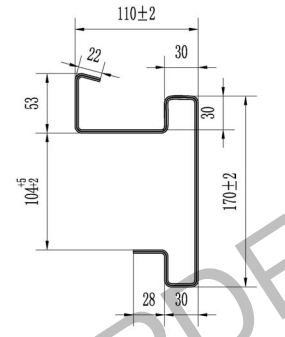

Profile drawing

Machine Parts

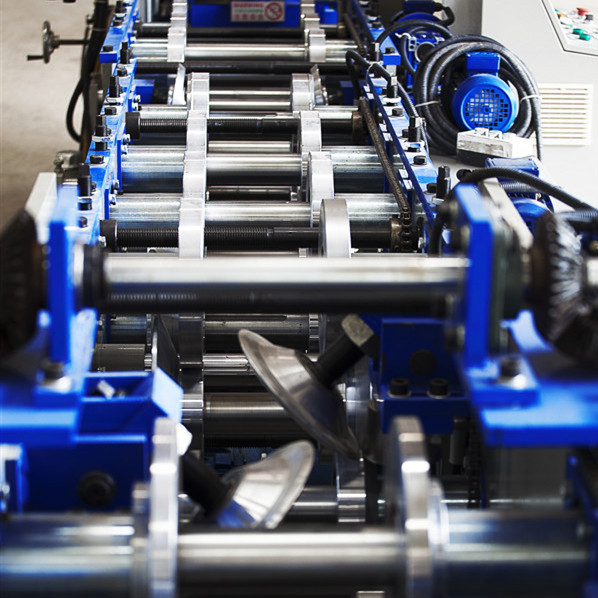

1. Machine roller

Rollers are made by high quality GCR15 steel, heat treatment.
Body frame made from 450#H type steel by welding.

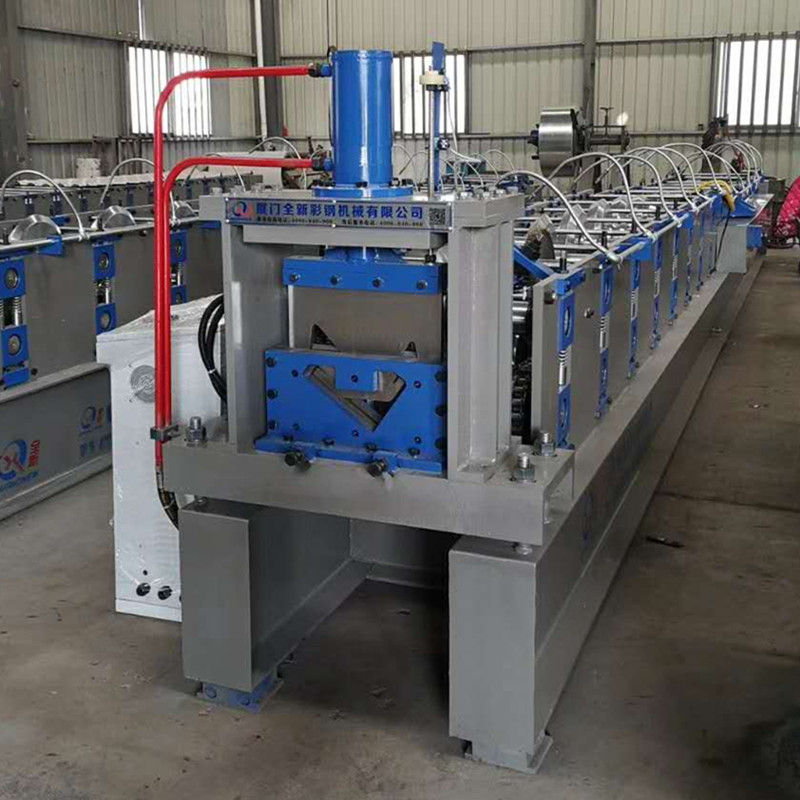

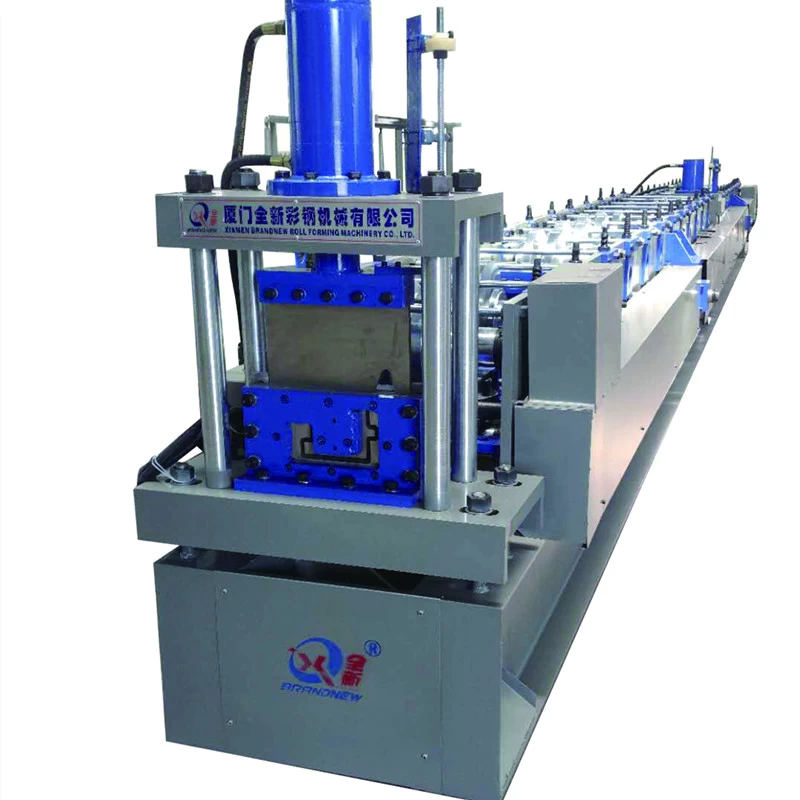

2. Machine post cutter

Made by high quality mold steel Cr12 with heat treatment
Hydraulic motor: 5.5KW
Hydraulic pressure range: 1-16Mpa

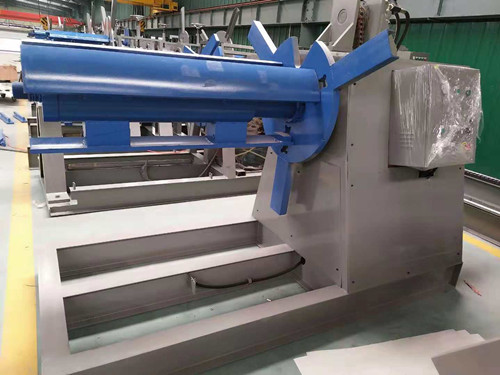

3. Uncoiler

Manual undoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max.feending width: 1200mm, coil id range 508±30
Capacity: 5T

With further hydraulic uncoiler for option

4. Exit Rack
