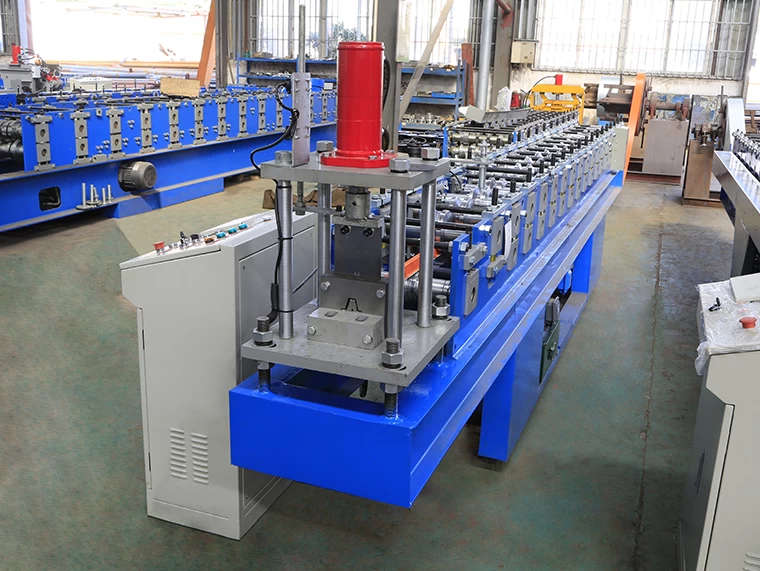

Top hat shape steel roll forming machine

Easy operation, low maintenance cost




Product Description

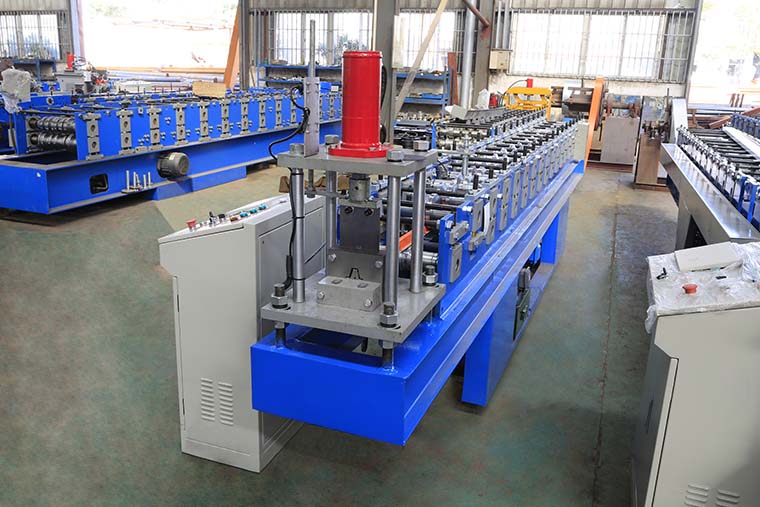

                  Top hat purlin roll forming machine





Top hat purlin roll forming machine


1.Main features of quickly change Top hat purlin roll forming machine



  The advantages of Top hat purlin machine AUTOMATIC size-change type are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of purlin web side and flange side



2.Detailed Images of Top hat shaped steel forming machine


    Machine Parts

        1) Top hat purlin machine encoder

        Brand: BMS    Original: China



      Top hat purlin roll forming machine

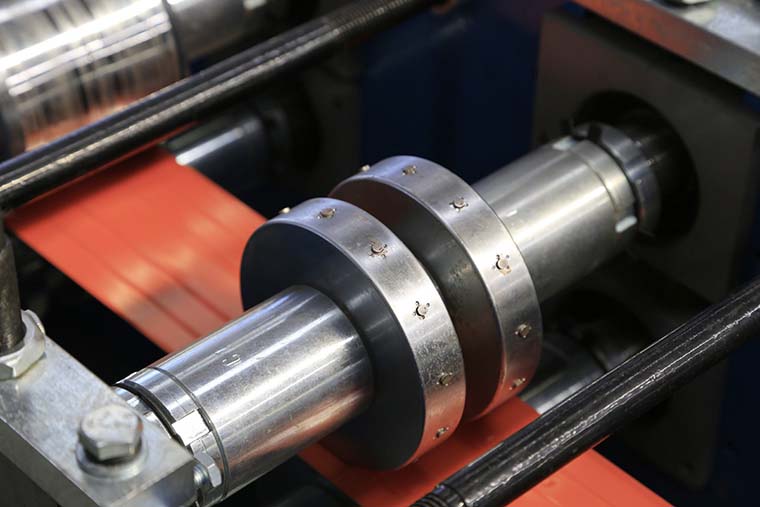

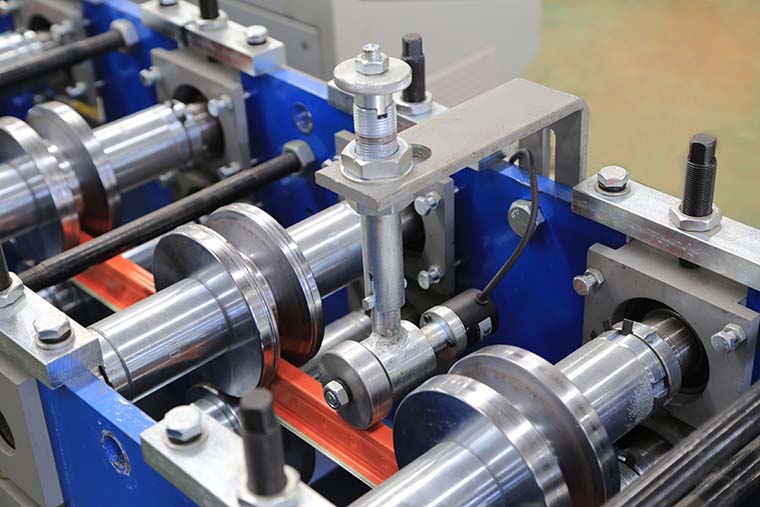

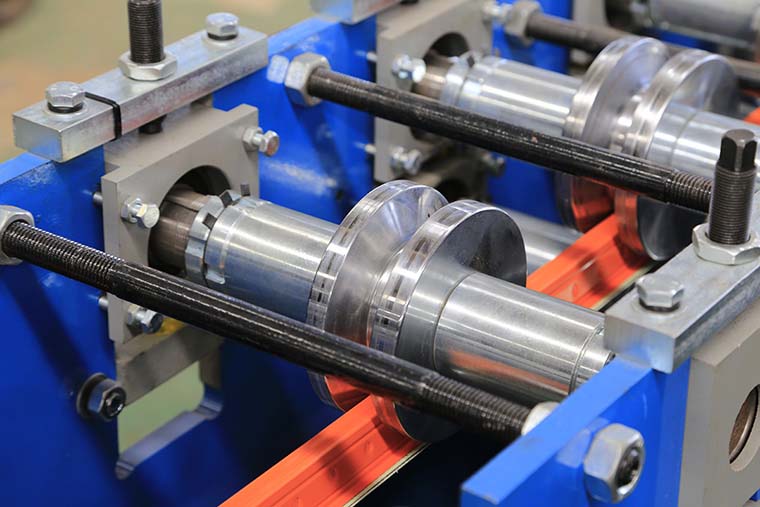

        2) Top hat purlin machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 350# H type steel by welding



Top hat purlin roll forming machine

Top hat purlin roll forming machine

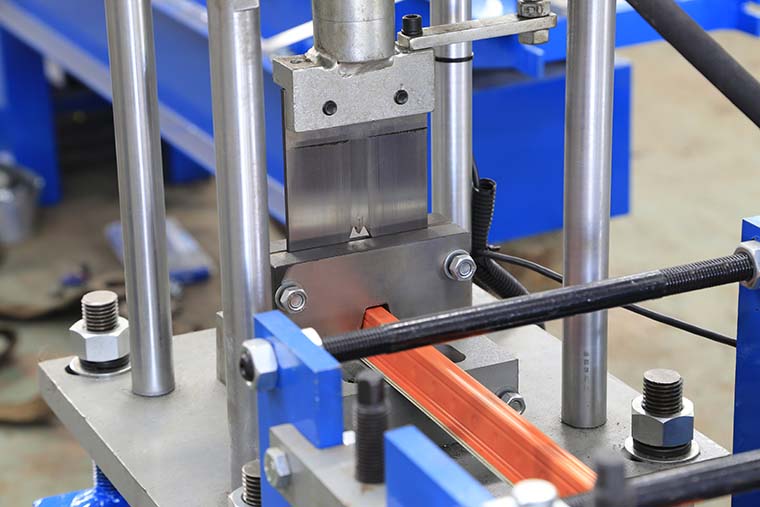

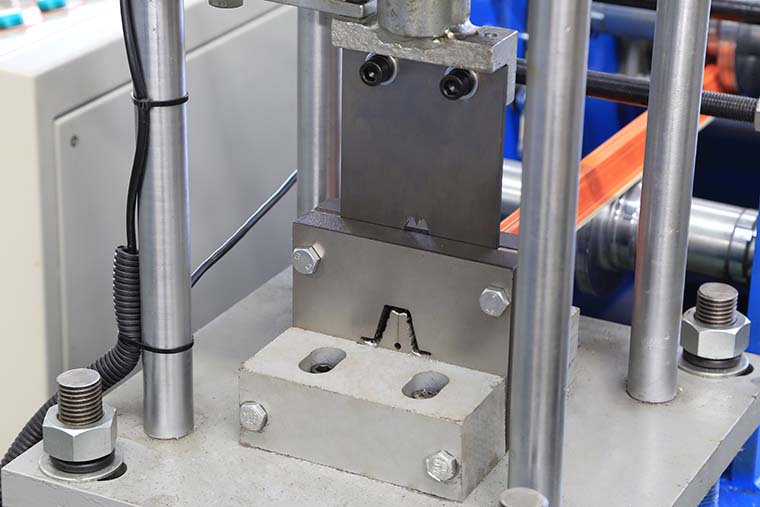

       3) Top hat purlin machine post cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa



Top hat purlin roll forming machine


Top hat purlin roll forming machine

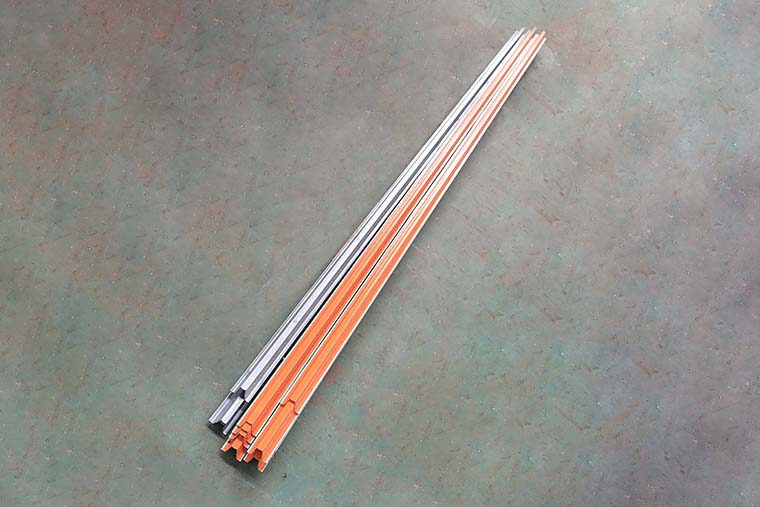

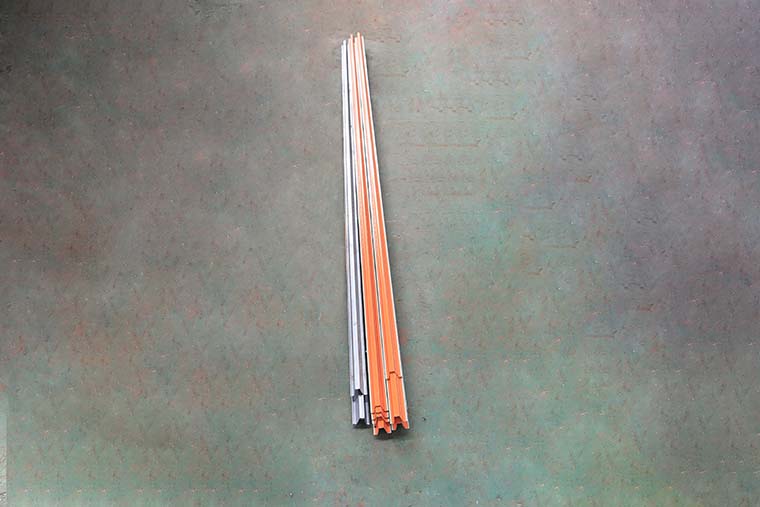

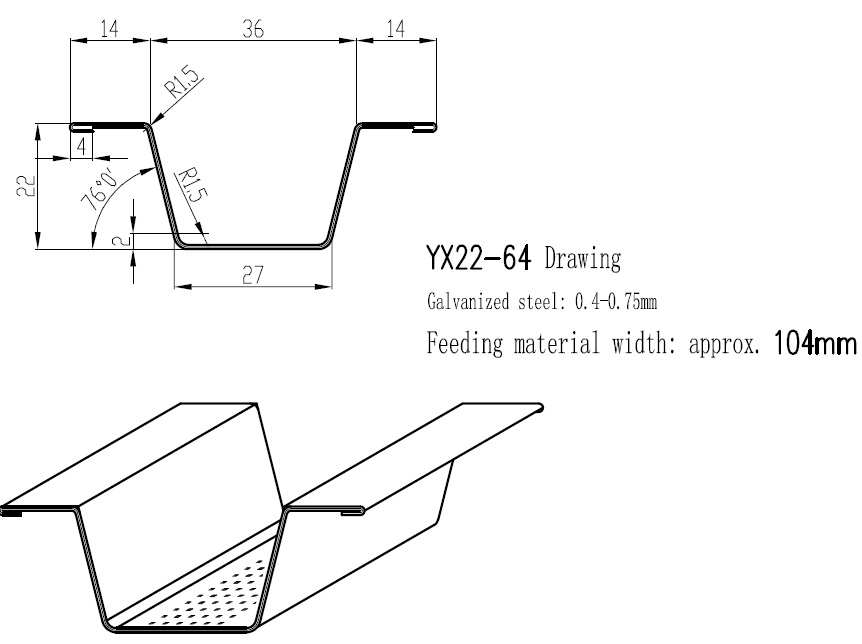

        4) Top hat purlin machine product show



Top hat purlin roll forming machine

Top hat purlin roll forming machine



        5) Top hat purlin machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton




        With 3 tons hydraulic decoiler for option





        6) Top hat purlin exit rack

        Un-powered,one unit







3.Other detailes of Top hat purlin roll forming machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of top hat purlin roll forming machine

1. The warranty of top hat purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
