▶ Efficiency:16.72%
▶ Max.Power:325W
▶ Warranty:25 Years Output Power Guarantee
▶ Weight:22.4kg
▶ Size:1960 ˣ 992 ˣ 35 mm
▶ High efficiency & low attenuation
▶ Excellent low light power generation
capacity
▶ Strength against bad weather
|

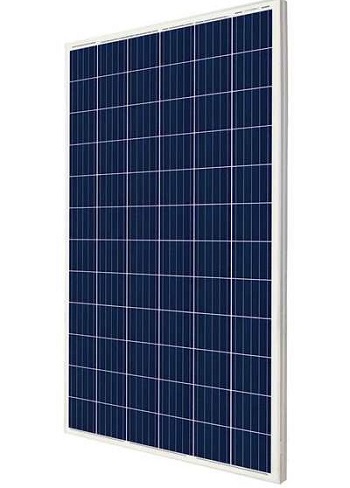

CS6U-325P
|
|
STC:
|
|
|
NMOT：
|
|
|
PMAX:
|
325W
|
|
PMAX:
|
239W
|
|
VMP
|
37.0V
|
|
VMP
|
34.0V
|
|
IMP
|
8.78A
|
|
IMP
|
7.03A
|
|
VOC
|
45.5V
|
|
VOC
|
42.4V
|
|
ISC
|
9.34A
|
|
ISC
|
7.54A
|
|
efficiency
|
16.72%
|
|
|
|
|
operating
temperature
|
`-40°C ~ +85°C
|
|
|
|
|
Sort
|
polycrystalline
silicon
|
|
|
|
|
Size
|
1960 ˣ 992 ˣ 35 mm
|
|
|
|
|
Battery arrays
|
72 (6 x 12)
|
|
|
|
|
Weight
|
22.4 kg
|
|
|
|
|
Borders
|
aluminium alloy
|
|
|
|
|
40-feet container
|
720 pieces
|
|
|
|
|
Situation of
certification
|
IEC
61215 / IEC 61730: VDE / CE / CQC / CGC / MCS / INMETRO / CEC AU /
KEMCO / SII
UL 1703 / IEC 61215 performance: CEC listed (US) / FSEC (US Florida)
UL 1703: CSA / IEC 61701 ED2: VDE / IEC 62716: VDE
UNI 9177 Reaction to Fire: Class 1 / IEC 60068-2-68: SGS
|
|
|
|
