Topkit 12T Tower Crane QTZ160(6024)
1. Tower crane QTZ160, 12t max load, 60m Long working radius with tip load 2.4t.
2. hydraulic lifting tower crane/hammed head topkit construction tower crane
3. China-made high quality tower crane, China good tower crane manufacturers with best price
4. high efficiency, CE approved, ISO and GOST certification, oversea service available
Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device.
Main Technical Parameters of 6024 12T Tower Crane
| Tower Crane Parameter
|
QTZ160 Series
|
| 6024
|
| Nominal Lifting Moment (KN·m)
|
1600
|
| Work Range (m)
|
3-60
|
| Max. Lifting Capacity (t)
|
2 fall
|
6
|
| 4 fall
|
12
|
| Tip Load (t)
|
2.4
|
| Free Standing Height (m)
|
47
|
| Attached Standing Height (m)
|
188
|
| Lifting Speed (m/min)
|
2 fall
|
6-100
|
| 4 fall
|
3-50
|
| Slewing Speed (r/min)
|
0-0.65
|
| Radius Changing Speed (m/min)
|
54/7/8
|
Description of our tower crane

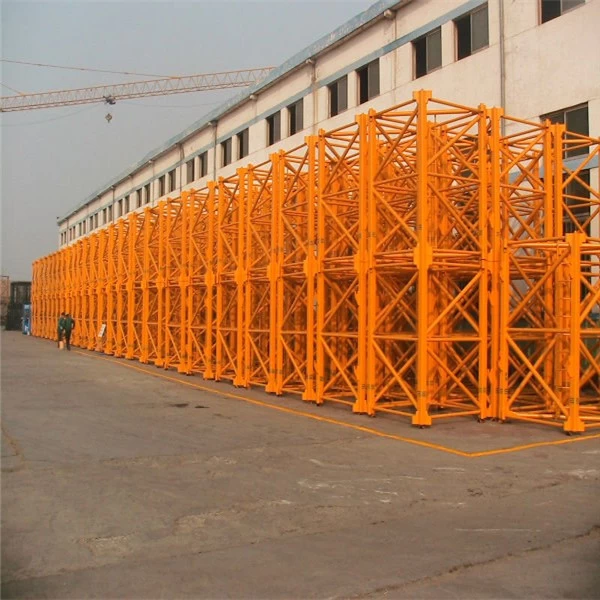

1. Steel structure: steel is an important component element of tower crane, the production material of tower crane from all major steelworks in nationwide in our company, with high quality and good material, under a small difference, which can improve the coefficient of safety of the complete appliance.

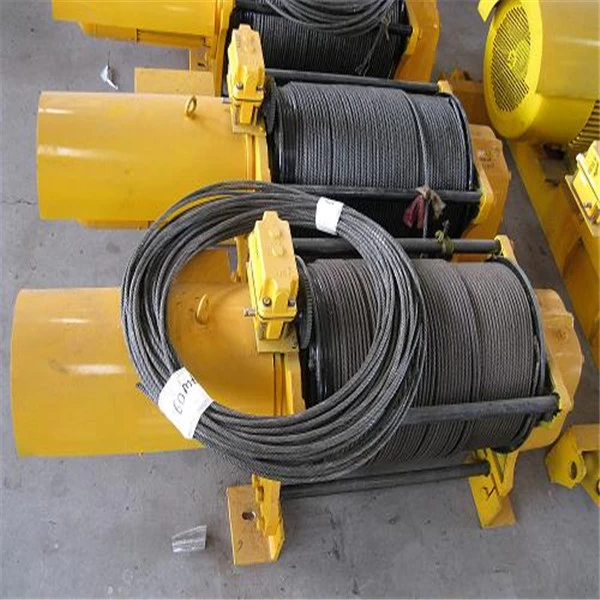

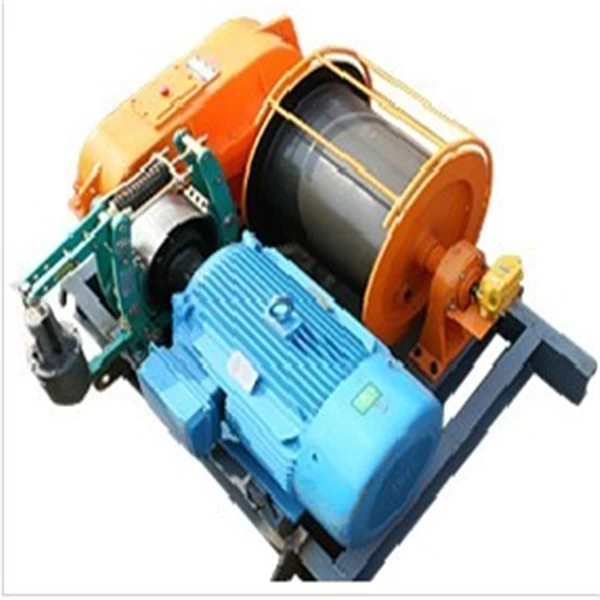

2. Hoisting Mechanism
Three-gear speed modulation by electricalmotor or frequency conversion, giant winch.

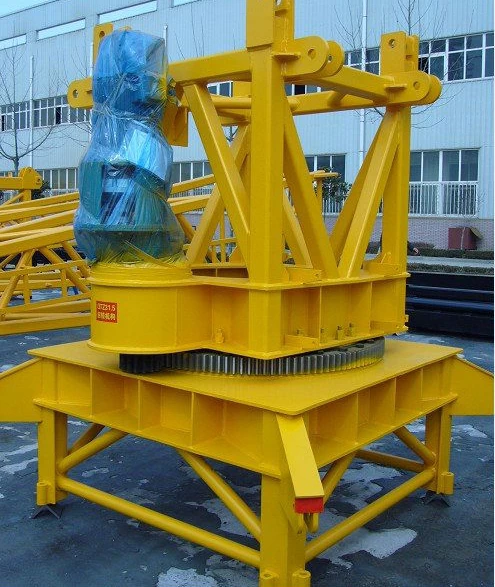

3. Rotation Mechanism
Speed modulation with frequency conversion,stable break, accurate position, outstanding on performance and operation allaround the world.

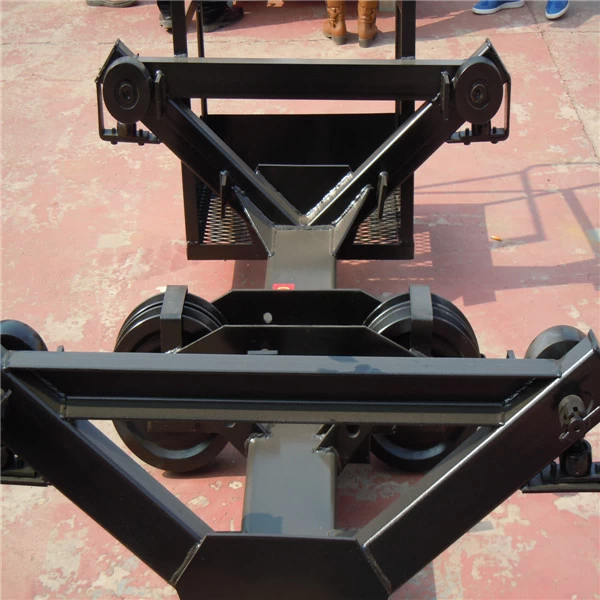

4. Luffing Mechanism
Speed modulation with frequency conversion,less concussion, stable operation.

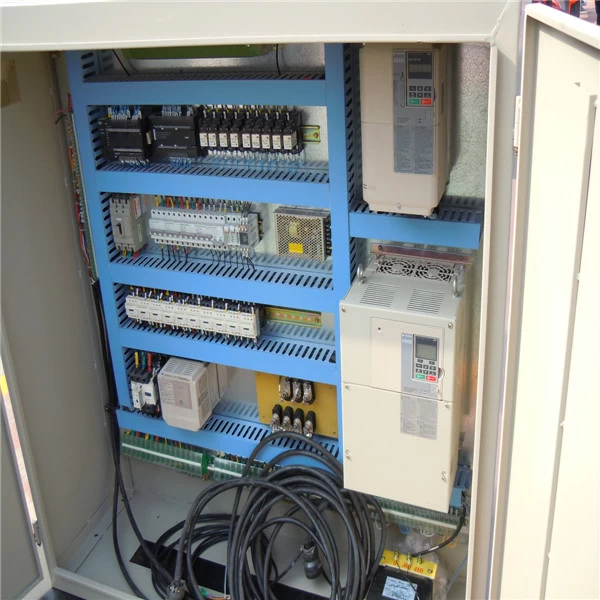

5. Control System
PLC control, auto diagnosis on electricmalfunction, corresponding alarm on light and sound, key components adoptinginternational top brand product.
Why choose us
1.Cooperative professional tower crane manufactures in China
2.Exported to more than 30 countries with ISO9001&CE Certifications
3.Hydraulic self-climbing mechanism
4.Variable-frequency slewing mechanism
5.Varialbe-speed frequency PLC control System
6.Operation data display screen
7.Various safety devices
8.Safety monitoring system (Black Box)
