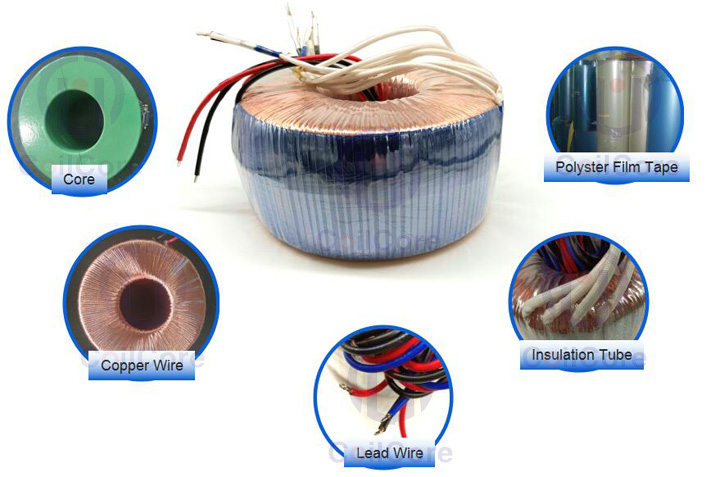

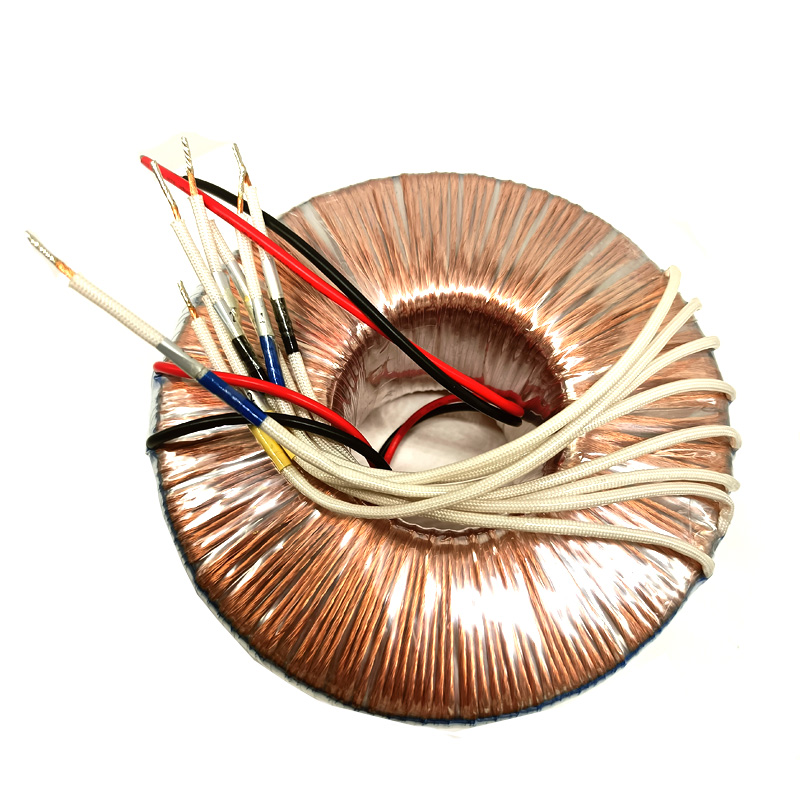

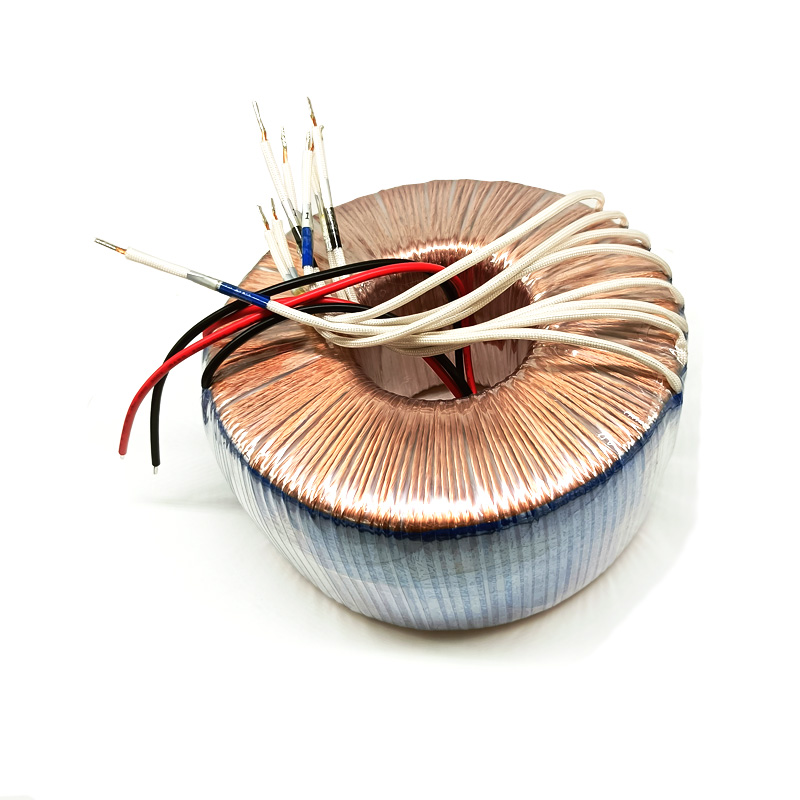

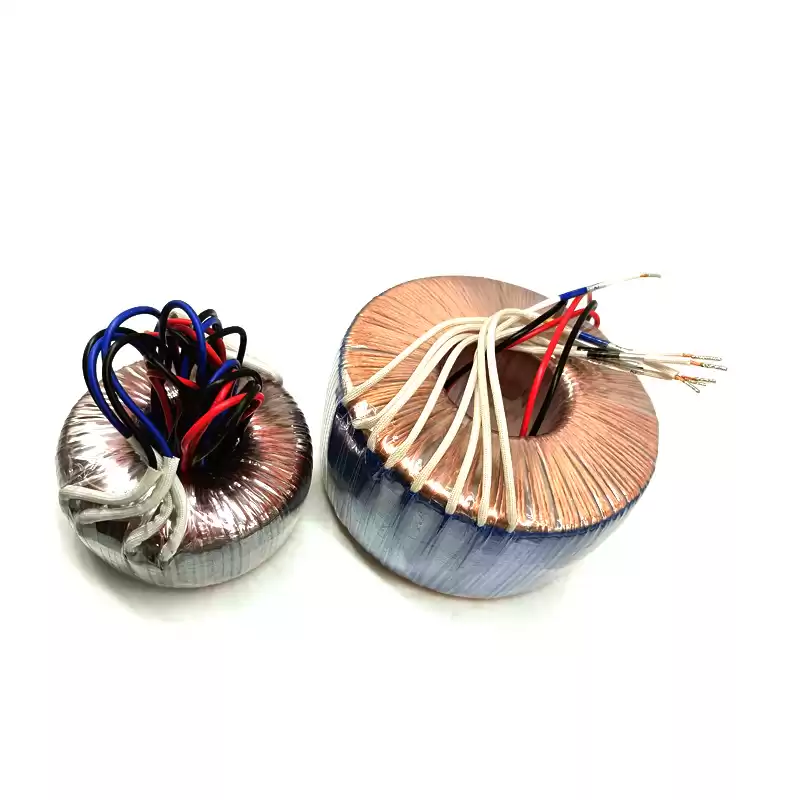

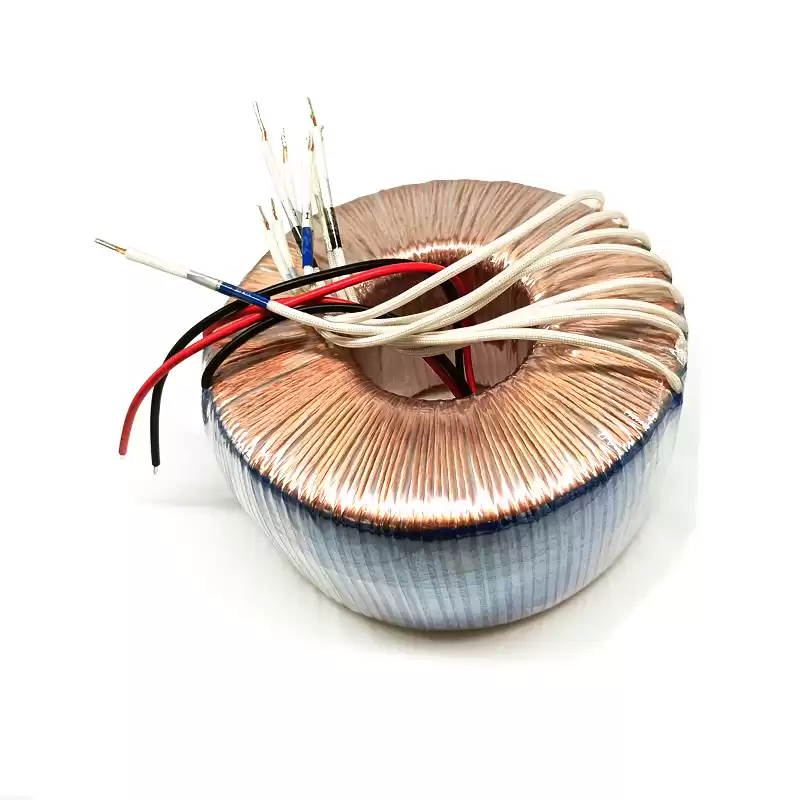

Key Properties:
-
Core: Low power loss and high Bs
-
Insulation Tube: High stage and high dielectric strength
-
Polyster Film tape: High temp resistence, 94V-1, 3KV withstand voltage
-
Lead wire: High temperature resistance, Tin plating, 100% copper wire.
-
Winding wire: 100% copper wire and High temperature resistance 155 ℃
Electronic Parameter:
|
Typical Parameter
|
|
|
Type
|
Toroidal Transformer
|
|
Product Name
|
Output Transformer
|
|
Core
|
NANO epoxy coated core 162*80*70(35+35) and cut into two-halves
air gap 2*0.25mm
|
|
Coil Winding
|
Primary: Ф0.3mm copper wire 230Ts *12layers =2760Ts(single winding)
Secondary: Ф0.2mm*35 LITZ wire 46Ts *4 zones
|
|
Lead Wire
|
isolated with fiberglass tube and tinning the end 10mm
|
|
Degree of Protection
|
IP00
|
|
Certificates
|
ISO9001,ISO14001,ISO45001
|
Reference Size:
|
Rated Power
|
Efficiency
|
No-load Loss
|
Diameter
|
Height
|
Weight
|
|
15VA
|
86%
|
0.31W
|
59mm
|
40mm
|
0.42Kg
|
|
30VA
|
86%
|
0.43W
|
70mm
|
38mm
|
0.54Kg
|
|
50VA
|
86%
|
0.52W
|
81mm
|
43mm
|
0.71Kg
|
|
75VA
|
86%
|
0.60W
|
94mm
|
41mm
|
0.95Kg
|
|
100VA
|
87%
|
1.14W
|
92mm
|
57mm
|
1.34Kg
|
|
150VA
|
90%
|
1.37W
|
119mm
|
46mm
|
2.12Kg
|
|
200VA
|
91%
|
1.95W
|
121mm
|
60mm
|
2.84Kg
|
|
250VA
|
92%
|
2.02W
|
132mm
|
57mm
|
3.24Kg
|
|
300VA
|
93%
|
2.10W
|
132mm
|
62mm
|
3.58Kg
|
|
500VA
|
94%
|
3.12W
|
158mm
|
64mm
|
5.50Kg
|
|
750VA
|
96%
|
4.84W
|
169mm
|
80mm
|
7.58Kg
|
|
1000VA
|
96%
|
6.94W
|
202mm
|
75mm
|
10.42Kg
|
|
2000VA
|
98%
|
11.42W
|
208mm
|
89mm
|
16.34Kg
|
Main Application:
Coilcore components for green energy market covering isolation transformers, drive inductors, line reactors, DC to AC conversion, etc.
Considering not only optimum cost, weight, size, but most important of reliability, our amorphous core transformers, 400Hz transformers, power chokes performance well to military industry.
Tele-communications
Coilcore supply power chokes, filter chokes, common mode chokes, isolation transformers for ele-communication application.
Coilcore focus on power solutions for the medical industry where reliability and performance are critical. Our toroidal medial power transormer with low stray field and low leakage current levels.
Our core compence magnetics including industrial control transformers, isolating safety transformers, high current inductors, and power inductors, with over 15 years long term project design experience.
Safety and efficiency must come first, we obtain full experience of toroidal transformers, current transformers, high frequency transformers, power rail transformers, line filter chokes, emc filters, HF chokes for railway and train applications.
As an leading manufacturer of amorphous and nanocrystalline core products, Coilcore provides quality services to customers with high-performance products and one-stop solutions. By leaving a message below to get more details about Toroidal Output Transformer quickly!
