Physical Characteristics
|
|
|
|
Dimensions
|
164.2*78.8*17mm/6.46*3.10*0.67in (for standard version)
|
|
|
|
Weight
|
<288g/10.15oz (for standard version)
|
|
|
|
Display
|
5.2'' IPS FHD 1920x1080
|
|
|
|
Touch Panel
|
Corning Gorilla Glass, multi-touch panel, gloves and wet
|
|
|
|
hands supported
|
|
|
|
Power
|
Main battery: Li-ion, rechargeable, built-in 5000mAh
|
|
|
|
Standby: over 350 hours
|
|
|
|
Continuous use: over 12 hours (depending on user environment)
|
|
|
|
Charging time: 3-4 hours (with standard adaptor and USB
|
|
|
|
cable)
|
|
|
|
Expansion Slot
|
1 slot for SIM card, 1 slot for SIM or TF card, three choice two
|
|
|
|
Interfaces
|
USB 2.0 Type-C, OTG
|
|
|
|
Audio
|
Speaker, 2 microphones
|
|
|
|
Keypad
|

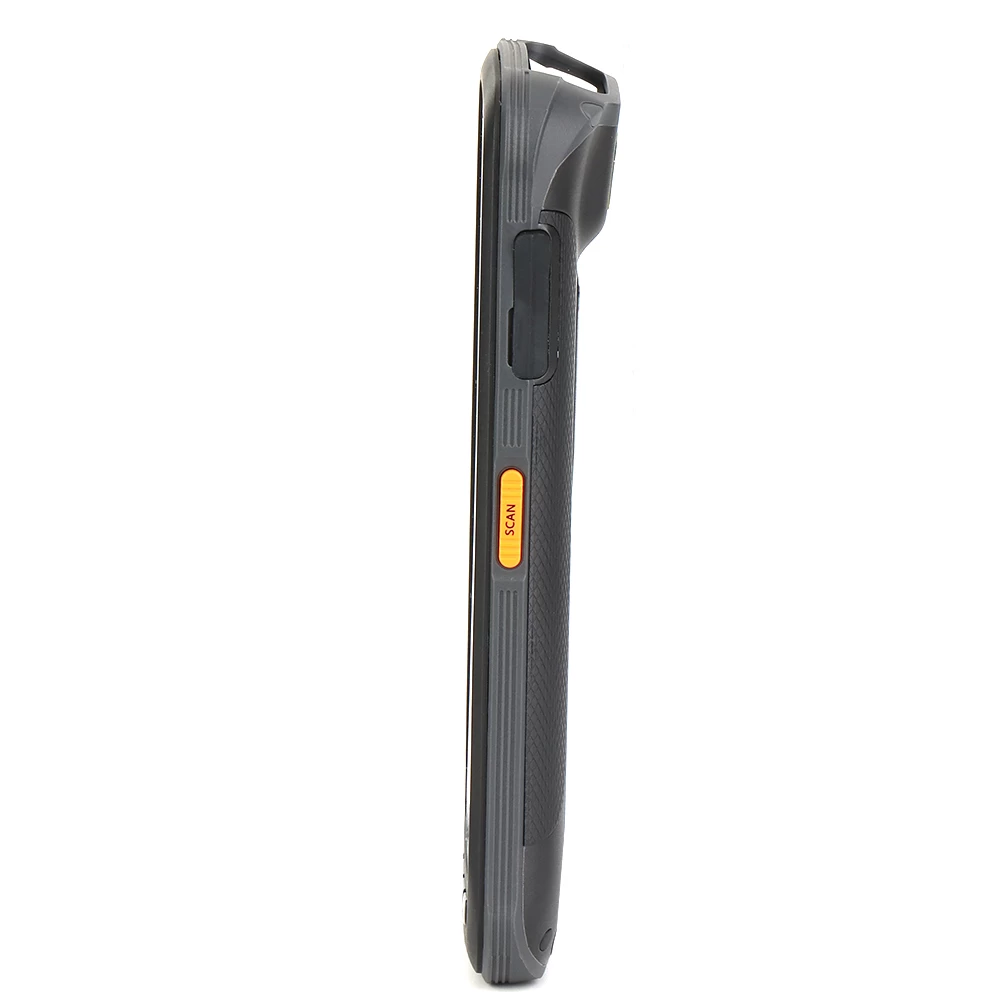

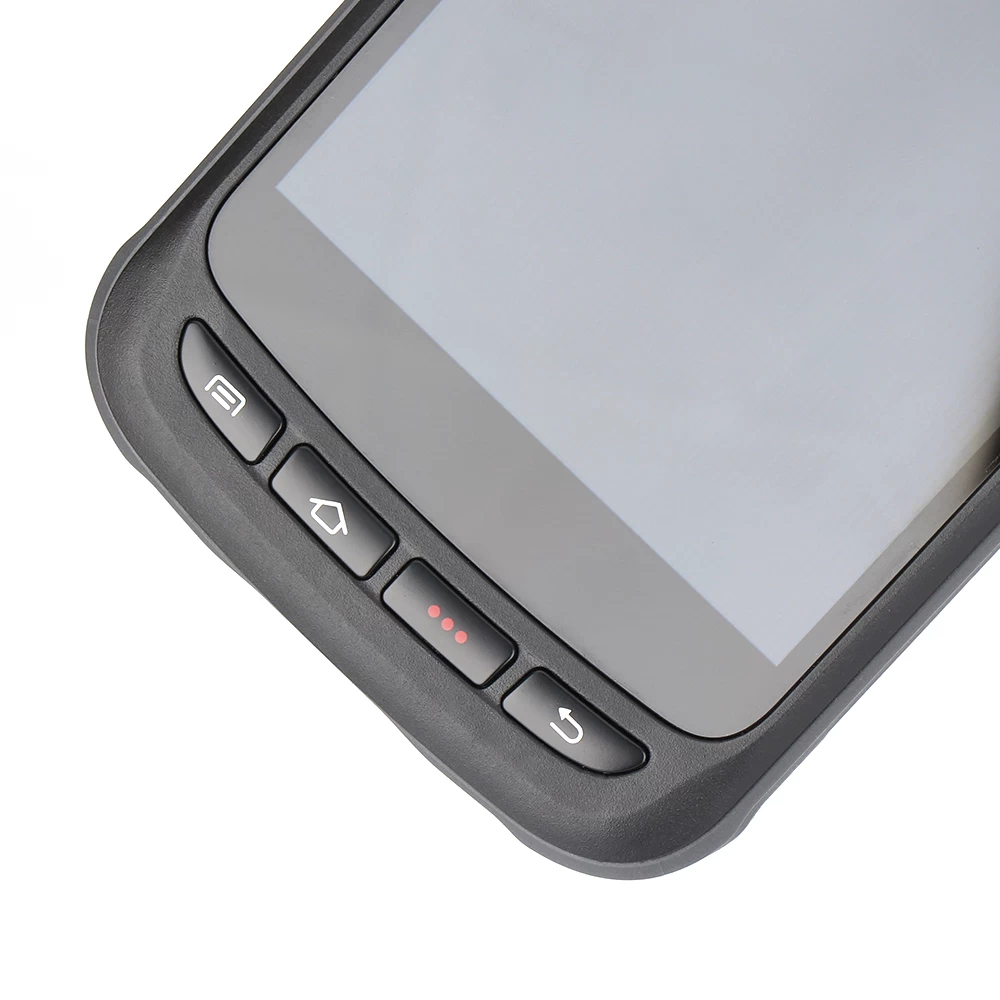

4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
|
|
|
|
Sensors
|
Gravity sensor, light sensor, proximity sensor, vibration motor
|
|
|
|
Performance
|
|
|
|
|
CPU
|
Cortex-A53 Quad-core 1.3GHz
|
|
|
|
|
|
|
|
RAM+ROM
|
2GB+16GB
|
|
|
|
Expansion
|
Supports up to 128 GB Micro SD card
|
|
|
|
Developing Environment
|
|
Operating System
|
Android 6.0
|
|
|
|
SDK
|
Software Development Kit
|
|
|
|
Language
|
Java
|
|
|
|
Tool
|
Eclipse / Android Studio
|
|
|
|
User Environment
|
|
|
|
Operating Temp.
|
-4oF to 122oF / -20oC to 50oC
|
|
|
|
|
|
|
|
|
Storage Temp.
|
-40oF to 158oF / -40oC to 70oC
|
|
|
|
Humidity
|
5%RH - 95%RH non condensing
|
|
|
|
Drop Specification
|
Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete
|
|
|
|
|
across the operating temperature range
|
|
|
|
Tumble
|
1000 x 0.5m/1.6ft falls at room temperature
|
|
|
|
Specification
|
|
|
|
Sealing
|
IP65/IP67 per IEC sealing specifications
|
|
|
|
ESD
|
±8KV air discharge, ±4KV conductive discharge
|
|
|
|
Communication
|
|
WLAN
|
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
|
|
|
|
WWAN(Europe)
|
2G: 850/900/1800/1900MHz
|
|
|
|
3G: 850/900/1900/2100MHz
|
|
|
|
4G: B1, B3, B5, B7, B8, B20, B40
|
|
|
|
|
2G: 850/900/1800/1900MHz
|
|
|
|
WWAN(America)
|
3G: 850/900/1700/1900MHz
|
|
|
|
4G: B2, B4, B7, B12, B17
|
|
|
|
WWAN (China)
|
2G: 900/1800MHz
|
|
|
|
3G: 900/1900/2000/2100MHz
|
|
|
|
4G: B1, B3, B5, B38, B39, B40, B41
|
|
|
|
WWAN (Others)
|
Depending on the country's ISP
|
|
|
|
Bluetooth
|
Bluetooth 4.0, BLE
|
|
|
|
GNSS
|
GPS/AGPS, GLONASS, BeiDou, internal antenna
|
|
|
|
Data Collection
|
|
Camera
|
|
|
|
Rear Camera
|
13MP Autofocus with flash
|
|
|
|
Front Camera(optional)
|
5MP camera
|
|
|
|
Barcode Scanning (optional)
|
|
|
|
1D Linear Scanner
|
Zebra SE965 / Honeywell N4313
|
|
|
|
|
|
|
|
1D Symbologies
|
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2
|
|
|
|
of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
|
|
|
|
|
|
2D Imager Scanner
|
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
|
|
|
|
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix,
|
|
|
|
2D Symbologies
|
QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US
|
|
|
|
PostNet, US Planet, UK Postal, Australian Postal, Japan Postal,
|
|
|
|
Dutch Postal (KIX), etc.
|
|
|
|
Iris (optional)
|
|
|
|
Range
|
20-40cm
|
|
|
|
FAR
|
1/10000000
|
|
|
|
*Iris is alternative to front camera.
|
|
HF (optional)
|
|
|
|
Frequency
|
13.56MHz
|
|
|
|
|
|
Protocol
|
ISO14443A/B, ISO15693
|
|
|
|
Chips
|
M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81),
|
|
|
|
CPU_A card, CPU_B card, ICODE II, TI2048, LRI64K, Others for
|
|
|
|
|
customization
|
|
|
|
Range
|
3-8cm
|
|
|
|
NFC (optional)
|
|
|
|
Frequency
|
13.56MHz
|
|
|
|
|
|
Protocol
|
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
|
|
|
|
Chips
|
M1 card (S50, S70), CPU card, NFC tags, etc.
|
|
|
|
Range
|
2-4cm
|
|
|
|
UHF (optional)
|
|
|
|
|
Frequency
|
865MHz-868MHz / 920-925MHz / 902-928MHz
|
|
|
|
|
