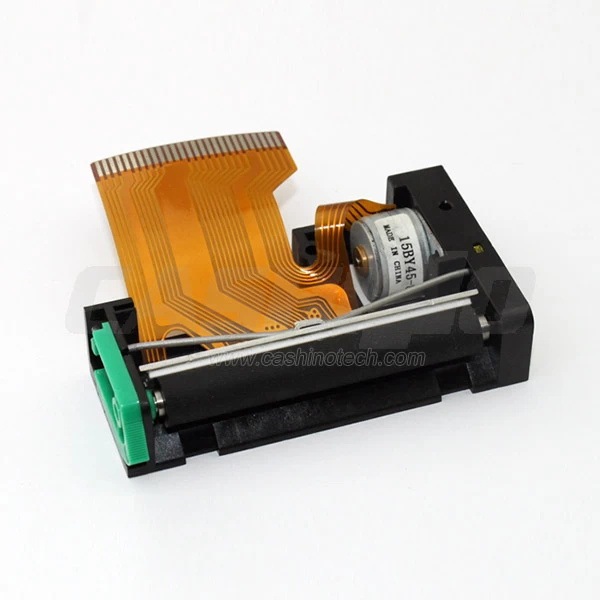

TP-205MP 58mm thermal printer head
Feature:
Compatible with APS MP205-LV/HS
Paper width:57±1mm
Easy paper load
Compact design
Low Noise
No loose wiring (a single flex-cable houses all wiring)
Ergonomic design (centered paper path allows uniform and aesthetic housing design)
High reliability due to its patented easy loading design
Specification:
| Printing method: |
Thermal dot line |
| Number of dots: |
384 |
| Resolution (dots/mm): |
8 |
| Printing width (mm): |
48 |
| Paper width (mm): |
58 |
| Max. paper thickness (um): |
80 |
| Paper loading: |
Easy loading |
| Printing speed (mm/s): |
85 |
| Paper detection: |
Opto sensor |
| Temperature detection: |
Thermistor |
| Head-up or Cover-open detection: |
Combined with opto sensor |
| Voltage range (Logic/Head): |
2.7-5.25 / 2.7-7.2or4.5-8.5V |
| Dot resistance (Ohm): |
123/176 ± 4% |
| Energy per dot (mJ): |
0.15 |
| Stepper motor (Ohm): |
Bipolar (12) |
| Weight (g): |
40 |
| Life/reliability: |
50km/100M pulses |
| Operating temperature (C): |
0 to 50 non cond. |
| Operating humidity (%): |
20 to 85 non cond. |
| Dimensions (WxDxH mm): |
68.3x41x15
|
| Weight(g) |
36 |
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
