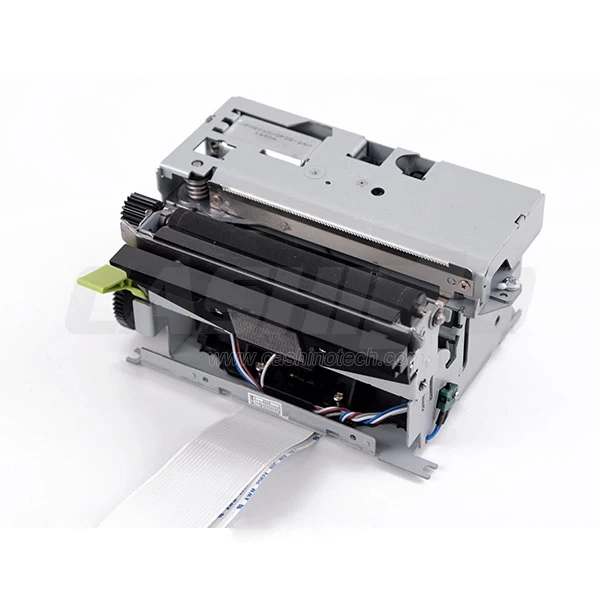

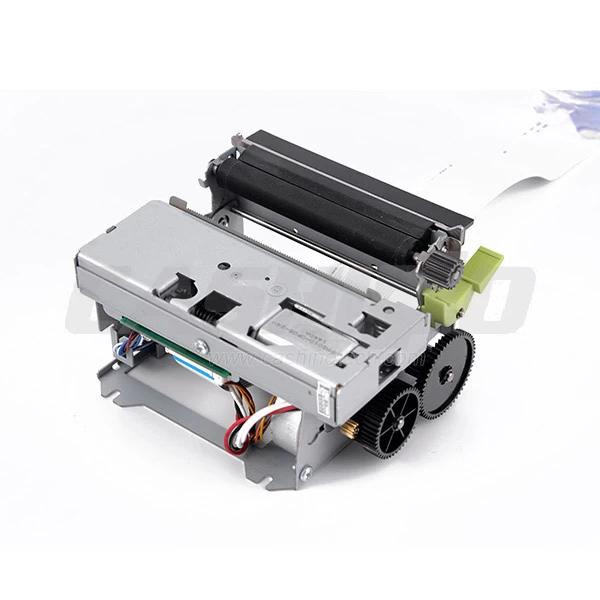

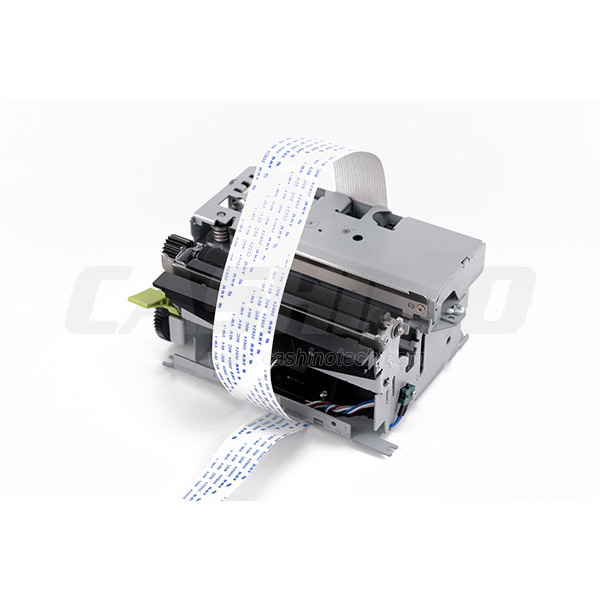

TP-532 3inch thermal printer head with auto cutter
Feature:
Compatible with Epson M-T532
Paper width:80mm
Easy paper load
Compact designLow Noise
Pasteboard print and paper detect
Mechanism life(100KM)
High speed(220 mm/s, VH:24V)
Printing width 72mm
Specification:
Type
|
TP-532
|
Print method
|
Thermal dot line printing
|
Resolution (dots/mm)
|
8
|
Dot per line (dots/line)
|
640
|
Speed (mm/sec)
|
220(VH:24V)
|
Print width/Paper width(mm)
|
72/80
|
Head temperature detect
|
Via thermistor
|
Thermal Printer head detect
|
Via photo interrupter
|
Paper detect
|
Via photo interrupter
|
Power supply
|
Drive voltage
|
24V
|
Logical voltage
|
3.0-5.
|
Reliability
|
printer head
|
100km/100M pulses
|
auto-cutter
|
1,000,000cuts
|
Dimensions (width x depth x high) (mm)
|
126.7x91.8x59.6mm
|
Weight (g)
|
Approach 175
|
FAQ:
Q: About samples
A: Samples are available for testing.
Q: Delivery date.
A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order
delivery date approximately 2 weeks.
Q: Payment terms
A: Paypal, western union, T/T in advance, or order in aliexpress.
Q: Warranty
A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be
responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with
reasonable price to the customer.
