Trade Assurance high quality aluminum exhibit and display truss

this Light duty outdoor mini aluminum lighting truss is a standard truss suitable for 16m span width event project, Exhibition Building, Stage Performance, Concert



Model NO.
TSS2929
Color
Silver
Size
Optional 290*290mm 390*390mm 400*500mm
Main Tube
Optional 50*3mm 50*2mm
Loading
500-1000kgs According to Size
Length
0.5-4m
Connection Method
Spigot
Function
Concert, Show, Wedding, Exhibition, etc
Package
Bubble Air Film or Hard Cardboard
Certification
TUV, ISO, SGS, Ce
Quality Guarentee
9years
Trademark
Chaodastage
Transport Package
Air Bubble Film
Specification
SGS TUV ISO
Origin
China
HS Code
7610900000













Truss Description:


Chaodastage has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are
designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage
truss structures prepared for high loading.

Chaodastage truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and
manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and
video to teach you how to use these truss.

Truss Advantages:

1. Spigot connection way, easily and quickly installation

2. Make sure delivery time

3. Cooperate with supplier over 5 years, keep quality stable

4. Aluminum material report by SGS

5. TUV & CE certificate

6. Factory audited by SGS

7. Get ISO 9001: 2008 quality manage system

What A Event Management !





product material size main tube brace tube Vice tube Shape length

Spigot aluminum truss

Aluminum Alloy 6061-T6/6082-T6
290*290mm 50*3mm 20*2mm 20*2mm
square/traingle/ladder/Arch

0.5-4m
350*350mm 50*3mm 25*2mm 25*2mm
390*390mm 50*3mm 25*2mm 25*2mm
400*400mm 50*3mm 50*2mm 25*2mm
400*500mm 50*3mm 50*2mm 25*2mm
400*600mm 50*3mm 50*2mm 25*2mm
450*450mm 50*3mm 50*2mm 25*2mm






Specification:

Aluminum Alloy 6061-T6/6082-T6

Main Tube

Vice Tube

Brace Tube

50x4mm/50x3mm

50x2/30x2mm

20x2/25x2/30x2mm

Tube size base on truss size or customer's request



Span(m) symmetrical load(kg) Deflection(mm) Centre Load(kg) Deflection(mm)
2 1800 10 1300 10
3 1500 25 1060 20
4 1200 40 880 30
5 880 55 620 40
6 750 65 380 65
8 510 80 195 85
10 410 95 120 95
12 210 110 95 105


Chaoda has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage truss structures prepared for high loading.

Chaoda truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and manufactured according to European standard EN13814 and welding EN1090 , we give you loading date, user manual and video to teach you how to use these truss .


Installation:


Test report:





Packing and shipping:

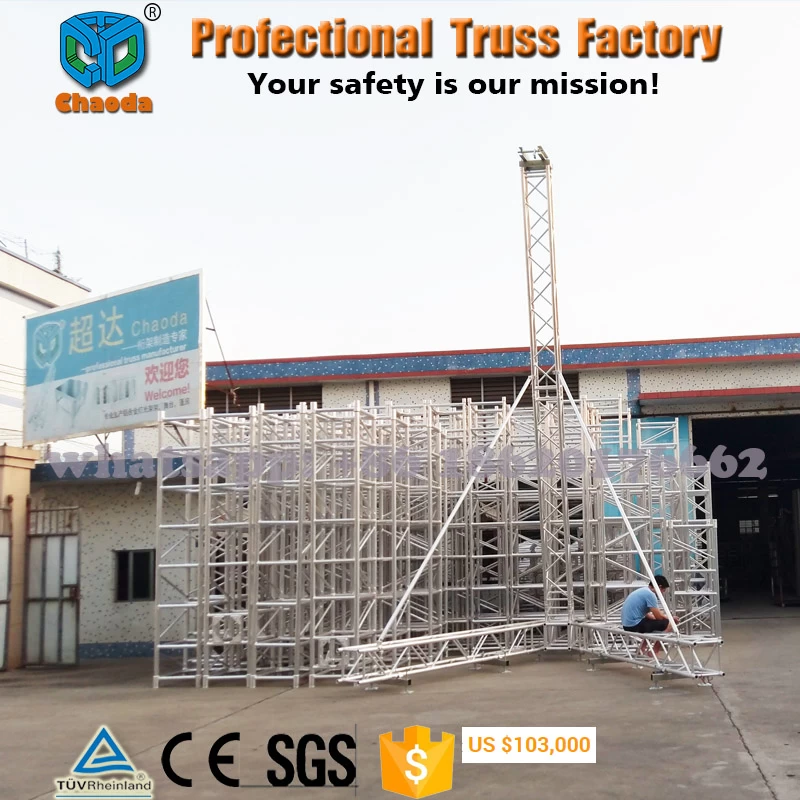

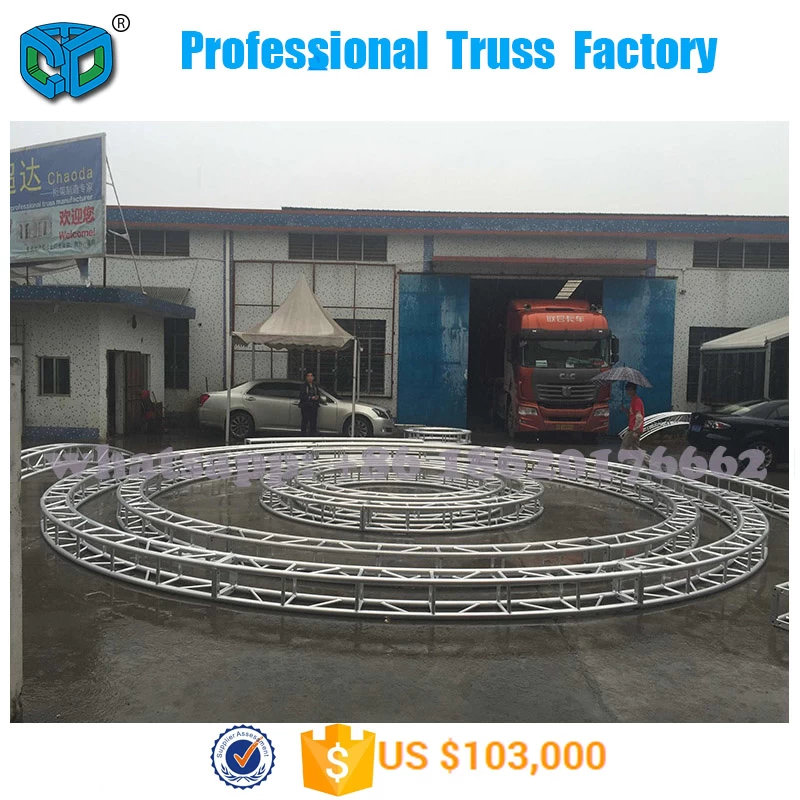

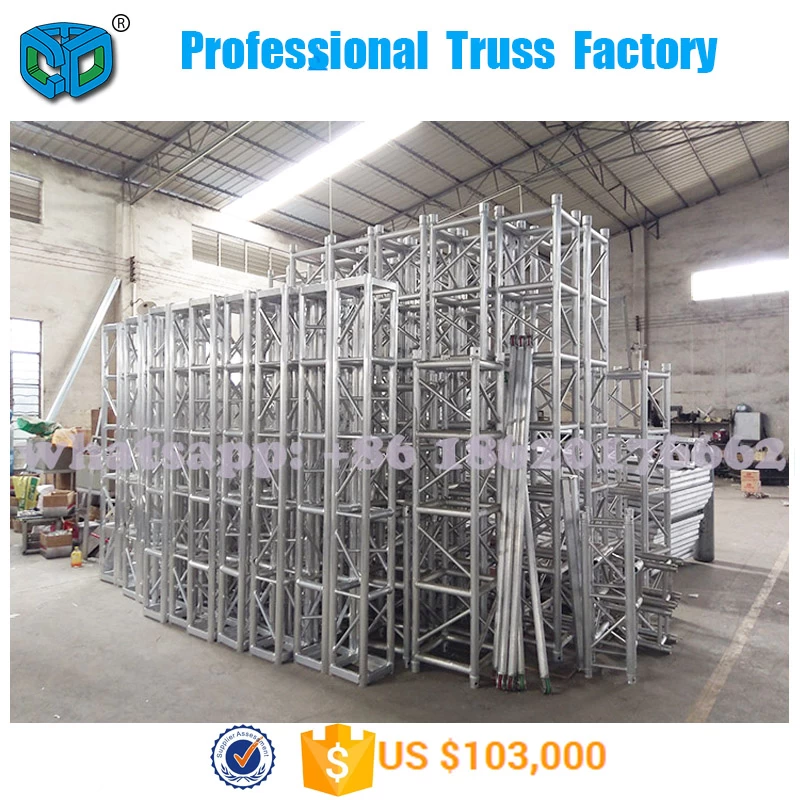

Factory:




FAQ:

1Q: What certificate do Chaoda Truss have?

     A: SGS and TUV certification.

2. Q: What is the terms of payment?

     A: We accept Western Union, by T/T, 30% of invoice value as deposit, 70% balance paid before shipment, and some others.

3. Q: Where is the loading port?

     A: Port Huangpu in Guangzhou or Ports in Shenzhen.

4Q: What is your packaging?

     A: Air bubble film or carton or flight case.

5Q: How long the deliver time?

     A: General it is about 5-15 days.

6Q: What is your after-sales service?

     A: Free parts provided once broken within one year.

7Q: Do Chaoda Truss accept OEM order?

     A: Yes, we welcome OEM order as well.
