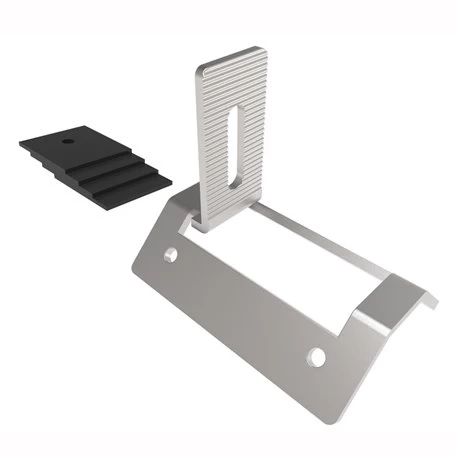

Trapezoidal Metal Roof Clamps(CPR-CS Series)
|
Product Name
|
Trapezoidal Metal Roof Solar Mounting Racking System (with Rail) CPR-CS Series
|
|
Mount Location
|
Sloped Roof
|
|
Mount Base
|
Trapezoidal Metal Roof
|
|
Mount Angle
|
0-15°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
Applicable Solar Panels
|
Framed Panels & Frameless Panels
|
|
Solar Panel Layout
|
Horizontal Panel Installation & Vertical Panel Installation
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
|
|
Rack Material
|
Al6005-T5 (Surface Anodic Oxidation）
|
|
Fastener Material
|
SUS304/SUS410
|
|
Mounting Accessories Material
|
Al6005-T5 (Surface Anodic Oxidation）
|
|
Column color
|
Natural Silver or According to Customer
|
|
Warranty Period
|
10 years
|
|
Service Life
|
25 years
|
|
|
|
Advantages:
1.Cost effective.
2.Waterproof for outdoor roof application.
3.6005-T5 aluminum made, anti-corrosion.
4.Suitable for trapezoid / corrugated roofing type.
5.Fast installation.

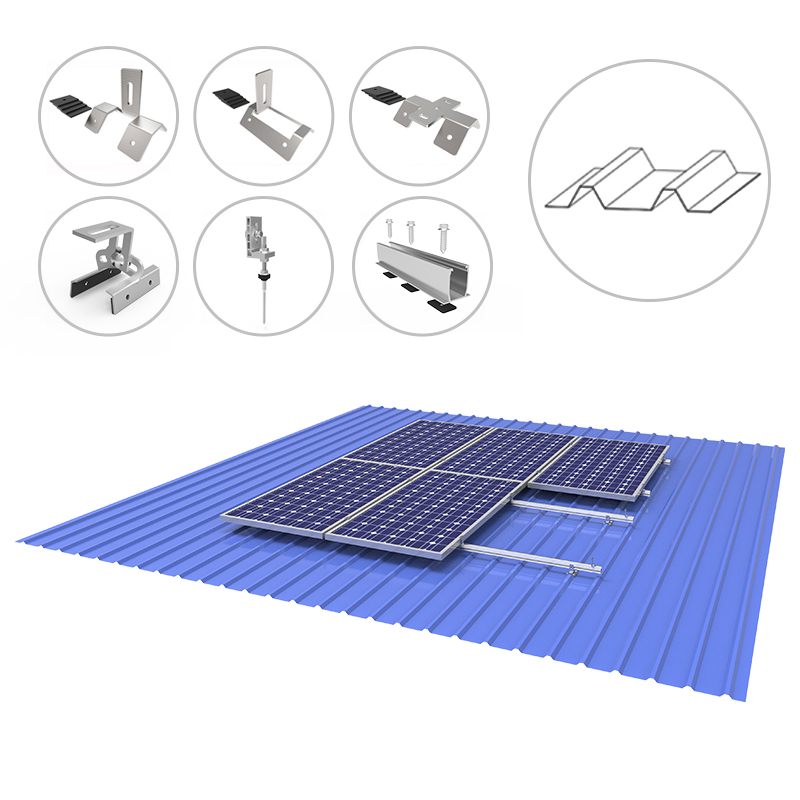

Suitable for trapezoidal metal roof

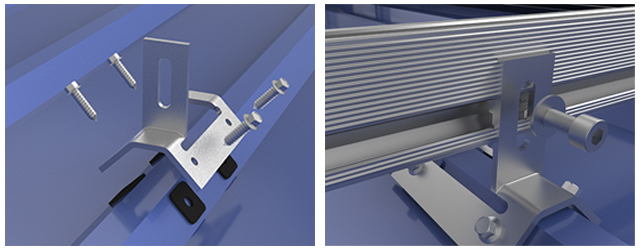

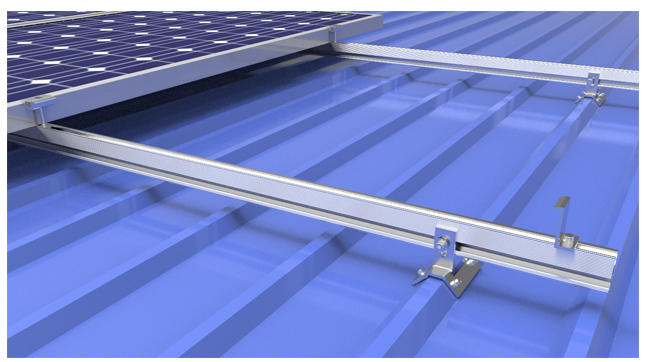

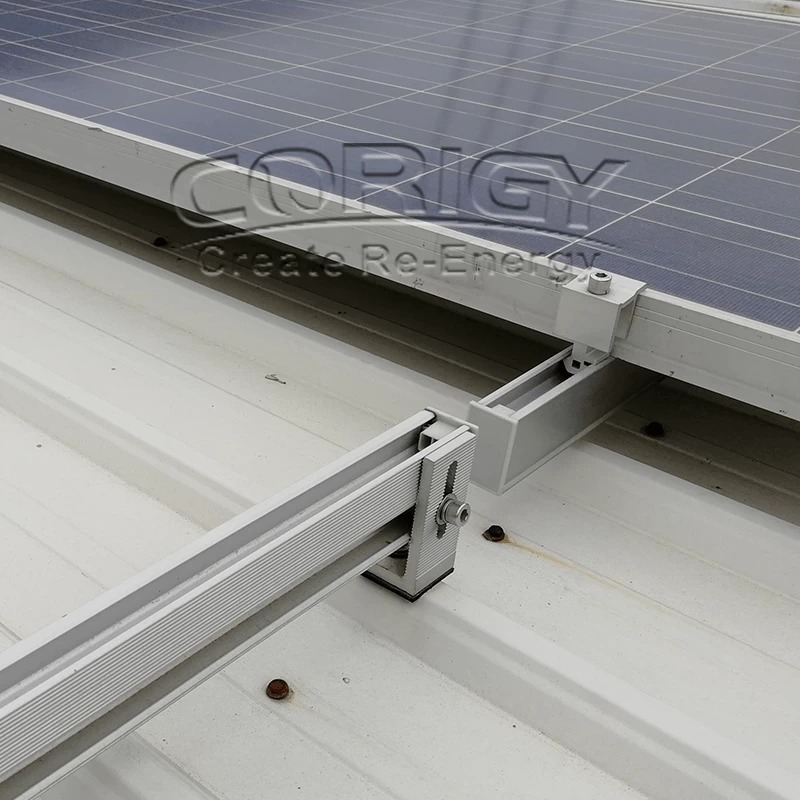

Fix the roof mounts on the trapezoidal metal roof first, and connect the clamp to solar mounting rail by bolt and toggle.
|
|
Roof mounting with Bolts,Washers,EPDM Washers,Self-tapping Screws
|
|
|
Solar rails
|
|

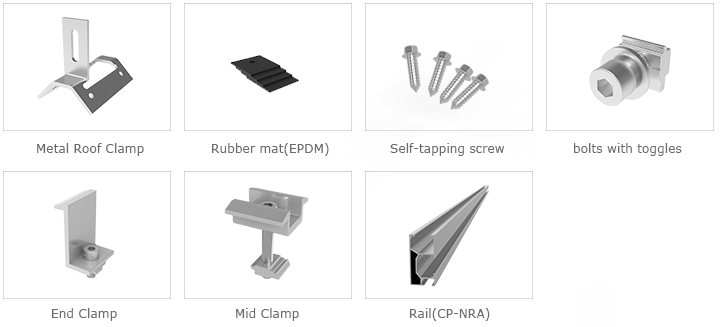

Racking Accessories
|
Bolt with Toggles
|
|
|
End Clamp with Hex Socket Head Bolts M8,Toggles
|
|
|
Mid Clamp with Hex Socket Head Bolts M8,Toggles
|
More Similar Products:

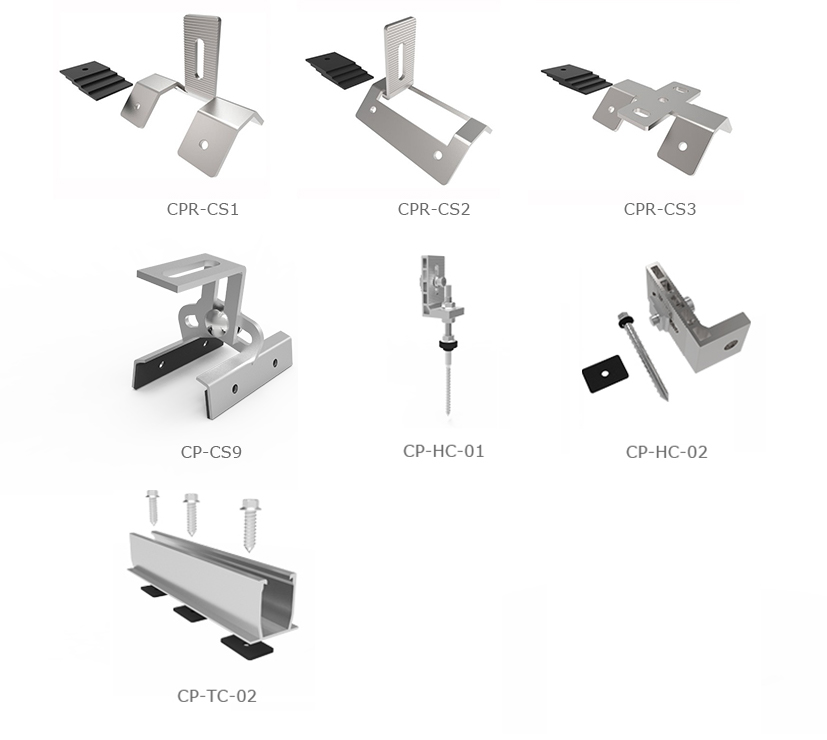

More options of trapezoidal metal roof rack mounting system.
