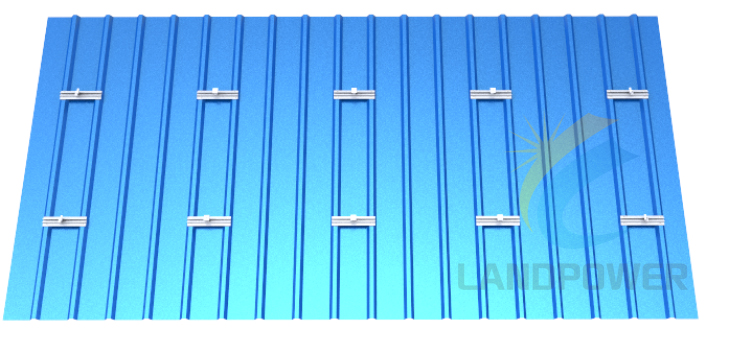

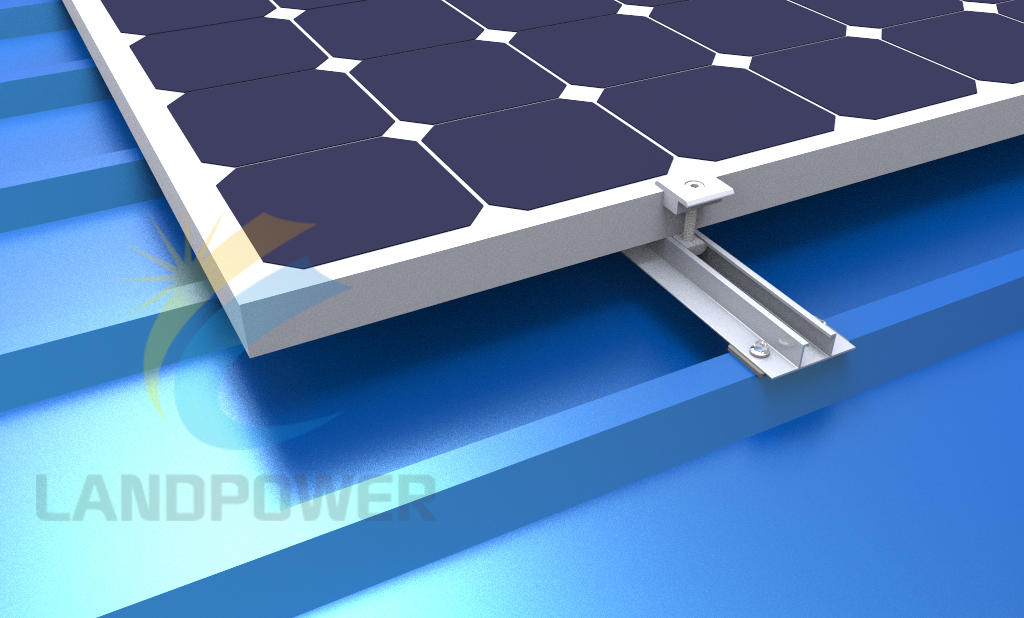

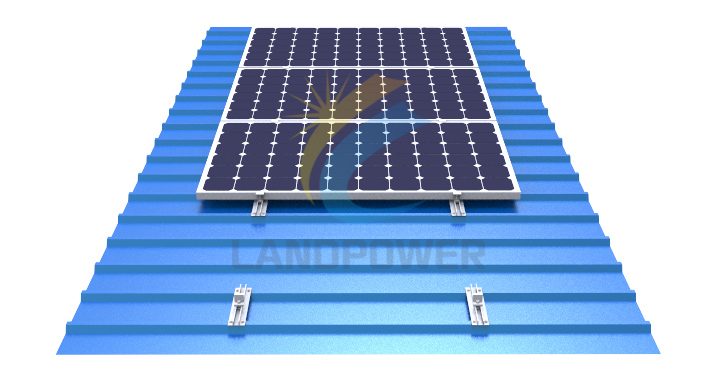

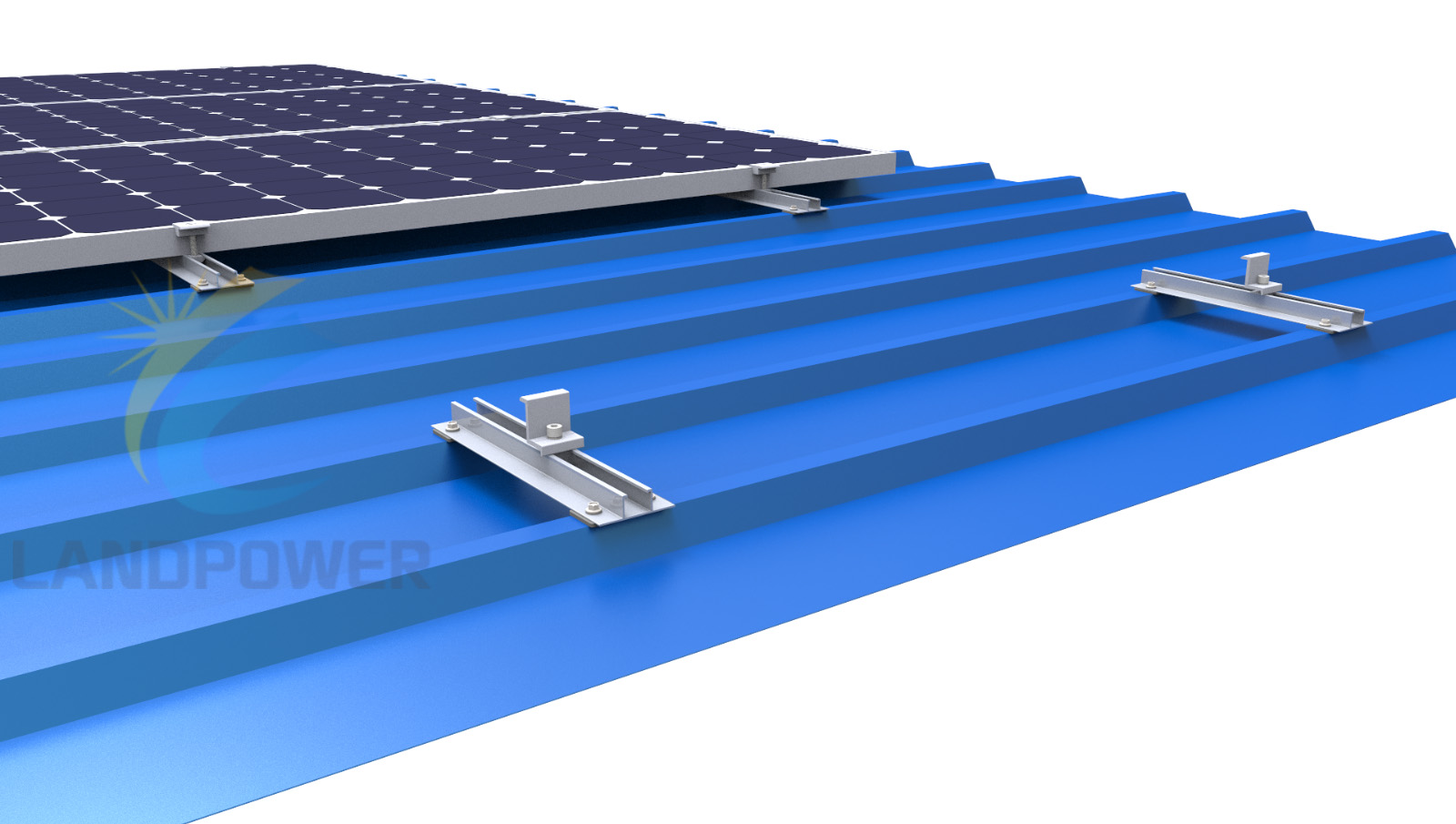

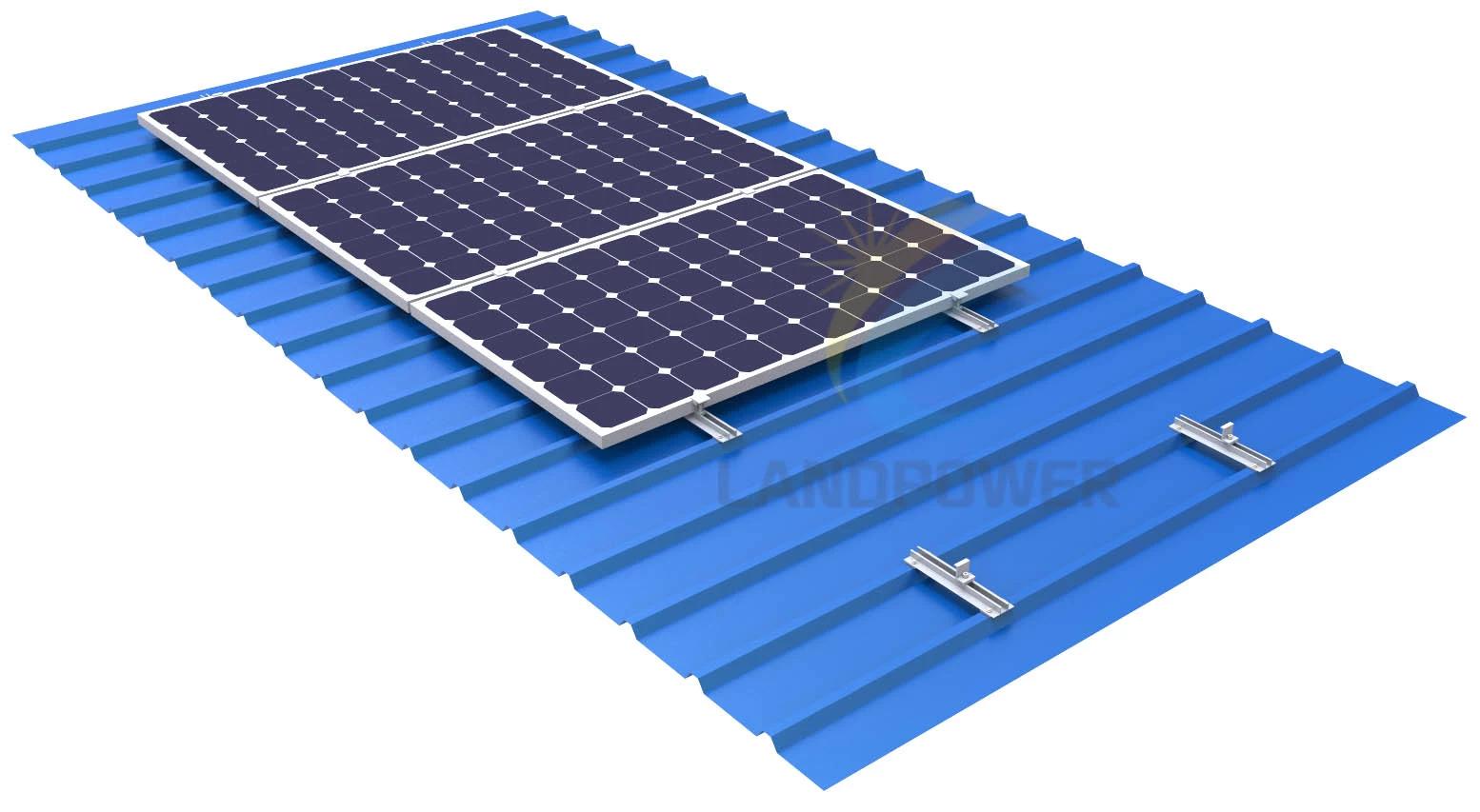

Landpower Trapezoidal Roof Mini Rail Mounting is simple and cost-effective solution for trapezoidal roof, this mounting system come just mini rail, mid clamp and end clamp, it is simple and easy to installing the panels. The Mini rail goes with rubber pad,make the installation water-proof. And the length of mini rail can be customized according to your trapezoidal roof to meet your specific conditions.

TECHNICAL INFORMATION

Install site ：Trapezoidal Metal Roof

Tilt Angle ：Flushed with the roof （10~60 deg）

Building Height：Up to 20 m

Max Wind Speed：<60m/s

Snow Load：<1.4KN/m2

Standard ：AS/NZS 1170 and other international Standard

Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty：12 years warranty and twenty- year service life

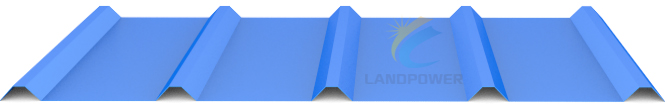

Mini Rail Solar Mounting System are suitable for below roof:

Note: Please let us know dimensition of A,B,C ad D so that we make a customized soutions for your projects.

 We design various roof attachment for trapezoidal roof,please contact us for your specific roof infomation,we do customized solutions for specific projects.
