Item: Tri Axle Closed Box Trailer For Grain transport
Feature of Grain Trailer For Kuwait
1.The grain trailer are suitable to carry bulk cargo mainly is grain,wheat etc. Very popular used in mid east countries like Saudi Arabia,Kuwait etc.
2.The main frame of grain trailers are made of high-tensile carbon steel Q345. Have reasonable structure,light weight,superior carrying capacity and no permanent deformation.
3.The grain trailers with heavy duty design,can carry cargo maximum reached to 60 Tons.Install Side Tipping Hydraulic
system. Ensure the grain can be unloaded faster.
Specification of Grain Box Trailer For Sale
|
Style
|
Grain Closed
Box Trailer With Side Tipper
|
|
Dimension(L*W*H):
|
13500*2600*2200
|
|
Main frame:
|
Heavy duty and
extra durability design; Opting for high tensible low carbon alloy Q345B steel;
I beam welded by automotive arc-submerge process
|
|
Payload(kgs):
|
60000
|
|
Tare
weight(kgs):
|
7500
|
|
Kingpin
|
3.5” bolt-in
|
|
Landing gear
|
19”
|
|
Tire size
|
315/80R22.5
(12 sets)
|
|
Rim size
|
9.0*22.5 (12
sets)
|
|
Axle
|
16 Tons, 3
Axle
|
|
Brake system
|
d Re-6
emergency relay valve, 46L air tank
|
|
Air Chamber
|
MBA T30/30
|
|
Electric
system:
|
One unit of
24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side
light, reflector, fog light; one set of 6-pin standard cable
|
|
Suspension:
|
Spring
suspension with 10 pcs of leafs spring
|
|
Painting:
|
S.A.2.5
standard sandblasting; Two coat of anti-corrosion prime; one coat of finish
painting
|
|
Hydraulic system
|
Chinese brand,
side tipping
|

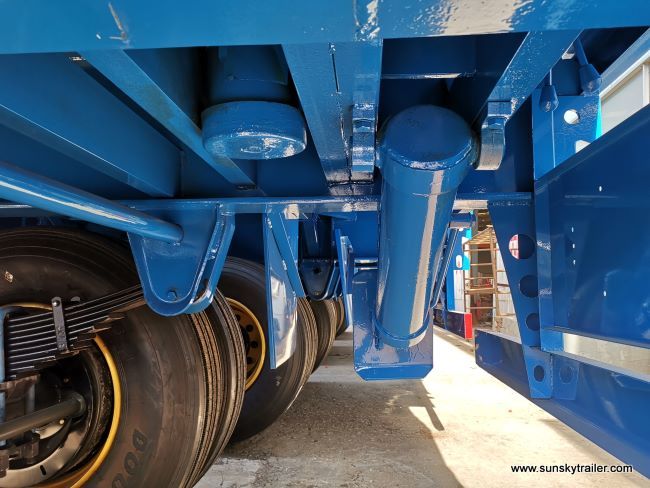

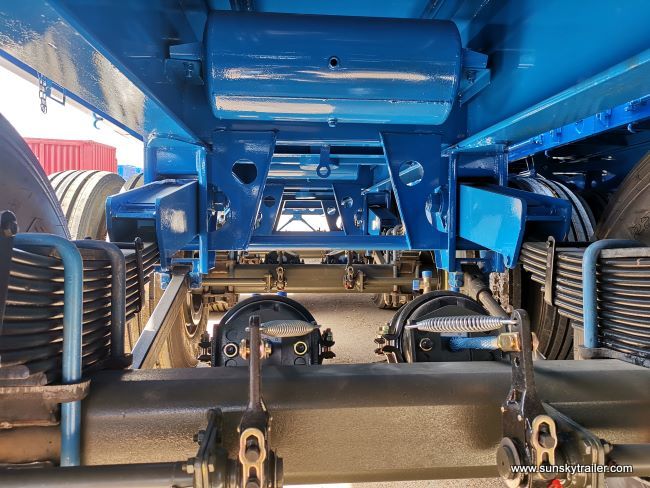

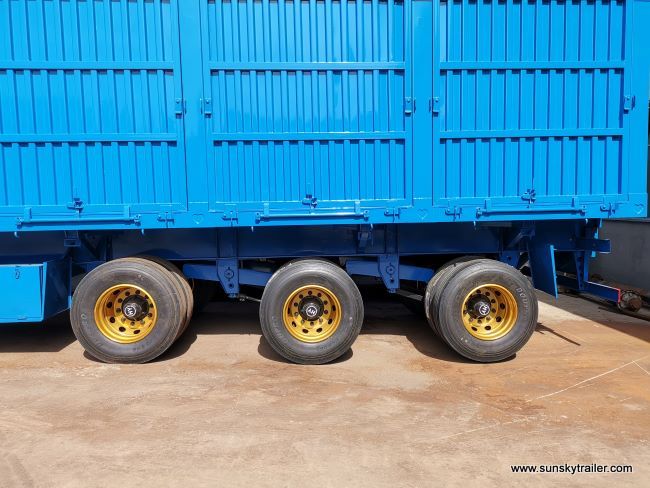

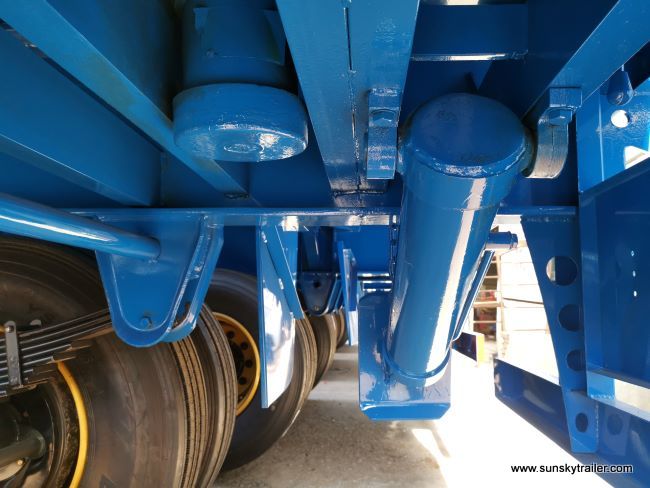

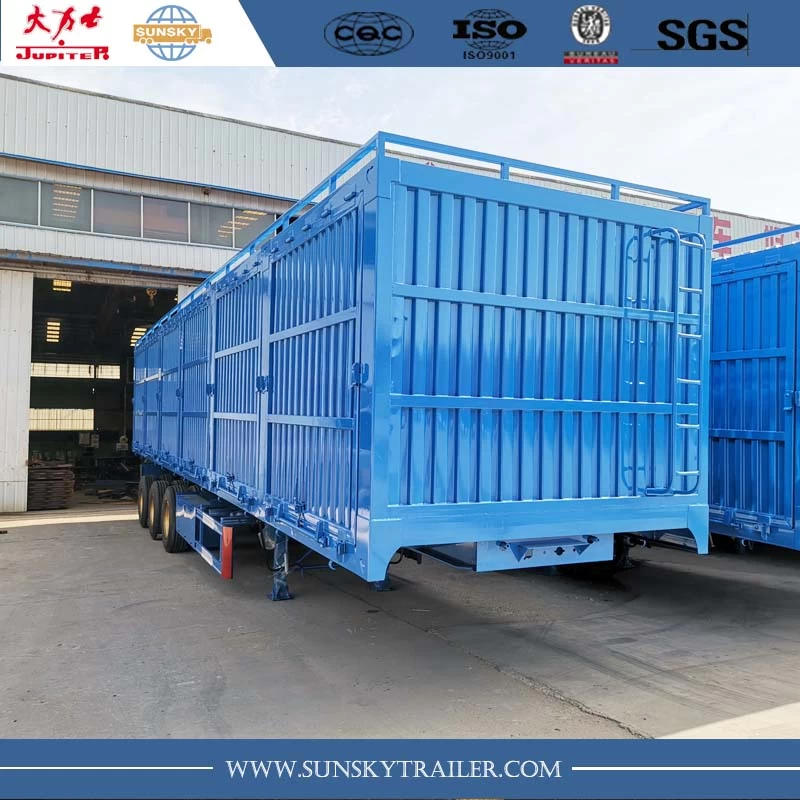

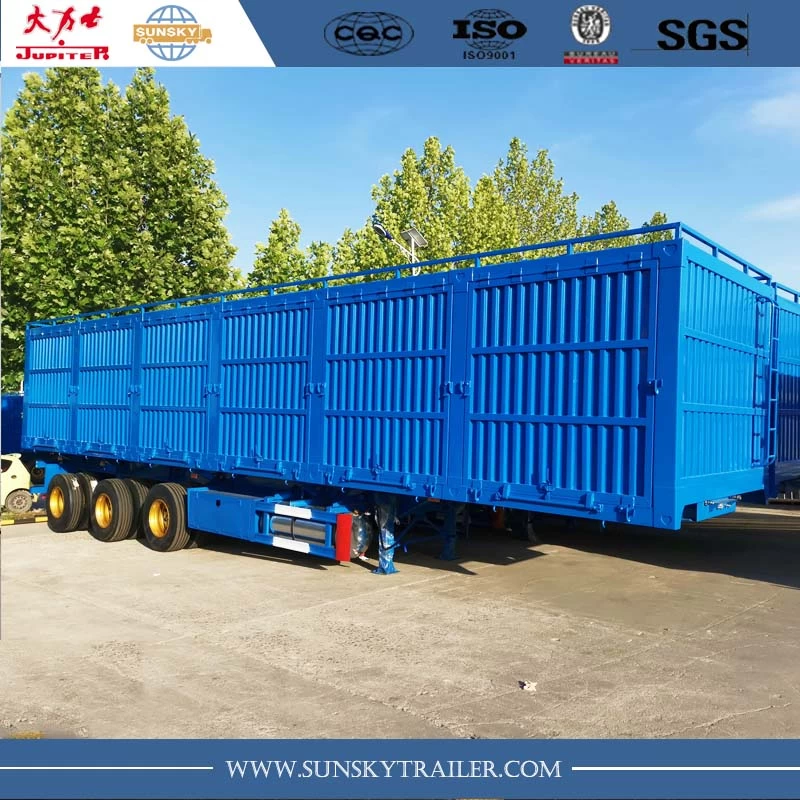

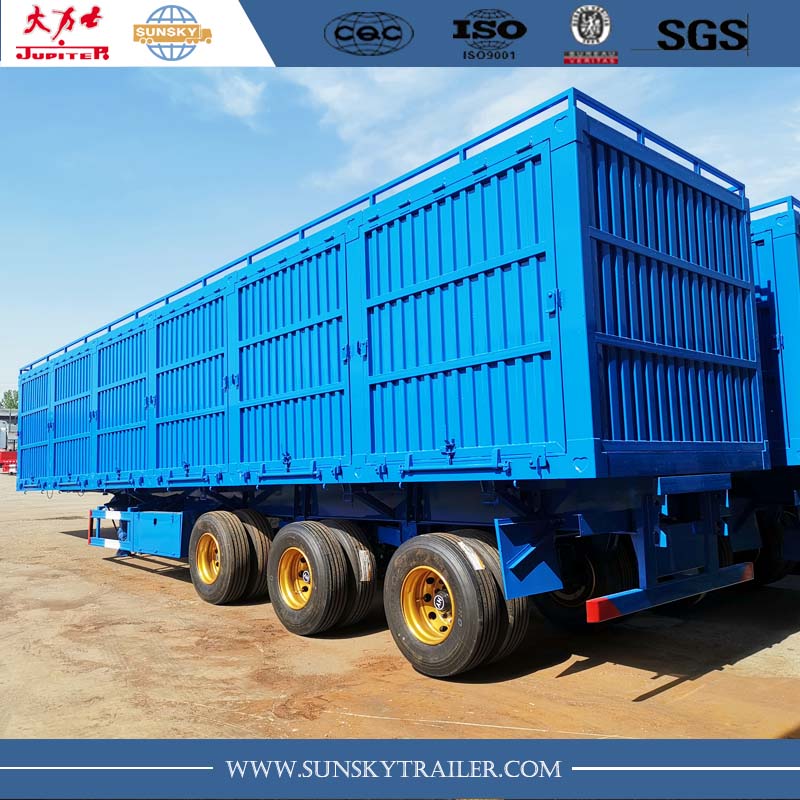

Detailed Photo
Quality Warranty
1. More than 30 years experience in manufacturing semi-trailers since 1984.
2. One year warranty on the chassis of semi-trailer.
3. Spare parts support service.
4. All trailers can be custom-built as clients requirements,We can also produce the trailers as your drawing and specification.
