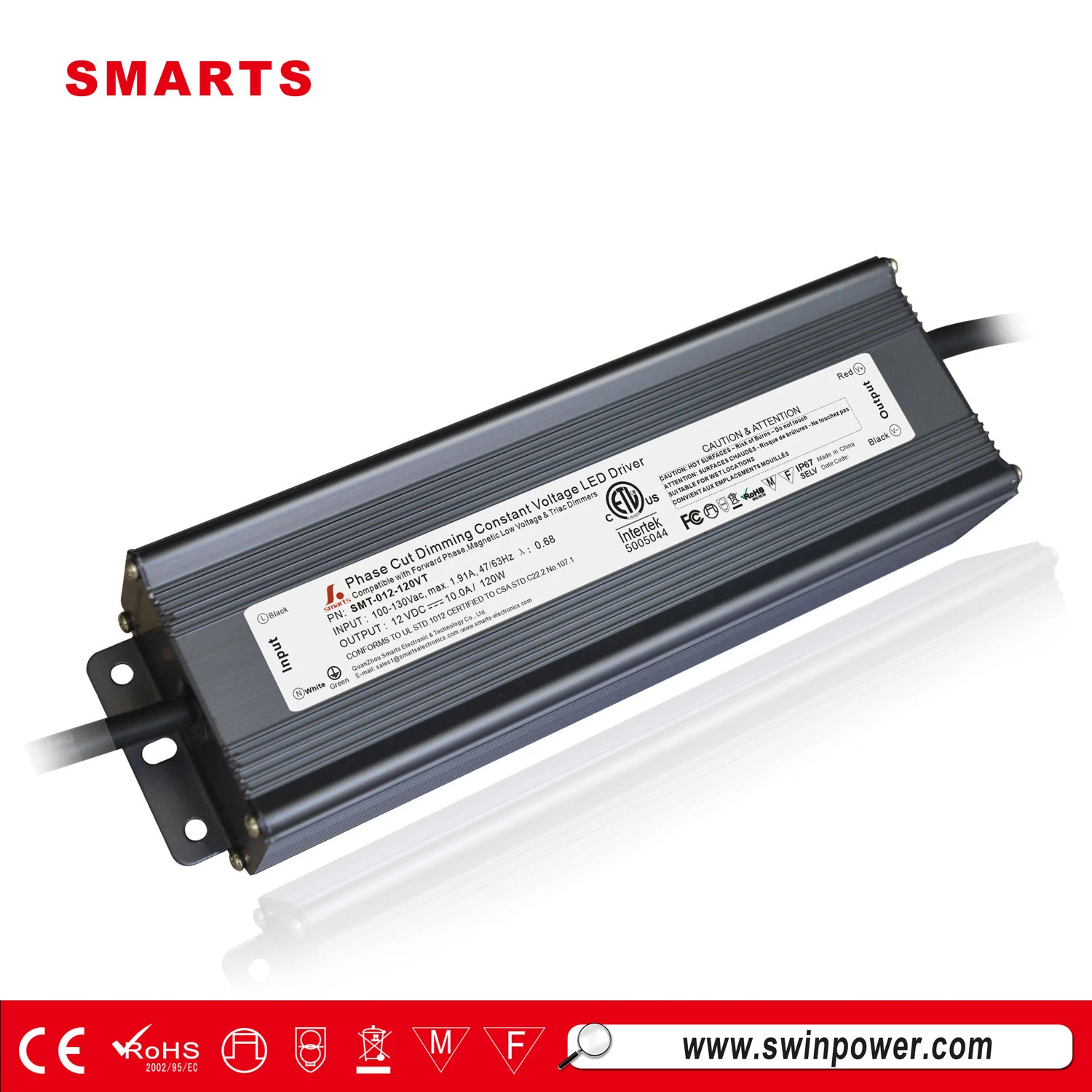

triac dimmable 12v 10a 120w led strip light power supply
PWM output , Constant Voltage ETL/cETL Listed AC phase-cut /triac dimming 12v 10a power supply provides outstanding LED dimming performance, continuous smooth full range flicker-free dimming, and was designed to work with a wide range of MLV (forward phase / leading edge) TRIAC dimmers, such as Lutron, Leviton, Crestron etc..
Specification
|
model
|
SMT-012-120VT
|
SMT-024-120VT
|
SMT-036-120VT
|
SMT-048-120VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
±0.5V
|
±0.5V
|
|
|
Rated current
|
10.00A
|
5.00A
|
3.33A
|
2.50A
|
|
|
Rated power
|
120W
|
|
Input
|
Voltage Range
|
100~130V AC/170～265V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.70/110V,PF≧0.70/170V,PF≧0.70/220V,PF≧0.70/265V
|
|
|
Full Load Efficiency（Typ.）
|
>84%
|
>84%
|
>84%
|
>84%
|
|
|
AC Current（Typ.）
|
1.86A/110VAC 1.20A/170VAC 0.93A/220VAC 0.77A/265VAC
|
|
|
Leakage current
|
﹤0.27mA/110V/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over voltage
|
≦140VAC(100~130V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN61347-1 EN61347-2-13
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
|
Size
|
230*70*46mm（L*W*H）
|
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

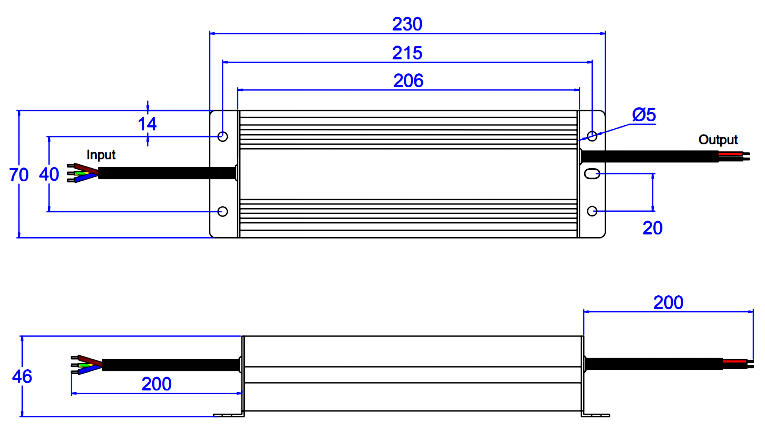

Mechanical Specification
Input with AC (L), (N), earth wire(G)
※Output cord: Red is（DIM+）,Black is（DIM-）
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Dimming Operation
-
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
-
Compatible with Leading edge or tailing edge triac dimmers.
-
please try to use the small power dimmers, which have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
