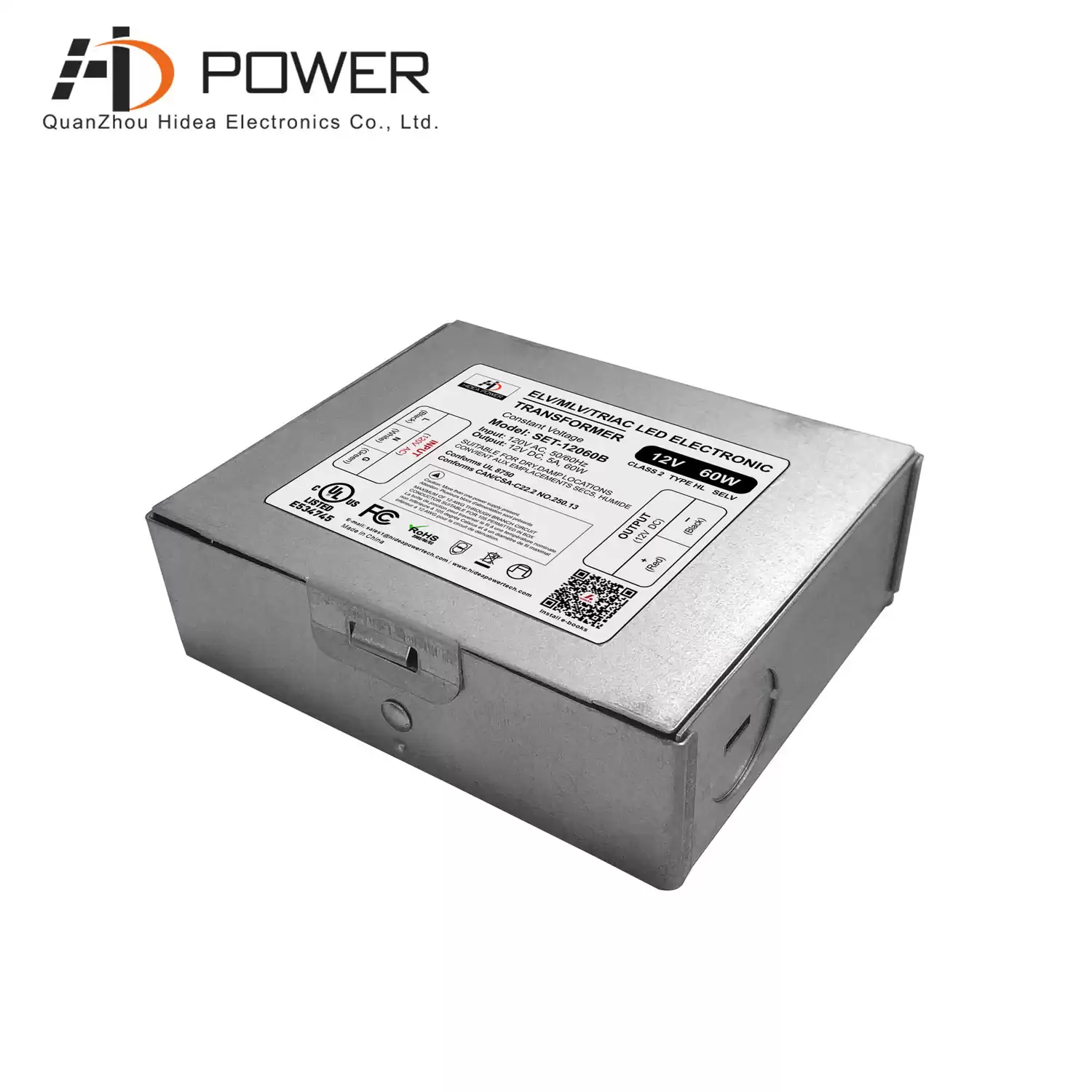

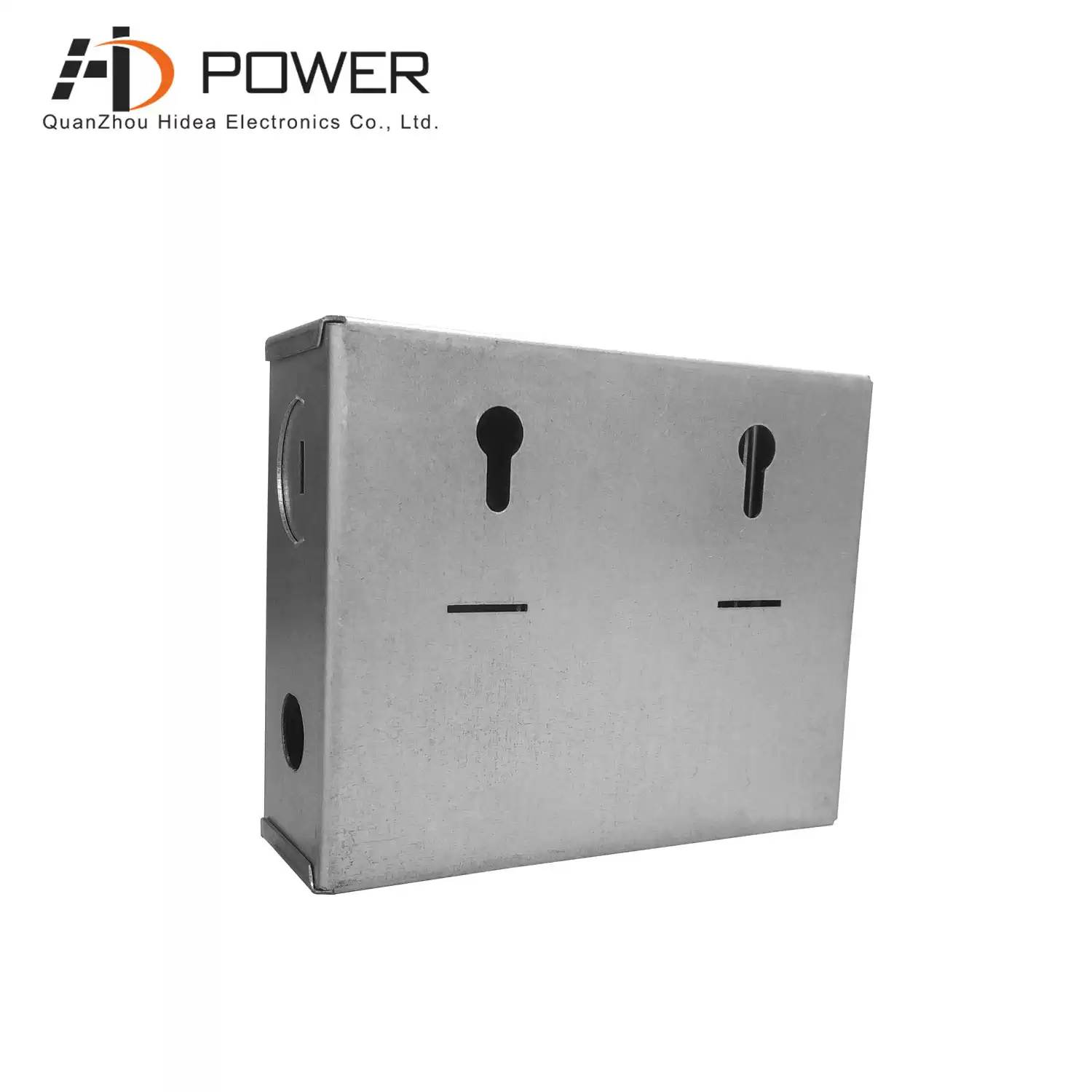

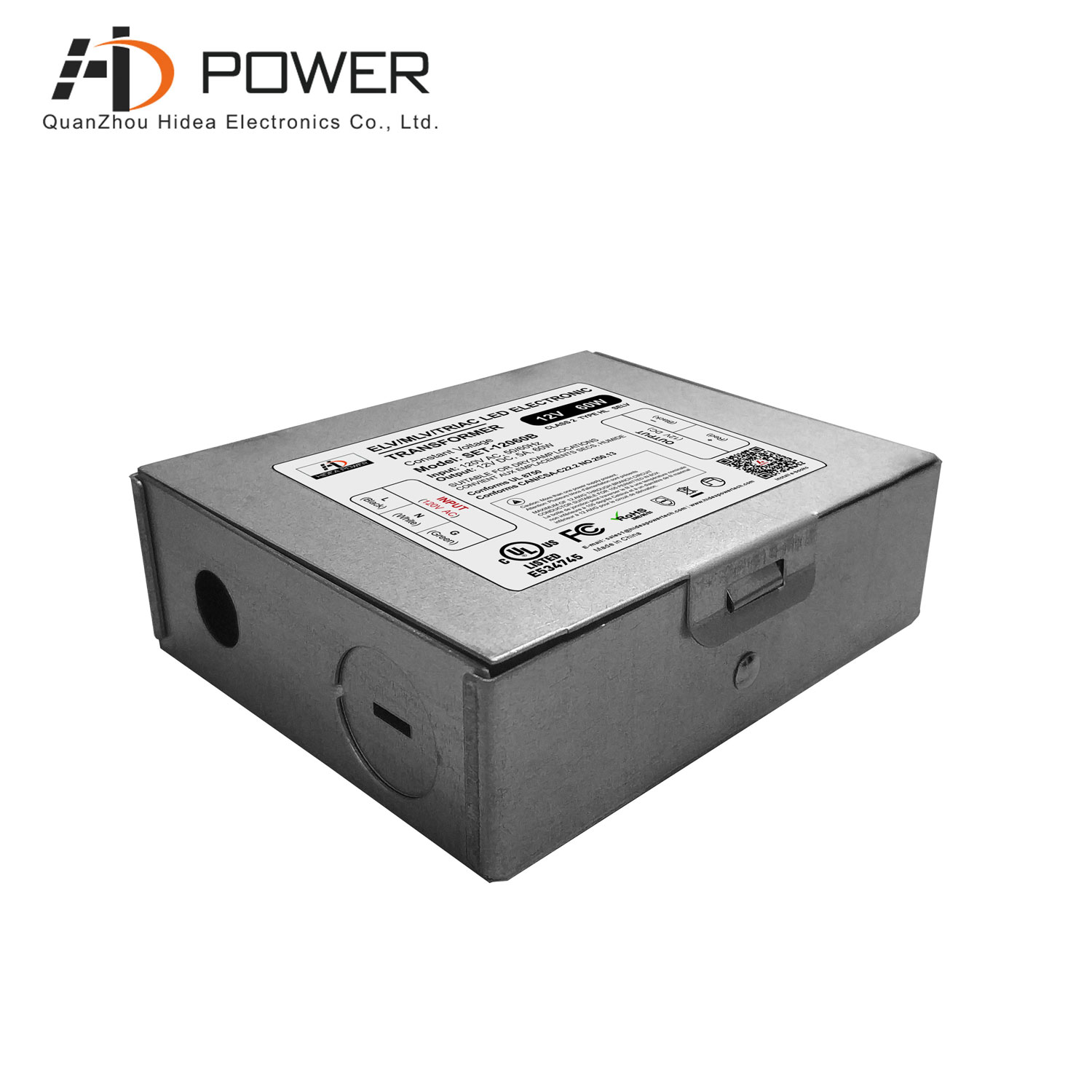

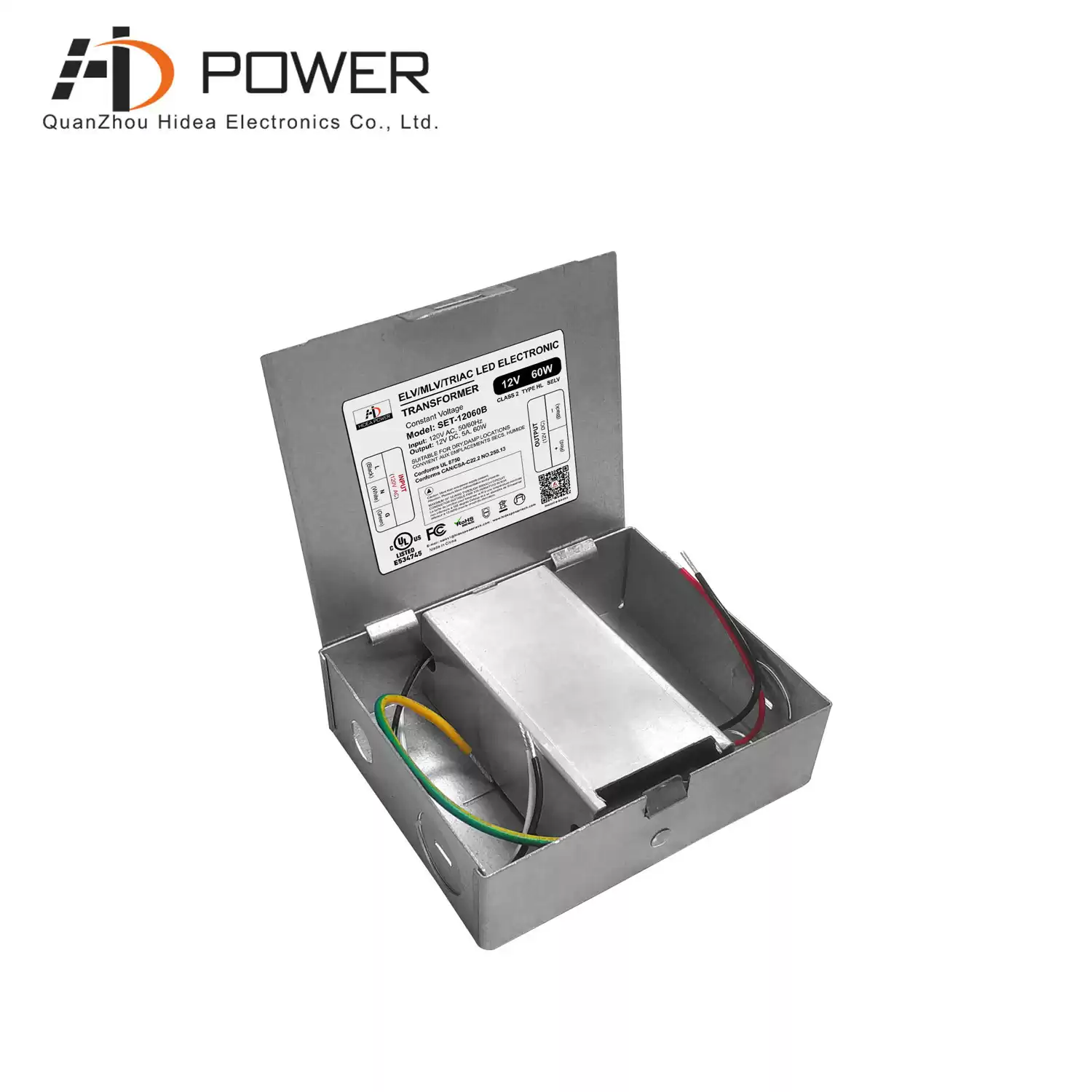

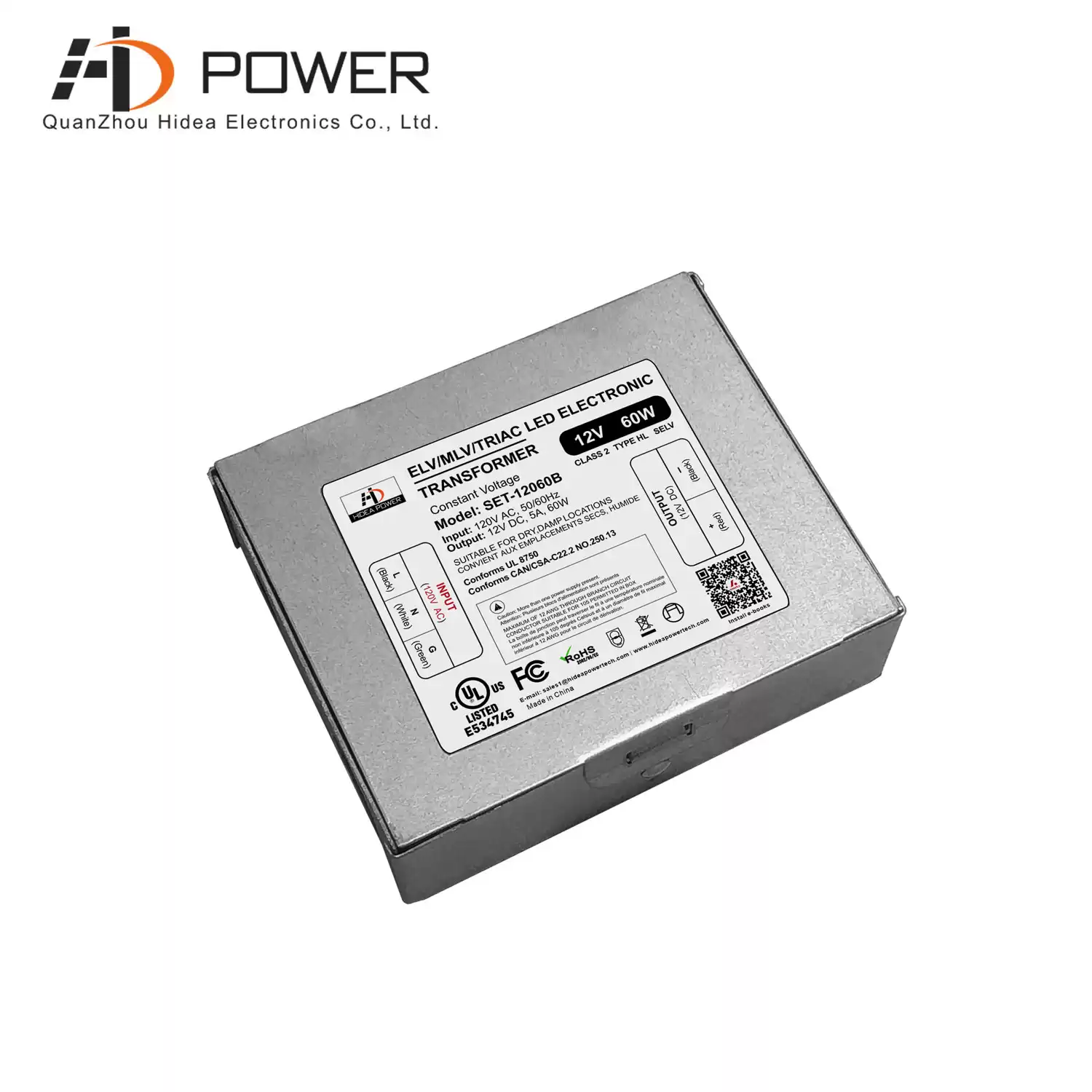

triac dimmable 12v dc constant voltage led strip driver electronic transformer 120v 12v
120vac input, triac dimmable 60W led electronic transformer, aluminum shell design, built-in active PFC function, typical power factor>0.98, with five-year warranty, can be applied to LED strip, LED tape, LED module, Residential Lighting, Commercial Lighting
Specification
|
Model Number
|
SET-12060B
|
SET-24060B
|
|
Output Type
|
|
Reted Power
|
60W
|
60W
|
|
Reted Voltage
|
12V
|
24V
|
|
Reted Current
|
5A
|
2.50A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input Type
|
|
Voltage Range
|
120V
|
|
Frequency Range
|
47-63HZ
|
|
Efficiency(Typ.)
|
86%@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Power Factor(typ.)
|
0.98@120VAC
|
|
AC Current(Typ.)
|
0.58A
|
|
Inrush Current(Typ.)
|
-
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Safety standards
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
4.17x3.50x1.31 inch (L*W*H)
|
|
Packing
|
-
|
Related Products
|

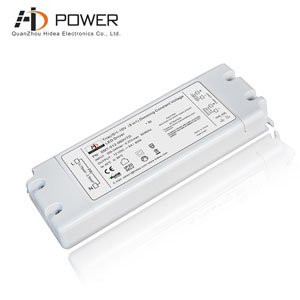

60w triac & 0-10v dimmable led driver plastic shell design, waterproof grade ip20, good heat dissipation, suitable for indoor lighting projects in small spaces
