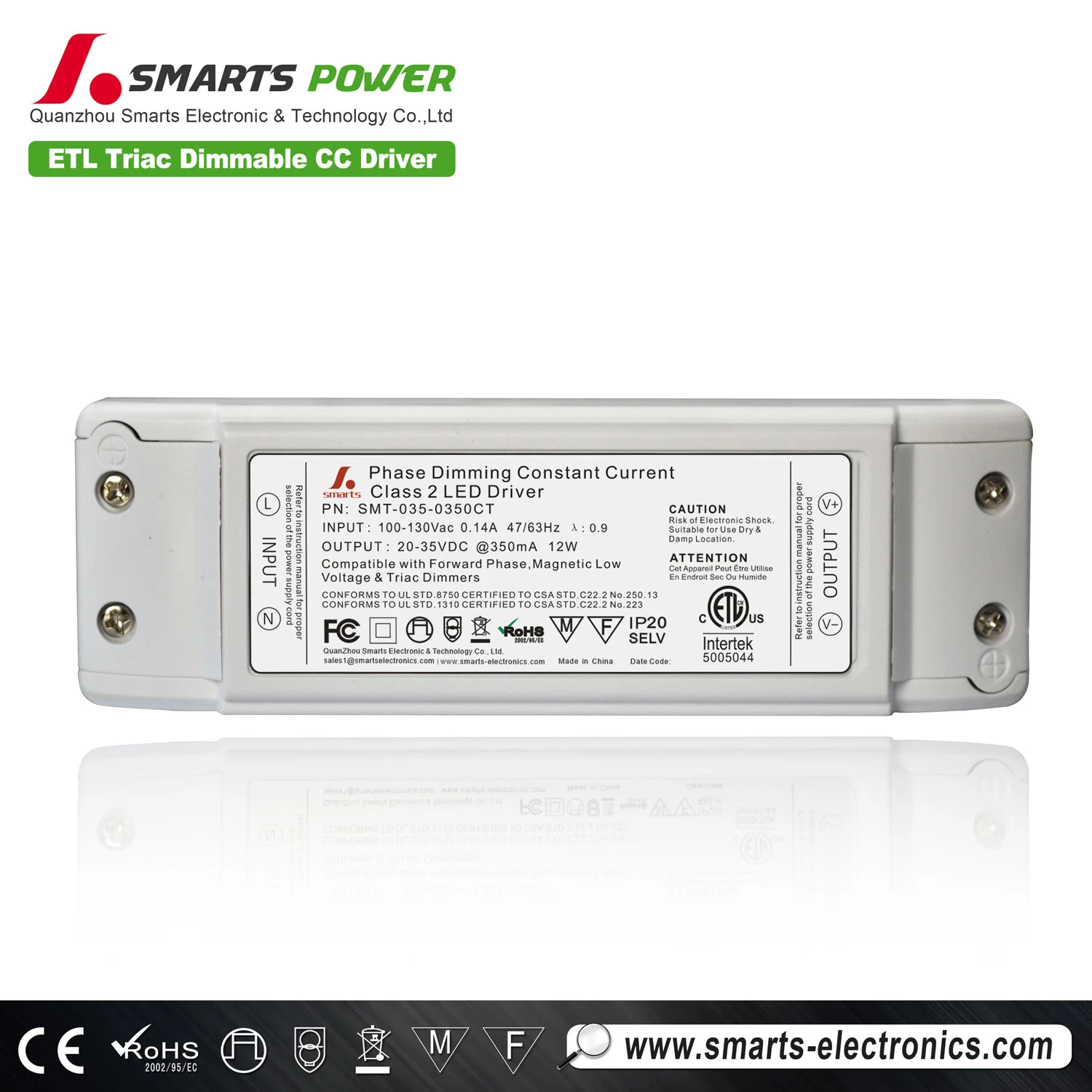

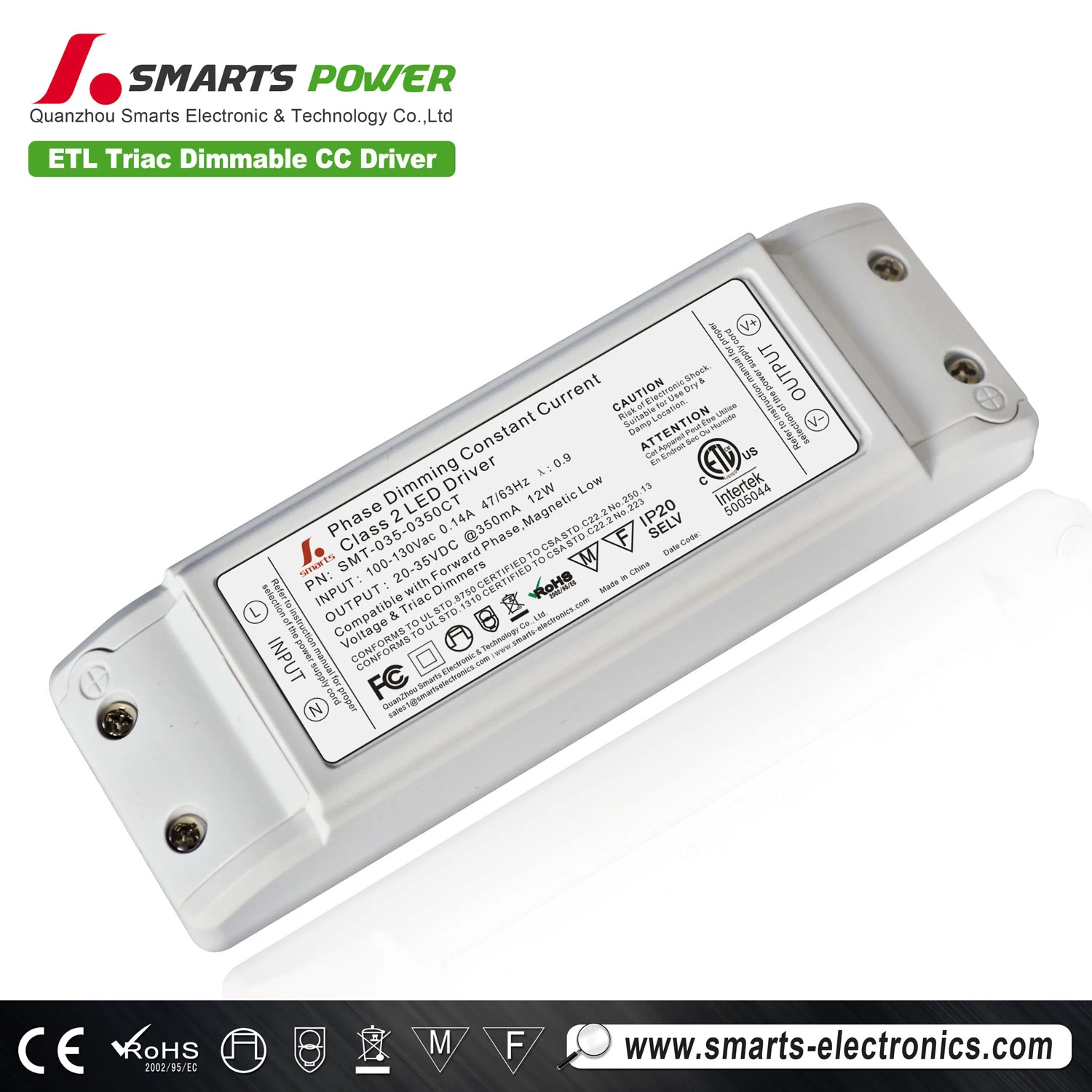

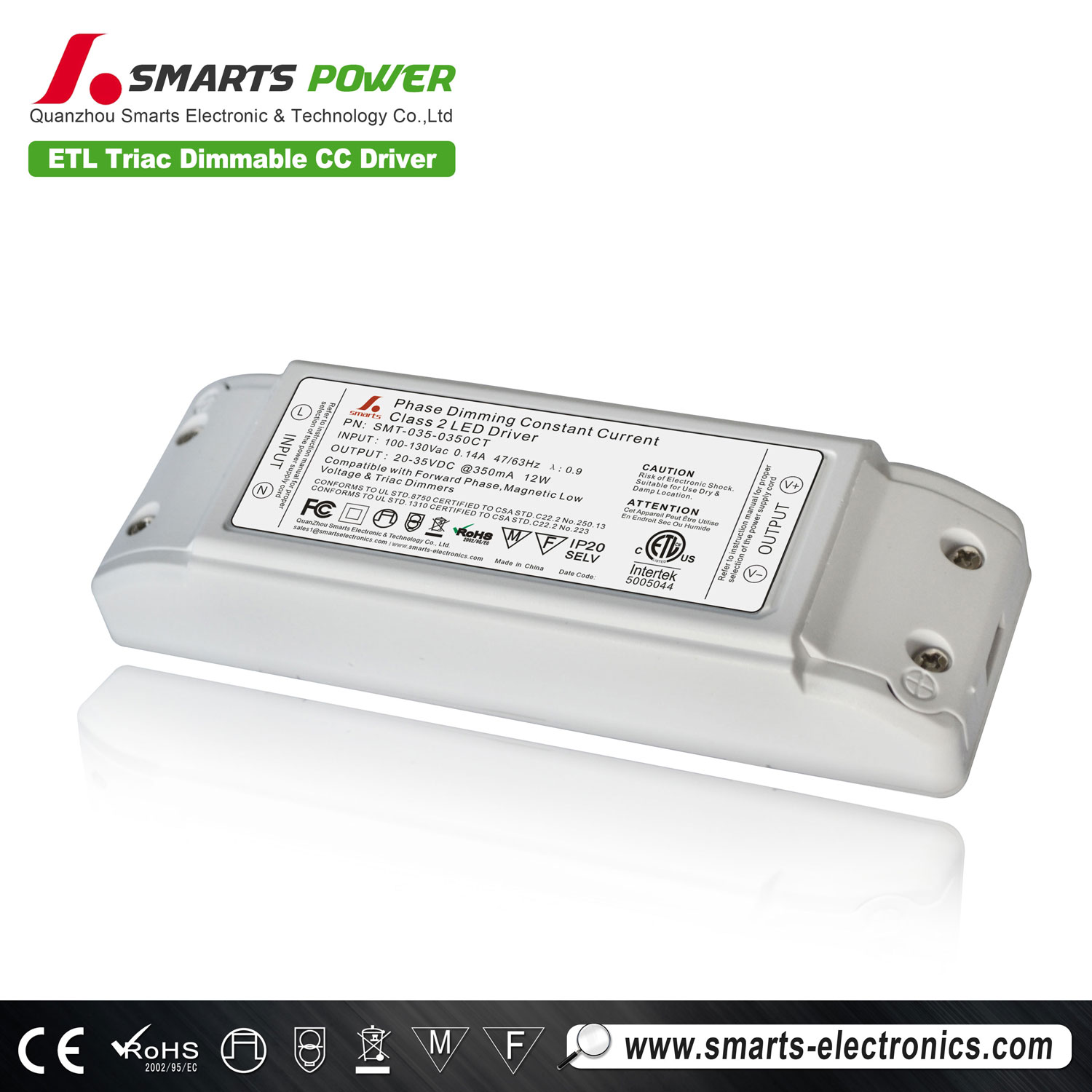

triac dimmable 350mA 12w LED power driver

350mA triac dimmable LED power driver ; high stability constant current led driver ; 350mA 12w LED power driver



triac dimmable 350mA 12w LED power driver

Product Description
Product parameters:

Model

Input voltage(vAC)

Working Frequency (Hz)

Output voltage

(vDC)

Output Current (A)

Output power (W)

Working Temp.

Protection grade

SMT-032-0320CT

90-135V/

170-265V

47~63Hz

15-32vDC

320mA

10W

-25~50°C

IP40

SMT-045-0320CT

90-135V/

170-265V

47~63Hz

20-45vDC

320mA

14W

-25~50°C

IP40

 SMT-030-0350CT

90-135V/

170-265V

47~63Hz

10-30vDC

350mA

10W

-25~50°C

IP40

SMT-020-0500CT

90-135V/

170-265V

47~63Hz

8-20vDC

500mA

10W

-25~50°C

IP40

SMT-015-0700CT

90-135V/

170-265V

47~63Hz

8-15vDC

700mA

10W

-25~50°C

IP40

SMT-035-0350CT

90-135V/

170-265V

47~63Hz

20-35vDC

  350mA

12W

-25~50°C

IP40

 SMT-018-0350CT

90-135V/

170-265V

47~63Hz

8-18vDC

350mA

 6W

-25~50°C

IP40

Specifications:

  1. Working mode: Constant current
  2. Energy transfer: AC-DC
  3. Dimming mode: Triac dimmable
  4. PF:>0.90
  5. Efficiency: 88%
  6. RippleI & Noise (max.) : 150mVp-p
  7. Voltage Tolerance : ±5%
  8. Line Regulation : ±1%
  9. Load Regulation : ±2%
  10. Case material:  Plastic housing
  11. Waterproof rate:  IP40
  12. Produt cord:connecting terminal(IP20) / 18AWG*20CM
  13. 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant current
  5. Protections:Short circuit/Overload/Over temperature
  6. Cooling by free air convection
  7. 100% full load burn-in test.
  8. Suitable for LED lighting
  9. Brand electrotronic components.
  10. ROHS material.

Environment:

  1. Working temp: -30~+50℃ (Refer to output load derating curve)
  2. Working humidity: 20~99% RH non-condensing(Waterproof)
  3. Storage temp. humidity:  -40~+80℃,10~99%RH

Safety:

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  1. indoor LED illuminating lights, LED Neon
  2. LED urban Decoration,LED Lighting Advertising
  3. LED Display, Safety Protection Apparatus
  4. Telecommunications, Networks
  5. Vehicle Lights, Controller Panels
