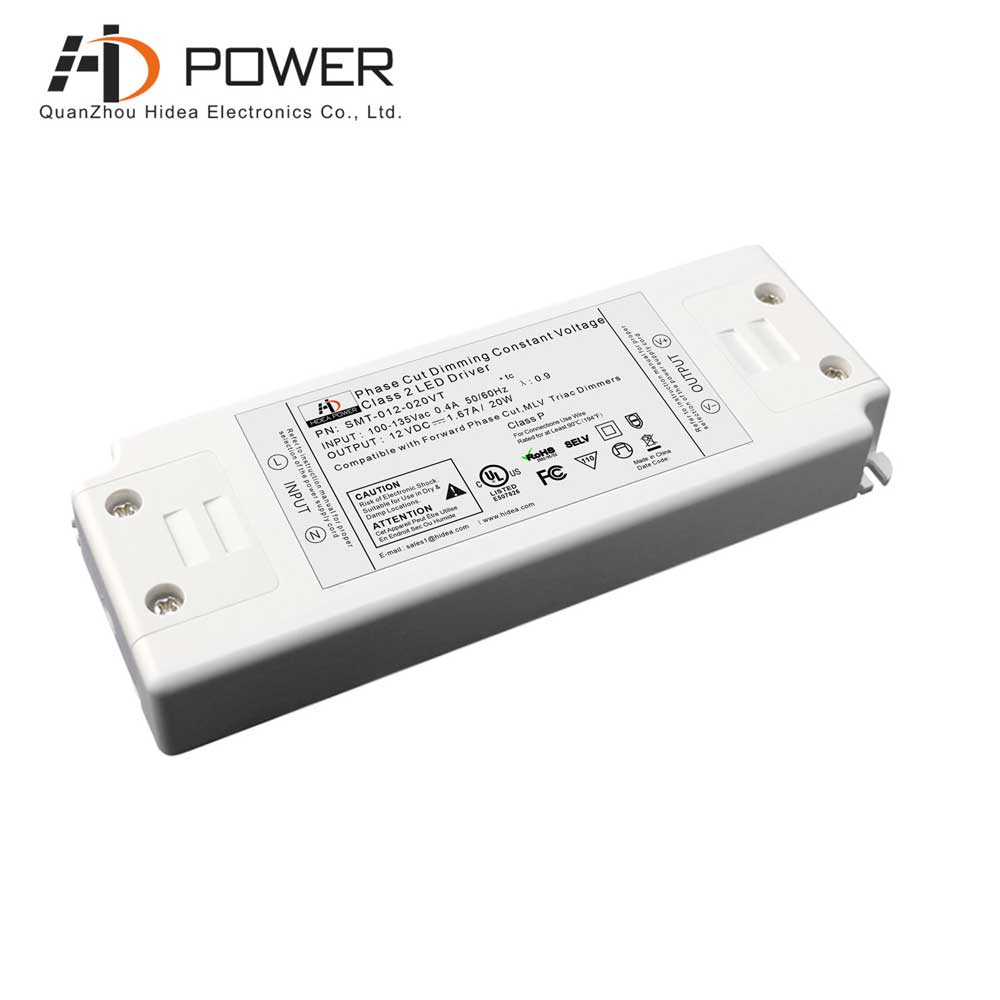

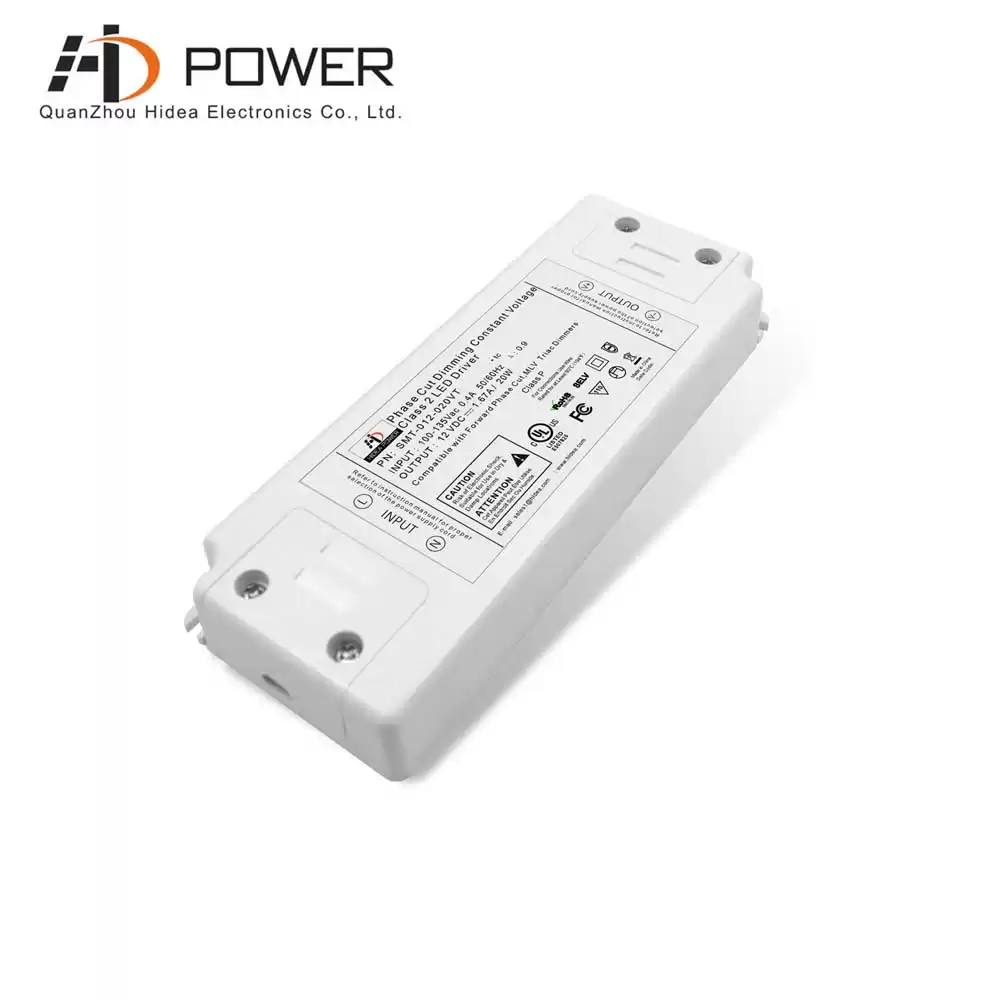

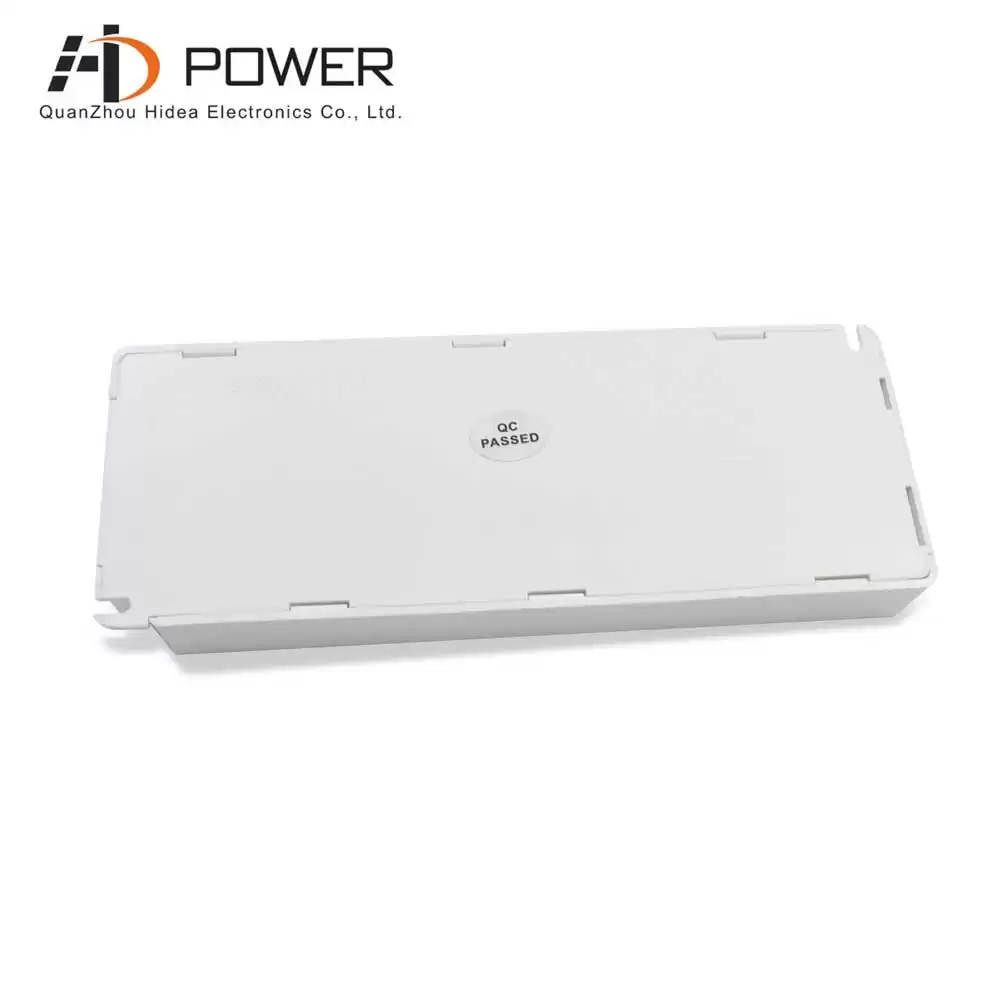

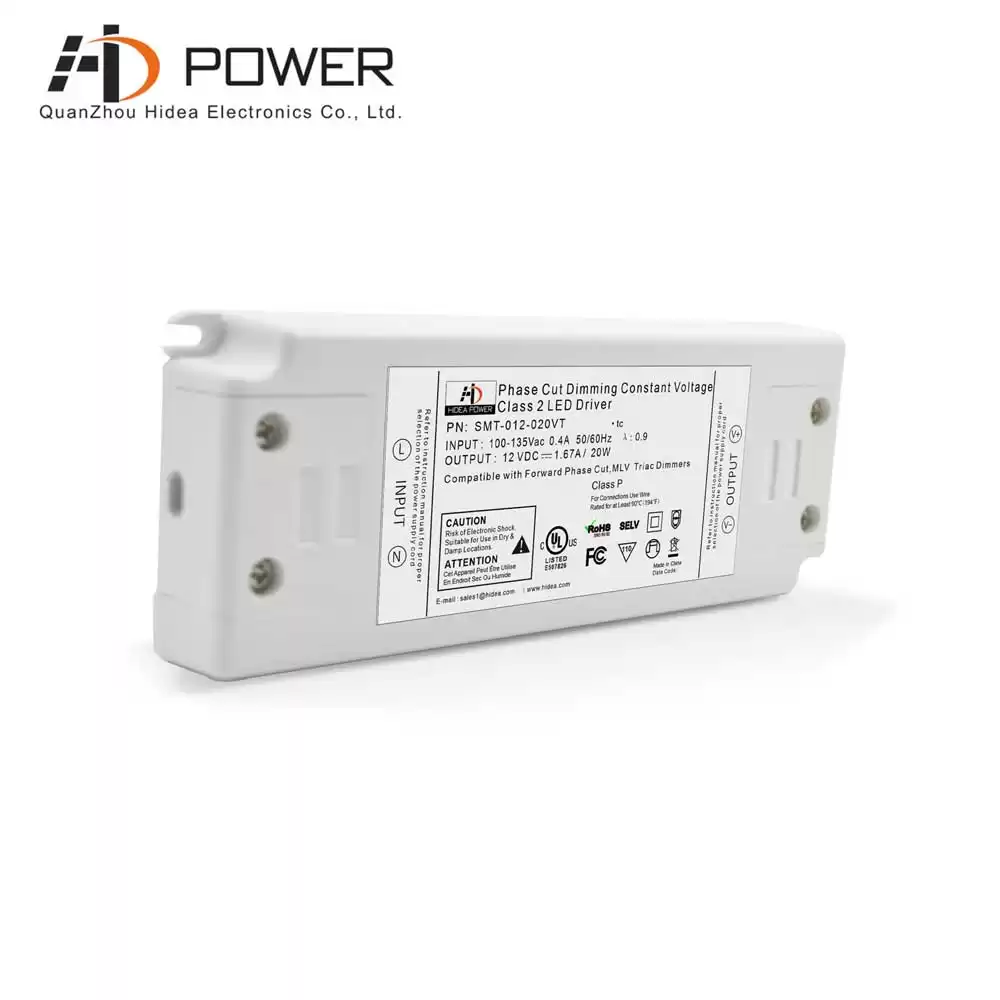

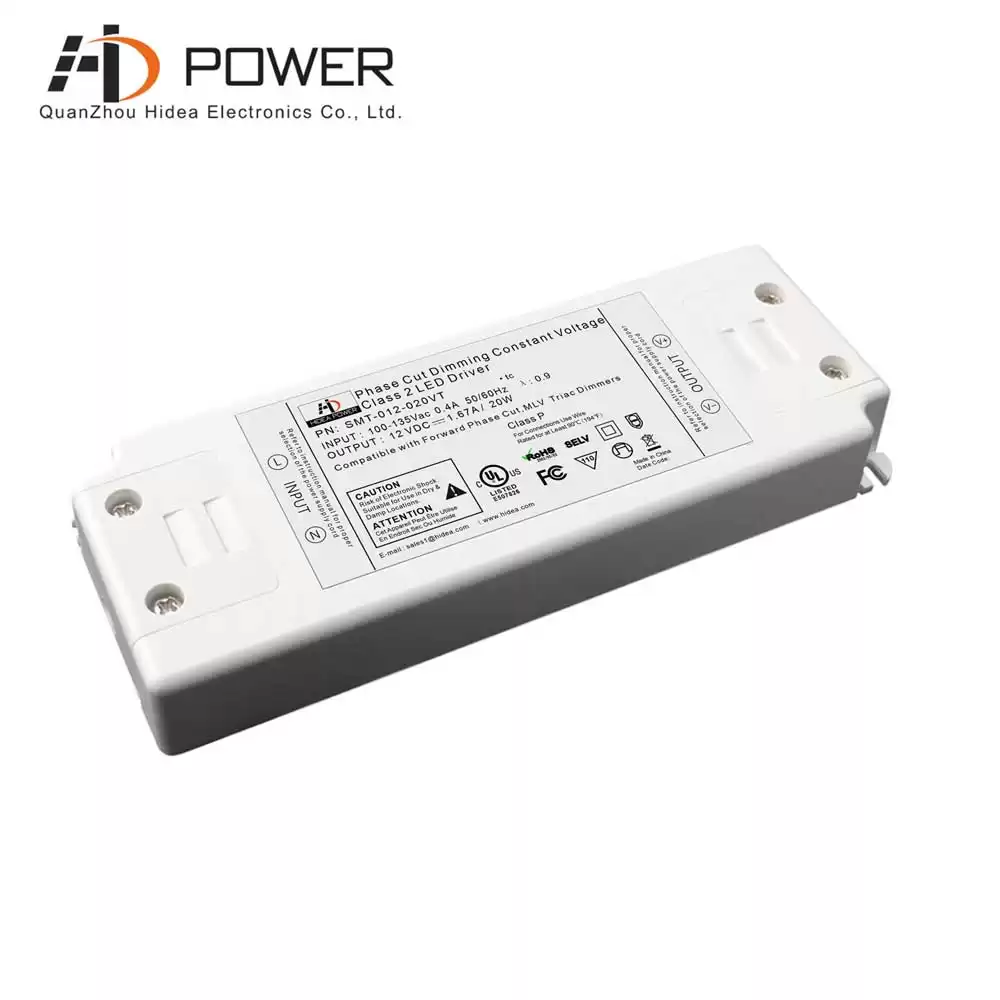

triac dimmable low voltage transformer 12v 20w led driver with pwm ouput IP20

This small 20w led driver is a hardwire class 2 driver and compatible with CreeLighting LED floodlight PWY-EDG. Allows to dim LED strip lights, LED tape light, LED mirror. The drivers will also need cable to travel from LED strips to the driver.


  • Size145*55*19.5MM
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)20W
  • Input Voltage100-130Vac
  • Input Voltage170-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeTriac Dimming
  • Weight160g
  • CertificationUL SAA
  • Warranty5 Years

triac dimmable low voltage transformer 12v 20w led driver with pwm ouput IP20

This 12v 20w triac dimmable led drivers have got ce,saa,c-tick,ul fcc,rohs/ Class 2 /Class P/ type HL approval, and it provide 5 years warranty. This drivers can work well with PHIPLPS dimmers.

  Specification

Model SMT-012-020VT SMT-024-020VT
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Rated current 1.67A 0.83A
Rated power 20W
Input Voltage Range 90~135VAC / 180-265VAC
Frequency Range 47~63HZ
Power Factor PF≥0.95(Full loading)
Efficiency(Typ.) 78% 79%
AC Current(Max.) 0.26A 0.24A
Leakage current ﹤0.50mA/120VAC
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Current ≤1.2*I out
Over Loading ≤120%
Over temperature 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
Environment  Working TEMP. -40~+60℃
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
  Safety standards UL8750+UL1310   Class 2 unit
Safety& EMC Withstand voltage I/P-O/P:1500VAC
  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
  EMC EMISSION FCC Part 15 B
Others Net. Weight 0.2Kg
Size 140*55*19.5mm(L*W*H)
packing 350*280*215mm  50PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3.Loading should be 60-100%.

led driver 12V
dimmable led driver
constant voltage led driver
SMARTS led power supply


  Compatible Light Type

This triac dimmable 12v 20w led driver is designed to operate with an input voltage in the range of 100 VAC to 130 VAC or 170 VAC to 265VAC. It can match good with ENVIROLITE led strip lights.

led driver with pwm input
