Triangular Mounting System
Triangular Mounting System is specially designed for RC Flat roof projects. It is an adjustable Green Energy Power Station that provides a whole building's Power need.
Material
|
AL 6005-T5/SUS304
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 12μm Average
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
0.45KN/m2
|
Panel Orientation
|
Landscape
|
Tilt Angle
|
5°~30°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years quality warranty, 25years life span warranty
|

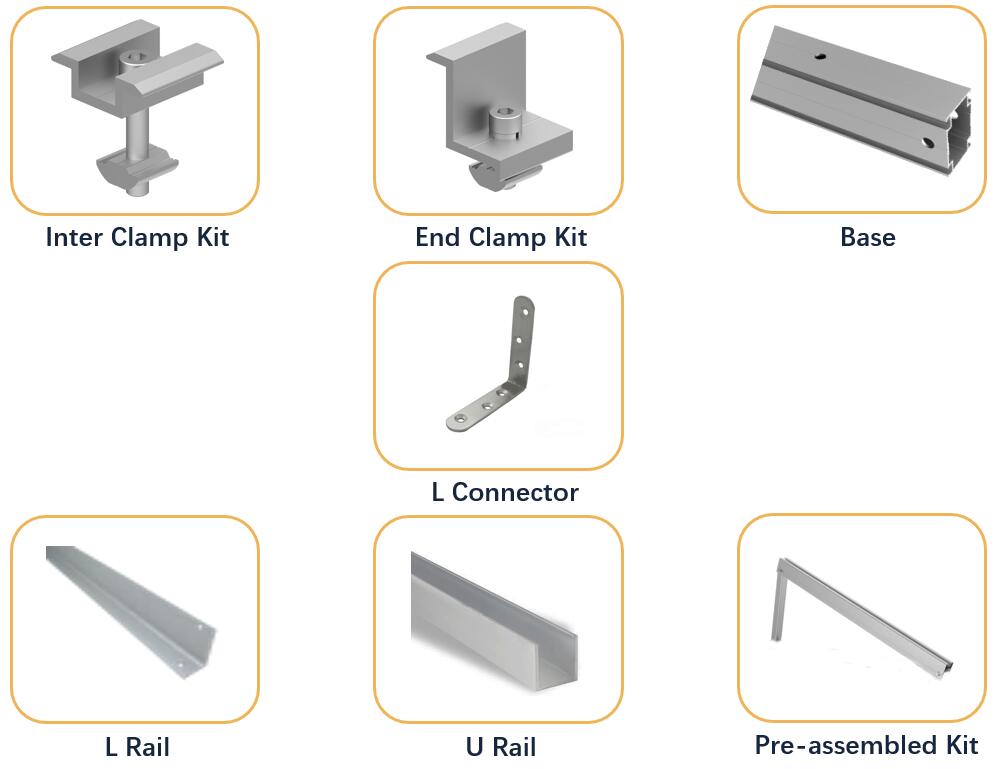

Component List

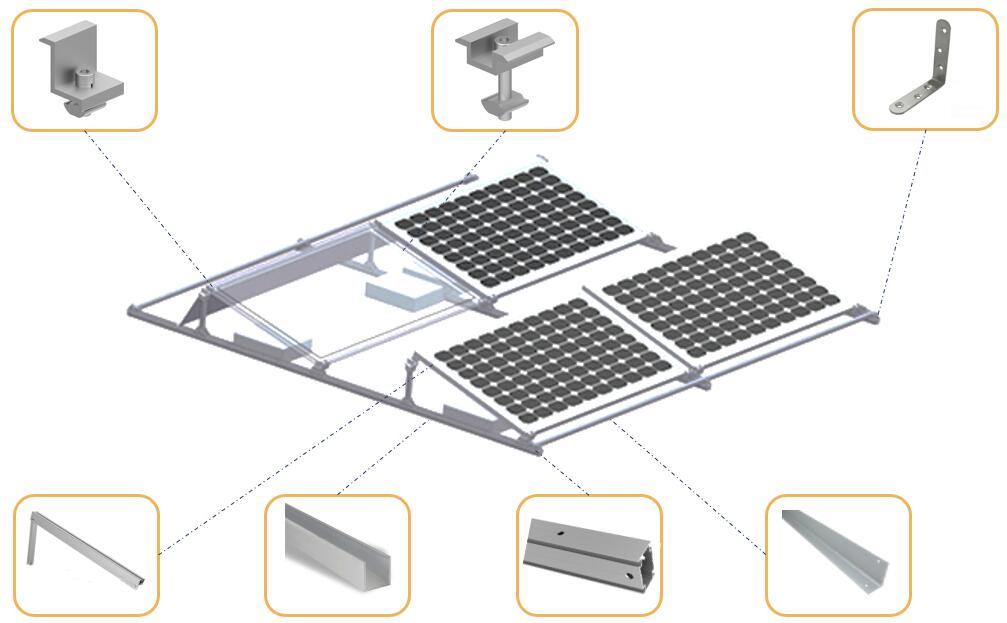

System Overview
Advantages

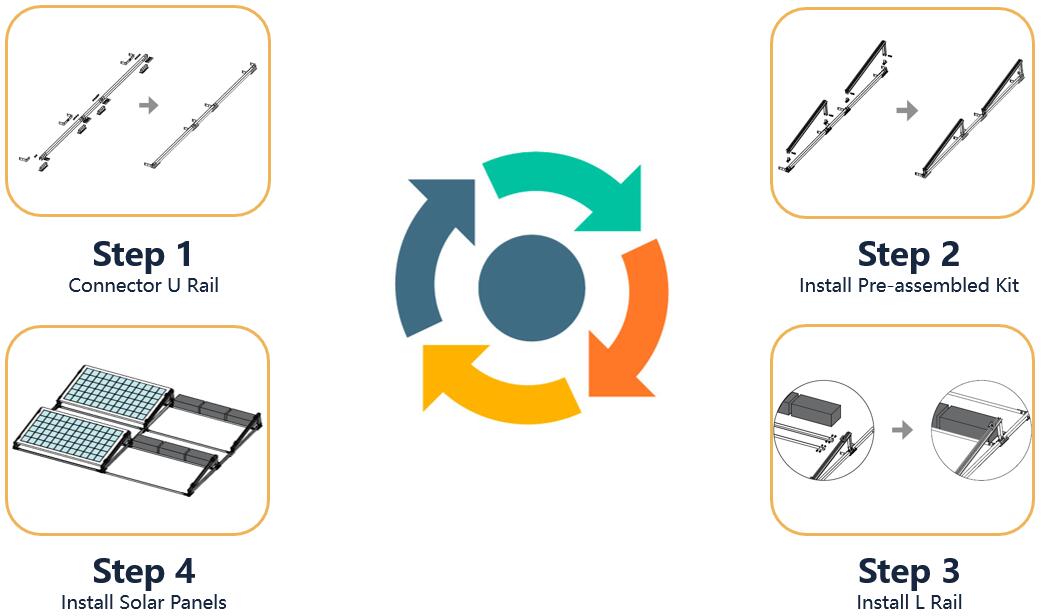

1. Quick Installation: Highly pre-assembled before shipment ensure an quicker installation work
2. Safety & Reliability: Check and test Structure strictly for the use in extreme weather condition
3. Lower Cost : Simpler design and less components make the solution more competitive
4. 15 Years Warranty: 15 years' warranty, 25 years' life span
